A1275WVA-19P

Description
Board Connector, 19 Contact(s), 1 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Black Insulator, Receptacle
CategoryThe connector    The connector
File Size76KB,1 Pages
ManufacturerJoint Tech Electronic Industrial Co., Ltd.
Download Datasheet Parametric View All

A1275WVA-19P Overview

Board Connector, 19 Contact(s), 1 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Black Insulator, Receptacle

A1275WVA-19P Parametric

Parameter NameAttribute value
MakerJoint Tech Electronic Industrial Co., Ltd.
Reach Compliance Codeunknown
ECCN codeEAR99
body width0.098 inch
subject depth0.236 inch
body length0.95 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationAU
Contact point genderMALE
Contact materialBRASS
contact modeRECTANGULAR
Contact resistance20 mΩ
Contact styleSQ PIN-SKT
Dielectric withstand voltage500VAC V
Insulation resistance5000000000 Ω
Insulator colorBLACK
insulator materialNYLON
Manufacturer's serial numberA1275
Plug contact pitch0.05 inch
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number1
Number of rows loaded1
Maximum operating temperature85 °C
Minimum operating temperature-25 °C
PCB contact patternRECTANGULAR
Plating thicknessFLASH inch
Rated current (signal)1 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.102 inch
Terminal pitch1.27 mm
Termination typeSOLDER
Total number of contacts19

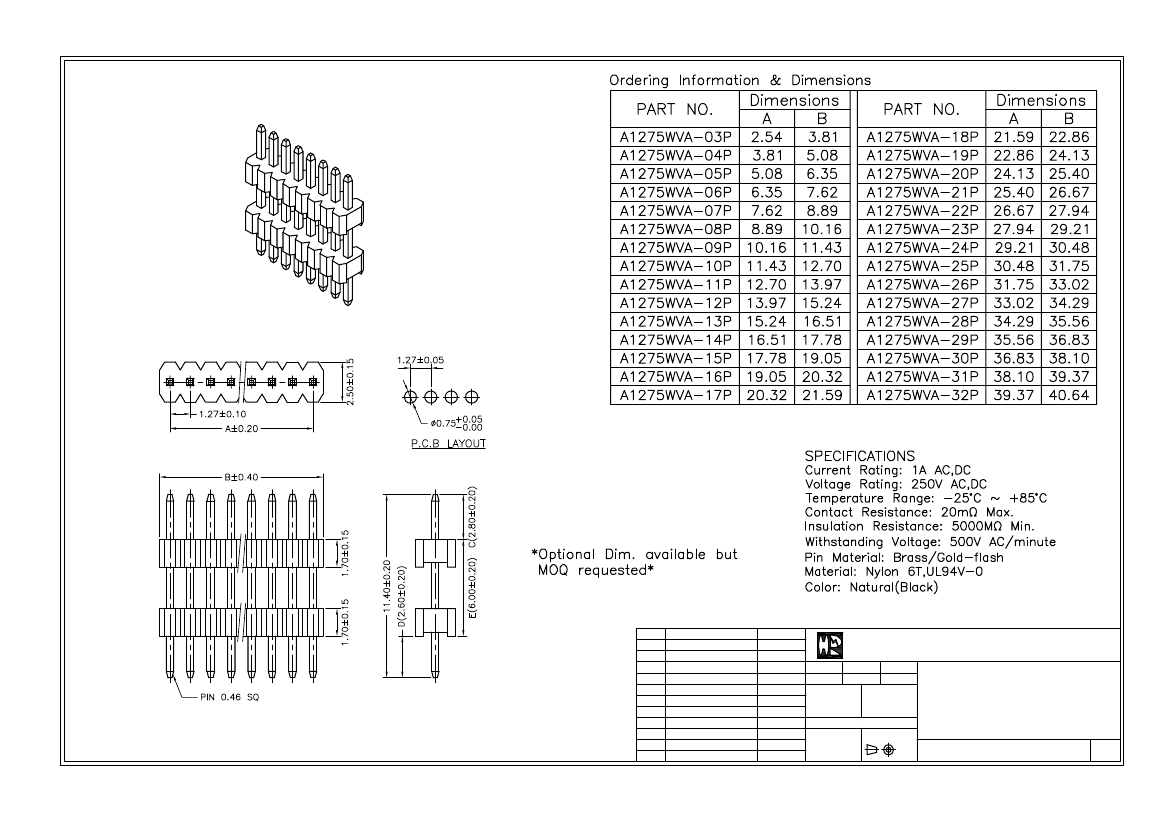

JOINT TECH ELECTRONIC IND. CO., LTD.
JOY DAY INDUSTRIAL CO., LTD.
UNIT
SCALE
SHEET
TITLE:
mm
1 of 1
DRAWN BY
APPROVED BY
董正一
董正一
2005.05.03 2005.05.03
GENERAL TOLERANCE
ANGLE±
X.X±0.25
X.XX±0.15
DRAW NO.:
X.XXX±0.05
A1275WVA-XP
B1
B0
REVISE
NEW RELEASE
2006.12.03
2005.11.22
1.27mm PITCH
180°SINGLE ROW
PIN HEADER
REV.
B1
REV.
DESCRIPTION
DATE
