SRDA70-4TE: DescriptionUNIDIRECTIONAL, 8 ELEMENT, SILICON, TVS DIODE, MS-012AA; Categorysemiconductor Discrete semiconductor; File Size217KB，6 Pages; ManufacturerSEMTECH; Websitehttp://www.semtech.com

Download Datasheet View All

SRDA70-4TE Overview

UNIDIRECTIONAL, 8 ELEMENT, SILICON, TVS DIODE, MS-012AA

Preview

Download Datasheet

View All

PROTECTION PRODUCTS

Description

RailClamps are surge rated diode arrays designed to

protect high speed data interfaces. The SRDA70-4 has

been specifically designed to protect sensitive compo-

nents which are connected to data and transmission

lines from over-voltages caused by

ESD

(electrostatic

discharge),

EFT

(electrical fast transients), and

light-

ning.

The unique design of the SRDA70-4 integrates eight

surge rated, low capacitance steering diodes in a low

profile SO-8 package. During transient conditions, the

steering diodes direct the transient to either the

positive side of the power supply line or to ground. The

SRDA70-4 may be used as a stand alone device or in

conjunction with TVS diodes for enhanced protection.

The low capacitance array configuration allows the user

to protect four high speed data or I/O lines. The low

inductance construction minimizes voltage overshoot

during high current surges.

RailClamp

Low Capacitance TVS Diode Array

Features

Transient protection for high speed data lines to

IEC 61000-4-2 (ESD) 15kV (air), 8kV (contact)

IEC 61000-4-4 (EFT) 40A (5/50ns)

IEC 61000-4-5 (Lightning) 1kV, 24A (8/20µs)

Array of surge rated diodes

Protects four I/O lines

Low capacitance for high-speed interfaces

High surge capability

Low forward voltage characteristics

Solid-state silicon avalanche technology

SRDA70-4

Mechanical Characteristics

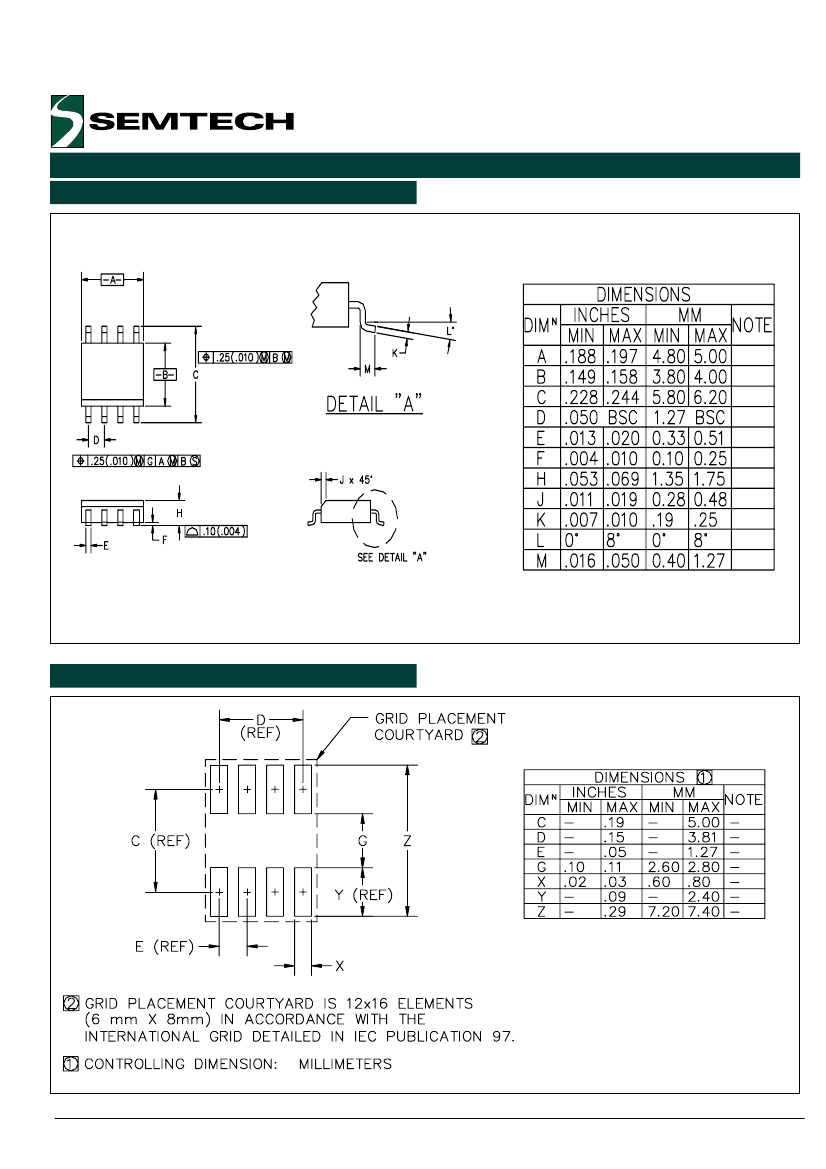

JEDEC SO-8 package

UL 497B listed

Molding compound flammability rating: UL 94V-0

Marking : Part number, date code, logo

Packaging : Tube or Tape and Reel per EIA 481

Applications

Latch-Up Protection

Microcontroller Input Protection

Token Ring

C Bus Protection

Video Line Protection

Set Top Box I/O

LAN/WAN Equipment

Circuit Diagram

Schematic & PIN Configuration

REF 1

I/O 1

REF 1

I/O 1

I/O 2

I/O 3

I/O 4

REF 2

I/O 4

I/O 3

REF 2

REF 1

I/O 2

REF 2

SO-8 (Top View)

Revision 9/2000

www.semtech.com
