8V2062B-M datasheet, PDF - EEWORLD Datasheet

8V2062B-M: DescriptionRocker Switch, DPDT, On-(on), Momentary, 0.025A, 20VDC, 10 PCB Hole Cnt, Solder Terminal, Rocker Actuator, Through Hole-straight,; CategoryMechanical and electronic products switch; File Size367KB，2 Pages; ManufacturerFujisoku Corporation

Download Datasheet Parametric Compare View All

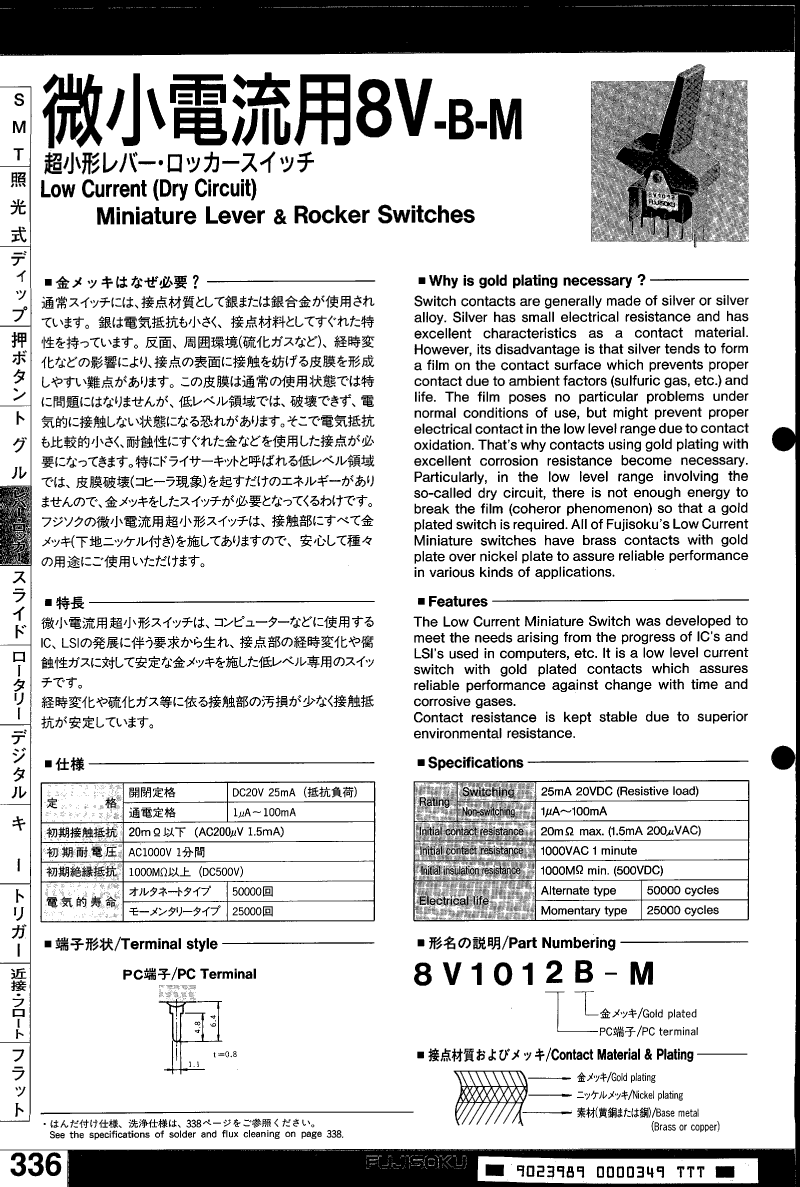

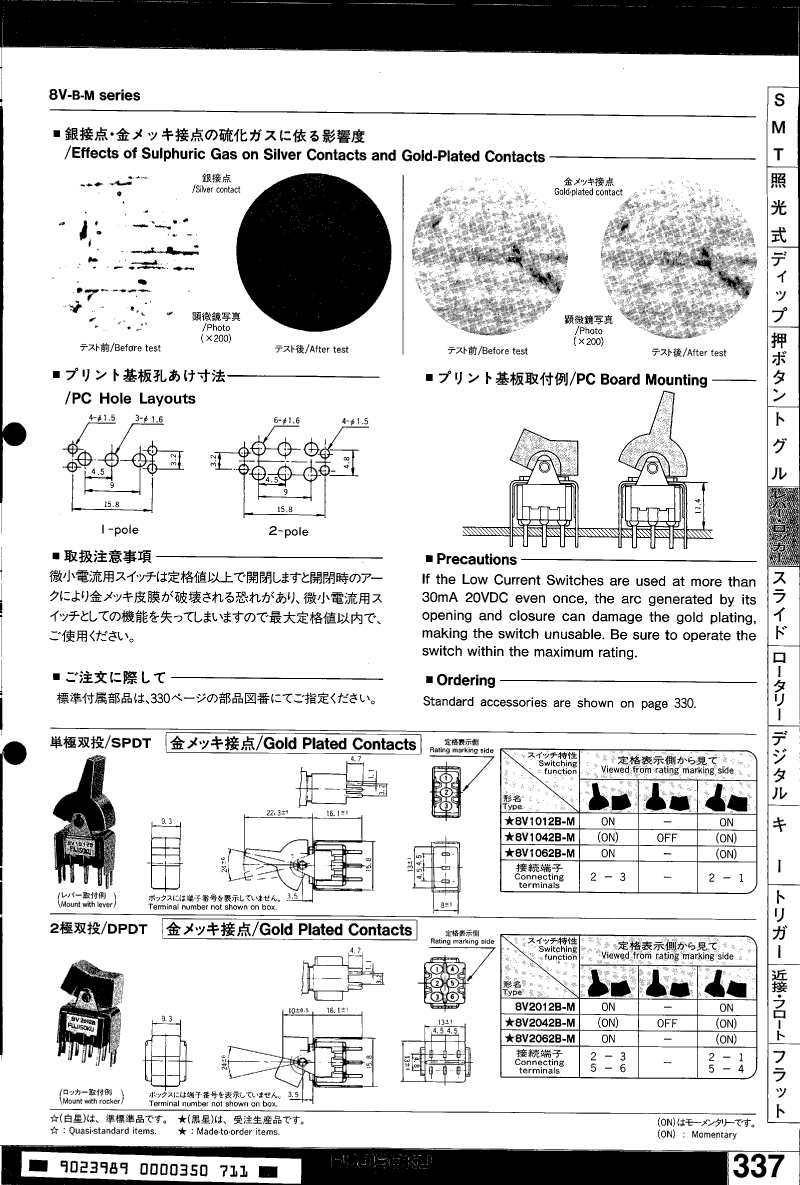

8V2062B-M Overview

Rocker Switch, DPDT, On-(on), Momentary, 0.025A, 20VDC, 10 PCB Hole Cnt, Solder Terminal, Rocker Actuator, Through Hole-straight,

Parameter Name	Attribute value
Maker	Fujisoku Corporation
Reach Compliance Code	unknown
ECCN code	EAR99
Actuator angle	24 deg
Actuator type	ROCKER
body width	13.0048 mm
body height	11.4046 mm
Body length or diameter	13.0048 mm
Center contact plating	GOLD
Maximum contact current (DC)	0.025 A
Contact (DC) maximum rated R load	0.025A@20VDC
Contact function	ON-(ON)
Contact resistance	0.02 mΩ
contact time	BREAK-BEFORE-MAKE
Maximum contact voltage (DC)	20 V
Dielectric withstand voltage	1000VAC V
Electrical life	25000 Cycle(s)
End contact plating	GOLD
Insulation resistance	1000000000 Ω
Manufacturer's serial number	8V-B-M
Installation features	THROUGH HOLE-STRAIGHT
PCB hole count	10
Solderability	HAND
surface mount	NO
Switch action	MOMENTARY
switch function	DPDT
Switch type	ROCKER SWITCH
Terminal length	0.185 inch
Termination type	SOLDER
Washability	SOLVENT

	8V2062B-M	8V2042B-M
Description	Rocker Switch, DPDT, On-(on), Momentary, 0.025A, 20VDC, 10 PCB Hole Cnt, Solder Terminal, Rocker Actuator, Through Hole-straight,	Rocker Switch, DPDT, (on)-off-(on), Momentary, 0.025A, 20VDC, 10 PCB Hole Cnt, Solder Terminal, Rocker Actuator, Through Hole-straight,
Maker	Fujisoku Corporation	Fujisoku Corporation
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Actuator angle	24 deg	24 deg
Actuator type	ROCKER	ROCKER
body width	13.0048 mm	13.0048 mm
body height	11.4046 mm	11.4046 mm
Body length or diameter	13.0048 mm	13.0048 mm
Center contact plating	GOLD	GOLD
Maximum contact current (DC)	0.025 A	0.025 A
Contact (DC) maximum rated R load	0.025A@20VDC	0.025A@20VDC
Contact function	ON-(ON)	(ON)-OFF-(ON)
Contact resistance	0.02 mΩ	0.02 mΩ
contact time	BREAK-BEFORE-MAKE	BREAK-BEFORE-MAKE
Maximum contact voltage (DC)	20 V	20 V
Dielectric withstand voltage	1000VAC V	1000VAC V
Electrical life	25000 Cycle(s)	25000 Cycle(s)
End contact plating	GOLD	GOLD
Insulation resistance	1000000000 Ω	1000000000 Ω
Manufacturer's serial number	8V-B-M	8V-B-M
Installation features	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT
PCB hole count	10	10
Solderability	HAND	HAND
surface mount	NO	NO
Switch action	MOMENTARY	MOMENTARY
switch function	DPDT	DPDT
Switch type	ROCKER SWITCH	ROCKER SWITCH
Terminal length	0.185 inch	0.185 inch
Termination type	SOLDER	SOLDER
Washability	SOLVENT	SOLVENT
