3009W4PAR99A30X

Description
D Subminiature Connector
CategoryThe connector    The connector
File Size113KB，2 Pages
ManufacturerCONEC
Websitehttp://www.conec.com
Download Datasheet Parametric Compare View All

3009W4PAR99A30X Overview

D Subminiature Connector

3009W4PAR99A30X Parametric

Parameter NameAttribute value
MakerCONEC
Reach Compliance Codecompliant
Connector typeD SUBMINIATURE CONNECTOR
Manufacturer's serial number3

Preview

Download Datasheet

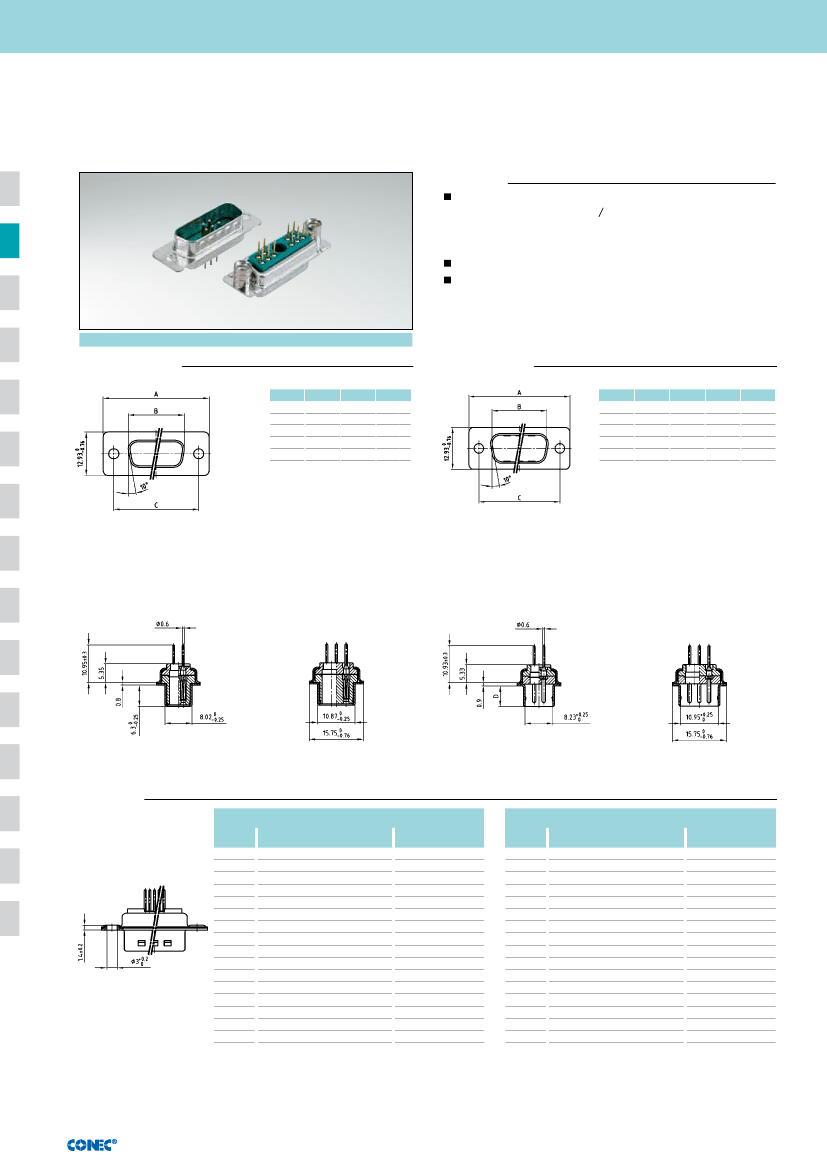

C ombi n ati o n D- S UB Co nn e ctors
Combination D-SUB with signal contacts
Solder pin – Straight – Precision machined contacts
Description
Mounting styles:
- with through-hole, Ø .118" 3 mm
- with 4-40 UNC or M3 threaded insert
- with 4-40 UNC or M3 threaded rear spacer
Quality class 3 (also available in quality class 1)
Shell: Steel tin plated
(brass tin plated or stainless steel available on request)
RoHS compliant – CSA listed, File No.: LR 115000-1–UL listed, File No.: E 228329
Socket connector
Shellsize
1
2
3
4
5
Plug connector
A
-0.76
31.19
39.52
53.42
69.70
67.31
B
-0.25
16.46
24.79
38.50
54.96
52.55
c
25.00
33.30
47.04
63.50
61.10
+ 0.12
- 0.13
+ 0.15
- 0.10
± 0.13
± 0.13
+ 0.14
- 0.11
Shellsize
1
2
3
4
5
A
-0.76
31.19
39.52
53.42
69.70
67.31
B
+0.25
16.79
25.12
38.84
55.30
52.68
c
25.00
33.30
47.04
63.50
61.10
+ 0.12
- 0.13
+ 0.15
- 0.10
± 0.13
± 0.13
+ 0.14
- 0.11
D
-0.30
6.12
6.12
5.99
5.99
5.99
Shell size 1-4
Shell size 5
Shell size 1-4
Shell size 5
Order data
Socket connector
Design
5W1
7W2
11W1
9W4
13W3
17W2
21W1
13W6
17W5
21WA4
25W3
27W2
24W7
36W4
43W2
47W1
Mounting style
Through-hole
Through-hole
Through-hole
Through-hole
Through-hole
Through-hole
Through-hole
Through-hole
Through-hole
Through-hole
Through-hole
Through-hole
Through-hole
Through-hole
Through-hole
Through-hole
Part number
3005W1SAR99A10X
3007W2SAR99A10X
3011W1SAR99A10X
3009W4SAR99A10X
3013W3SAR99A10X
3017W2SAR99A10X
3021W1SAR99A10X
3013W6SAR99A10X
3017W5SAR99A10X
321WA4SAR99A10X
3025W3SAR99A10X
3027W2SAR99A10X
3024W7SAR99A10X
3036W4SAR99A10X
3043W2SAR99A10X
3047W1SAR99A10X
Plug connector
Design
5W1
7W2
11W1
9W4
13W3
17W2
21W1
13W6
17W5
21WA4
25W3
27W2
24W7
36W4
43W2
47W1
Mounting style
Through-hole
Through-hole
Through-hole
Through-hole
Through-hole
Through-hole
Through-hole
Through-hole
Through-hole
Through-hole
Through-hole
Through-hole
Through-hole
Through-hole
Through-hole
Through-hole
Part number
3005W1PAR99A10X
3007W2PAR99A10X
3011W1PAR99A10X
3009W4PAR99A10X
3013W3PAR99A10X
3017W2PAR99A10X
3021W1PAR99A10X
3013W6PAR99A10X
3017W5PAR99A10X
321WA4PAR99A10X
3025W3PAR99A10X
3027W2PAR99A10X
3024W7PAR99A10X
3036W4PAR99A10X
3043W2PAR99A10X
3047W1PAR99A10X
