LT25-J6CGE2

Description
Rocker Switch, DPDT, (on)-off-(on), Momentary, 3A, 28VDC, 6 PCB Hole Cnt, Solder Terminal, Rocker Actuator, Through Hole-straight
CategoryMechanical and electronic products    switch
File Size923KB，1 Pages
ManufacturerLamb Industries
Download Datasheet Parametric Compare View All

LT25-J6CGE2 Overview

Rocker Switch, DPDT, (on)-off-(on), Momentary, 3A, 28VDC, 6 PCB Hole Cnt, Solder Terminal, Rocker Actuator, Through Hole-straight

LT25-J6CGE2 Parametric

Parameter NameAttribute value
MakerLamb Industries
Reach Compliance Codeunknown
ECCN codeEAR99
Actuator angle
Actuator colorBLACK
Actuator length0.388 inch
Actuator materialPOLYAMIDE
Actuator typeROCKER
Other featuresNARROW ACTUATOR
body width9.1948 mm
body height8.9916 mm
Body length or diameter8.3058 mm
center contact materialCOPPER
Center contact platingGOLD OVER SILVER
Contact (AC) maximum rated R load1.5A@250VAC
Maximum contact current (AC)1.5 A
Maximum contact current (DC)3 A
Contact (DC) maximum rated R load3A@28VDC
Contact function(ON)-OFF-(ON)
Contact resistance0.02 mΩ
Maximum contact voltage (AC)250 V
Maximum contact voltage (DC)28 V
Dielectric withstand voltage1500VAC V
Electrical life50000 Cycle(s)
End contact materialCOPPER
End contact platingGOLD OVER SILVER
Insulation resistance1000000000 Ω
insulator materialGLASS FILLED POLYAMIDE
Manufacturer's serial numberLT25
Installation featuresTHROUGH HOLE-STRAIGHT
Maximum operating temperature85 °C
Minimum operating temperature-30 °C
PCB hole count6
sealEPOXY
surface mountNO
Switch actionMOMENTARY
switch functionDPDT
Switch typeROCKER SWITCH
Terminal length0.122 inch
Terminal materialCOPPER ALLOY
Termination typeSOLDER

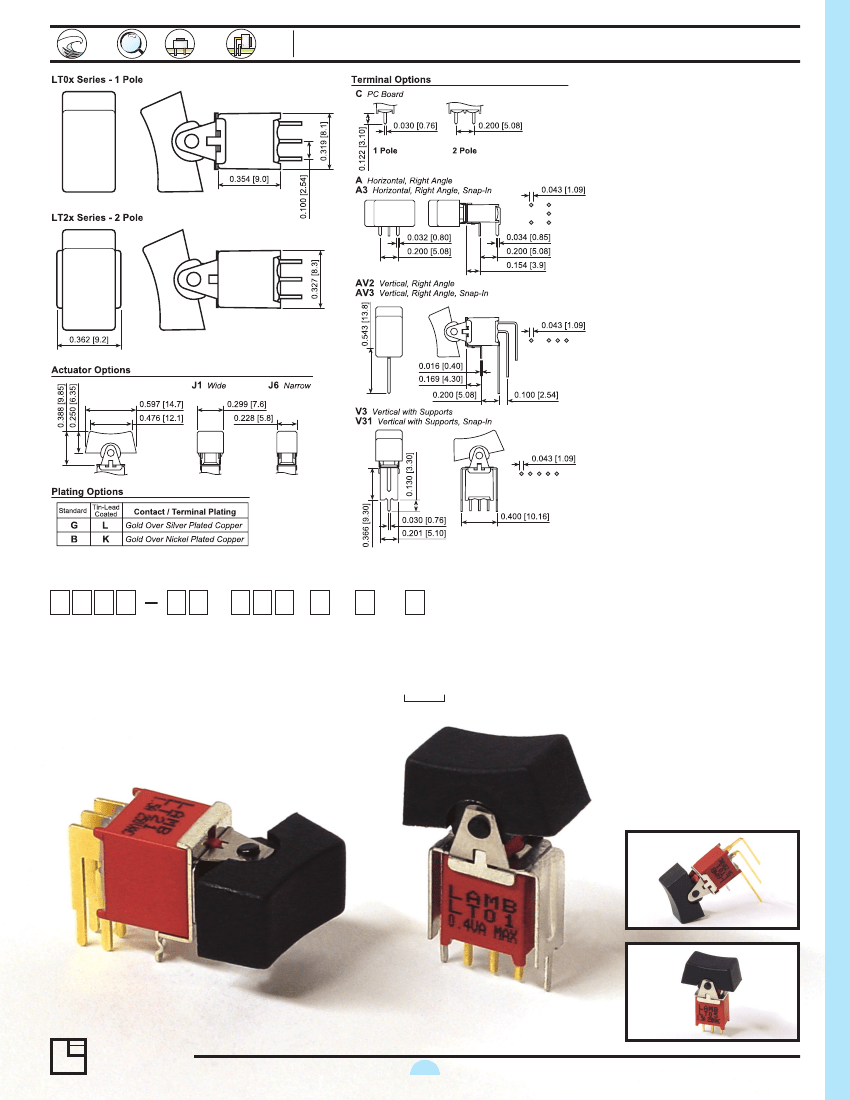

Preview

Download Datasheet
Water
Protection
Tiny
Switch
Standard
PCB Mount
Right Angle
PCB Mount
LT00-Series
The
LT00-Series
rocker switch is the
miniature version of the L000-Series.
Sealed against soldering and washing
along with various mounting options, this
switch is perfect for PC board applica-
tions.
SPECIFICATIONS:
R
ATING
:
G
AND
L T
ERMINAL
P
LATING
:
3A 125VAC
1.5A 250VAC
3A 28VDC
B
AND
K T
ERMINAL
P
LATING
:
0.4VA Max. at 20V AC or DC Max.
T
EMPERATURE
:
-30°C to 85°C
E
LECTRICAL
L
IFE
:
50,000 Cycles
W
ITHSTAND
V
OLTAGE
:
1,500VAC for 1 Minute
I
NSULATION
R
ESISTANCE
:
1,000MΩ
C
ONTACT
R
ESISTANCE
:
20mΩ at 100mA 4VDC
I
NTRUSION
P
ROTECTION
:
IP67 Standard
R
OCKER
MATERIALS:
B
ODY
:
Glass Filled Polyamide 6/6, UL 94V-0
A
CTUATOR
:
Polyamide 6/6, UL 94V-0
P
IVOT
:
Chrome Plated Brass
S
UPPORT
:
Tin Plated Brass
C
ONTACTS
:
See Options
T
ERMINALS
:
See Options
Series
Actuator
Options
Terminal
Options
Plating
Option
Epoxy
Sealing
Actuator
Color
PART NUMBER EXAMPLES:
1 Pole:
LT01
- On-On
LT03
- On-Off-On
LT05
- (On)-Off-(On)
LT07
- On-Off-(On)
LT08
- On-(On) End-End
2 Pole:
LT21
- On-On
LT23
- On-Off-On
LT25
- (On)-Off-(On)
LT27
- On-Off-(On)
LT28
- On-(On) End-End
J1
J6
Standard:
C
Z
PC Board:
A
AV2
V3
Snap-In:
A3
AV3
V31
Standard:
G
B
Tin-Lead:
L
K
E
- Sealed
1
- White
2
- Black
3
- Red
4
- Orange
5
- Yellow
6
- Green
7
- Blue
8
- Brown
9
- Grey
Custom Colors
Available upon Request
LT21-J1A3GE2:
Photo A
2 Pole, On-On, 3A 125VAC, black wide
actuator, gold over silver plated, epoxy
sealed, snap-in horizontal right angle PCB
terminals.
LT01-J1V3BE2:
Photo B
1 Pole, On-On, 0.4VA 20V, black wide
actuator, gold over nickel plated, epoxy
sealed, supported PCB terminals.
LT01-J6AV2GE2:
Photo C
1 Pole, On-On, 3A 125VAC, black narrow
actuator, gold over silver plated, epoxy
sealed, vertical right angle PCB terminals.
LT05-J1CGE2:
Photo D
1 Pole, (On)-Off-(On), 3A 125VAC, black
wide actuator, gold over silver plated,
epoxy sealed, PCB terminals.
C
A
B
D
LAMB
INDUSTRIES
21
Portland, OR USA

LT25-J6CGE2 Related Products

LT25-J6CGE2 LT05-J1CGE2 LT05-J6CGE2 LT25-J1CGE2 LT25-J1CBE2 LT25-J6CBE2 LT03-J1CBE2 LT03-J6CGE2
Description Rocker Switch, DPDT, (on)-off-(on), Momentary, 3A, 28VDC, 6 PCB Hole Cnt, Solder Terminal, Rocker Actuator, Through Hole-straight Rocker Switch, SPDT, (on)-off-(on), Momentary, 3A, 28VDC, 3 PCB Hole Cnt, Solder Terminal, Rocker Actuator, Through Hole-straight Rocker Switch, SPDT, (on)-off-(on), Momentary, 3A, 28VDC, 3 PCB Hole Cnt, Solder Terminal, Rocker Actuator, Through Hole-straight Rocker Switch, DPDT, (on)-off-(on), Momentary, 3A, 28VDC, 6 PCB Hole Cnt, Solder Terminal, Rocker Actuator, Through Hole-straight Rocker Switch, DPDT, (on)-off-(on), Momentary, 6 PCB Hole Cnt, Solder Terminal, Rocker Actuator, Through Hole-straight Rocker Switch, DPDT, (on)-off-(on), Momentary, 6 PCB Hole Cnt, Solder Terminal, Rocker Actuator, Through Hole-straight Rocker Switch, SPDT, On-off-on, Maintained, 3 PCB Hole Cnt, Solder Terminal, Rocker Actuator, Through Hole-straight Rocker Switch, SPDT, On-off-on, Maintained, 3A, 28VDC, 3 PCB Hole Cnt, Solder Terminal, Rocker Actuator, Through Hole-straight
Reach Compliance Code unknown unknown unknown unknown unknown unknown unknown unknown
ECCN code EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99
Actuator color BLACK BLACK BLACK BLACK BLACK BLACK BLACK BLACK
Actuator length 0.388 inch 0.388 inch 0.388 inch 0.388 inch 0.388 inch 0.388 inch 0.388 inch 0.388 inch
Actuator material POLYAMIDE POLYAMIDE POLYAMIDE POLYAMIDE POLYAMIDE POLYAMIDE POLYAMIDE POLYAMIDE
Actuator type ROCKER ROCKER ROCKER ROCKER ROCKER ROCKER ROCKER ROCKER
Other features NARROW ACTUATOR WIDE ACTUATOR NARROW ACTUATOR WIDE ACTUATOR WIDE ACTUATOR NARROW ACTUATOR WIDE ACTUATOR NARROW ACTUATOR
body width 9.1948 mm 5.1054 mm 5.1054 mm 9.1948 mm 9.1948 mm 9.1948 mm 5.1054 mm 5.1054 mm
body height 8.9916 mm 8.9916 mm 8.9916 mm 8.9916 mm 8.9916 mm 8.9916 mm 8.9916 mm 8.9916 mm
Body length or diameter 8.3058 mm 8.1026 mm 8.1026 mm 8.3058 mm 8.3058 mm 8.3058 mm 8.1026 mm 8.1026 mm
center contact material COPPER COPPER COPPER COPPER COPPER COPPER COPPER COPPER
Center contact plating GOLD OVER SILVER GOLD OVER SILVER GOLD OVER SILVER GOLD OVER SILVER GOLD OVER NICKEL GOLD OVER NICKEL GOLD OVER NICKEL GOLD OVER SILVER
Contact function (ON)-OFF-(ON) (ON)-OFF-(ON) (ON)-OFF-(ON) (ON)-OFF-(ON) (ON)-OFF-(ON) (ON)-OFF-(ON) ON-OFF-ON ON-OFF-ON
Contact resistance 0.02 mΩ 0.02 mΩ 0.02 mΩ 0.02 mΩ 0.02 mΩ 0.02 mΩ 0.02 mΩ 0.02 mΩ
Dielectric withstand voltage 1500VAC V 1500VAC V 1500VAC V 1500VAC V 1500VAC V 1500VAC V 1500VAC V 1500VAC V
Electrical life 50000 Cycle(s) 50000 Cycle(s) 50000 Cycle(s) 50000 Cycle(s) 50000 Cycle(s) 50000 Cycle(s) 50000 Cycle(s) 50000 Cycle(s)
End contact material COPPER COPPER COPPER COPPER COPPER COPPER COPPER COPPER
End contact plating GOLD OVER SILVER GOLD OVER SILVER GOLD OVER SILVER GOLD OVER SILVER GOLD OVER NICKEL GOLD OVER NICKEL GOLD OVER NICKEL GOLD OVER SILVER
Insulation resistance 1000000000 Ω 1000000000 Ω 1000000000 Ω 1000000000 Ω 1000000000 Ω 1000000000 Ω 1000000000 Ω 1000000000 Ω
insulator material GLASS FILLED POLYAMIDE GLASS FILLED POLYAMIDE GLASS FILLED POLYAMIDE GLASS FILLED POLYAMIDE GLASS FILLED POLYAMIDE GLASS FILLED POLYAMIDE GLASS FILLED POLYAMIDE GLASS FILLED POLYAMIDE
Manufacturer's serial number LT25 LT05 LT05 LT25 LT25 LT25 LT03 LT03
Installation features THROUGH HOLE-STRAIGHT THROUGH HOLE-STRAIGHT THROUGH HOLE-STRAIGHT THROUGH HOLE-STRAIGHT THROUGH HOLE-STRAIGHT THROUGH HOLE-STRAIGHT THROUGH HOLE-STRAIGHT THROUGH HOLE-STRAIGHT
Maximum operating temperature 85 °C 85 °C 85 °C 85 °C 85 °C 85 °C 85 °C 85 °C
Minimum operating temperature -30 °C -30 °C -30 °C -30 °C -30 °C -30 °C -30 °C -30 °C
PCB hole count 6 3 3 6 6 6 3 3
seal EPOXY EPOXY EPOXY EPOXY EPOXY EPOXY EPOXY EPOXY
surface mount NO NO NO NO NO NO NO NO
Switch action MOMENTARY MOMENTARY MOMENTARY MOMENTARY MOMENTARY MOMENTARY MAINTAINED MAINTAINED
switch function DPDT SPDT SPDT DPDT DPDT DPDT SPDT SPDT
Switch type ROCKER SWITCH ROCKER SWITCH ROCKER SWITCH ROCKER SWITCH ROCKER SWITCH ROCKER SWITCH ROCKER SWITCH ROCKER SWITCH
Terminal length 0.122 inch 0.122 inch 0.122 inch 0.122 inch 0.122 inch 0.122 inch 0.122 inch 0.122 inch
Terminal material COPPER ALLOY COPPER ALLOY COPPER ALLOY COPPER ALLOY COPPER ALLOY COPPER ALLOY COPPER ALLOY COPPER ALLOY
Termination type SOLDER SOLDER SOLDER SOLDER SOLDER SOLDER SOLDER SOLDER
Maker Lamb Industries Lamb Industries Lamb Industries Lamb Industries Lamb Industries Lamb Industries - -
Contact (AC) maximum rated R load 1.5A@250VAC 1.5A@250VAC 1.5A@250VAC 1.5A@250VAC - - - 1.5A@250VAC
Maximum contact current (AC) 1.5 A 1.5 A 1.5 A 1.5 A - - - 1.5 A
Maximum contact current (DC) 3 A 3 A 3 A 3 A - - - 3 A
Contact (DC) maximum rated R load 3A@28VDC 3A@28VDC 3A@28VDC 3A@28VDC - - - 3A@28VDC
Maximum contact voltage (AC) 250 V 250 V 250 V 250 V - - - 250 V
Maximum contact voltage (DC) 28 V 28 V 28 V 28 V - - - 28 V
