STL2/15-0370GTT-C-10RU: DescriptionBoard Connector, 10 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Kinked Leads Terminal, Receptacle; CategoryThe connector The connector; File Size164KB，1 Pages; ManufacturerMPE-Garry GmbH; Environmental Compliance

Download Datasheet Parametric Compare View All

STL2/15-0370GTT-C-10RU Overview

Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Kinked Leads Terminal, Receptacle

STL2/15-0370GTT-C-10RU Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	MPE-Garry GmbH
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.197 inch
subject depth	0.272 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	Tin (Sn)
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	STAGGERED
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
insulator material	THERMOPLASTIC
JESD-609 code	e3
Manufacturer's serial number	640
Plug contact pitch	0.1 inch
Match contact row spacing	0.059 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.54 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.54 mm
Termination type	SOLDER KINKED LEADS
Total number of contacts	10

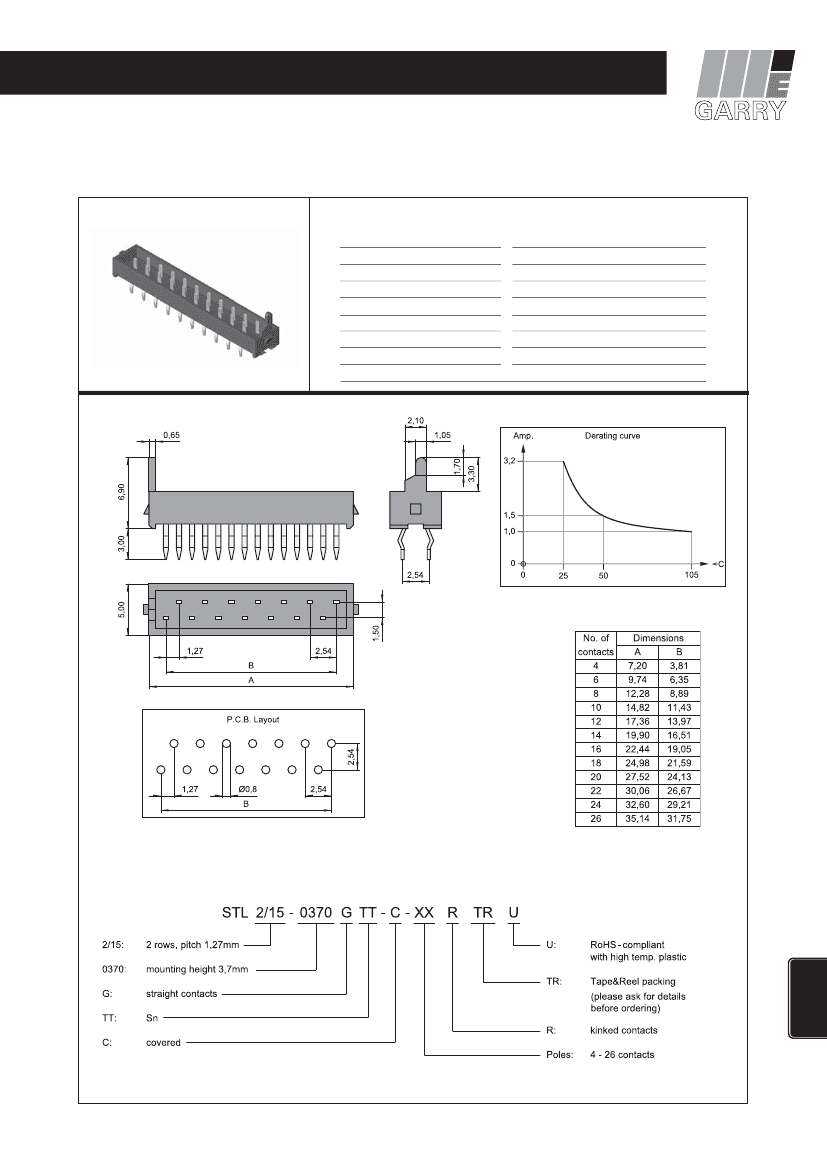

STL2/15-0370GTT-C-10RU Preview

PRODUCT GROUP 14 -

WIRE-TO-BOARD-CONNECTORS

PIN HEADER SOLDER 1,27 mm

ID: 373

STL 2/15-0370GTT

Series 640

TECHNICAL DATA

Pitch

1,27 mm

Insulating Material

high temp. thermoplast UL94V-0

Contact Material

phosphor bronze

Rated Current

1 Amp.

Rated Voltage

230 V

AC/DC

Withstanding Voltage

500 V

AC

for one minute

Operating Temperature

-40°C to +105°C

Maximum Soldering Temperature

260°C for 10 seconds

Suitable for termination with AWG 28 [0.08 - 0.09 mm

2

] flat ribbon cable

All dimensions in mm.

Other dimensions upon request.

MPE-Garry GmbH · Schäfflerstraße 13 · 87629 Füssen · Germany · Tel.: +49 (0) 83 62 / 91 56-0 · Fax.: +49 (0) 83 62 / 91 56-520

e-mail: vk@mpe-connector.de · www.mpe-connector.de

323

14

| 1,27 mm
