5501M312 datasheet, PDF - EEWORLD Datasheet

5501M312: DescriptionPUSHBUTTON SWITCH,STRAIGHT,SPDT,PC TAIL TERMINAL,10; CategoryMechanical and electronic products switch; File Size42KB，1 Pages; ManufacturerE-Switch; Websitehttp://www.e-switch.com

Download Datasheet Parametric Compare View All

5501M312 Overview

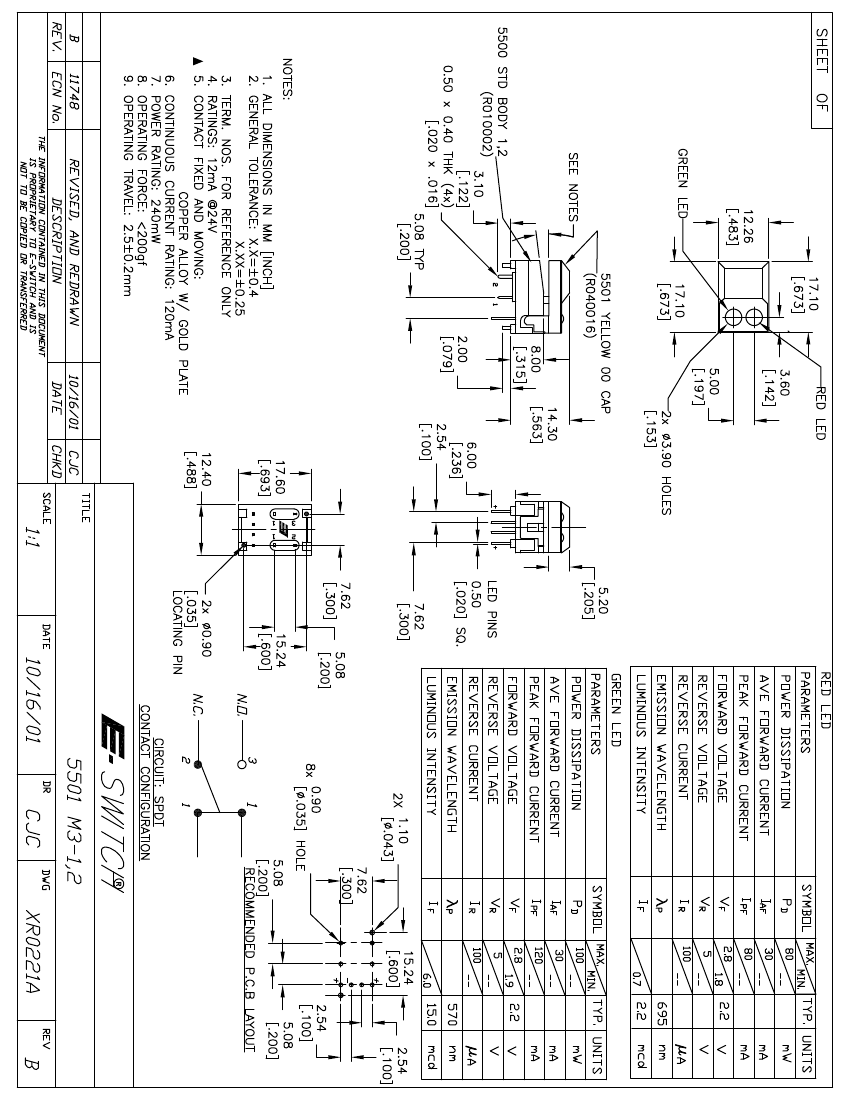

PUSHBUTTON SWITCH,STRAIGHT,SPDT,PC TAIL TERMINAL,10

Parameter Name	Attribute value
Maker	E-Switch
Reach Compliance Code	compliant
Actuator color	YELLOW
Actuator length	0.248 inch
Actuator stroke	2.4892 mm
Actuator type	PUSHBUTTON
Other features	RED & GREEN LED COLOR
body width	12.3952 mm
body height	8.001 mm
Body length or diameter	17.6022 mm
center contact material	COPPER ALLOY
Center contact plating	GOLD OVER NICKEL
Maximum contact current (DC)	0.3 A
Contact (DC) maximum rated R load	0.3A@12VDC
Contact resistance	0.05 mΩ
Maximum contact voltage (DC)	12 V
Dielectric withstand voltage	1000VRMS V
Electrical life	500000 Cycle(s)
End contact material	COPPER ALLOY
End contact plating	GOLD OVER NICKEL
Shell material	NYLON
illumination	LED
Insulation resistance	50000000 Ω
Manufacturer's serial number	55
Installation features	THROUGH HOLE-STRAIGHT
Maximum operating temperature	65 °C
Minimum operating temperature	-25 °C
PCB hole count	10
surface mount	NO
Switch action	MOMENTARY
switch function	SPDT
Terminal surface	GOLD/NICKEL
Terminal length	0.122 inch
Terminal material	COPPER ALLOY
Termination type	SOLDER

	5501M312	5501M3-1,2
Description	PUSHBUTTON SWITCH,STRAIGHT,SPDT,PC TAIL TERMINAL,10	Pushbutton Switch, SPDT, Momentary, 0.3A, 12VDC, 10 PCB Hole Cnt, Solder Terminal, Through Hole-straight
Maker	E-Switch	E-Switch
Reach Compliance Code	compliant	compliant
Actuator color	YELLOW	YELLOW
Actuator length	0.248 inch	0.248 inch
Actuator stroke	2.4892 mm	2.4892 mm
Actuator type	PUSHBUTTON	PUSHBUTTON
Other features	RED & GREEN LED COLOR	RED & GREEN LED COLOR
body width	12.3952 mm	12.3952 mm
body height	8.001 mm	8.001 mm
Body length or diameter	17.6022 mm	17.6022 mm
center contact material	COPPER ALLOY	COPPER ALLOY
Center contact plating	GOLD OVER NICKEL	GOLD OVER NICKEL
Maximum contact current (DC)	0.3 A	0.3 A
Contact (DC) maximum rated R load	0.3A@12VDC	0.3A@12VDC
Contact resistance	0.05 mΩ	0.05 mΩ
Maximum contact voltage (DC)	12 V	12 V
Dielectric withstand voltage	1000VRMS V	1000VRMS V
Electrical life	500000 Cycle(s)	500000 Cycle(s)
End contact material	COPPER ALLOY	COPPER ALLOY
End contact plating	GOLD OVER NICKEL	GOLD OVER NICKEL
Shell material	NYLON	NYLON
illumination	LED	LED
Insulation resistance	50000000 Ω	50000000 Ω
Manufacturer's serial number	55	5501M3-1,2
Installation features	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT
Maximum operating temperature	65 °C	65 °C
Minimum operating temperature	-25 °C	-25 °C
PCB hole count	10	10
surface mount	NO	NO
Switch action	MOMENTARY	MOMENTARY
switch function	SPDT	SPDT
Terminal length	0.122 inch	0.122 inch
Terminal material	COPPER ALLOY	COPPER ALLOY
Termination type	SOLDER	SOLDER
