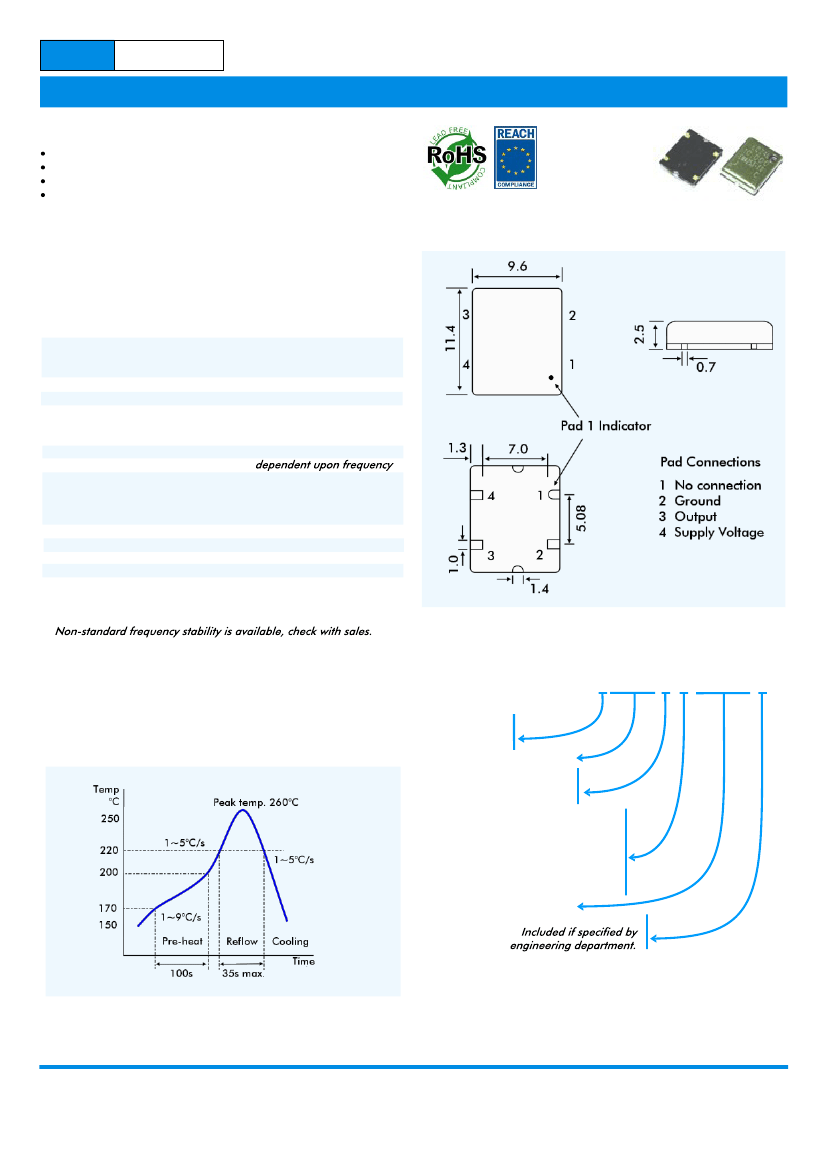

EURO
QUARTZ
11.4 x 9.6 x 2.5mm SMD
FEATURES
Sine Wave output in standard 11.4 x 9.6 x 2.5mm package
High purity and low total harmonic distortion
Ideal for audio modulation applications
Supply Voltage 2.8V, 3.3V or 5.0V
DESCRIPTION
HSR42 sine wave clock oscillators provide a true sine wave output.
Packaged in the standard, 11.4 x 9.6 x 2.5mm SMD package, the
oscillator is capable of being produced with close tolerances.
HSR42 Sine Wave Oscillators
10.0MHz to 30.0MHz
OUTLINE & DIMENSIONS
SPECIFICATION
Frequency Range:
Input Voltage:
Output Wave Form:
Load:
Frequency Stability
0°~70°C:
-40° ~+85°C:
Output Level:
Harmonics:
Current Consumption
At 2.8V:
At 3.3V:
At 5.0V:
Start-up Time:
Storage Temperature:
Sub-Harmonics:
Ageing:
Environmental:
10.0MHz to 30.0MHz
+2.8V±5%, +3.3V±5%
or +5.0VDC ±10%
True sine wave
10kΩ//10pF
±25ppm, ±50ppm or ±100ppm*
±25ppm, ±50ppm or ±100ppm*
1.0V p-p typical
<-25dBc (
1.0mA
1.5mA
1.2mA
2ms typical
-55° to +125°C
None
±5ppm/year maximum
RoHS Compliant standard. (Non-
compliant versions are available.
)
*
PART NUMBERING
Example:
3HSR42G-B-25.000-X
SOLDER TEMPERATURE PROFILE
Supply Voltage
28 = 2.8 Volts
3 = 3.3 Volts
5 = 5.0 Volts
Series Designation HSR42
RoHS
G = Compliant
Blank = Non-compliant
Stability
A = ±25ppm 0° to +70°C
B = ±50ppm 0° to +70°C
C = ±100ppm 0° to +70°C
D = ±25ppm -40° to +85°C
E = ±50ppm -40° to +85°C
F = ±100ppm -40° to +85°C
Frequency (MHz)
Customer-Specific Code
(
)
EUROQUARTZ LIMITED Blacknell Lane CREWKERNE Somerset UK TA18 7HE
Tel: +44 (0)1460 230000 Fax: +44 (0)1460 230001 info@euroquartz.co.uk www.euroquartz.co.uk
