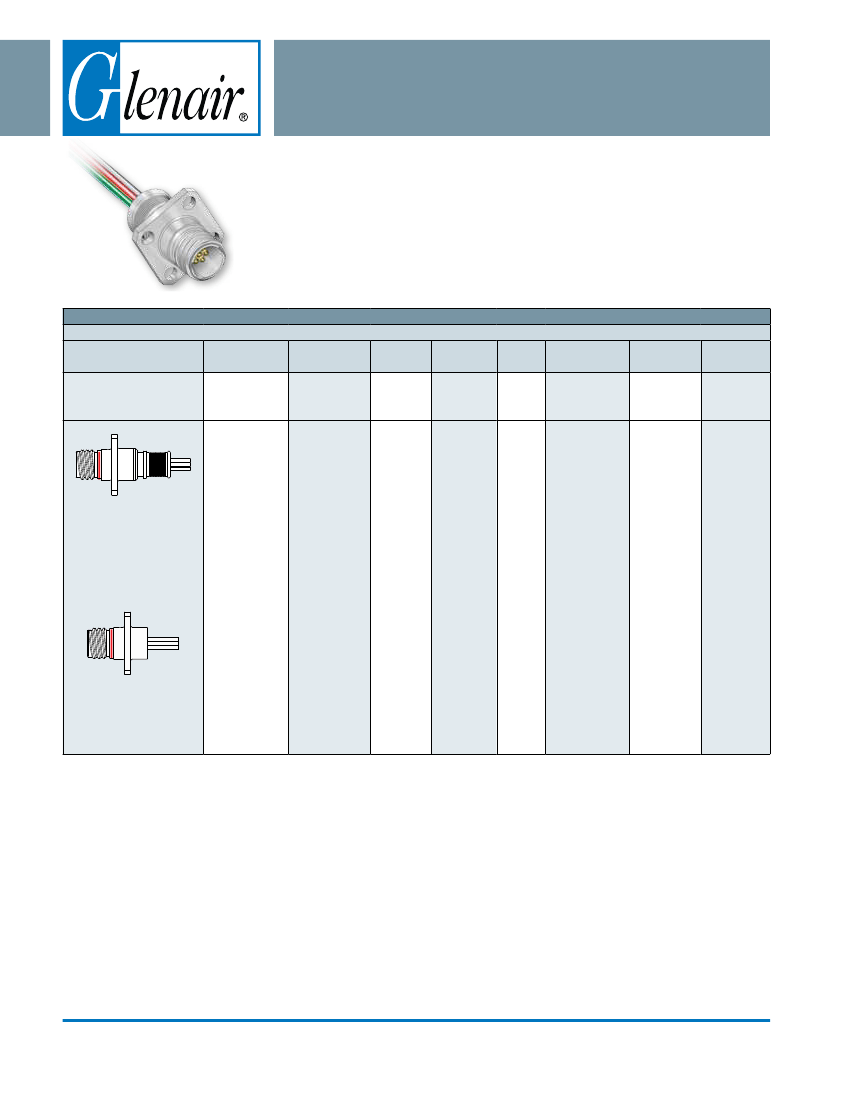

Series 811 Mighty Mouse High Density (HD)
Pre-Wired Square Flange Receptacle Connectors
811-003-02 and 811-004-02
Mighty Mouse
High Density
Square Flange Pigtail Receptacles
Series 811 Mighty Mouse High Density panel mount receptacles feature damage-
resistant double-start ACME mating threads. These receptacles are factory-terminated
to insulated wire and backpotted with epoxy. The TwistPin contact system meets
requirements of MIL-DTL-83513 and provides outstanding resistance to high levels of
shock and vibration. Choose Type K general purpose Teflon® wire or Type J lightweight
space-grade Tefzel® wire. 3A current rating, 600 VAC dielectric withstanding voltage.
HoW To oRDER SERIES 811 SqUARE FLANGE PIGTAIL RECEPTACLES
Sample Part Number
811-003-02
Series
MT
Shell
Material
and Finish
Electroless
Nickel
5-7
P
A
6
Wire
Size
#26
#28
(Color
code
1 or 7
only)
K
Wire Type
PTFE
insulation,
silver-coated,
200°C,
(M22759/11)
7
Wire
Color
White
-18
Wire
Length
(Inches)
Shell Size - Contact
Key
Insert Arr.
Type
Position
7 Contacts
12 Contacts
22 Contacts
30 Contacts
42 Contacts
ME
MT
ZR
5-7
6-12
7-22
Pin
Contacts
Socket
Contacts
P
S
Normal
Alternate
Key
Positions
A
6
K
1
5
8
Panel Mount Square
Flange Receptacle
Connector with
Termination Platform for
Shield Attachment or
Overmolding
811-003-02
Nickel-PTFE
Black Zinc-
Nickel
8-30
9-42
b
C
D
E
F
Low Profile Panel
Mount Square Flange
Receptacle Connector
*Size 28 AWG and Size 30
AWG J type wire not available in
striped color code 5
811-004-02
Tefzel®
insulation,
high strength
0
lightweight
#30
silver-coated,
(Wire
200°C,
Type J, (M22759/33)
color
code
1 or 7
only)
J
Color code
per MIL-
STD-681 Specify any
(striped)* length from
2 inches to
144 inches
7
10 Solid
colors,
repeating
12
18
36
72
Dimensions in Inches (millimeters) are subject to change without notice.
© 2011 Glenair, Inc.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
11 - JULY - 2013
10
E-Mail: sales@glenair.com

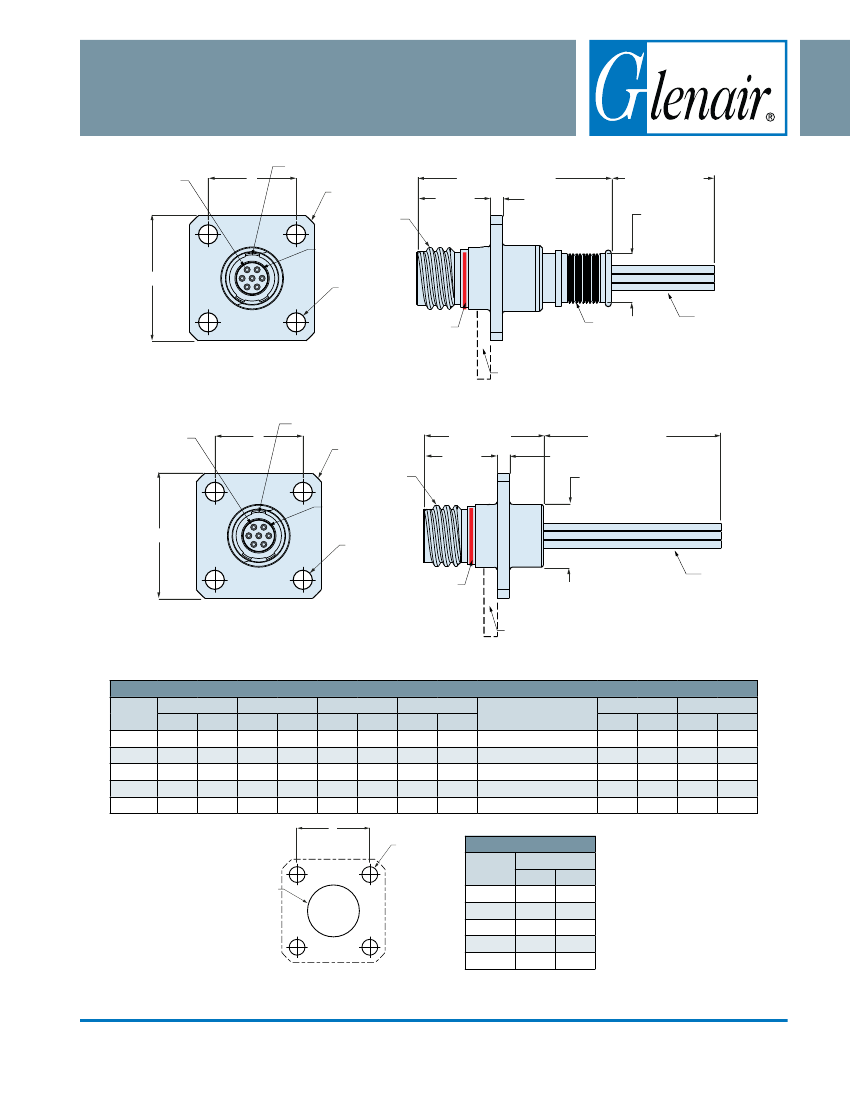

811-003-02 and 811-004-02
MASTER KEYWAY
CAVITY #1
PIN INSERT
B
ØC
E THD
CAVITY #1
SOCKET INSERT
1.000 (25.40) MAX
.370
.060 (1.52)
(9.40)
WIRE LENGTH
ØF
A
ØD
RED FULL MATE
INDICATOR STRIPE
HARNESS
SHIELD
WIRE
TERMINATION
BAND PLATFORM
PANEL (REF)
.100 (25.4) MAX
With Termination Platform
CAVITY #1
PIN INSERT
811-003-02
B
MASTER KEYWAY
ØC
E THD
CAVITY #1
SOCKET INSERT
.625 (15.88)
.370
(9.40)
WIRE LENGTH
.060 (1.52)
ØG
A
ØD
RED FULL MATE
INDICATOR STRIPE
HARNESS
WIRE
PANEL (REF)
.100 (25.4) MAX
811-004-02
Low Profile
DIMENSIoNS
ØD
In.
mm.
Shell
Size
5
6
7
8
9
A Square
In.
mm.
.625
.725
.800
.850
.950
15.88
18.42
20.32
21.59
24.13
b Square
In.
mm.
.440
.530
.600
.650
.750
11.18
13.46
ØC
In.
mm.
.825
.950
E Thread
.3125-.05P-.1L-2A
.3750-.05P-.1L-2A
.4375-.05P-.1L-2A
.5000-.05P-.1L-2A
.5625-.05P-.1L-2A
ØF
In.
mm.
.246
.286
.391
.443
.498
6.25
7.26
9.93
11.25
12.65
ØG
In.
mm.
.320
.375
.480
.540
.600
8.13
9.53
12.19
13.72
15.24
20.96
24.13
26.67
28.58
31.75
.093
.093
.093
.093
.093
4X
Ø
2.36
2.36
2.36
2.36
2.36
15.24 1.050
16.51 1.125
19.05 1.250
B
D
Ø
R
G
Shell
Size
5
6
7
8
9
PANEL CUToUT
.350
.390
.500
.560
.620
ØR
In.
mm.
8.89
9.91
12.70
14.22
15.75
Dimensions in Inches (millimeters) are subject to change without notice.
© 2011 Glenair, Inc.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
11 - JULY - 2013
11
E-Mail: sales@glenair.com
Mighty Mouse
High Density
Series 811 Mighty Mouse High Density (HD)
Pre-Wired Square Flange Receptacle Connectors
