NACZ681M6.3V10X8TR13F

Description
CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 25 V, 10 uF, SURFACE MOUNT, 1717
CategoryPassive components
File Size96KB,5 Pages
ManufacturerNIC
Websitehttps://www.niccomp.com
Download Datasheet Parametric View All

NACZ681M6.3V10X8TR13F Overview

CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 25 V, 10 uF, SURFACE MOUNT, 1717

NACZ681M6.3V10X8TR13F Parametric

Parameter NameAttribute value
Maximum operating temperature105 Cel
Minimum operating temperature-55 Cel
negative deviation20 %
positive deviation20 %
Rated DC voltage urdc25 V
Processing package descriptionCHIP, ROHS COMPLIANT
Lead-freeYes
EU RoHS regulationsYes
China RoHS regulationsYes
stateACTIVE
terminal coatingTIN BISMUTH (79) OVER COPPER
Installation featuresSURFACE MOUNT
Manufacturer SeriesNACZ
size code1717
capacitance10 uF
packaging shapeCYLINDRICAL PACKAGE
Capacitor typeNON SOLID
Terminal shapeFLAT
polarityPOLARIZED
tangent angle0.14
ripple current80mA@100KHz
leakage current3uA

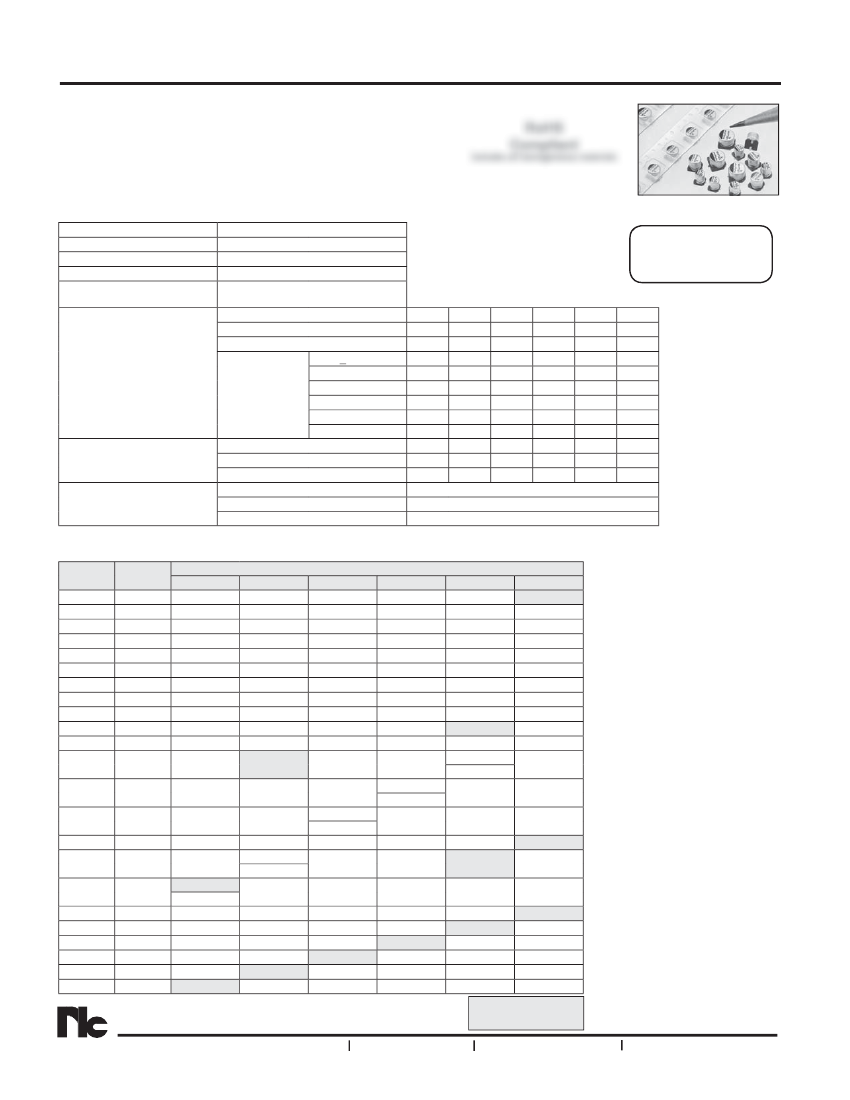

Surface Mount Aluminum Electrolytic Capacitors
FEATURES
CYLINDRICAL V-CHIP CONSTRUCTION FOR SURFACE MOUNTING
RoHS
VERY LOW IMPEDANCE & HIGH RIPPLE CURRENT AT 100KHz
Compliant
includes all homogeneous materials
SUITABLE FOR DC-DC CONVERTER, DC-AC INVERTER, ETC.
NEW EXPANDED CV RANGE, UP TO 6800μF
*See Part Number System for Details
P N b S
f D il
NEW HIGH TEMPERATURE REFLOW "M1" VERSION
DESIGNED FOR AUTOMATIC MOUNTING AND REFLOW SOLDERING
Rated Voltage Rating
Rated Capacitance Range
Operating Temp. Range
Capacitance Tolerance
Max. Leakage Current
After 2 Minutes @ 20°C
6.3 ~ 50Vdc
4.7 ~ 6800μF
-55 ~ +105°C
±20% (M)
0.01CV 0r 3μA, whichever is greater
W.V. (Vdc)
S.V. (Vdc)
φ4
~
φ6.3mm
Dia.
C < 1000μF
C = 1500μF
C = 2200μF
φ8
~
φ16mm
Dia.
C = 3300μF
C = 4700μF
C = 6800μF
W.V. (Vdc)
Z-40°C/Z+20°C
Z-55°C/Z+20°C
Capacitance Change
Tan
δ
Leakage Current
6.3
8.0
0.24
0.28
0.29
0.30
0.32
0.34
0.38
6.3
3
5
NACZ Series
CHARACTERISTICS
LOW IMPEDANCE
AT HIGH FREQUENCY
INDUSTRY STANDARD
STYLE FOR SWITCHERS
AND CONVERTERS
LOW ESR COMPONENT
LIQUID ELECTROLYTE
For Performance Data
see www.LowESR.com
Tan
δ
@ 120Hz/20°C
Low Temperature
Stability
Impedance Ratio @ 120Hz
Load Life Test @ 105°C
4 ~ 6mm Dia. 1,000 hours
8 ~ 12.5mm Dia. 2,000 hours
10
16
25
35
50
13
20
32
44
63
0.20
0.16
0.14
0.12
0.10
0.24
0.20
0.16
0.14
0.14
0.25
0.21
-
0.14
-
0.26
-
0.18
-
-
-
0.24
-
-
-
0.30
-
-
-
-
-
-
-
-
-
10
16
25
35
50
2
2
2
2
2
4
4
3
3
3
Within ±25% of initial measured value
Less than ±200% of the specified maximum value
Less than the specified maximum value
STANDARD PRODUCT AND CASE SIZE TABLE Dφ x L (mm)
Cap (μF)
4.7
10
15
22
27
33
47
56
68
100
120
150
220
330
390
470
680
1000
1500
2200
3300
4700
6800
Code
4R7
100
150
220
270
330
470
560
680
101
121
151
221
331
391
471
681
102
152
222
332
472
682
6.3
-
-
-
-
4x6.3*
-
5x6.3
5x6.3*
-
6.3x6.3*
-
6.3x6.3
6.3x6.3
6.3x8*
-
8x10.5
8x10.5
10x8*
8x10.5*
10x10.5*
-
12.5x14
-
16x17
10
-
-
-
4x6.3
-
5x6.3
-
-
6.3x6.3
-
6.3x6.3
6.3x6.3
6.3x8
8x10.5
-
8x10.5
10x8
-
10x10.5
-
12.5x14
-
16x17
-
Working Voltage (Vdc)
16
25
-
-
-
4x6.3*
4x6.3
-
5x6.3*
5x6.3
-
-
-
6.3x6.3
6.3x6.3
6.3x6.3
-
6.3x6.3
6.3x6.3*
6.3x6.3
6.3x6.3*
6.3x8*
-
-
6.3x8*
6.3x8*
8x10.5*
10x8
-
8x10.5
10x10.5
-
12.5x14
-
16x17
-
-
8x10.5*
8x10.5*
10x8
8x10.5
-
10x10.5*
-
12.5x14
-
16x17
-
-
-
35
4x6.3
5x6.3*
5x6.3*
5x6.3*
-
6.3x6.3*
6.3x6.3*
-
6.3x8*
8x10.5
-
8x10.5*
10x8
8x10.5
10x10.5
-
12.5x14
12.5x14
-
16x17
-
-
-
-
50
4x6.3
6.3x6.3*
-
6.3x6.3*
-
6.3X8*
6.3x8*
-
8x10.5*
8x10.5*
-
10x10.5*
10x10.5
12.5x14
12.5x14
16x17
-
16x17
-
-
-
-
-
Denotes New Value
NIC COMPONENTS CORP.
www.niccomp.com
www.lowESR.com
www.RFpassives.com
www.SMTmagnetics.com
SPECIFICATIONS ARE SUBJECT TO CHANGE
