Semiconductor
SRA2210EF
PNP Silicon Transistor
Descriptions
•
Switching application
•
Interface circuit and driver circuit application
Features
•
•
•
•
With built-in bias resistors
Simplify circuit design
Reduce a quantity of parts and manufacturing process
High packing density
Ordering Information
Type NO.
SRA2210EF
Marking
AR
Package Code
SOT-523F
Outline Dimensions
unit :
mm
•
Equivalent Circuit
1.60±0.1
.
0.88±0.1
.
C(OUT)
1
1.60±0.1
1.00±0.1
B(IN)
R
1
3
2
0.25~0.30
R
1
= 4.7KΩ
Ω
E(COMMON)
0.68
-0.05
0~0.1
1.11±0.05
PIN Connections
1. Base
2. Emitter
3. Collector
+0.1
KSR-4014-000
1
SRA2210EF
Absolute maximum ratings
Characteristic
Collector-Base Voltage
Collector-Emitter Voltage
Emitter-Base Voltage
Collector Current
Power Dissipation
Junction Temperature
Storage Temperature
(Ta=25°C)
°
Symbol
V
CBO
V
CEO
V
EBO
I
C
P
D
T
J
T
STG
Ratings
-50
-50
-5
-100
150
150
-55 ~ 150
Unit
V
V
V
mA
mW
°C
°C
Electrical Characteristics
Characteristic
Collector Cut-off Current
Emitter Cut-off Current
DC Current Gain
Collector-Emitter Saturation Voltage
Transition Frequency
Input Resistance
(Ta=25°C)
°
Symbol
I
CBO
I
EBO
h
FE
V
CE(SAT)
f
T
*
R
1
Test Condition
V
CB
=-50V, I
E
=0
V
EB
=-5V, I
C
=0
V
CE
=-5V, I
C
=-1mA
I
C
=-10mA, I
B
=-0.5mA
V
CE
=-10V, I
C
=-5mA
-
Min. Typ. Max.
-
-
120
-
-
-
-
-
-
-0.1
250
4.7
-500
-500
-
-0.3
-
-
Unit
nA
nA
-
V
MHz
KΩ
* : Characteristic of Transistor Only

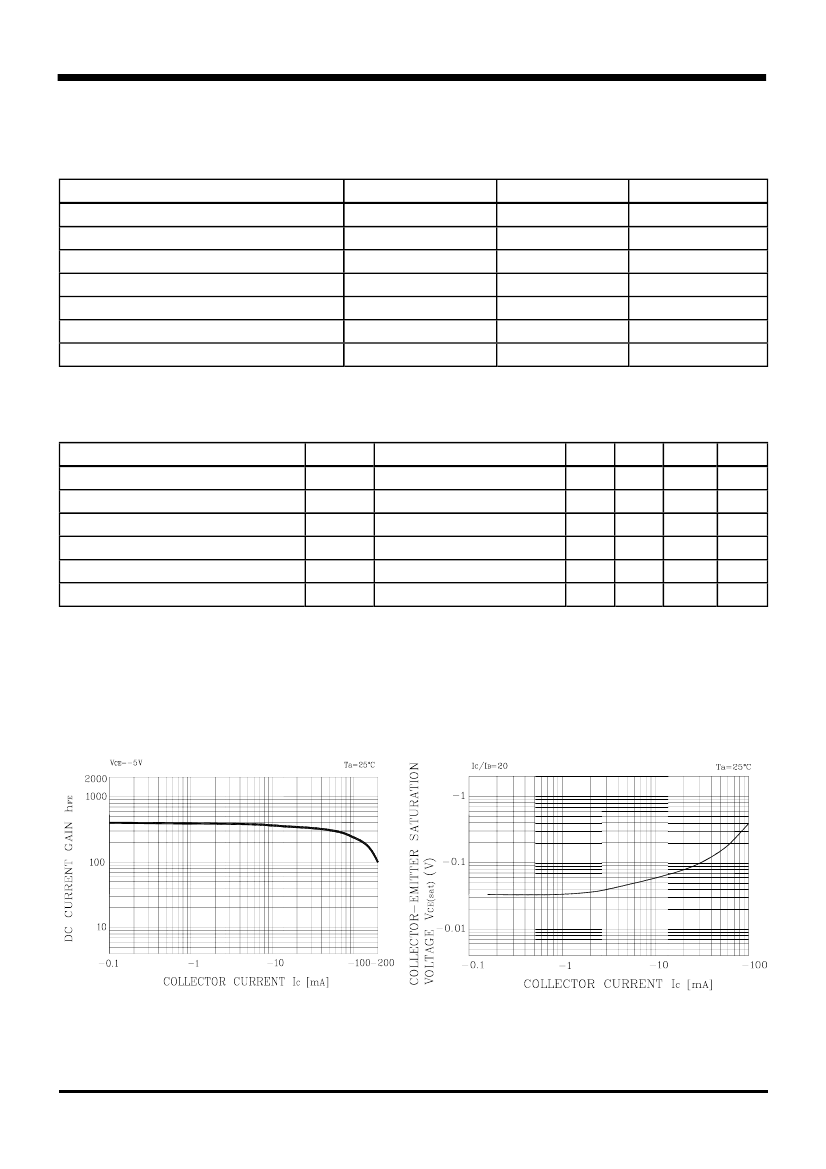

Electrical Characteristic Curves
Fig. 1 h
FE
- I
C
Fig. 2 V
CE(SAT)
- I
C
KSR-4014-000
2
