SRA2206U Overview

PNP Silicon Transistor

Semiconductor
SRA2206U
PNP Silicon Transistor
Descriptions
Switching application
Interface circuit and driver circuit application
Features
With built-in bias resistors
Simplify circuit design
Reduce a quantity of parts and manufacturing process
High packing density
Ordering Information
Type NO.
SRA2206U
Marking
6R
Package Code
SOT-323
Outline Dimensions
unit :
mm
Equivalent Circuit
2.1±0.1
1.25±0.05
C(OUT)
2.0±0.2
1.30±0.1
1
3
0.30±0.1
B(IN)
R
1
2
0.15±0.05
R
2
0.90±0.1
E(COMMON)
0~0.1
0.1 Min.
R
1
R
2
47KΩ
PIN Connections
1. Base
2. Emitter
3. Collector
4.7KΩ

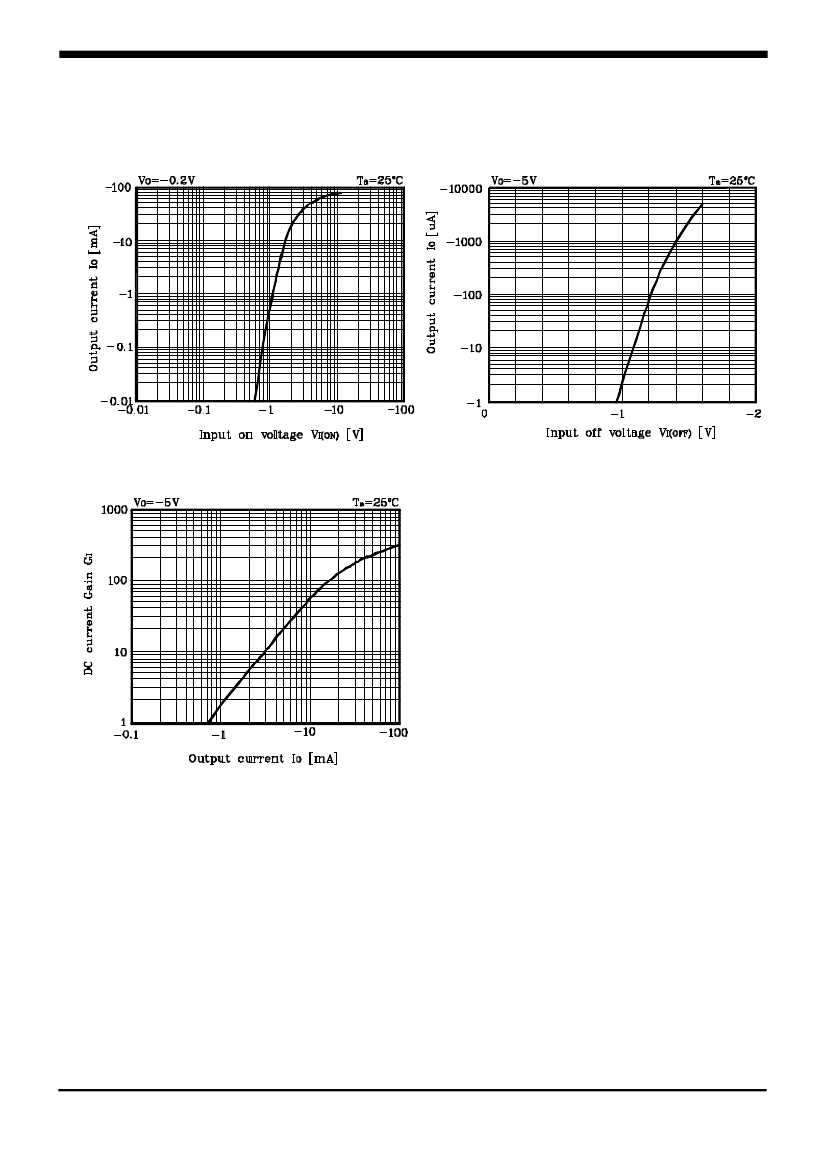

KSR-3043-000
1
