18122C153MAZ9A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> 18122C153MAZ9A

18122C153MAZ9A: DescriptionCeramic Capacitor, Multilayer, Ceramic, 200V, 20% +Tol, 20% -Tol, X7R, 15% TC, 0.015uF, Surface Mount, 1812, CHIP, ROHS COMPLIANT; CategoryPassive components capacitor; File Size101KB，1 Pages; ManufacturerAVX; Environmental Compliance; Related ProductsFound20parts with similar functions to 18122C153MAZ9A

Download Datasheet Parametric View All

18122C153MAZ9A Overview

Ceramic Capacitor, Multilayer, Ceramic, 200V, 20% +Tol, 20% -Tol, X7R, 15% TC, 0.015uF, Surface Mount, 1812, CHIP, ROHS COMPLIANT

18122C153MAZ9A Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	AVX
package instruction	, 1812
Reach Compliance Code	compli
ECCN code	EAR99
capacitance	0.015 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
JESD-609 code	e2
Manufacturer's serial number	1812
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
method of packing	BULK
positive tolerance	20%
Rated (DC) voltage (URdc)	200 V
size code	1812
surface mount	YES
Temperature characteristic code	X7R
Temperature Coefficient	15% ppm/°C
Terminal surface	Tin/Nickel (Sn/Ni)
Terminal shape	WRAPAROUND
Base Number Matches	1

Preview

Download Datasheet

View All

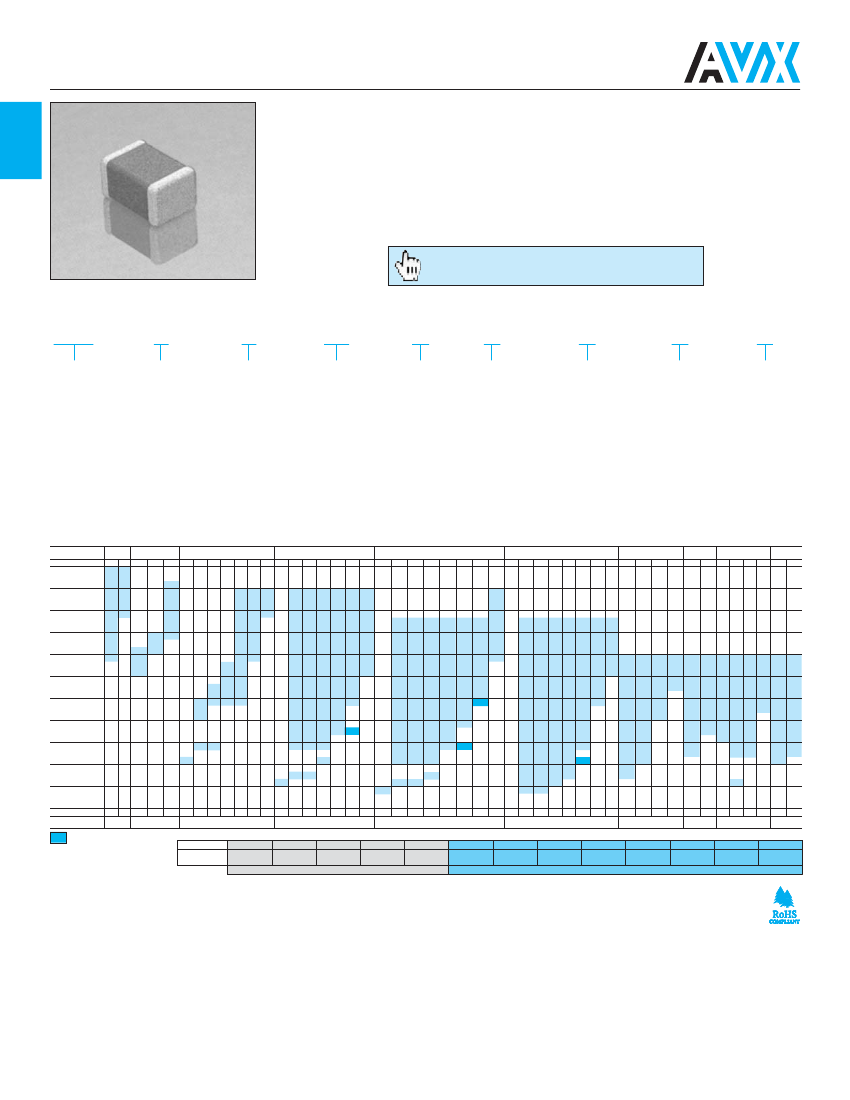

Standard X7R MLCC

Standard X7R Dielectric

X7R formulations are called “temperature stable” ceramics and fall into EIA Class II materials.

X7R is the most popular of these intermediate dielectric constant materials. Its temperature

variation of capacitance is within ±15% from -55°C to +125°C. This capacitance change is

non-linear.

Capacitance for X7R varies under the influence of electrical operating conditions such as volt-

age and frequency.

X7R dielectric chip usage covers the broad spectrum of industrial applications where known

changes in capacitance due to applied voltages are acceptable.

Check for up-to-date CV Tables at

Ceramic

Capacitors

http://www.avx.com/docs/catalogs/cx7r.pdf

HOW TO ORDER

0805

Size

(L" x W")

Voltage

4V = 4

6.3V = 6

10V = Z

16V = Y

25V = 3

50V = 5

100V = 1

200V = 2

500V = 7

Dielectric

X7R = C

103

Capacitance

Code (In pF)

2 Sig. Digits +

Number of Zeros

Capacitance

Tolerance

J = ± 5%

K = ±10%

M = ± 20%

Failure

Rate

A = Not

Applicable

Terminations

T = Plated Ni

and Sn

7 = Gold Plated*

Z = FLEXITERM™**

*Optional termination

**See FLEXITERM™

X7R section

Packaging

2 = 7" Reel

4 = 13" Reel

7 = Bulk Cass.

9 = Bulk

Special

Code

A = Std. Product

Contact

Factory For

Multiples

NOTE: Contact factory for availability of Termination and Tolerance Options for Specific Part Numbers.

Contact factory for non-specified capacitance values.

SIZE

Cap

(pF)

WVDC

100

150

220

330

470

680

1000

1500

2200

3300

4700

6800

0.010

0.015

0.022

0.033

0.047

0.068

0.10

0.15

0.22

0.33

0.47

0.68

1.0

1.5

2.2

3.3

4.7

100

WVDC

0201

10 16

A A

0402

0603

6.3 10 16 25 50 100 200 6.3 10

0805

50 100 200

6.3

1206

100 200 500 6.3 10

1210

25 50 100 200 500

1812

100 200

500

1825

2220

2225

50 100

100 6.3 50 100 200

Cap

(µF

10 16

6.3 10 16 25 50 100 200 6.3 10

50 100 200

6.3

100 200 500 6.3 10

25 50 100 200 500

100 200

500

100 6.3 50 100 200

50 100

SIZE

0201

0402

0603

Letter

Max.

Thickness

0.33

(0.013)

0.56

(0.022)

0805

0.71

(0.028)

PAPER

0.86

(0.034)

1206

0.94

(0.037)

1.02

(0.040)

1.27

(0.050)

1210

1.40

(0.055)

1812

1.52

1.78

(0.060)

(0.070)

EMBOSSED

1825

2.29

(0.090)

2220

2.54

(0.100)

2225

2.79

(0.110)

= Under development
