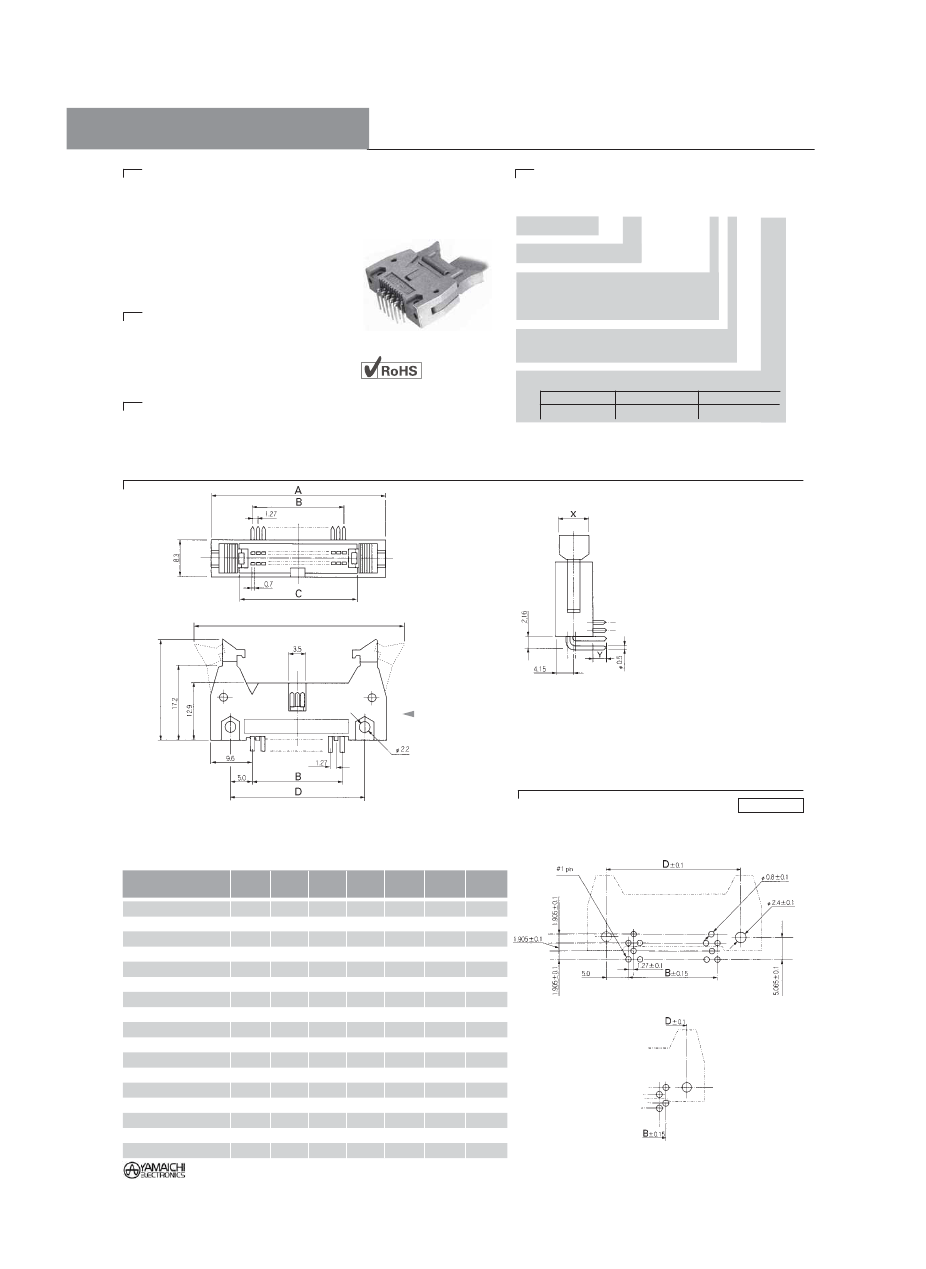

NF Series
Specifications
Insulation Resistance:
Withstanding Voltage:
Contact Resistance:
Current Rating:
Operating Temp. Range:
Soldering Temperature:
90° Solder Dip Latch Header Plug
(1.27mm Pitch)
1,000MΩ min. at 500V DC
500V AC rms for 1 minute
15mΩ max. at 10mA
1A
–20°C to +85°C
260°C / 5 sec.
Part Number
(Details)
NFP
- 64A - 01 * 2
Series (plug)
No. of Leads
Latch Type:
1 = Short Latch
2 = Long Latch
Terminal Type:
2 = Right Angle Solder Dip
Type of Plating:
Base
Mating Face
Au 0.3µm min.
BF
Materials and Finish
Housing: PBT (glass filled), UL 94V-0 rated
Contacts: Phosphor Bronze
Plating: Au over Ni
Solder Terminals
Au 0.05µm min.
Features
Contact pitch 1.27mm connectors for high-density mounting
BF
Ni 2.5~4.5µm
Outline Dimensions
X=
6.5 (Short latch type)
4.0 (Long latch type)
Y=
E = Short latch type
F = Long latch type
23.7 (Short latch type)
27.7 (Long latch type)
2.7 (Standard Terminal Length)
View ‘A’
View ‘A’
Recommended PCB Layout
For leads 10, 26, 34 and 50
Top View
Standard types see table.
For other versions please contact Yamaichi, minimum order quantity may be required
Part Number
NFP-10A-0122BF
NFP-16A-0122BF
NFP-20A-0112BF
NFP-26A-0112BF
NFP-34A-0112BF
NFP-34A-0122BF
NFP-40A-0112BF
NFP-40A-0122BF
NFP-50A-0112BF
NFP-60A-0112BF
NFP-60A-0122BF
NFP-64A-0112BF
NFP-64A-0122BF
NFP-80A-0112BF
NFP-80A-0122BF
NFP-100A-0112BF
NFP-100A-0122BF
No. of
Leads
10
16
20
26
34
34
40
40
50
60
60
64
64
80
80
100
100
A
24.28
28.09
30.63
34.44
39.52
39.52
43.33
43.33
49.68
56.03
56.03
58.57
58.57
68.73
68.73
81.43
81.43
B
5.08
8.89
11.43
15.24
20.32
20.32
24.12
24.12
30.48
36.83
36.83
39.37
39.37
49.53
49.53
62.23
62.23
C
11.58
15.39
17.93
21.74
26.82
26.82
30.63
30.63
36.98
43.33
43.33
45.87
45.87
56.03
56.03
68.73
68.73
D
15.08
18.89
21.43
25.24
30.32
30.32
34.13
34.13
40.48
46.83
46.83
49.37
49.37
59.53
59.53
72.23
72.23
E
38.2
42.0
44.6
48.4
53.5
53.5
57.3
57.3
63.6
70.0
70.0
72.5
72.5
82.7
82.7
95.4
95.4
F
40.2
44.0
46.6
50.4
55.5
55.5
59.3
59.3
65.6
72.0
72.0
74.5
74.5
84.7
84.7
97.4
97.4
For all other leads
SPECIFICATIONS AND DRAWINGS ARE SUBJECT TO ALTERATION WITHOUT PRIOR NOTICE - DIMENSIONS IN MILLIMETER

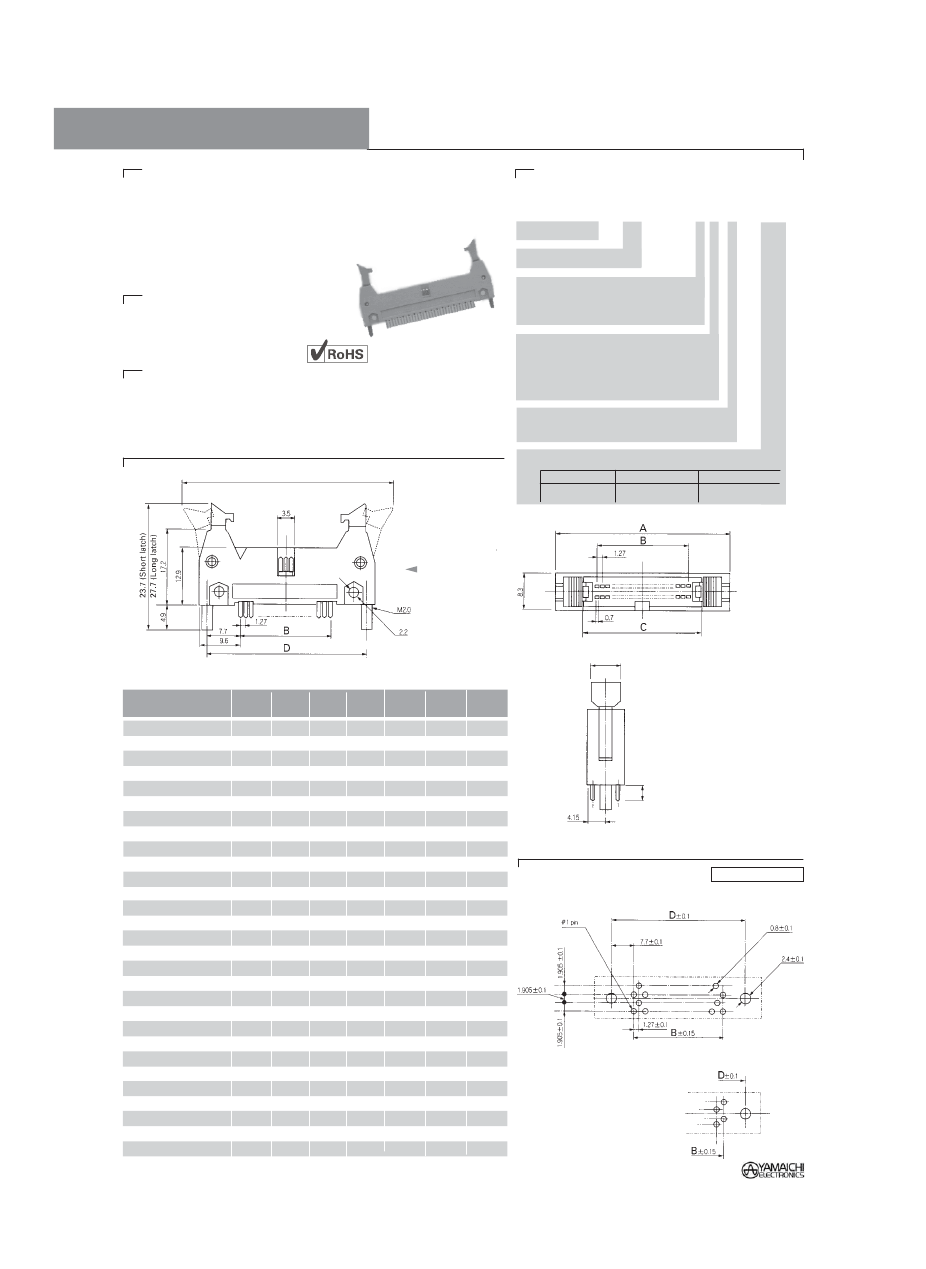

Sockets and Connectors
NF Series
Specifications
Insulation Resistance:
Withstanding Voltage:
Contact Resistance:
Current Rating:
Operating Temp. Range:
Soldering Temperature:
180° Solder Dip Latch Header Plug
(1.27 mm Pitch)
Part Number
(Details)
1,000MΩ min. at 500V DC
500V AC rms for 1 minute
15mΩ max. at 10mA
1A
–20°C to +85°C
260°C / 5 sec.
NFP
Series (plug)
No. of Leads
-
64A - 0* * 4
BF
Materials and Finish
Housing: PBT (glass filled), UL 94V-0 rated
Contacts: Phosphor Bronze
Plating: Au over Ni
Board Screw Option:
1 = Provided (Standard)
3 = Not Provided
Latch Type:
0 = Without Latch
1 = Short Latch
2 = Long Latch
Terminal Type:
4 = Straight Solder Dip
Features
Contact pitch 1.27mm connectors for high-density mounting
Outline Dimensions
Type of Plating:
E = Short latch type
F = Long latch type
BF
Base
Ni 2.5~4.5µm
Mating Face
Au 0.3µm min.
Solder Terminals
Au 0.05µm min.
View ‘A’
Standard types see table. For other versions please contact Yamaichi,
minimum order quantity may be required
X
X=
6.5 (Short latch type)
4.0 (Long latch type)
Part Number
NFP-10A-0114BF
NFP-10A-0124BF
NFP-16A-0104BF
NFP-16A-0114BF
NFP-20A-0114BF
NFP-20A-0124BF
NFP-26A-0114BF
NFP-26A-0124BF
NFP-26A-0134BF
NFP-34A-0114BF
NFP-34A-0124BF
NFP-40A-0114BF
NFP-40A-0124BF
NFP-50A-0124BF
NFP-50A-0314BF
NFP-50A-0324BF
NFP-60A-0314BF
NFP-64A-0104BF
NFP-64A-0114BF
NFP-64A-0124BF
NFP-64A-0314BF
NFP-64A-0324BF
NFP-80A-0114BF
NFP-80A-0124BF
NFP-80A-0314BF
NFP-100A-0114BF
NFP-100A-0124BF
NFP-100A-0314BF
NFP-100A-0324BF
Sockets and Connectors
No. of
Leads
10
10
16
16
20
20
26
26
26
34
34
40
40
50
50
50
60
64
64
64
64
64
80
80
80
100
100
100
100
A
24.28
24.28
28.09
28.09
30.63
30.63
34.44
34.44
34.44
39.52
39.52
43.33
43.33
49.68
49.68
49.68
56.03
58.57
58.57
58.57
58.57
58.57
68.73
68.73
68.73
81.43
81.43
81.43
81.43
B
5.08
5.08
8.89
8.89
11.43
11.43
15.24
15.24
15.24
20.32
20.32
24.12
24.12
30.48
30.48
30.48
36.83
39.37
39.37
39.37
39.37
39.37
49.53
49.53
49.53
62.23
62.23
62.23
62.23
C
11.58
11.58
15.39
15.39
17.93
17.93
21.74
21.74
21.74
26.82
26.82
30.63
30.63
36.98
36.98
36.98
43.33
45.87
45.87
45.87
45.87
45.87
56.03
56.03
56.03
68.73
68.73
68.73
68.73
D
20.48
20.48
24.29
24.29
26.83
26.83
30.64
30.64
30.64
35.72
35.72
39.53
39.53
45.88
45.88
45.88
52.23
54.77
54.77
54.77
54.77
54.77
64.93
64.93
64.93
77.63
77.63
77.63
77.63
E
38.2
38.2
42.0
42.0
44.6
44.6
48.4
48.4
48.4
53.5
53.5
57.3
57.3
63.6
63.6
63.6
70.0
72.5
72.5
72.5
72.5
72.5
82.7
82.7
82.7
95.4
95.4
95.4
95.4
F
40.2
40.2
44.0
44.0
46.6
46.6
50.4
50.4
50.4
55.5
55.5
59.3
59.3
65.6
65.6
65.6
72.0
74.5
74.5
74.5
74.5
74.5
84.7
84.7
84.7
97.4
97.4
97.4
97.4
Y=
2.7 (Standard Terminal Length)
View ‘A’
Y
Recommended PCB Layout
Top View from Socket
For leads 10, 26, 34 and 50
For all other leads
SPECIFICATIONS AND DRAWINGS ARE SUBJECT TO ALTERATION WITHOUT PRIOR NOTICE - DIMENSIONS IN MILLIMETER
