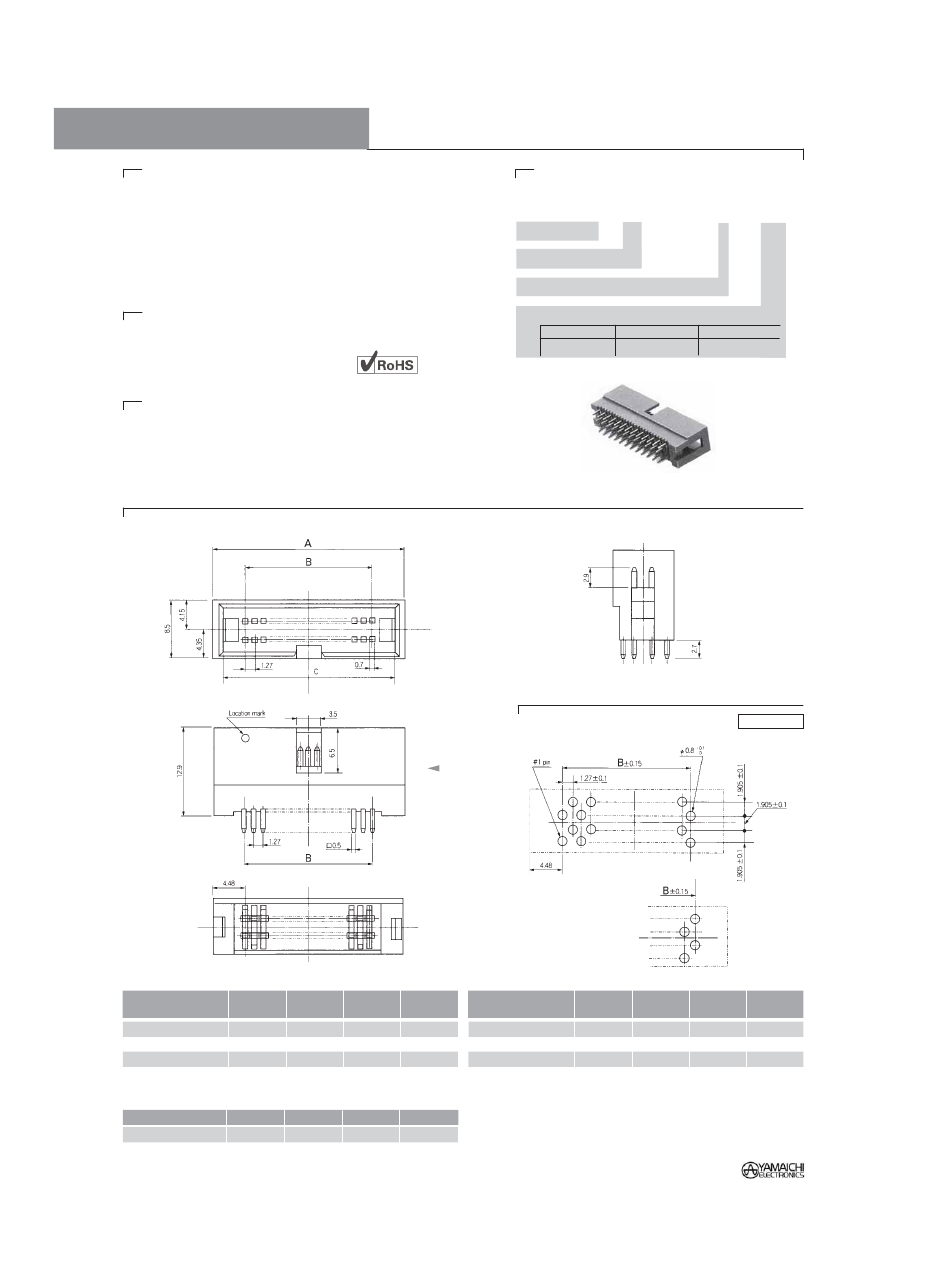

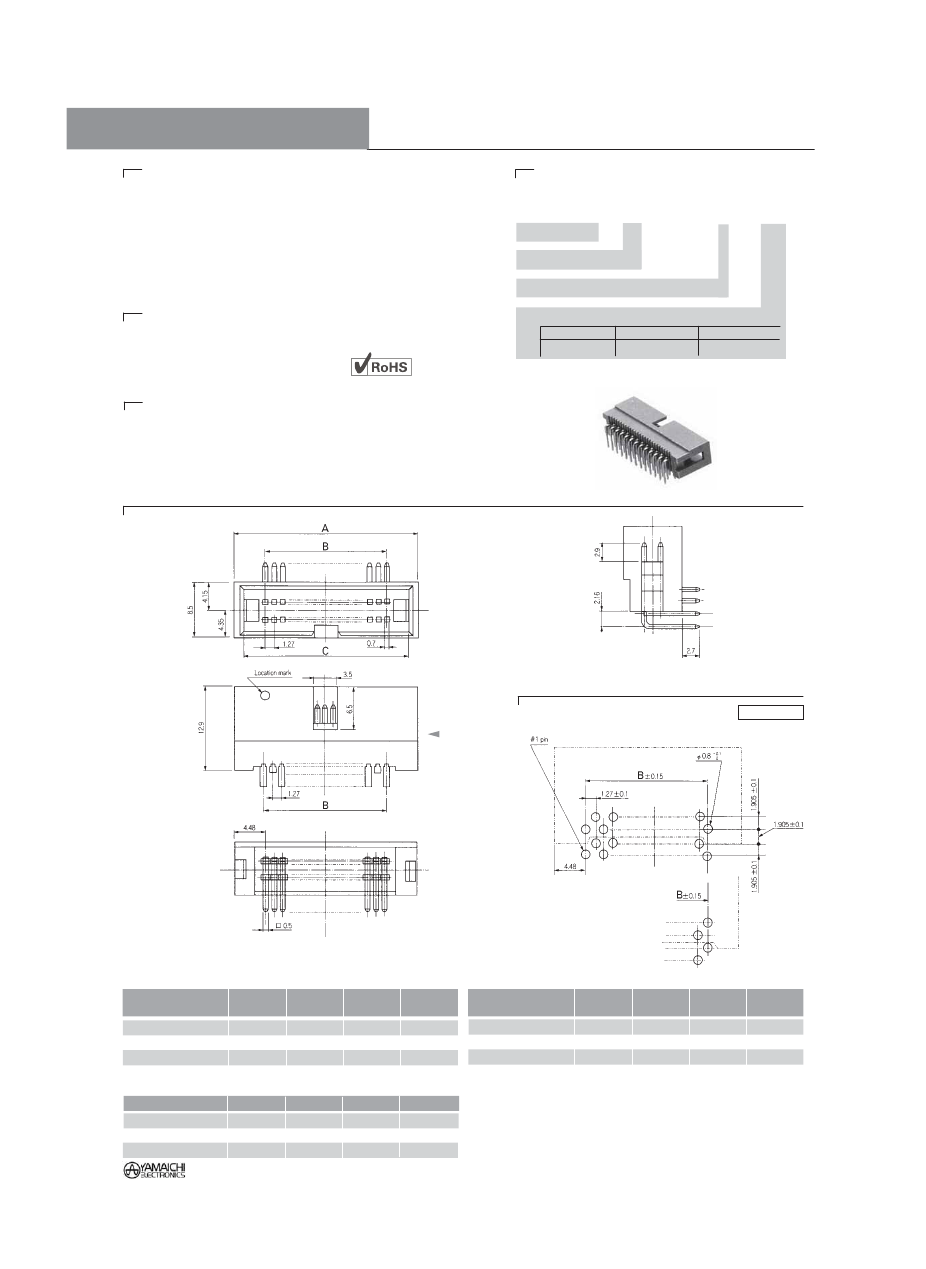

NF Series
Specifications
Insulation Resistance:
Withstanding Voltage:
Contact Resistance:
Current Rating:
Operating Temp. Range:
Soldering Temperature:
90° Solder Dip Box Header
(1.27mm Pitch)
Part Number
(Details)
1,000MΩ min. at 500 V DC
500 V AC rms for 1 minute
15mΩ max. at 10mA
1A
–20°C to +85°C
260°C / 5 sec.
NFP
Series (plug)
No. of Leads
-
50A - 0132
BF
2 = Right Angle Solder Dip
Materials and Finish
Housing: PBT (glass filled), UL 94V-0 rated
Contacts: Phosphor Bronze
Plating: Au over Ni
Type of Plating:
Base
BF
Ni 2.5~4.5µm
Mating Face
Au 0.3µm min.
Solder Terminals
Au 0.05µm min.
Features
Contact pitch 1.27mm connectors for high-density mounting
Outline Dimensions
View ‘A’
Recommended PCB Layout
Top View
View ‘A’
For all other leads
For lead 80
Standard types
Part Number
NFP-10A-0132BF
NFP-16A-0132BF
NFP-20A-0132BF
NFP-26A-0132BF
No. of
Leads
10
16
20
26
A
14.04
17.85
20.39
24.20
B
5.08
8.89
11.43
15.24
C
11.58
15.39
17.93
21.74
Part Number
NFP-34A-0132BF
NFP-50A-0132BF
NFP-80A-0132BF
No. of
Leads
34
50
80
A
29.28
39.44
58.49
B
20.32
30.48
49.53
C
26.82
36.98
56.03
For the following versions below please contact Yamaichi, minimum order quantity may be required
NFP-40A-0132BF
NFP-60A-0132BF
NFP-64A-0132BF
40
60
64
33.09
45.79
48.33
24.13
36.83
39.37
30.63
43.33
45.87
Sockets and Connectors
SPECIFICATIONS AND DRAWINGS ARE SUBJECT TO ALTERATION WITHOUT PRIOR NOTICE - DIMENSIONS IN MILLIMETER
NF Series
Specifications
Insulation Resistance:
Withstanding Voltage:
Contact Resistance:
Current Rating:
Operating Temp. Range:
Soldering Temperature:
180° Solder Dip Box Header
(1.27mm Pitch)
Part Number
(Details)
1,000MΩ min. at 500V DC
500V AC rms for 1 minute
15mΩ max. at 10mA
1A
–20°C to +85°C
260°C / 5 sec.
NFP
Series (plug)
No. of Leads
-
50A - 0134
BF
4 = Straight Solder Dip
Materials and Finish
Housing: PBT (glass filled), UL 94V-0 rated
Contacts: Phosphor Bronze
Plating: Au over Ni
Type of Plating:
Base
BF
Ni 2.5~4.5µm
Mating Face
Au 0.3µm min.
Solder Terminals
Au 0.05µm min.
Features
Contact pitch 1.27mm connectors for high-density mounting
Outline Dimensions
View ‘A’
Recommended PCB Layout
For all other leads
Top View
View ‘A’
For leads 40 and 80
Standard types
Part Number
NFP-16A-0134BF
NFP-20A-0134BF
NFP-26A-0134BF
NFP-34A-0134BF
No. of
Leads
16
20
26
34
A
17.85
20.39
24.20
29.28
B
8.89
11.43
15.24
20.32
C
15.39
17.93
21.74
26.82
Part Number
NFP-40A-0134BF
NFP-50A-0134BF
NFP-80A-0134BF
No. of
Leads
40
50
80
A
33.09
39.44
58.49
B
24.13
30.48
49.53
C
30.63
36.98
56.03
For the following versions below please contact Yamaichi, minimum order quantity may be required
NFP-60A-0134BF
NFP-68A-0134BF
Sockets and Connectors
60
68
45.79
50.87
36.83
41.91
43.33
47.91
SPECIFICATIONS AND DRAWINGS ARE SUBJECT TO ALTERATION WITHOUT PRIOR NOTICE - DIMENSIONS IN MILLIMETER
