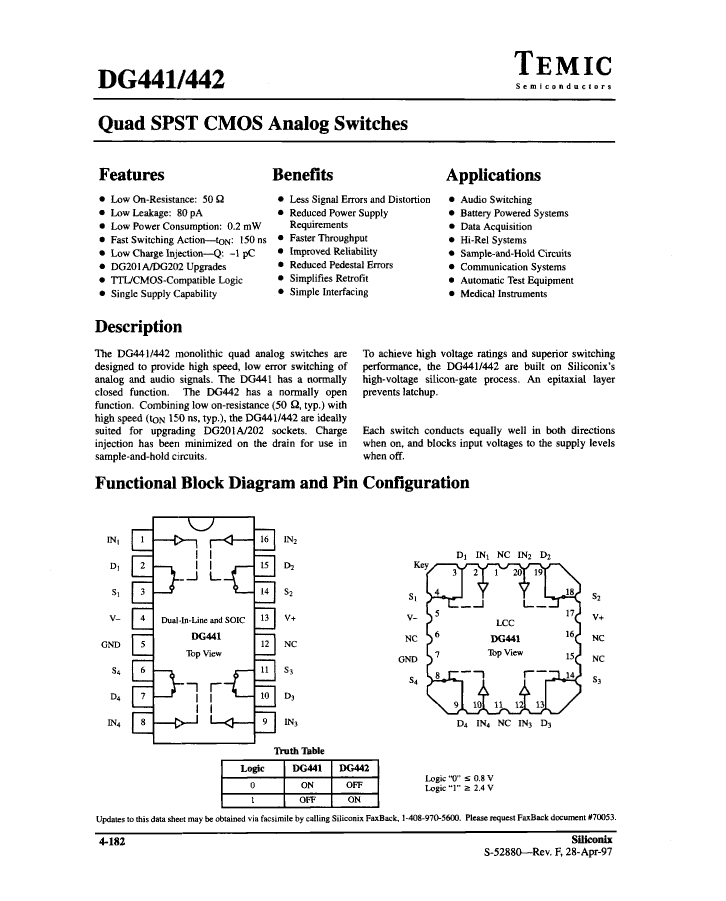

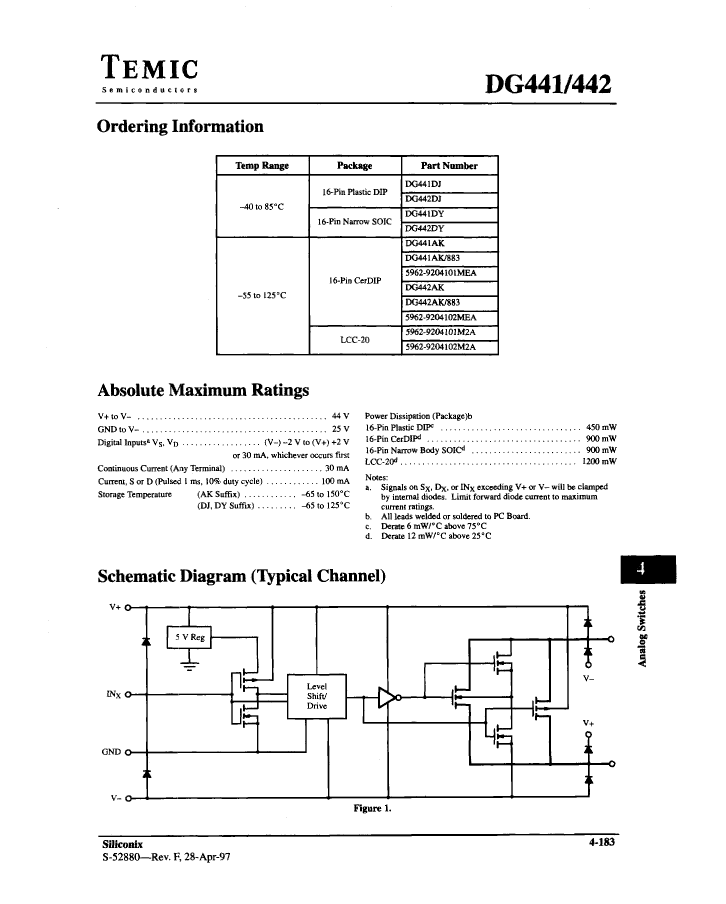

DG442AK/883 Overview

SPST, 4 Func, 1 Channel, CMOS, CDIP16,

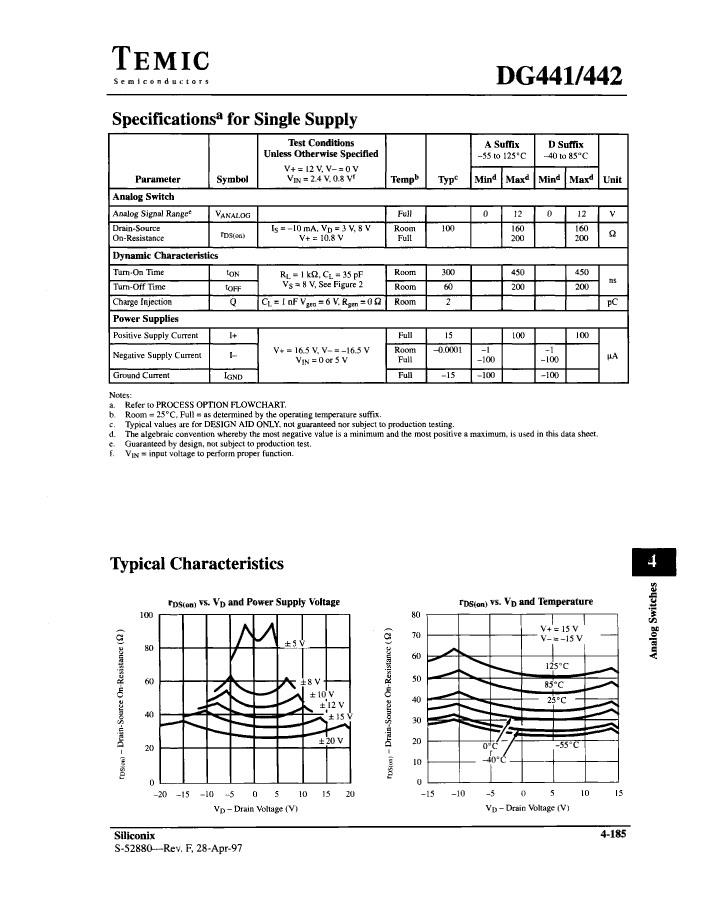

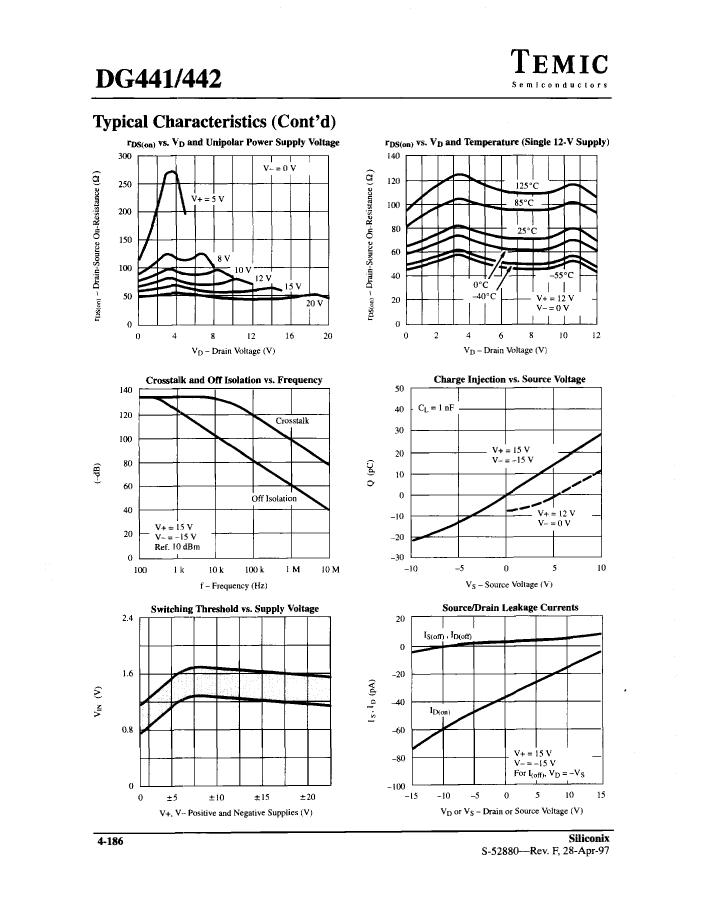

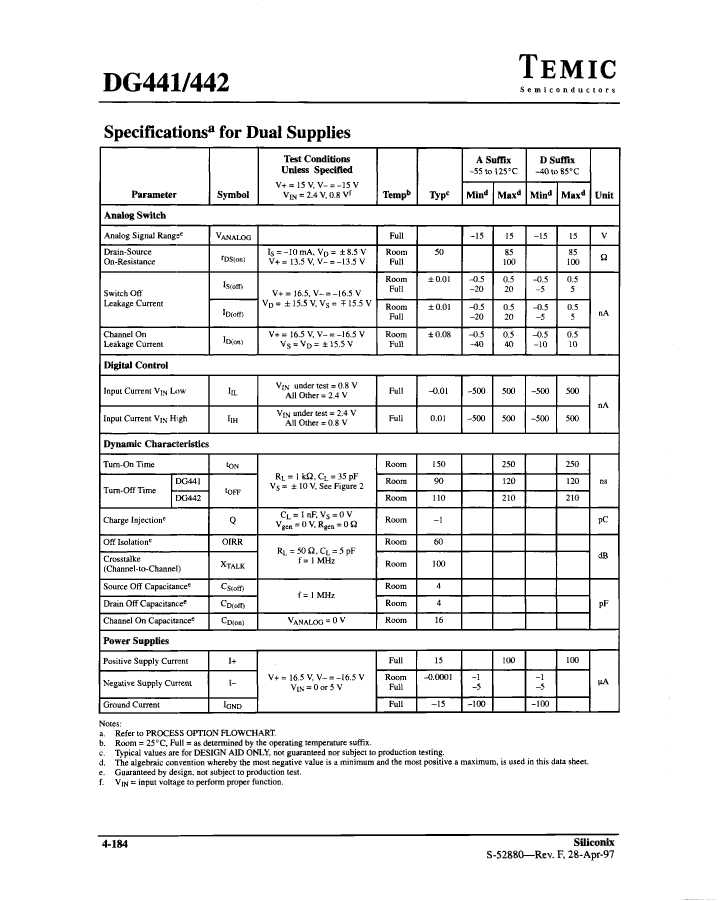

Parameter Name	Attribute value
Maker	Atmel (Microchip)
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	SPST
JESD-30 code	R-GDIP-T16
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of channels	1
Number of functions	4
Number of terminals	16
Nominal off-state isolation	60 dB
Maximum on-state resistance (Ron)	85 Ω
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, GLASS-SEALED
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum supply current (Isup)	0.1 mA
Nominal supply voltage (Vsup)	15 V
surface mount	NO
Maximum disconnect time	210 ns
Maximum connection time	250 ns
technology	CMOS
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal location	DUAL
