JF15RP1C-C datasheet, PDF - EEWORLD Datasheet

JF15RP1C-C: DescriptionKeypad Switch, 1 Switches, SPST, Momentary, 0.05A, 24VDC, 6 PCB Hole Cnt, Solder Terminal, Through Hole-straight; CategoryMechanical and electronic products switch; File Size763KB，5 Pages; ManufacturerNKK Switches; Environmental Compliance

Download Datasheet Parametric View All

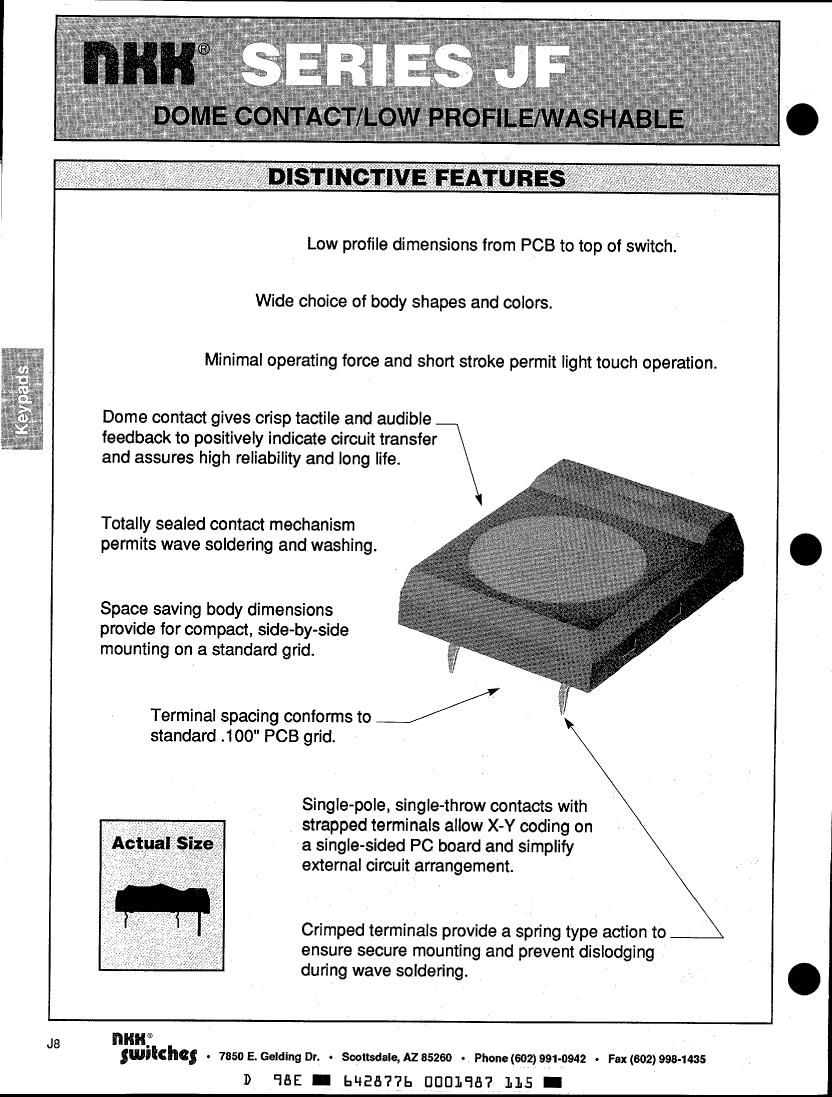

JF15RP1C-C Overview

Keypad Switch, 1 Switches, SPST, Momentary, 0.05A, 24VDC, 6 PCB Hole Cnt, Solder Terminal, Through Hole-straight

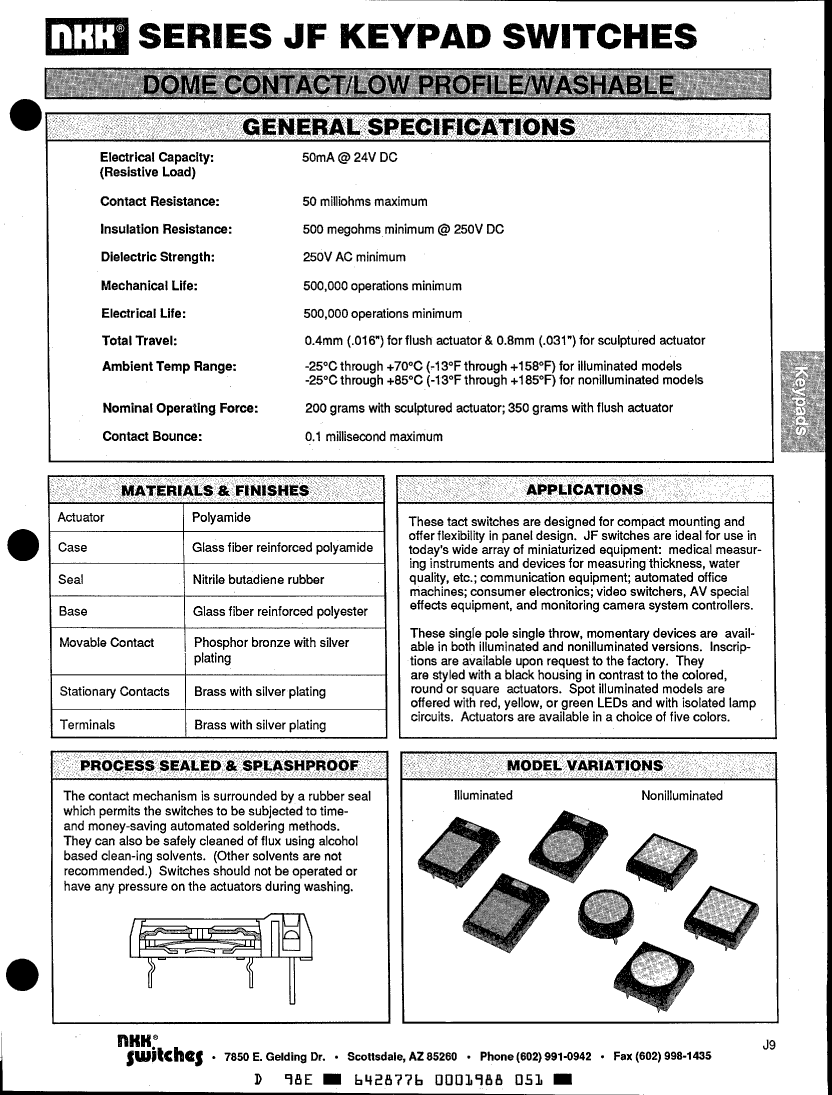

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	NKK Switches
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator angle
Actuator color	RED
Actuator material	POLYAMIDE
Actuator stroke	0.4064 mm
Actuator type	KEYPAD
Other features	RECT. HSNG.&SQ. ACTU., RED LED

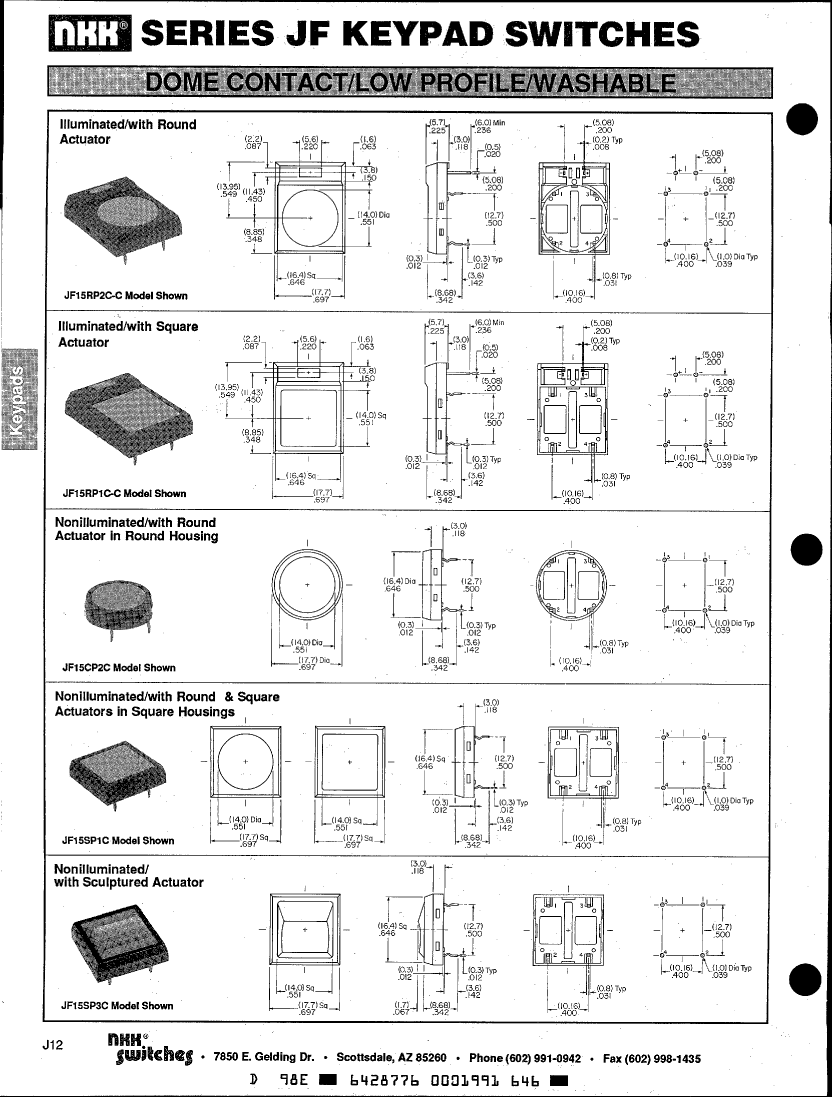

body width	17.7038 mm
body height	5.715 mm
Body length or diameter	22.7838 mm
center contact material	PHOSPHOR BRONZE
Center contact plating	SILVER
Maximum contact current (DC)	0.05 A
Contact (DC) maximum rated R load	0.05A@24VDC
Contact function	OFF-(ON)
Contact resistance	0.05 mΩ
contact time	BREAK-BEFORE-MAKE
Maximum contact voltage (DC)	24 V
Dielectric withstand voltage	250VAC V
Electrical life	500000 Cycle(s)
End contact material	BRASS
End contact plating	SILVER
Shell material	GLASS FILLED REINFORCED NYLON

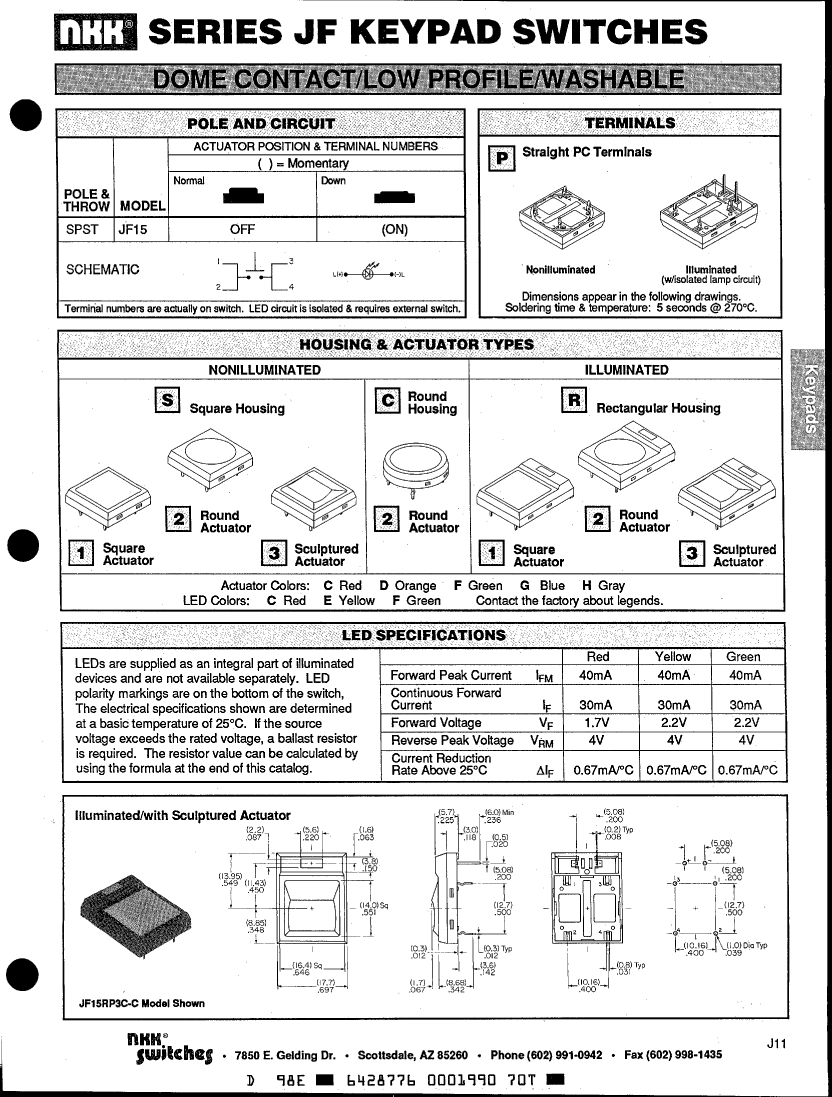

illumination	LED
Insulation resistance	500000000 Ω
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e4

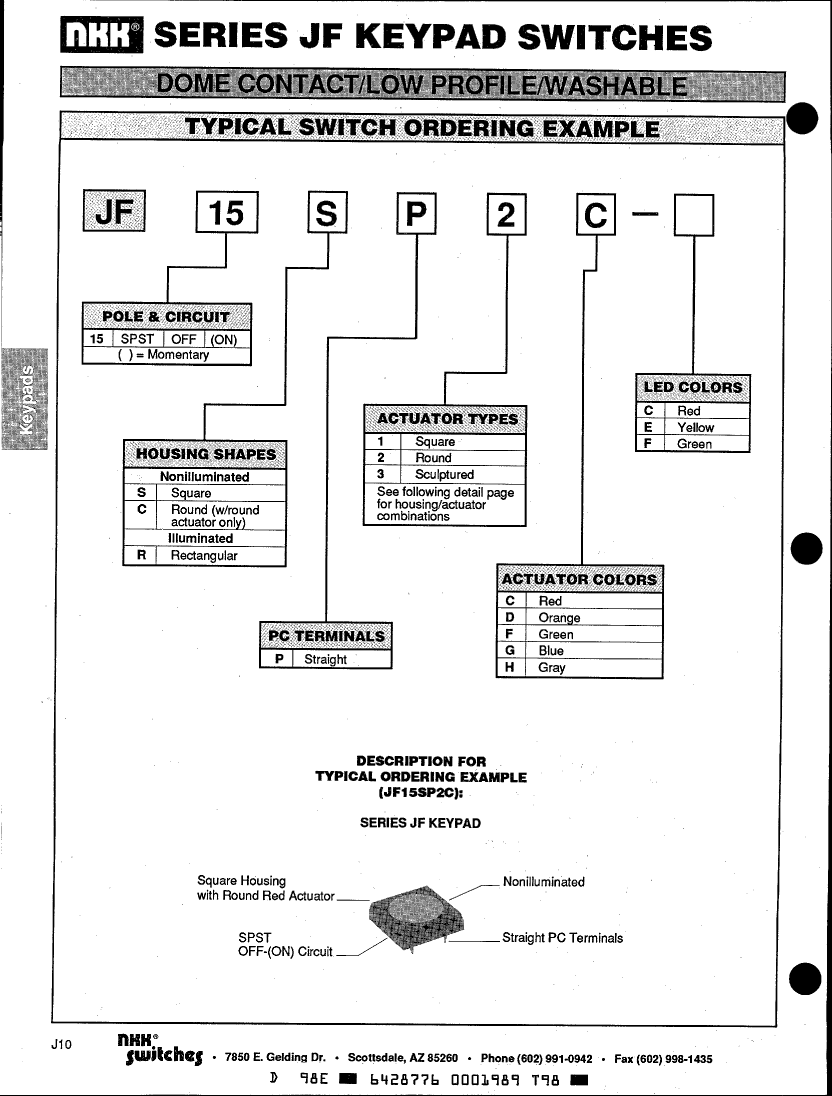

Manufacturer's serial number	JF
Installation features	THROUGH HOLE-STRAIGHT
Number of switches	1
Maximum operating temperature	70 °C
Minimum operating temperature	-25 °C
PCB hole count	6
Solderability	WAVE
surface mount	NO
Switch action	MOMENTARY
switch function	SPST
Switch type	KEYPAD SWITCH
Terminal surface	Silver (Ag)
Terminal length	0.236 inch
Terminal material	BRASS
Termination type	SOLDER
Washability	SOLVENT
