2071-3-56-1: DescriptionBoard Connector, 56 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size185KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

2071-3-56-1 Overview

Board Connector, 56 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Locking, Receptacle

2071-3-56-1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Conexcon Group
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.248 inch
subject depth	0.252 inch
body length	2.309 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	Gold (Au)
Contact point gender	MALE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Durability	50 Cycles
Insulation resistance	1000000000 Ω
JESD-609 code	e4
Manufacturer's serial number	2071
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.098 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	56

Preview

Download Datasheet

View All

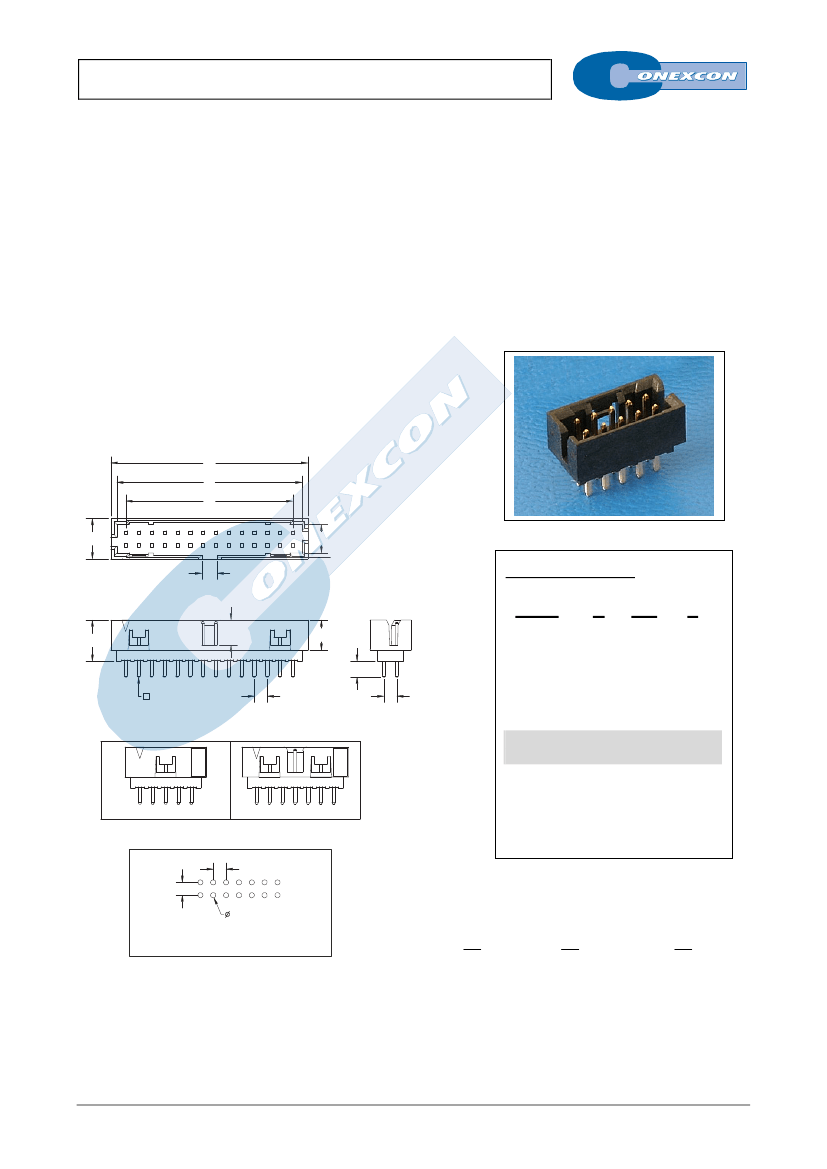

DUAL ROW TOP ENTRY BOX HEADER

2071 SERIES.

2.00 x 2.00 mm. (0.079 x 0.079”) pitch.

General Features

Electrical Features



Available in 4, 6, 8, 10, 12, 14, 16, 18, 20, 22, 24, 26, 28

30, 32, 34, 36, 38, 40, 42, 44, 46, 48 and 50 circuits

Mates with 2.00 mm. IDC connectors 2051 series

Gold plated 0.50 mm square pin

Fully shrouded with polarized slot.

Low profile: 6.40 mm. high



Voltage rating: < 250V

Current rating: < 1 A

Contact resistance: < 20 mΩ

Dielectric withstanding Voltage: 500 V AC/minute

Insulation resistance: >1000 MΩ

Materials

Insulator: LCP, glass reinforced, rated UL 94V-0

Terminal: gold plated brass

Operating temperature. -25ºC to +85ºC

RoHS compliant

Mechanical Features



Durability: 50 Cycles

Dimension Information

C

B

A

6.3

4.5

2.4

Ordering Information:

2071 -

6.4

3.9

4.7

2.5

0.5*0.5

2.0

T-

2

XX-

3

1

4

1

1. Connector Series

2. (T) Contact Plating



10P

14P

T =

2.

Tin plated

T =

3.

Gold flash over nickel

Recommended Finish

T =

5.

15µ” gold over nickel

T =

6.

30µ” gold over nickel



(AVAILABLE FROM 4 TO 12)

(AVAILABLE FROM 14 TO 68)

3. (XX) Number of circuits

Available in 4 through 68 circuits

2.0

0.81±0.05

Dimensions:

(In mm.)

RECOMM END ED P.C.B LAYOUT



XX





A

½

2.00



2



1







(XX) = Number of circuits



XX





B

½

2.00



2

 

0.85







XX





C

½

2.00



2

 

2.65





A-XX
