BD090-22-I-L-E: DescriptionBoard Connector, 22 Contact(s), 1 Row(s), Female, Right Angle, 0.05 inch Pitch, Solder Terminal, Locking, Black Insulator,; CategoryThe connector The connector; File Size169KB，1 Pages; ManufacturerGlobal Connector Technology; Environmental Compliance

Download Datasheet Parametric View All

BD090-22-I-L-E Overview

Board Connector, 22 Contact(s), 1 Row(s), Female, Right Angle, 0.05 inch Pitch, Solder Terminal, Locking, Black Insulator,

BD090-22-I-L-E Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Global Connector Technology
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.071 inch
subject depth	0.175 inch
body length	1.114 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	300VAC V
Durability	100 Cycles
maximum insertion force	2.0016 N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e3
Manufacturer's serial number	BD090
Plug contact pitch	0.05 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.079 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	22
Evacuation force-minimum value	.15012 N

Preview

Download Datasheet

View All

H

B±0.38

1.27

Ø0.

65

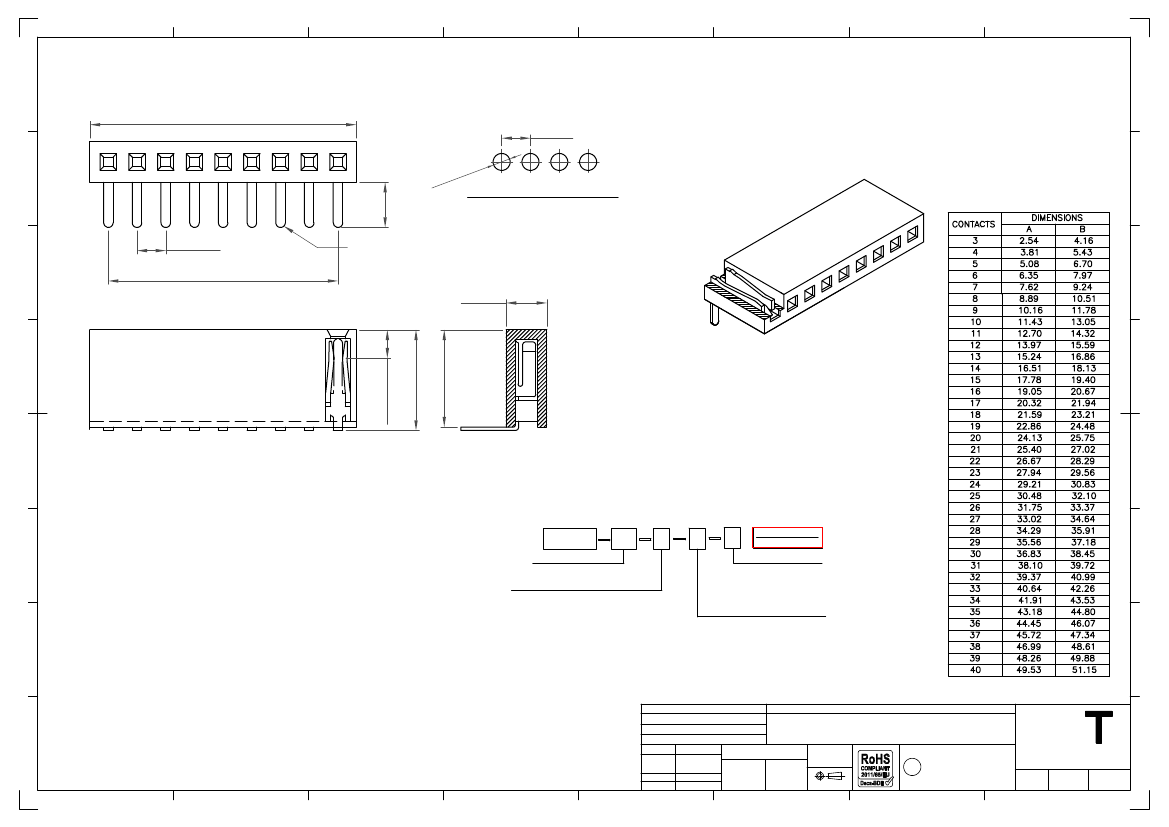

Recommended PCB Layout

(Tolerance:±0.05mm)

G

1.27

F

Pin 0.42 x 0.15

A±0.25

1.80

D

1.12 ref.

4.45

4.30

E

2.00

Ordering Grid

C

Specifications

规格

:

Current Rating

电流额定值:

1 amp

Insulator Resistance

绝缘电阻值:

1000 MΩ min.

Dielectric Withstanding

耐电压:

AC 300 V

Contact Resistance

接触电阻值:

20mΩ max.

Operating Temperature

工½温度:

-40°C to +105°C

Contact Material

端子物料:

Copper Alloy

Insulator Material

绝缘½物料

: Polyester

聚酯

, LCP, UL 94V-0

Soldering Process

可焊性

: LCP -

IR Reflow

回流焊

: 260°C for 10 sec.

Wave

波峰焊

: 250°C for 5-10 sec

Manual Solder

人工焊接

: 350°C for 3-5 sec

Mates with

配套之母座

(Subject to pin length

在端子长度适合的条件下

):

BD021

BD045

BD100

BD105

BD110

1

2

3

BD090

XX

X

L

X

Request Samples

and Quotation

B

No. of Contacts

03 to 40

Contact Plating

A = Gold Flash All Over

(Standard)

B = Selective Gold Flash Contact Area/

Tin On Tail

C = Tin All Over

G = 10µ" Gold Contact Area/Tin On Tail

I = 30µ" Gold Contact Area/Tin On Tail

Packing Options

G = Plastic Box

(Standard)

D = Tube

E = Tube with Cap

Insulator Material

L = LCP

Part Number

Product Description

BD090

Drawing Date

A

28th December 2007

By

Detail

Revision

Date

AJO

BD090

F PCN

F

08/09/14

Length

1.27mm Pitch Socket, Single Row,

Through Hole, Horizontal

Tolerances

(Except as Noted)

Angle

4

5

X.° ± 5°

X. ± 0.30

X.X° ± 2°

X.X ± 0.20

X.XX° ± 1°

X.XX ± 0.15

X.XXX ± 0.10 X.XXX° ± 0.5°

Units:

Metric (mm)

C

7

3rd Angle Projection

This drawing is confidential and

copyright of Global Connector

Technology, Ltd (GCT).

This drawing must not be copied

or disclosed without written

consent. E & OE

Global Connector Technology

GC

Drawn By

LYH

www.gct.co

Not to

Scale

Sheet No.

1/1

6

8
