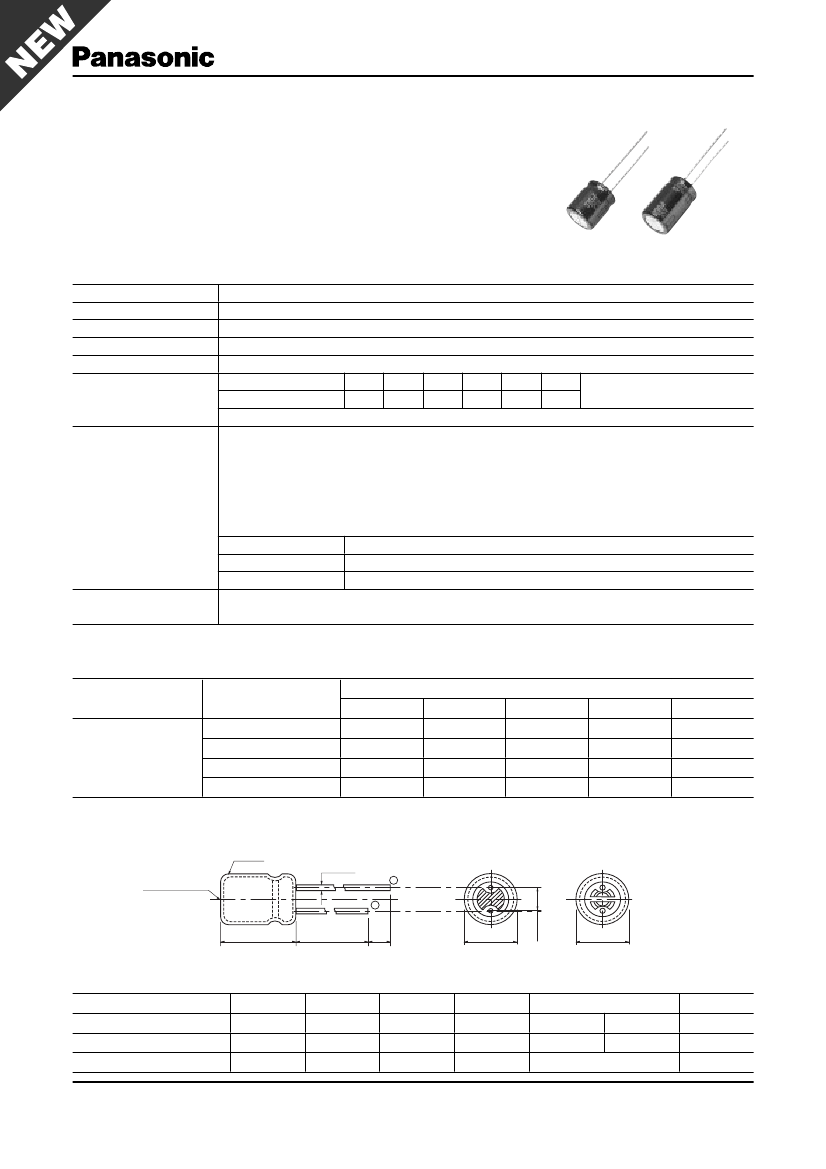

EEUFR0J821B: DescriptionCapacitor;Alum Electrolytic;Cap 470 uF;Tol 20%;Vol-Rtg 16 VDC;Radial;8x11.5;Bulk; CategoryPassive components; File Size100KB，4 Pages; ManufacturerPanasonic; Websitehttp://www.panasonic.co.jp/semicon/e-index.html

Download Datasheet Compare View All

EEUFR0J821B Overview

Capacitor;Alum Electrolytic;Cap 470 uF;Tol 20%;Vol-Rtg 16 VDC;Radial;8x11.5;Bulk

Preview

Download Datasheet

View All

Aluminum Electrolytic Capacitors/ FR

Radial Lead Type

Series:

Type:

■

Country of origin

Malaysia

■

Features

●

Low ESR (Same as FM Series)

●

Endurance : 2000 h to 10000 h at +105 °C

●

RoHS directive compliant

■

Speciﬁcations

Category Temp. Range

Rated W.V. Range

Nominal Cap. Range

Capacitance Tolerance

DC Leakage Current

tan

–40 °C to +105 °C

6.3 V.DC to 50 V.DC

22 µF to 8200 µF

±20 % (120 Hz/+20 °C)

0.01 CV (µA) After 2 minutes

W.V.

6.3

tan

0.22 0.19 0.16 0.14 0.12 0.10

Add 0.02 per 1000 µF for products of 1000 µF or more.

(120 Hz/+20 °C)

Endurance

After following life test with DC voltage and +105 °C±2 °C ripple current value applied. (The sum

of DC and ripple peak voltage shall not exceed the rated working voltage) when the capacitors

are restored to 20 °C, the capacitors shall meet the limits speciﬁed below.

Duration

φ5

11/

φ6.3

11.2 : 2000 hours,

φ8

11.5/

φ10

12.5 : 6000 hours

φ8

15/

φ10

16 : 8000 hours,

φ8×20

: 9000 hours

φ10

20 to

φ10

25/

φ12.5

20 to

φ12.5

35/

φ16

20 to

φ16

25 : 10000 hours

Capacitance change ±25 % of initial measured value (6.3 V to 10 V : ±30 %)

tan

200 % of initial speciﬁed value

DC leakage current

initial speciﬁed value

Shelf Life

After storage for 1000 hours at +105 °C±2 °C with no voltage applied and then being stabilized

at +20 °C, capacitors shall meet the limits speciﬁed in Endurance. (With voltage treatment)

■

Frequency correction factor for ripple current

W.V.(V.DC)

6.3 to 50

390

1200

Cap (µF)

330

1000

8200

Frequency (Hz)

0.45

0.60

0.65

0.75

120

0.55

0.70

0.75

0.80

0.75

0.85

0.90

0.95

10 k

0.90

0.95

0.98

1.00

100 k

1.00

■

Dimensions in mm (not to scale)

Sleeve

Pressure relief

φ6.3<

φd±0.05

<φ8

φ10<

[mm]

–

F±0.5

14 min.

3 min.

φD±0.5

L<16 : L±1.5

L>20 : L±2.0

(mm)

Body Dia.

φD

Body Length L

Lead Dia.

φd

Lead space F

—

0.5

2.0

6.3

—

0.5

2.5

—

0.6

3.5

—

0.6

5.0

0.6

12.5

12.5 to 25

5.0

30 to 35

0.8

—

0.8

7.5

Design and speciﬁcations are each subject to change without notice. Ask factory for the current technical speciﬁcations before purchase and/or use.

Should a safety concern arise regarding this product, please be sure to contact us immediately.

Apr. 2010
