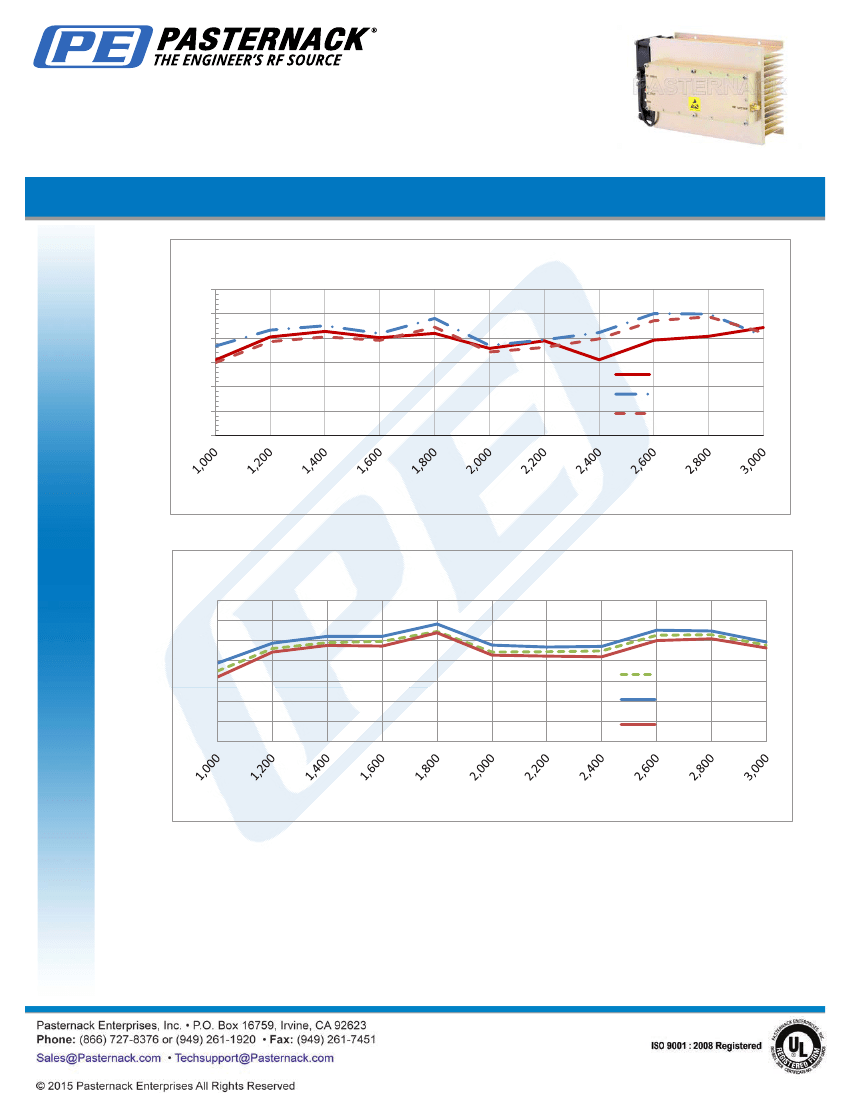

44 dB Gain, 8 Watt Psat, 1 GHz to 3 GHz, High
Power High Gain Amplifier, 48 dBm IP3, SMA
TECHNICAL DATA SHEET
PE15A5037F
The PE15A5037F is a high gain Class A/AB coaxial Linear Power Amplifier operating in the 1000 to 3000 MHz frequency
range. The amplifier offers a Wide Dynamic Range with 8 Watts typical saturated power, 44 dB typical small signal gain, ±1.5
dB gain flatness maximum, and a high Output IP3 of +48 dBm typical. The amplifier requires typically a +13V DC power supply,
is unconditionally stable, and operates over the temperature range of 0°C and +50°C. The unit includes a Heatsink and Fan.
Features
•
•
•
•
•
•
1000 MHz to 3000 MHz Frequency Range
Psat 8 Watts typ
Small Signal Gain: 39 dB min
Gain Flatness ±1.5 dB max
Class A/AB
IP3 48 dBm typ
•
•
•
•
•
•
50 Ohms Input and Output Matched
Unconditionally Stable
Regulated Supply
RF Input Signal Format CW/AM/FM/PM/Pulse
SMA Female RF Connectors
Heatsink and Fan
Applications
•
Military Radio
•
Communication Systems
•
High Gain Driver Power Amplifier
•
High Gain Output Power Amplifier
Electrical Specifications
(TA = +25°C, DC Voltage = 13Volts, DC Current = 4,000mA)
Description
Frequency Range
Small Signal Gain
Gain Flatness
Input Power
Psat
Output Power at 1 dB Compression Point
Output 3rd Order Intercept Point
Harmonics @6 Watts
Spurious @6 Watts
Input VSWR
Operating DC Voltage
Operating DC Current
Operating Temperature Range
.
0
13
4,000
+50
+37.8
+48
-20
-60
2:1
Volts
mA
°C
+39
Minimum
1
39
Typical
44
Maximum
3
±1.5
+10
Units
GHz
dB
dB
dBm
dBm
dBm
dBm
dBc
dBc
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
44 dB Gain, 8 Watt Psat, 1 GHz to 3 GHz, High Power High Gain Amplifier, 48 dBm IP3, SMA
PE15A5037F
PE15A5037F REV 1.0
1
44 dB Gain, 8 Watt Psat, 1 GHz to 3 GHz, High
Power High Gain Amplifier, 48 dBm IP3, SMA
TECHNICAL DATA SHEET
Mechanical Specifications
Size
Length
Width
Height
.
PE15A5037F
8.7 in [220.98 mm]
5.2 in [132.08 mm]
3.5 in [88.9 mm]
4 lbs [1.81 Kg]
SMA Female
SMA Female
Weight
Input Connector
Output Connector
Environmental Specifications
Temperature
Operating Range
..
0 to +50 deg C
95% Non-Condensing
Normal Truck Transport
Normal Truck Transport
10000 feet Above Sea Level
Humidity
Shock
Vibration
Altitude
Not RoHS Compliant
Compliance Certifications
(visit www.Pasternack.com for current document)
Plotted and Other Data
Notes:
•
Values at +25 °C, sea level
•
ESD Sensitive Material, Transport material in Approved ESD bags. Handle only in approved ESD Workstation.
•
Heat Sink Required for Proper Operation, Unit is cooled by conduction to heat sink.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
44 dB Gain, 8 Watt Psat, 1 GHz to 3 GHz, High Power High Gain Amplifier, 48 dBm IP3, SMA
PE15A5037F
PE15A5037F REV 1.0
2
44 dB Gain, 8 Watt Psat, 1 GHz to 3 GHz, High
Power High Gain Amplifier, 48 dBm IP3, SMA
TECHNICAL DATA SHEET

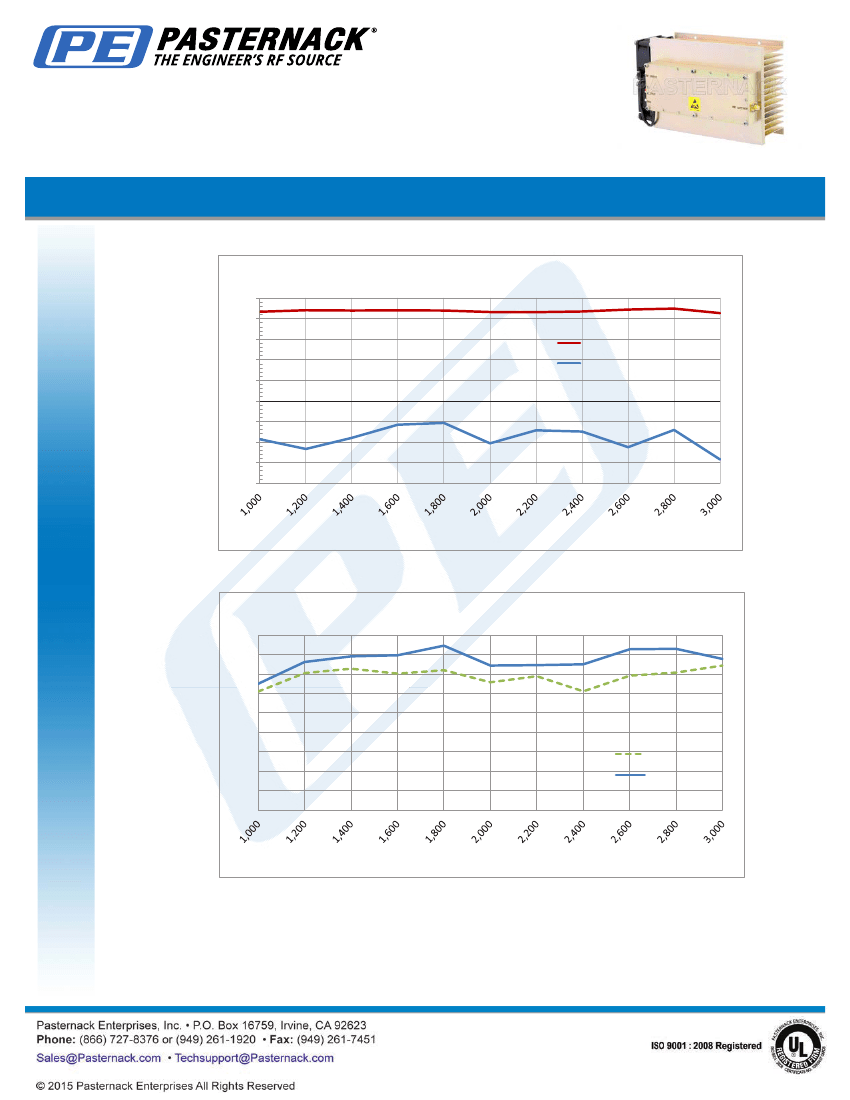

Typical Performance Data

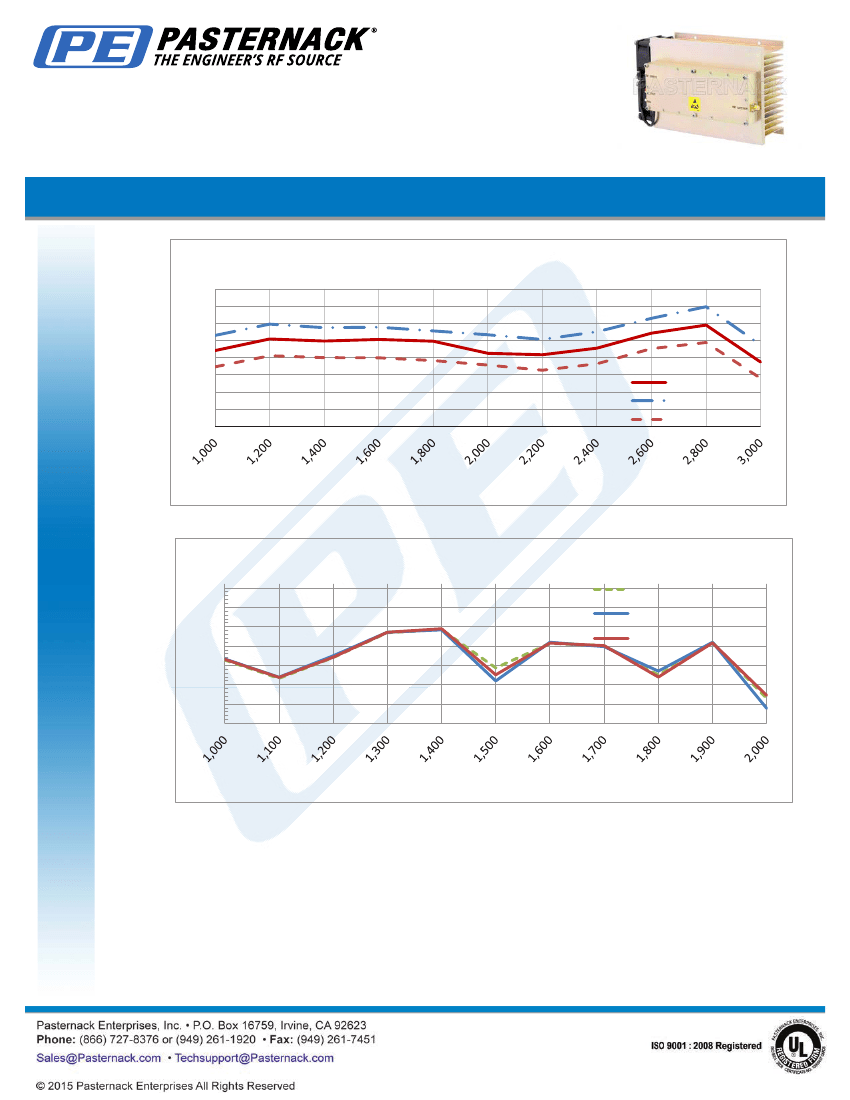

PE15A5037F
dB
50.0
40.0
30.0
20.0
10.0
0.0
-10.0
-20.0
-30.0
-40.0
Gain and Input Return Loss
Gain(dB) 25 C
IN_Return Loss(dB)
Freq.(MHz)
dBm
43.0
42.0
41.0
40.0
39.0
38.0
37.0
P1dB and Psat
P1dB (dBm)
Psat (dBm)
36.0
35.0
34.0
Freq.(MHz)
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
44 dB Gain, 8 Watt Psat, 1 GHz to 3 GHz, High Power High Gain Amplifier, 48 dBm IP3, SMA
PE15A5037F
PE15A5037F REV 1.0
3
44 dB Gain, 8 Watt Psat, 1 GHz to 3 GHz, High
Power High Gain Amplifier, 48 dBm IP3, SMA
TECHNICAL DATA SHEET
PE15A5037F
dB
43.0
42.0
41.0
40.0
39.0
38.0
37.0
P1dB Over Temperature
P1dB +25 C
P1dB +0 C
P1dB +85 C
Freq.(MHz)
dB
44.0
43.0
42.0
41.0
40.0
39.0
38.0
37.0
Psat Over Temperature
Psat +25 C
Psat +0 C
Psat +85 C
Freq.(MHz)
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
44 dB Gain, 8 Watt Psat, 1 GHz to 3 GHz, High Power High Gain Amplifier, 48 dBm IP3, SMA
PE15A5037F
PE15A5037F REV 1.0
4
44 dB Gain, 8 Watt Psat, 1 GHz to 3 GHz, High
Power High Gain Amplifier, 48 dBm IP3, SMA
TECHNICAL DATA SHEET
PE15A5037F
dB
47.0
46.0
45.0
44.0
43.0
42.0
41.0
40.0
39.0
Gain Over Temperature
Gain +25 C
Gain +0 C
Gain +50 C
Freq.(MHz)
dB
0.0
-5.0
-10.0
-15.0
-20.0
-25.0
-30.0
-35.0
Return Loss Over Temperature
Return Loss +25 C
Return Loss +0 C
Return Loss +50 C
Freq.(MHz)
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
44 dB Gain, 8 Watt Psat, 1 GHz to 3 GHz, High Power High Gain Amplifier, 48 dBm IP3, SMA
PE15A5037F
PE15A5037F REV 1.0
5
