A2001WR-S-12PD01: DescriptionBoard Connector, 12 Contact(s), 1 Row(s), Male, Right Angle, 0.079 inch Pitch, Surface Mount Terminal, Beige Insulator, Receptacle; CategoryThe connector The connector; File Size70KB，2 Pages; ManufacturerJoint Tech Electronic Industrial Co., Ltd.

Download Datasheet Parametric Compare View All

A2001WR-S-12PD01 Overview

Board Connector, 12 Contact(s), 1 Row(s), Male, Right Angle, 0.079 inch Pitch, Surface Mount Terminal, Beige Insulator, Receptacle

A2001WR-S-12PD01 Parametric

Parameter Name	Attribute value
Maker	Joint Tech Electronic Industrial Co., Ltd.
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.217 inch
subject depth	0.301 inch
body length	1.102 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	800VAC V
Insulation resistance	1000000000 Ω
Insulator color	BEIGE
insulator material	NYLON
Manufacturer's serial number	A2001
Plug contact pitch	0.079 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	RECTANGULAR
Plating thickness	FLASH inch
polarization key	GUIDE SLOT(S)
Rated current (signal)	2 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.0066 mm
Termination type	SURFACE MOUNT
Total number of contacts	12

Preview

Download Datasheet

View All

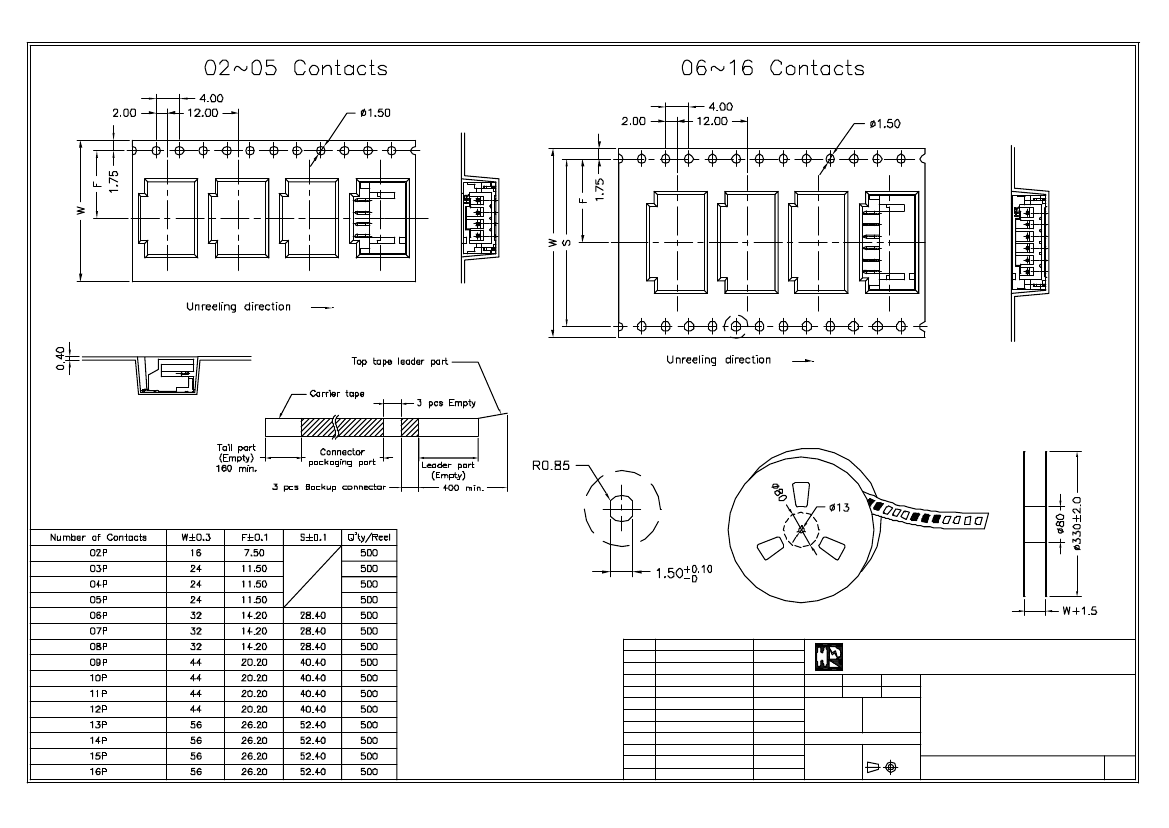

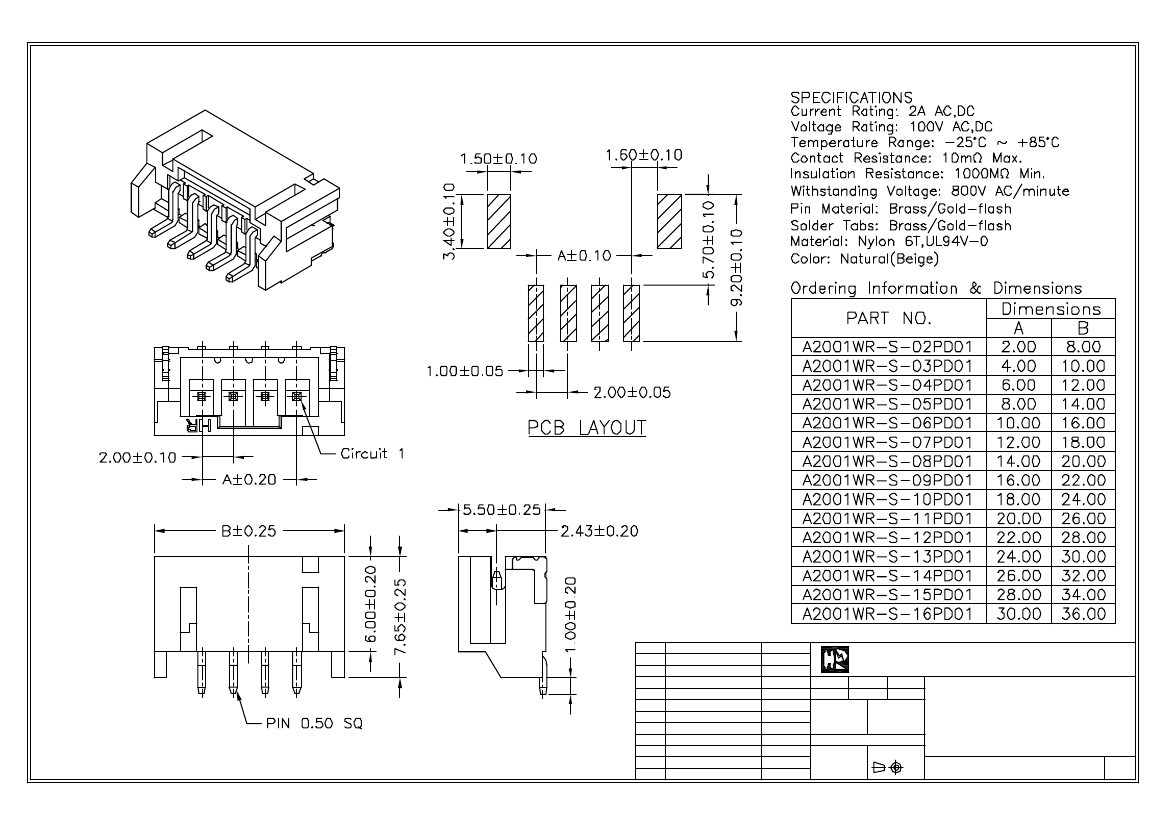

JOINT TECH ELECTRONIC IND. CO., LTD.

JOY DAY INDUSTRIAL CO., LTD.

UNIT

SCALE

SHEET

mm

1 of 2

DRAWN BY

APPROVED BY

李勤

董正一

2006.07.21

GENERAL TOLERANCE

ANGLE ±

X.X ±

0.25

X.XX ±

0.15

X.XXX ±

0.05

TITLE:

2.00mm PITCH

90°

WAFER-SMT TYPE

DRAW NO.:

A2001WR-S-XPD01

REV.

A1

A0

REVISE

NEW RELEASE

2006.09.02

2006.07.21

REV.

DESCRIPTION

DATE

A2001WR-S-12PD01 Related Products

	A2001WR-S-12PD01	A2001WR-S-10PD01	A2001WR-S-16PD01	A2001WR-S-15PD01	A2001WR-S-06PD01	A2001WR-S-07PD01	A2001WR-S-13PD01
Description	Board Connector, 12 Contact(s), 1 Row(s), Male, Right Angle, 0.079 inch Pitch, Surface Mount Terminal, Beige Insulator, Receptacle	Board Connector, 10 Contact(s), 1 Row(s), Male, Right Angle, 0.079 inch Pitch, Surface Mount Terminal, Beige Insulator, Receptacle	Board Connector, 16 Contact(s), 1 Row(s), Male, Right Angle, 0.079 inch Pitch, Surface Mount Terminal, Beige Insulator, Receptacle	Board Connector, 15 Contact(s), 1 Row(s), Male, Right Angle, 0.079 inch Pitch, Surface Mount Terminal, Beige Insulator, Receptacle	Board Connector, 6 Contact(s), 1 Row(s), Male, Right Angle, 0.079 inch Pitch, Surface Mount Terminal, Beige Insulator, Receptacle	Board Connector, 7 Contact(s), 1 Row(s), Male, Right Angle, 0.079 inch Pitch, Surface Mount Terminal, Beige Insulator, Receptacle	Board Connector, 13 Contact(s), 1 Row(s), Male, Right Angle, 0.079 inch Pitch, Surface Mount Terminal, Beige Insulator, Receptacle
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
body width	0.217 inch	0.217 inch	0.217 inch	0.217 inch	0.217 inch	0.217 inch	0.217 inch
subject depth	0.301 inch	0.301 inch	0.301 inch	0.301 inch	0.301 inch	0.301 inch	0.301 inch
body length	1.102 inch	0.945 inch	1.417 inch	1.339 inch	0.63 inch	0.709 inch	1.181 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU	AU	AU	AU	AU	AU	AU
Contact completed and terminated	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	10 mΩ	10 mΩ	10 mΩ	10 mΩ	10 mΩ	10 mΩ	10 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	800VAC V	800VAC V	800VAC V	800VAC V	800VAC V	800VAC V	800VAC V
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
Insulator color	BEIGE	BEIGE	BEIGE	BEIGE	BEIGE	BEIGE	BEIGE
insulator material	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON
Manufacturer's serial number	A2001	A2001	A2001	A2001	A2001	A2001	A2001
Plug contact pitch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	1	1	1	1	1	1	1
Number of rows loaded	1	1	1	1	1	1	1
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Plating thickness	FLASH inch	FLASH inch	FLASH inch	FLASH inch	FLASH inch	FLASH inch	FLASH inch
polarization key	GUIDE SLOT(S)	GUIDE SLOT(S)	GUIDE SLOT(S)	GUIDE SLOT(S)	GUIDE SLOT(S)	GUIDE SLOT(S)	GUIDE SLOT(S)
Rated current (signal)	2 A	2 A	2 A	2 A	2 A	2 A	2 A
Guideline	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	12	10	16	15	6	7	13
