100202000001 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 100202000001

100202000001: DescriptionM 2,54 SRC-P, 2-polig; CategoryThe connector The connector; File Size45KB，1 Pages; ManufacturerERNI; Websitehttp://www.erni.com

Download Datasheet Parametric View All

100202000001 Overview

M 2,54 SRC-P, 2-polig

100202000001 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compli
Is Samacsys	N
Connector type	COMBINATION LINE CONNECTOR
Manufacturer's serial number	100202000001
Base Number Matches	1

Preview

Download Datasheet

View All

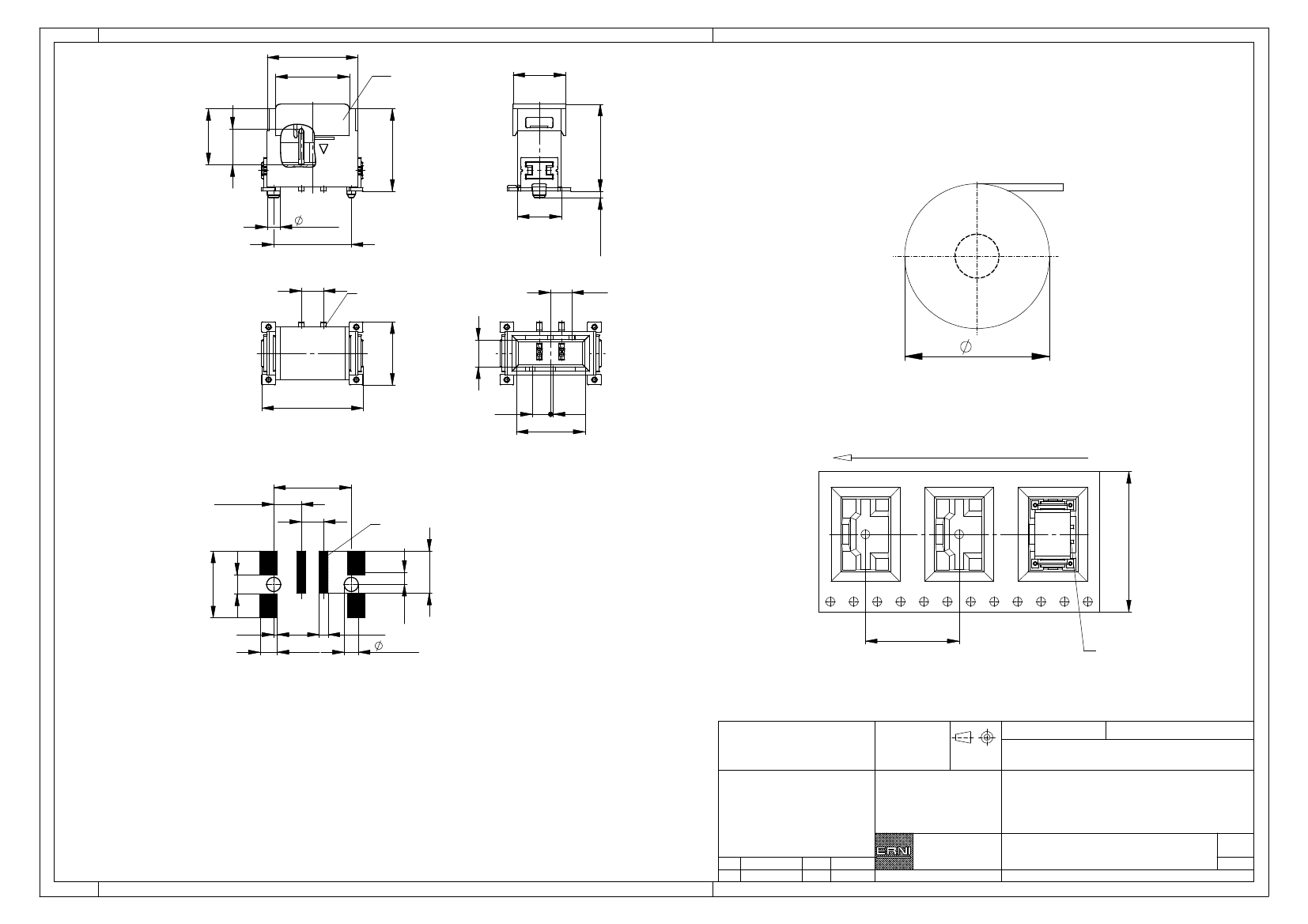

10,34

8,4

Ansaughaube

hood

Verpackt in Gurtverpackung

6,4

4,1

-0,1

+0,2

Tape on Reel Packaging

9,4

9,9

Verpackungseinheit: 320 Stück

Packaging unit: 320 pcs

8,84

±0,05

0,75

-0,1

ohne Ansaughaube

1,5

-0,06

without hood

2,54

2,4

7,2

11,54

3,1

330

2,1

7,84

0,3

Leiterplatten-Layout Vorschlag für SMT

PCB-Layout Proposal for SMT

8,84

±0,05

3,15

±0,03

2,54

Kontaktbereich vergoldet

Anforderungsstufe 1

Abspulrichtung -

Reel off Direction

Performance Level 1

Mating Area gold plating

4,8

Anschlussbereich verzinnt 4-6 µm

1,6

-0,03

Proprietary notice pursuant to ISO 16016 to be observed.

7,6

2,2

Terminal Area 4-6 µm tin plating

Koplanarität der Anschlüsse

≤

0,1 mm

1,4

0,4

1,95

1,02

Coplanarity Area of Termination

≤

0,1 mm

Information:

Codierung, rot -

coding, red

Tolerances

All Dimensions

in mm

Scale

3:1

Only for Information.

To ensure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

Index

24.04.2013

Date

Designation

Subject to modification without

prior notice.

Drawing will not be updated.

M 2,54 SRC-P, 2-polig

www.ERNI.com

Class

100202000001

SRCP
