NRSZC681M25V10X20F datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> NRSZC681M25V10X20F

NRSZC681M25V10X20F: DescriptionCAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 25V, 680uF, THROUGH HOLE MOUNT, RADIAL LEADED, ROHS COMPLIANT; CategoryPassive components capacitor; File Size61KB，4 Pages; ManufacturerNIC Components Corp; Environmental Compliance

Download Datasheet Parametric View All

NRSZC681M25V10X20F Overview

CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 25V, 680uF, THROUGH HOLE MOUNT, RADIAL LEADED, ROHS COMPLIANT

NRSZC681M25V10X20F Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	NIC Components Corp
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	14 weeks
capacitance	680 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	10 mm
dielectric materials	ALUMINUM (WET)
ESR	36 mΩ
JESD-609 code	e3
leakage current	0.17 mA
length	20 mm
Manufacturer's serial number	NRSZC
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Package shape	CYLINDRICAL PACKAGE
Package form	Radial
method of packing	Bulk
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	25 V
ripple current	942.5 mA
series	NRSZC
surface mount	NO
Delta tangent	0.14
Terminal surface	Tin (Sn)
Terminal pitch	5 mm
Terminal shape	WIRE

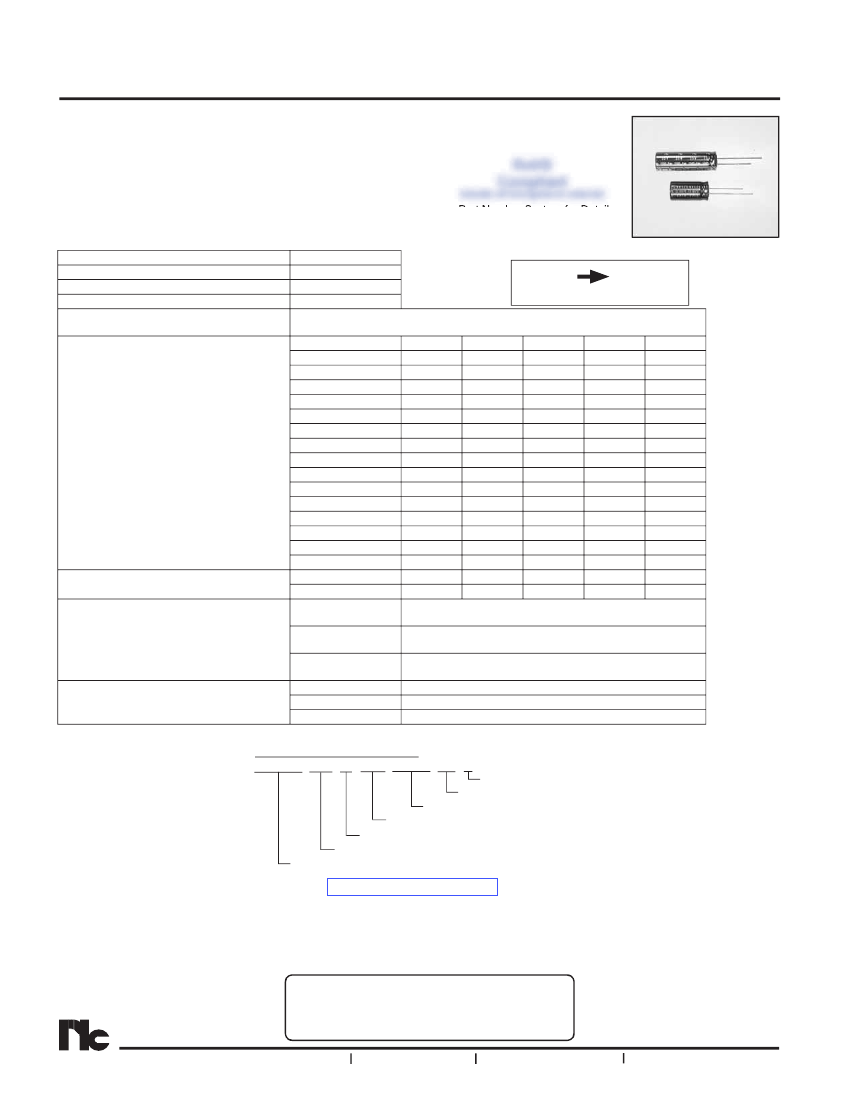

Preview

Download Datasheet

View All

Miniature Aluminum Electrolytic Capacitors

VERY LOW IMPEDANCE(LOWER THAN NRSZ) AT HIGH FREQUENCY

RADIAL LEADS, POLARIZED ALUMINUM ELECTROLYTIC CAPACITORS

FEATURES

RoHS

• VERY LOW IMPEDANCE

Compliant

includes all homogeneous materials

• LONG LIFE AT 105°C (2000 ~ 7000 hrs.)

• HIGH STABILITY AT LOW TEMPERATURE

*See Part Number System for Details

• IDEALLY FOR SWITCHING POWER SUPPLIES

CHARACTERISTICS

Rated Voltage Range

Capacitance Range

Operating Temperature Range

Capacitance Tolerance

Max. Leakage Current @ 20°C

after 2 min.

6.3 ~ 35VDC

47 ~ 18,000μF

-55 ~ +105°C

±20% (M)

0.01CV

W.V. (VDC)

S.V. (VDC)

C < 1,000μF

C = 1,800μF

C = 2,200μF

C = 2,700μF

C = 3,300μF

C = 3,900μF

C = 4,700μF

C = 5,600μF

C = 6,800μF

C = 8,200μF

C = 10,000μF

C = 12,000μF

C = 15,000μF

C = 18,000μF

Z-25°C/Z+20°C

Z-40°C/Z+20°C

Capacitance Change

Tanδ

Leakage Current

Capacitance Change

Tanδ

Leakage Current

6.3

0.22

0.24

0.26

0.28

0.30

0.32

0.36

0.40

0.44

0.50

0.56

0.19

0.21

0.23

0.26

0.27

0.29

0.33

0.37

0.41

0.47

0.16

0.18

0.20

0.22

0.24

0.26

0.30

0.34

0.14

0.16

0.18

0.22

0.24

NRSZC Series

NRSZ

NRSZC

(today’s standard)

(for new designs)

Max. Tanδ ~ 120Hz/20°C

Low Temperature Stability

Impedance Ratio @ 120Hz

Load Life Test at Rated W.V. & 105°C

7,000 Hours: 16 ~ 18φ

5,000 hours: 12.5φ

4,000 hours: 10φ

3,000 hours: 8φ

2,000 hours: 5 ~ 6.3φ

Shelf Life Test

105°C for 1,000 hours

No Load

0.12

0.14

0.16

0.18

Within ±25% of initial measured value

Less than 200% of speciﬁed maximum value

Less than speciﬁed maximum value

Within ±20% of initial measured value

Less than 200% of speciﬁed maximum value

Less than speciﬁed maximum value

PART NUMBER SYSTEM

NRSZC 102 M 16V 10x16 TB F

RoHS Compliant

Optional Tape & Box*

Size (D∅xL)

Rated Voltage

Tolerance Code

Capacitance Code

Series

*see tape speciﬁcation for details

Please review the notes on correct use, safety and precautions found on

pages T10

T11

of NIC’s

Electrolytic Capacitor catalog.

Also found at

www.niccomp.com/precautions

If in doubt or uncertainty, please review your speciﬁc application - process details with

NIC’s technical support personnel:

tpmg@niccomp.com

PRECAUTIONS

NIC COMPONENTS CORP.

www.niccomp.com

www.lowESR.com

www.RFpassives.com

www.SMTmagnetics.com

159
