HS-117RH
TM
Data Sheet
November 2001
File Number
4560.6
Radiation Hardened
Adjustable Positive Voltage Regulator
The Radiation Hardened HS-117RH is an adjustable positive
voltage linear regulator capable of operating up to 40VDC.
The voltage is adjustable from 1.2V to 37V with two external
resistors. The device is capable of sourcing from 50mA to
1.25A
PEAK
(0.5 A
PEAK
for the TO-39 package). Protection is
provided by the on-chip thermal shutdown and output
current limiting circuitry.
The Intersil HS-117RH has advantages over other industry
standard types, in that circuitry is incorporated to minimize
the effects of radiation and temperature on device stability.
Negligible low dose rate sensitivity is achieved through the
use of vertical transistor geometries.
Constructed with the Intersil dielectrically isolated Rad Hard
Silicon Gate (RSG) process, the HS-117RH is immune to
single event latch-up and has been specifically designed to
provide highly reliable performance in harsh radiation
environments.
Specifications for Rad Hard QML devices are controlled
by the Defense Supply Center in Columbus (DSCC). The
SMD numbers listed here must be used when ordering.
Detailed electrical specifications for the HS-117RH are
contained in SMD 5962-99547. A “hot-link” is provided
on our homepage for downloading.
Features
• Electrically Screened to DSSC SMD # 5962-99547
• QML Qualified per MIL-PRF-38535 Requirements
• Radiation Environment
- 300 krad (Si) (Max)
- Latch-up Immune
- Negligible Low Dose Rate Effects Sensitivity
• Superior Temperature Stability
• Overcurrent and Overtemperature Protection
Applications
• Adjustable Linear Voltage Regulators
• Adjustable Linear Current Regulatorsl
Ordering Information
ORDERING
NUMBER
5962F9954701VUC
5962F9954701QUC
5962F9954701VXC
5962F9954701QXC
5962F9954701VYC
INTERNAL
MKT. NUMBER
HS2-117RH-Q
HS2-117RH-8
HS9S-117RH-Q
HS9S-117RH-8
HSYE-117RH-Q
HSYE-117RH-8
HS2-117RH/Proto
HS9S-117RH/Proto
HSYE-117RH/Proto
TEMP. RANGE
(
o
C)
-55 to 125
-55 to 125
-55 to 125
-55 to 125
-55 to 125
-55 to 125
-55 to 125
-55 to 125
-55 to 125
Pinouts
HS2-117RH (TO-39 CAN)
BOTTOM VIEW
5962F9954701QYC
HS2-117RH/Proto
HS9S-117RH/Proto
ADJUST
2
HSYE-117RH/Proto
IN 1
3 OUT
HSYE-117RH (SMD.5 CLCC)
BOTTOM VIEW
2
3
1
1 - ADJUST
2 - IN
3 - OUT
HS9S-117RH (TO-257AA FLANGE MOUNT)
TOP VIEW
3
2
1
IN
OUT
ADJUST
NOTE: No current JEDEC outline for the SMD.5 package. Refer to
SMD for package dimensions. The TO-257 is a totally isolated metal
package.
1
CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.
1-888-INTERSIL or 321-724-7143
|
Intersil (and design) is a trademark of Intersil Americas Inc.
Copyright © Intersil Americas Inc. 2001. All Rights Reserved
HS-117RH
Die Characteristics
DIE DIMENSIONS
2616
µ
m x 2794
µ
m (103 mils x 110 mils)
483
µ
m
±
25.4
µ
m (19 mils
±
1 mil)
INTERFACE MATERIALS
Glassivation
Type: Silox (SiO
2
)
Thickness: 8.0k
Å
±
1.0k
Å
Top Metallization
Type: AlSiCu
Thickness: 16.0k
Å
±
2k
Å
Substrate
Radiation Hardened Silicon Gate,
Dielectric Isolation
Backside Finish
Gold
ASSEMBLY RELATED INFORMATION
Substrate Potential
Unbiased (DI)
ADDITIONAL INFORMATION
Worst Case Current Density
<2.0 x 10
5
A/cm
2
Transistor Count
95

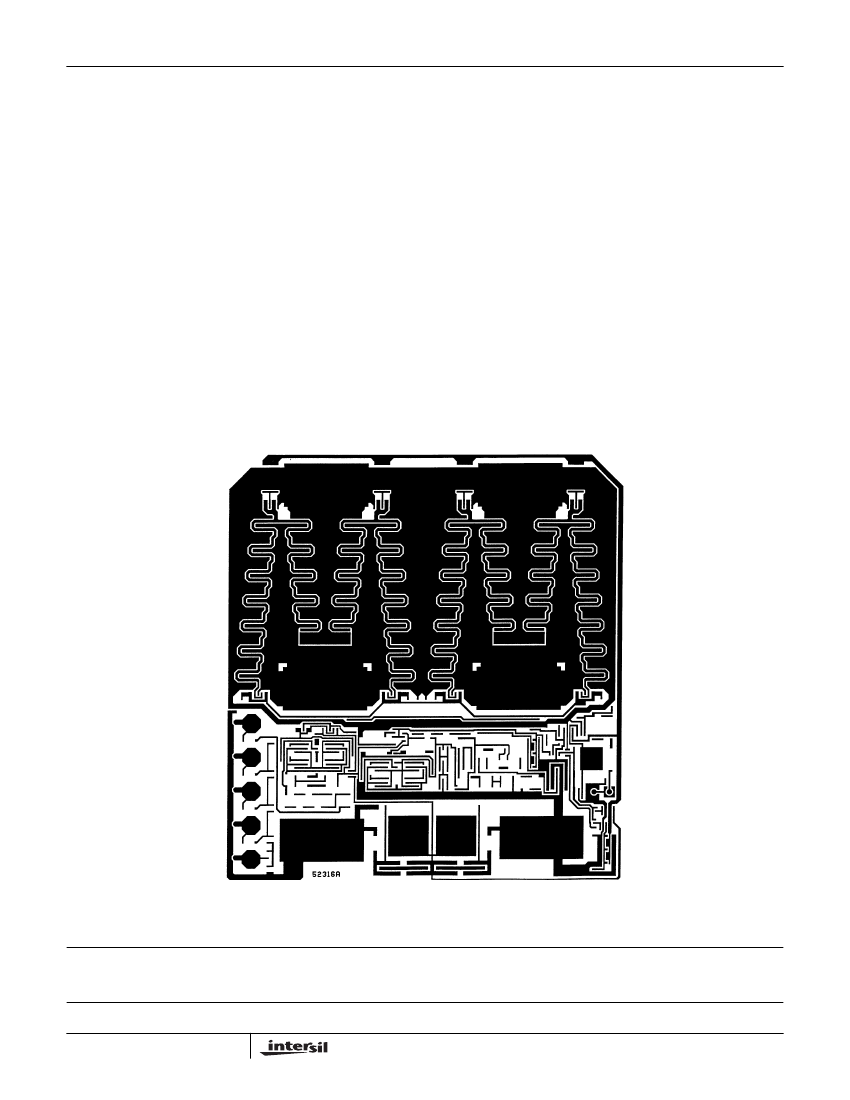

Metallization Mask Layout
HS-117RH
V
IN
V
IN
V
OUT
V
OUT
ADJ
V
OUTK
