SH400Q21D datasheet, PDF - EEWORLD Datasheet

SH400Q21D: DescriptionSilicon Controlled Rectifier, 628 A, 1200 V, SCR; CategoryAnalog mixed-signal IC Trigger device; File Size66KB，1 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

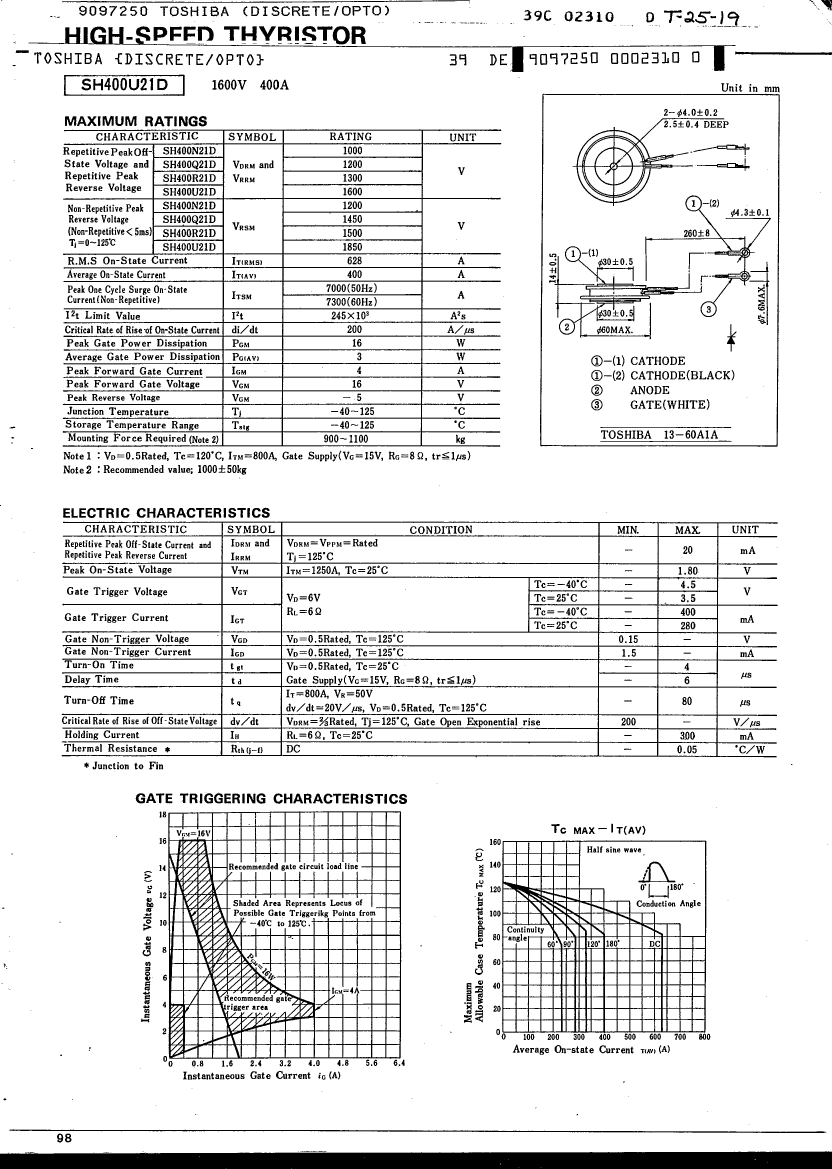

SH400Q21D Overview

Silicon Controlled Rectifier, 628 A, 1200 V, SCR

Parameter Name	Attribute value
Maker	Toshiba Semiconductor
package instruction	DISK BUTTON, O-CEDB-N2
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	HIGH SPEED
Nominal circuit commutation break time	80 µs
Configuration	SINGLE
Critical rise rate of minimum off-state voltage	200 V/us
Maximum DC gate trigger current	260 mA
Maximum DC gate trigger voltage	3.5 V
Maximum holding current	300 mA
JESD-30 code	O-CEDB-N2
Number of components	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	ROUND
Package form	DISK BUTTON
Certification status	Not Qualified
Maximum rms on-state current	628 A
Maximum repetitive peak off-state leakage current	20000 µA
Off-state repetitive peak voltage	1200 V
Repeated peak reverse voltage	1200 V
surface mount	YES
Terminal form	NO LEAD
Terminal location	END
Trigger device type	SCR

	SH400Q21D	AL03006-165.9-55-K	SH400U21D
Description	Silicon Controlled Rectifier, 628 A, 1200 V, SCR	NTC Diode Thermometrics Thermistors	Silicon Controlled Rectifier, 628 A, 1600 V, SCR
Maker	Toshiba Semiconductor	-	Toshiba Semiconductor
package instruction	DISK BUTTON, O-CEDB-N2	-	DISK BUTTON, O-CEDB-N2
Reach Compliance Code	unknown	-	unknown
ECCN code	EAR99	-	EAR99
Other features	HIGH SPEED	-	HIGH SPEED
Nominal circuit commutation break time	80 µs	-	80 µs
Configuration	SINGLE	-	SINGLE
Critical rise rate of minimum off-state voltage	200 V/us	-	200 V/us
Maximum DC gate trigger current	260 mA	-	260 mA
Maximum DC gate trigger voltage	3.5 V	-	3.5 V
Maximum holding current	300 mA	-	300 mA
JESD-30 code	O-CEDB-N2	-	O-CEDB-N2
Number of components	1	-	1
Number of terminals	2	-	2
Maximum operating temperature	125 °C	-	125 °C
Minimum operating temperature	-40 °C	-	-40 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	-	CERAMIC, METAL-SEALED COFIRED
Package shape	ROUND	-	ROUND
Package form	DISK BUTTON	-	DISK BUTTON
Certification status	Not Qualified	-	Not Qualified
Maximum rms on-state current	628 A	-	628 A
Maximum repetitive peak off-state leakage current	20000 µA	-	20000 µA
Off-state repetitive peak voltage	1200 V	-	1600 V
Repeated peak reverse voltage	1200 V	-	1600 V
surface mount	YES	-	YES
Terminal form	NO LEAD	-	NO LEAD
Terminal location	END	-	END
Trigger device type	SCR	-	SCR
