BH30MA3WHFV datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> BH30MA3WHFV

BH30MA3WHFV: DescriptionCMOS Type series regulator; CategoryPower/power management The power supply circuit; File Size347KB，6 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

BH30MA3WHFV Overview

CMOS Type series regulator

BH30MA3WHFV Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Parts packaging code	SOIC
package instruction	HVSOF-6
Contacts	6
Reach Compliance Code	compli
ECCN code	EAR99
Adjustability	FIXED
Nominal dropback voltage 1	0.06 V
Maximum absolute input voltage	6.5 V
Maximum input voltage	5.5 V
Minimum input voltage	2.5 V
JESD-30 code	R-PDSO-F6
JESD-609 code	e2
length	2.6 mm
Maximum grid adjustment rate	0.02%
Number of functions	1
Output times	1
Number of terminals	6
Maximum output current 1	0.3 A
Maximum output voltage 1	3.03 V
Minimum output voltage 1	2.97 V
Nominal output voltage 1	3 V
Package body material	PLASTIC/EPOXY
encapsulated code	VSOF
Encapsulate equivalent code	FL6,.1,20
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, VERY THIN PROFILE
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Regulator type	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR
Maximum seat height	0.75 mm
surface mount	YES
technology	CMOS
Terminal surface	Tin/Copper (Sn/Cu)
Terminal form	FLAT
Terminal pitch	0.5 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	10
Maximum voltage tolerance	1%
width	1.6 mm
Base Number Matches	1

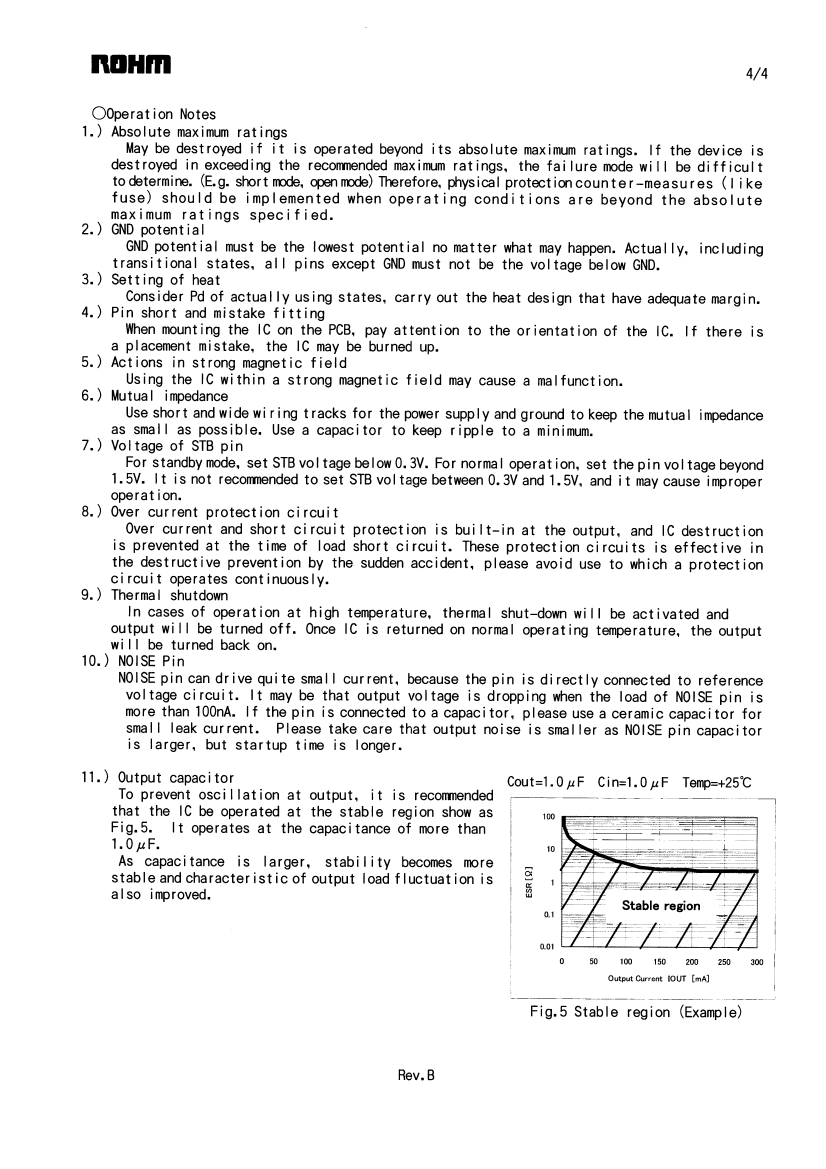

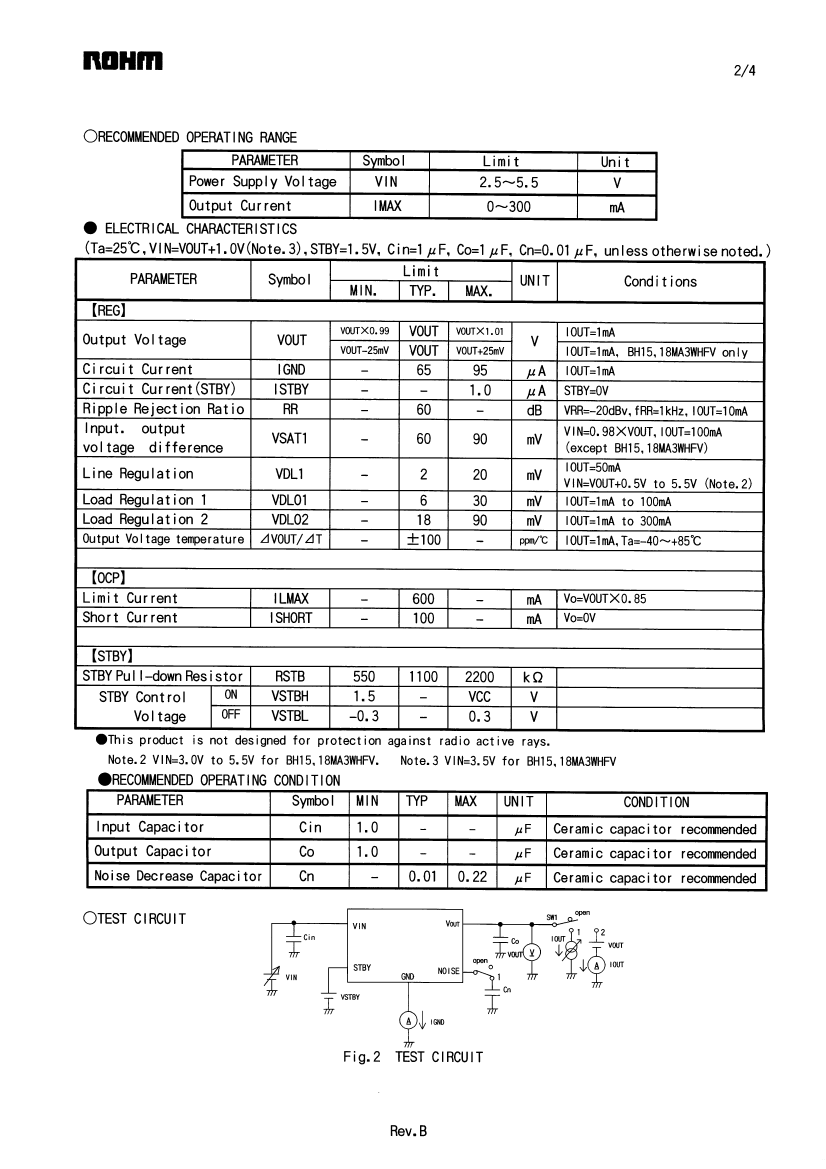

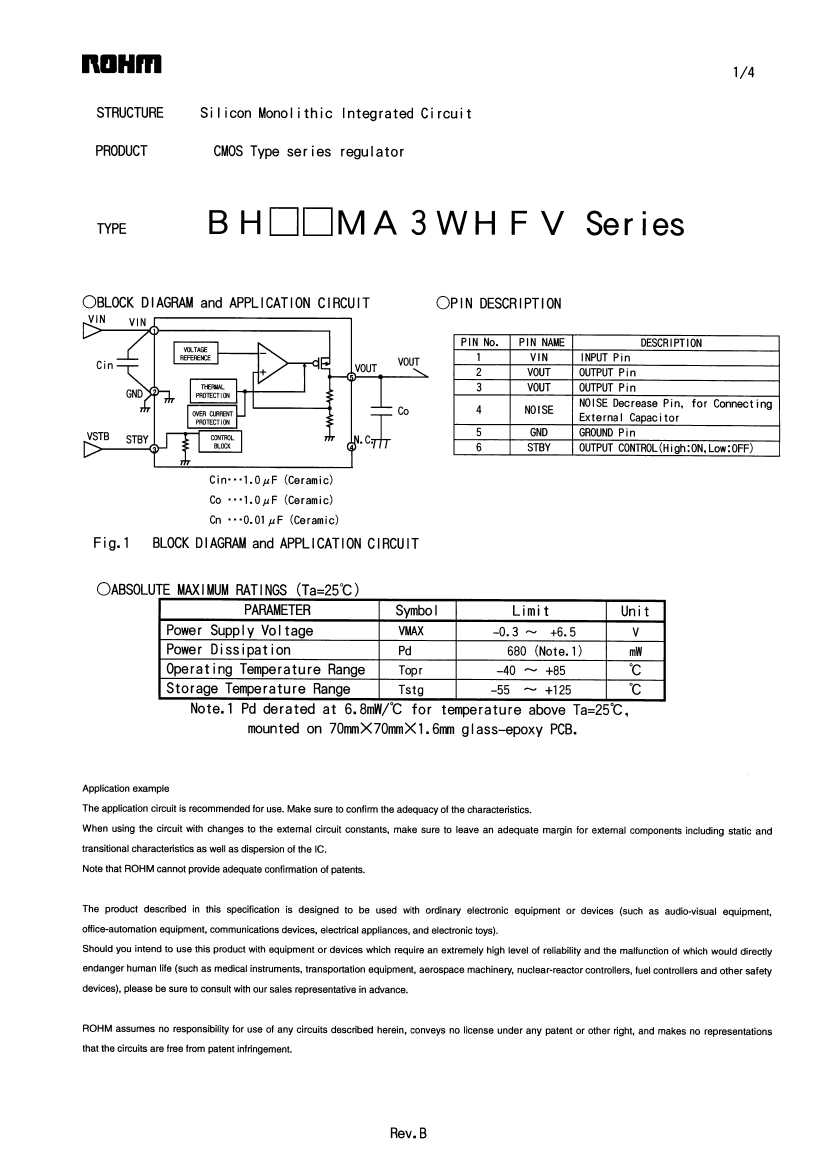

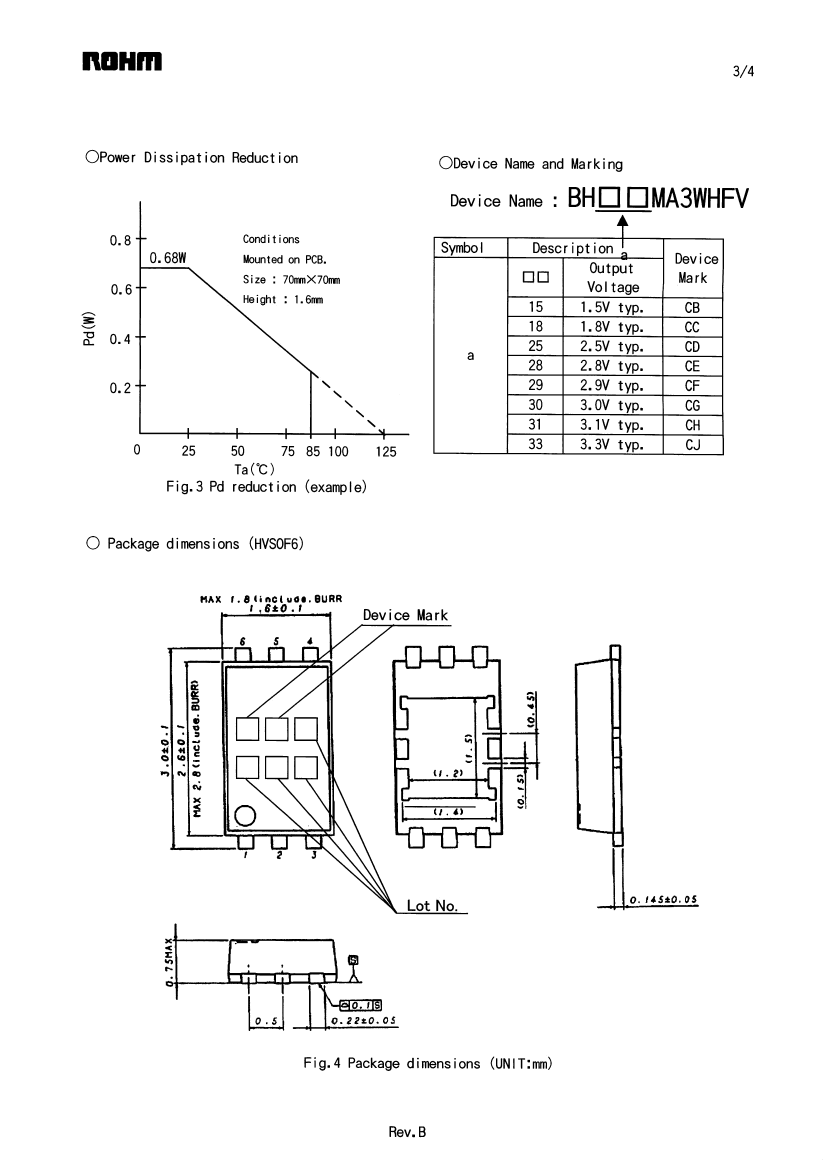

Preview

Download Datasheet

View All

Appendix

Notes

No technical content pages of this document may be reproduced in any form or transmitted by any

means without prior permission of ROHM CO.,LTD.

The contents described herein are subject to change without notice. The specifications for the

product described in this document are for reference only. Upon actual use, therefore, please request

that specifications to be separately delivered.

Application circuit diagrams and circuit constants contained herein are shown as examples of standard

use and operation. Please pay careful attention to the peripheral conditions when designing circuits

and deciding upon circuit constants in the set.

Any data, including, but not limited to application circuit diagrams information, described herein

are intended only as illustrations of such devices and not as the specifications for such devices. ROHM

CO.,LTD. disclaims any warranty that any use of such devices shall be free from infringement of any

third party's intellectual property rights or other proprietary rights, and further, assumes no liability of

whatsoever nature in the event of any such infringement, or arising from or connected with or related

to the use of such devices.

Upon the sale of any such devices, other than for buyer's right to use such devices itself, resell or

otherwise dispose of the same, no express or implied right or license to practice or commercially

exploit any intellectual property rights or other proprietary rights owned or controlled by

ROHM CO., LTD. is granted to any such buyer.

Products listed in this document are no antiradiation design.

The products listed in this document are designed to be used with ordinary electronic equipment or devices

(such as audio visual equipment, office-automation equipment, communications devices, electrical

appliances and electronic toys).

Should you intend to use these products with equipment or devices which require an extremely high level of

reliability and the malfunction of with would directly endanger human life (such as medical instruments,

transportation equipment, aerospace machinery, nuclear-reactor controllers, fuel controllers and other

safety devices), please be sure to consult with our sales representative in advance.

About Export Control Order in Japan

Products described herein are the objects of controlled goods in Annex 1 (Item 16) of Export Trade Control

Order in Japan.

In case of export from Japan, please confirm if it applies to "objective" criteria or an "informed" (by MITI clause)

on the basis of "catch all controls for Non-Proliferation of Weapons of Mass Destruction.

Appendix1-Rev1.1

BH30MA3WHFV Related Products

	BH30MA3WHFV	BH15MA3WHFV	BH18MA3WHFV	BH25MA3WHFV	BH28MA3WHFV	BH29MA3WHFV	BH33MA3WHFV	BH31MA3WHFV
Description	CMOS Type series regulator	CMOS Type series regulator	CMOS Type series regulator	CMOS Type series regulator	CMOS Type series regulator	CMOS Type series regulator	CMOS Type series regulator	CMOS Type series regulator
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Parts packaging code	SOIC	SOIC	SOIC	SOIC	SOIC	SOIC	SOIC	SOIC
package instruction	HVSOF-6	HVSOF-6	HVSOF-6	VSOF, FL6,.1,20	HVSOF-6	HVSOF-6	HVSOF-6	HVSOF-6
Contacts	6	6	6	6	6	6	6	6
Reach Compliance Code	compli	compli	compli	compli	compliant	compli	compli	compli
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Adjustability	FIXED	FIXED	FIXED	FIXED	FIXED	FIXED	FIXED	FIXED
Nominal dropback voltage 1	0.06 V	0.06 V	0.06 V	0.06 V	0.06 V	0.06 V	0.06 V	0.06 V
Maximum absolute input voltage	6.5 V	6.5 V	6.5 V	6.5 V	6.5 V	6.5 V	6.5 V	6.5 V
Maximum input voltage	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum input voltage	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V
JESD-30 code	R-PDSO-F6	R-PDSO-F6	R-PDSO-F6	R-PDSO-F6	R-PDSO-F6	R-PDSO-F6	R-PDSO-F6	R-PDSO-F6
JESD-609 code	e2	e2	e2	e2	e2	e2	e2	e2
length	2.6 mm	2.6 mm	2.6 mm	2.6 mm	2.6 mm	2.6 mm	2.6 mm	2.6 mm
Maximum grid adjustment rate	0.02%	0.02%	0.02%	0.02%	0.02%	0.02%	0.02%	0.02%
Number of functions	1	1	1	1	1	1	1	1
Output times	1	1	1	1	1	1	1	1
Number of terminals	6	6	6	6	6	6	6	6
Maximum output current 1	0.3 A	0.3 A	0.3 A	0.3 A	0.3 A	0.3 A	0.3 A	0.3 A
Maximum output voltage 1	3.03 V	1.525 V	1.825 V	2.525 V	2.828 V	2.929 V	3.333 V	3.131 V
Minimum output voltage 1	2.97 V	1.475 V	1.775 V	2.475 V	2.772 V	2.871 V	3.267 V	3.069 V
Nominal output voltage 1	3 V	1.5 V	1.8 V	2.5 V	2.8 V	2.9 V	3.3 V	3.1 V
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	VSOF	VSOF	VSOF	VSOF	VSOF	VSOF	VSOF	VSOF
Encapsulate equivalent code	FL6,.1,20	FL6,.1,20	FL6,.1,20	FL6,.1,20	FL6,.1,20	FL6,.1,20	FL6,.1,20	FL6,.1,20
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, VERY THIN PROFILE	SMALL OUTLINE, VERY THIN PROFILE	SMALL OUTLINE, VERY THIN PROFILE	SMALL OUTLINE, VERY THIN PROFILE	SMALL OUTLINE, VERY THIN PROFILE	SMALL OUTLINE, VERY THIN PROFILE	SMALL OUTLINE, VERY THIN PROFILE	SMALL OUTLINE, VERY THIN PROFILE
Peak Reflow Temperature (Celsius)	260	260	260	260	260	260	260	260
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Regulator type	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR
Maximum seat height	0.75 mm	0.75 mm	0.75 mm	0.75 mm	0.75 mm	0.75 mm	0.75 mm	0.75 mm
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Terminal surface	Tin/Copper (Sn/Cu)	Tin/Copper (Sn/Cu)	Tin/Copper (Sn/Cu)	Tin/Copper (Sn/Cu)	Tin/Copper (Sn/Cu)	Tin/Copper (Sn/Cu)	Tin/Copper (Sn/Cu)	Tin/Copper (Sn/Cu)
Terminal form	FLAT	FLAT	FLAT	FLAT	FLAT	FLAT	FLAT	FLAT
Terminal pitch	0.5 mm	0.5 mm	0.5 mm	0.5 mm	0.5 mm	0.5 mm	0.5 mm	0.5 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	10	10	10	NOT SPECIFIED	10	10	10	10
Maximum voltage tolerance	1%	1.67%	1.67%	1%	1%	1%	1%	1%
width	1.6 mm	1.6 mm	1.6 mm	1.6 mm	1.6 mm	1.6 mm	1.6 mm	1.6 mm
Base Number Matches	1	1	-	-	1	-	1	1
Maximum load regulation	-	0.09%	0.09%	0.09%	0.09%	0.09%	0.09%	0.09%
