MJ2N-88BB04: DescriptionTelecom and Datacom Connector, 32 Contact(s), Male, Right Angle, Solder Terminal, Locking, Jack; CategoryThe connector The connector; File Size582KB，3 Pages; ManufacturerRatioplast Electronics

Download Datasheet Parametric Compare View All

MJ2N-88BB04 Overview

Telecom and Datacom Connector, 32 Contact(s), Male, Right Angle, Solder Terminal, Locking, Jack

MJ2N-88BB04 Parametric

Parameter Name	Attribute value
Maker	Ratioplast Electronics
Reach Compliance Code	compliant
ECCN code	EAR99
Board mount options	SPLIT BOARD LOCK
body width	0.453 inch
subject depth	0.701 inch
body length	2.296 inch
Body/casing type	JACK
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
Contact resistance	20 mΩ
Contact style	TELCOM, MODULAR
Dielectric withstand voltage	1400VAC V
Durability	500 Cycles
Insulation resistance	500000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	MJ2N
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of ports	4
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PCB contact pattern	STAGGERED
Plating thickness	15u inch
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.126 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	32

Preview

Download Datasheet

View All

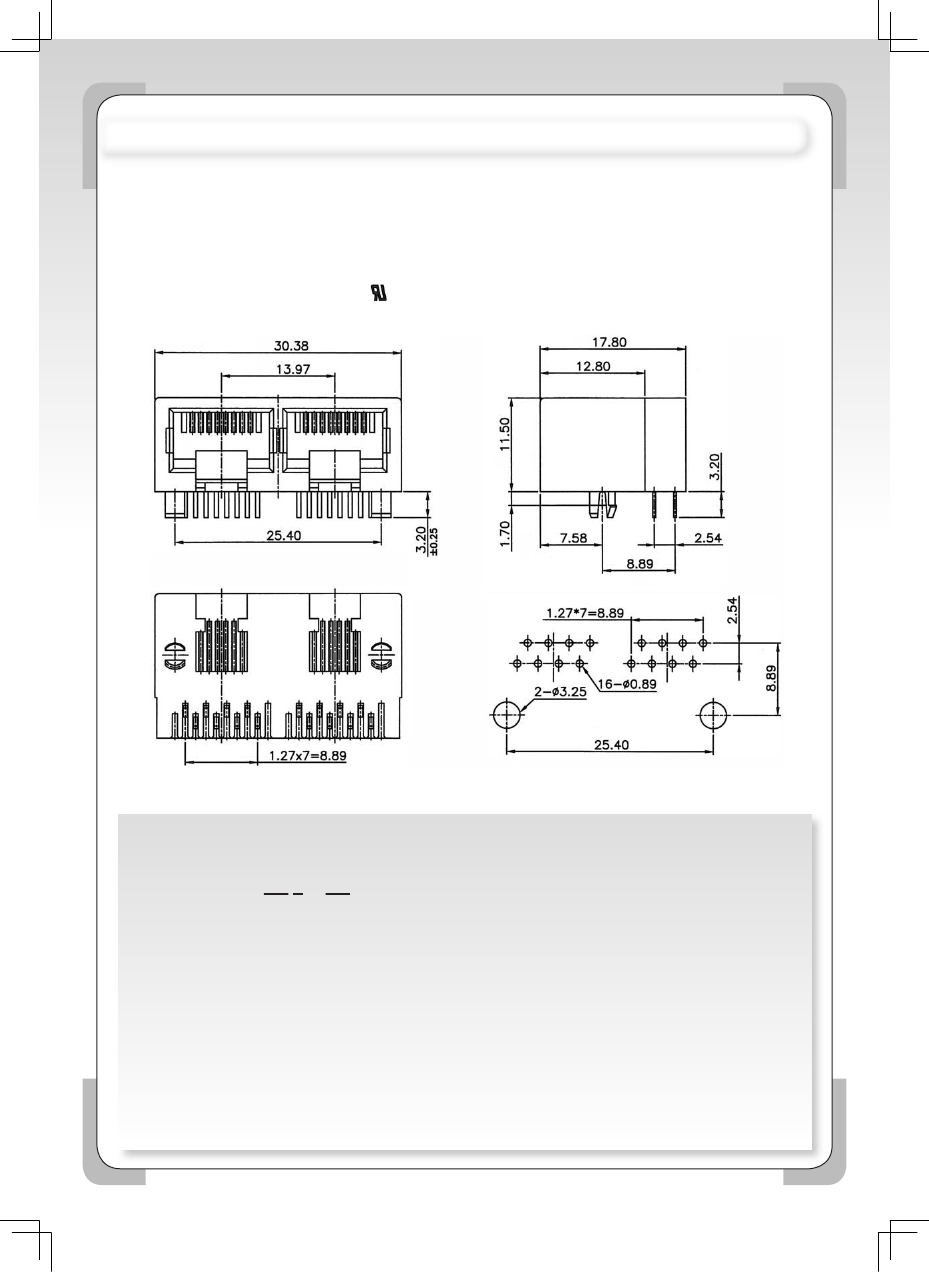

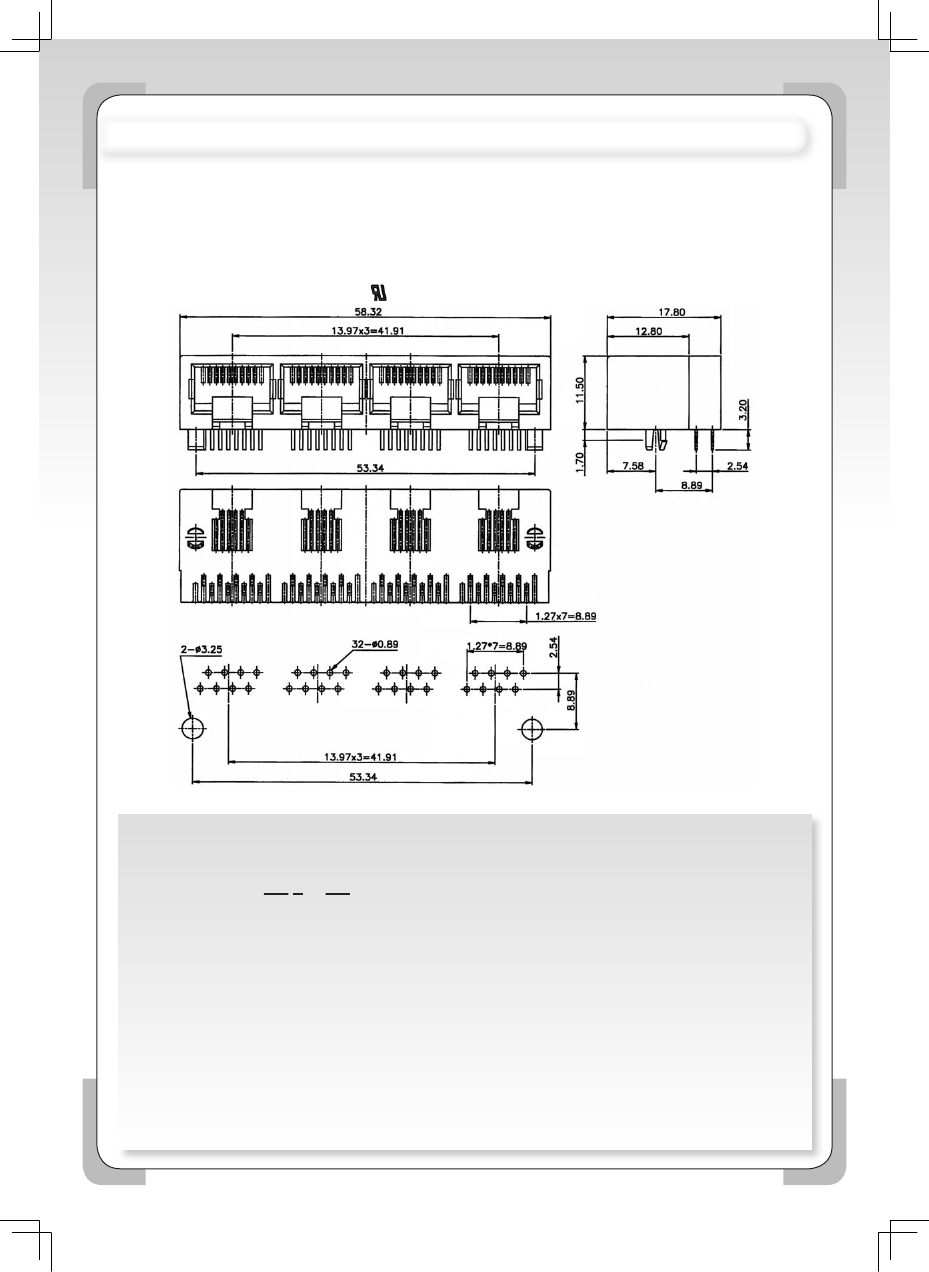

SIDE ENTRY 2-PORT MODULAR PCB JACK 8P PROFILE=11.50MM (UNSHIELDED)

SPECIFICATIONS

MATERIALS

Insulation Resistance:

500MΩ

Min.

Contact Resistance:

20mΩ

Max.

Rating Current:

1.5A Max.

Rating Voltage:

120V AC.

Dielectric Voltage:

1000 Vrms 60 Sec. Min.

Temperature Range:

-40ºc / +85ºc

Durability:

500 Mating cycles Min.

Housing:

PBT Glass Filled (UL 94V-0)

Soldering Temperature:

235ºc

Color:

Black

Spring Wire:

Phosphor Bronze

Gold plating Over Nickel

All materials must be RoHS compliant.

Recommended P.C.Board Layout

(TOP VIEW)

ORDERING INFORMATION:

P/N M J 2 N - x x x B 0 2

1 2

3

1. NO. OF POSITIONS & CONTACTS:

"88" 8P8C

"84" 8P4C

2. CONTACT FINISH:

"A" 6 MICROINCH GOLD

"B" 15 MICROINCH GOLD

"C" 30 MICROINCH GOLD

"D" 50 MICROINCH GOLD

3. NO. OF PORTS:

02

J153

MJ2N-88BB04 Related Products

	MJ2N-88BB04	MJ2N-88AB02	MJ2N-88BB02	MJ2N-88DB02	MJ2N-88CB04
Description	Telecom and Datacom Connector, 32 Contact(s), Male, Right Angle, Solder Terminal, Locking, Jack	Telecom and Datacom Connector, 16 Contact(s), Male, Right Angle, Solder Terminal, Locking, Jack	Telecom and Datacom Connector, 16 Contact(s), Male, Right Angle, Solder Terminal, Locking, Jack	Telecom and Datacom Connector, 16 Contact(s), Male, Right Angle, Solder Terminal, Locking, Jack	Telecom and Datacom Connector, 32 Contact(s), Male, Right Angle, Solder Terminal, Locking, Jack
Maker	Ratioplast Electronics	Ratioplast Electronics	Ratioplast Electronics	Ratioplast Electronics	Ratioplast Electronics
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Board mount options	SPLIT BOARD LOCK	SPLIT BOARD LOCK	SPLIT BOARD LOCK	SPLIT BOARD LOCK	SPLIT BOARD LOCK
body width	0.453 inch	0.453 inch	0.453 inch	0.453 inch	0.453 inch
subject depth	0.701 inch	0.701 inch	0.701 inch	0.701 inch	0.701 inch
body length	2.296 inch	1.196 inch	1.196 inch	1.196 inch	2.296 inch
Body/casing type	JACK	JACK	JACK	JACK	JACK
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact point gender	MALE	MALE	MALE	MALE	MALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
Contact resistance	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ
Contact style	TELCOM, MODULAR	TELCOM, MODULAR	TELCOM, MODULAR	TELCOM, MODULAR	TELCOM, MODULAR
Dielectric withstand voltage	1400VAC V	1400VAC V	1400VAC V	1400VAC V	1400VAC V
Durability	500 Cycles	500 Cycles	500 Cycles	500 Cycles	500 Cycles
Insulation resistance	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω
Insulator color	BLACK	BLACK	BLACK	BLACK	BLACK
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	MJ2N	MJ2N	MJ2N	MJ2N	MJ2N
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
Number of ports	4	2	2	2	4
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
Plating thickness	15u inch	6u inch	15u inch	50u inch	30u inch
Rated current (signal)	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A
Guideline	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.126 inch	0.126 inch	0.126 inch	0.126 inch	0.126 inch
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	32	16	16	16	32
