PBSS4320T datasheet, PDF - EEWORLD Datasheet

PBSS4320T: Description2000 mA, 20 V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-236AB; CategoryDiscrete semiconductor The transistor; File Size95KB，10 Pages; ManufacturerNXP; Websitehttps://www.nxp.com; Environmental Compliance

Download Datasheet Parametric Compare View All

PBSS4320T Overview

2000 mA, 20 V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-236AB

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	NXP
Parts packaging code	SOT-23
package instruction	PLASTIC PACKAGE-3
Contacts	3
Reach Compliance Code	compli
ECCN code	EAR99
Maximum collector current (IC)	2 A
Collector-emitter maximum voltage	20 V
Configuration	SINGLE
Minimum DC current gain (hFE)	220
JEDEC-95 code	TO-236AB
JESD-30 code	R-PDSO-G3
JESD-609 code	e3
Humidity sensitivity level	1
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
Polarity/channel type	NPN
Maximum power dissipation(Abs)	1.2 W
Certification status	Not Qualified
surface mount	YES
Terminal surface	Tin (Sn)
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	30
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	100 MHz

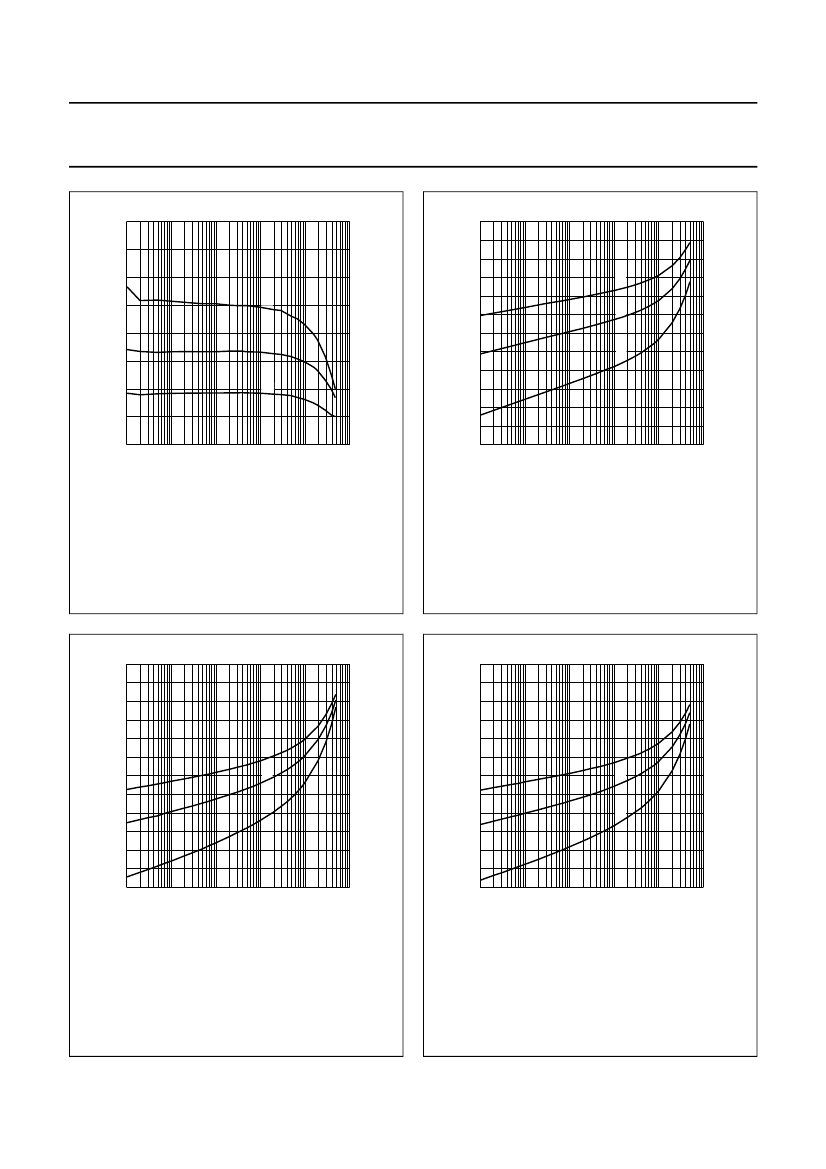

DISCRETE SEMICONDUCTORS

DATA SHEET

PBSS4320T

20 V NPN low V

CEsat

transistor

Product data sheet

Supersedes data of 2002 Aug 08

2004 Mar 18

	PBSS4320T	PBSS4320T/G,215	PBSS4320T/DG,215
Description	2000 mA, 20 V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-236AB	2000 mA, 20 V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-236AB	2000 mA, 20 V, NPN, Si, SMALL SIGNAL TRANSISTOR, TO-236AB
Number of components	1	1	1
Number of terminals	3	3	3
surface mount	YES	Yes	Yes
Terminal form	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	pair	pair
transistor applications	SWITCHING	switch	switch
Transistor component materials	SILICON	silicon	silicon
Transistor polarity	-	NPN	NPN
Maximum collector current	-	2 A	2 A
Maximum Collector-Emitter Voltage	-	20 V	20 V
Processing package description	-	PLASTIC PACKAGE-3	PLASTIC PACKAGE-3
Lead-free	-	Yes	Yes
EU RoHS regulations	-	Yes	Yes
China RoHS regulations	-	Yes	Yes
state	-	ACTIVE	ACTIVE
packaging shape	-	Rectangle	Rectangle
Package Size	-	SMALL OUTLINE	SMALL OUTLINE
terminal coating	-	tin	tin
Packaging Materials	-	Plastic/Epoxy	Plastic/Epoxy
structure	-	single	single
Transistor type	-	Universal small signal	Universal small signal
Minimum DC amplification factor	-	220	220
Rated crossover frequency	-	100 MHz	100 MHz
