401-09MBNG5DN datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 401-09MBNG5DN

401-09MBNG5DN: DescriptionD Type Connector, 9 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Plug; CategoryThe connector The connector; File Size393KB，1 Pages; ManufacturerAMCO Tec International Inc

Download Datasheet Parametric View All

401-09MBNG5DN Overview

D Type Connector, 9 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, #4-40, Plug

401-09MBNG5DN Parametric

Parameter Name	Attribute value
Maker	AMCO Tec International Inc
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.494 inch
subject depth	0.339 inch
body length	1.213 inch
Body/casing type	PLUG
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	BRASS
contact mode	STAGGERED
Contact resistance	30 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	500VAC V
Insulation resistance	1000000000 Ω
Insulator color	BURGUNDY
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	401
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation option 1	#4-40
Installation option 2	JACKSCREW
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Plating thickness	15u inch
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	NICKEL
Shell material	STEEL
Terminal length	0.125 inch
Terminal pitch	2.7686 mm
Termination type	SOLDER
Total number of contacts	9

Preview

Download Datasheet

View All

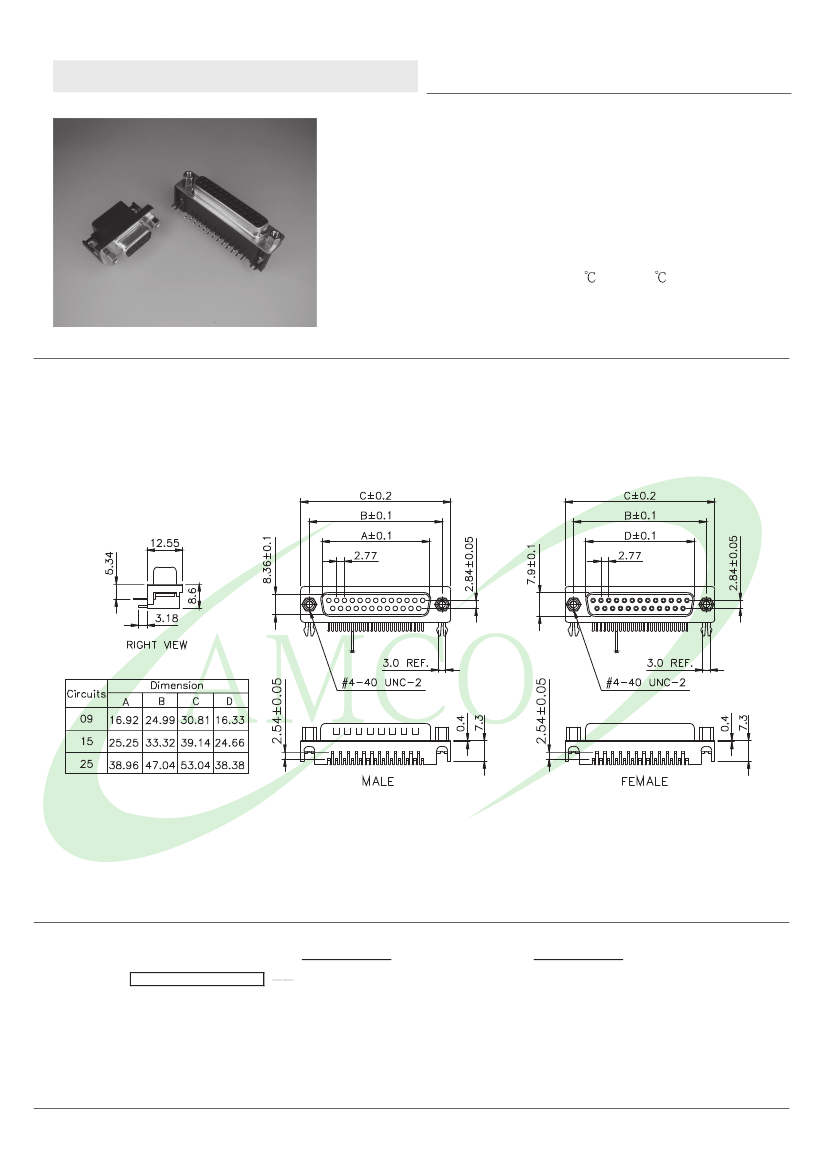

401/D-SUB 5.34 mm Type

MATERIAL :

1. INSULATOR : PBT + 30% GLASS FIBER UL94V-0.

2. CONTACT : BRASS.

3. CONTACT PLATED : GOLD OVER NICKEL.

4. SHELL : STEEL ZINC PLATED OR TIN PLATED.

ELECTRICAL CHARACTERISTICS :

1. CONTACT CURRENT RATING : 5 AMPS.

2. CONTACT RESISTANCE : 30 MILLIOHMS MAX.

3. DIELECTRIC WITHSTANDING VOLTAGE : 500V AC MIN.

4. INSULATION RESISTANCE : 1000 MEGOHMS MIN.

5. TEMPERATURE RATING : -55 TO +105 ..

401. D-SUB

Series No.

R/A TYPE

5.34mm FOOT PRINT

No. of Contacts

Contact Mounting

Type

M: MALE

F: FEMALE

A: Rivet

Type

B: With Jack

Screw

C: Rivet With

Shell

Plated

T: TIN

Z: ZINC

Contact Plated

G1: Gold Flash

S1: Gold Flash

Plastic

Color

B: Black

G: Gold

Branding

A:Amco Mark

N:No Mark

N: NICKEL T1: TIN

G2: 3u" Gold S2: 3u" Gold

G3: 5u" Gold S3: 5u" Gold

G4: 10u" Gold S4: 10u" Gold

G5: 15u" Gold S5: 15u" Gold

G6: 30u" Gold S6: 30u" Gold

D: Burgundy

T: Turquoise

3175

Jack Screw

D: Rivet Add

Jack Screw

(G:Full Gold)(S:Selective Gold)

AMCO TEC INTERNATIONAL INC.
