Tantalum Surface Mount Capacitors – Automotive
T491 Industrial Grade MnO
2
Series
Overview
The KEMET T491 Series, designed specifically for today’s highly
automated surface mount processes and equipment, is the
leading choice for surface mount designs. The T491 combines
KEMET’s proven solid tantalum technology, acclaimed and
respected throughout the world, with the latest in materials,
processes and automation, resulting in unsurpassed total
performance and value.
This product meets or exceeds the requirements of EIA Standard
535BAAC. The physical outline and dimensions of this series
conform to this global standard. Five low profile case sizes are
available in the T491 Series. The R/2012–12, S/3216–12 and
T/3528–12 case sizes have a maximum height of 1.2 mm. The
U/6032–15 size has a maximum height of 1.5 mm, and the
V/7343–20 has a maximum height of 2.0 mm.
The T491 standard terminations are 100% matte tin and provide
excellent wetting characteristics and compatibility with today's
surface mount solder systems. Tin/lead (Sn/Pb) terminations
are available upon request for any part number. Gold-plated
terminations are also available for use with conductive epoxy
attachment processes. The symmetrical terminations offer total
compliancy to provide the thermal and mechanical stress relief
required with today's technology. Lead frame attachments to the
tantalum pellet are made via a microprocessor-controlled welding
operation, and a high temperature silver epoxy adhesive system.
Standard packaging of these devices is tape and reel in
accordance with EIA 481–D. This system provides perfect
compatibility with all tape-fed placement units.
Benefits
Meets or exceeds EIA Standard 535BAAC
Taped and reeled per EIA 481–D
Symmetrical, compliant terminations
Optical gold-plated terminations
Laser-marked case
100% surge current test on C, D, E, U, V, X sizes
Halogen free epoxy
Capacitance 0.1
µF
to 1,000
µF
Tolerance ±10%, ±20%
Voltage 2.5 – 50 VDC
Extended range values
Low profile case sizes
RoHS Compliant and lead-free terminations
(See www.kemet.com for transition information)
• Operating temperature: -55ºC to +125ºC
•
•
•
•
•
•
•
•
•
•
•
•
•
Applications
Typical applications include decoupling and filtering in industrial
and automotive end applications such as DC/DC converters,
portable electronics, telecommunications, and control units.
Environmental Compliance
RoHS Compliant (6/6) according to Directive 2002/95/EC when ordered with 100% Sn solder.
One world. One KEMET
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
T2050_T491_AUTO • 9/19/2012
1
Tantalum Surface Mount Capacitors – Automotive
T491 Industrial Grade MnO
2
Series
SPICE
For a detailed analysis of specific part numbers, please visit www.kemet.com for a free download of KEMET's SPICE software.
The KEMET SPICE program is freeware intended to aid design engineers in analyzing the performance of these capacitors over
frequency, temperature, ripple, and DC bias conditions.
Ordering Information
T
Capacitor
Class
T=
Tantalum
491
Series
Industrial
X
Case Size
157
Capacitance
Code (pF)
K
Capacitance
Tolerance
K = ±10%
M = ±20%
020
Voltage
2R5 = 2.5 V
003 = 3 V
004 = 4 V
006 = 6.3 V
010 = 10 V
016 = 16 V
020 = 20 V
025 = 25 V
035 = 35 V
050 = 50 V
A
Failure Rate/
Design
A = N/A
T
Lead Material
T = 100% Matte Tin
(Sn) Plated*
H = Standard Solder
Coated (SnPb 5% Pb
minimum)
G = Gold Plated (A, B,
C, D, X only)
N = Non-Magnetic
100% Tin (Sn)
M = Non-Magnetic
(SnPb)
AUTO
C-Spec 1
AUTO =
Automotive
Grade
(AUTO =
AEC–Q200
Certification)
Packaging
(C-Spec)
Blank = 7" Reel
7280 = 13" Reel
A = 3216-18 First two digits
represent
B = 3528-21
C = 6032-28
significant
D = 7343-31 figures. Third
E = 7260-38 digit specifies
R = 2012-12 number of zeros.
S = 3216-12
T = 3528-12
U = 6032-15
V = 7343-20
X = 7343-43
Performance Characteristics
Item
Operating Temperature
Rated Capacitance Range
Capacitance Tolerance
Rated Voltage Range
DF (120 Hz)
ESR (100 kHz)
Leakage Current
-55°C to 125°C
0.1 – 1,000 µF @ 120 Hz/25°C
K Tolerance (10%), M Tolerance (20%)
2.5 – 50 V
Refer to Part Number Electrical Specification Table
Refer to Part Number Electrical Specification Table
≤ 0.01 CV (µA) at Rated Voltage after 5 minutes
Performance Characteristics
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
T2050_T491_AUTO • 9/19/2012
2
Tantalum Surface Mount Capacitors – Automotive
T491 Industrial Grade MnO
2
Series
Qualification
Test
Endurance
Condition
ΔC/C
85°C @ rated voltage, 2,000 hours
125°C @ 2/3 rated voltage, 2,000 hours
DF
DCL
ESR
ΔC/C
DF
DCL
ESR
ΔC/C
MIL–STD–202, Method 107, Condition B, mounted, -55C° to
125° C, 1,000 cycles
DF
DCL
ESR
Extreme temperature exposure at a
succession of continuous steps at +25ºC,
-55ºC, +25ºC, +85ºC, +125ºC, +25ºC.
+25°C
ΔC/C
DF
DCL
IL*
IL
IL
ΔC/C
DF
DCL
ESR
ΔC/C
DF
DCL
Characteristics
Within ± 10% of initial value
Within initial limits
Within 1.25 x initial limit
Within initial limits
Within ± 10% of initial value
Within initial limits
Within 1.25 x initial limit
Within initial limits
Within ± 5% of initial value
Within initial limits
Within 1.25 x initial limit
Within initial limits
-55°C
±10%
IL
n/a
+85°C
±10%
1.5 x IL
10 x IL
+125°C
±20%
1.5 x IL
12 x IL
Storage Life
125°C @ 0 volts, 2,000 hours
Thermal Shock
Temperature Stability
Within ± 5% of initial value
Within initial limits
Within initial limits
Within initial limits
Within ±10% of initial value
Within initial limits
Within initial limits
Surge Voltage
25°C and 85°C, 1.32 x rated voltage 1,000 cycles (125°C,
1.2 x rated voltage).
Mechanical Shock/Vibration
*IL = Initial limit
MIL–STD–202, Method 213, Condition I, 100 G peak
MIL–STD–202, Method 204, Condition D, 10 Hz to 2,000 Hz,
20 G peak
Certification
KEMET’s Internal Qualification Plan for this Tantalum series of capacitors follows AEC–Q200 guidelines. Standard catalog part
types ordered without a specific automotive designator, i.e., suffix AUTO or four digit customer specific designator (C-Spec), are not
considered KEMET Automotive Grade tantalum capacitors.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
T2050_T491_AUTO • 9/19/2012
3
Tantalum Surface Mount Capacitors – Automotive
T491 Industrial Grade MnO
2
Series

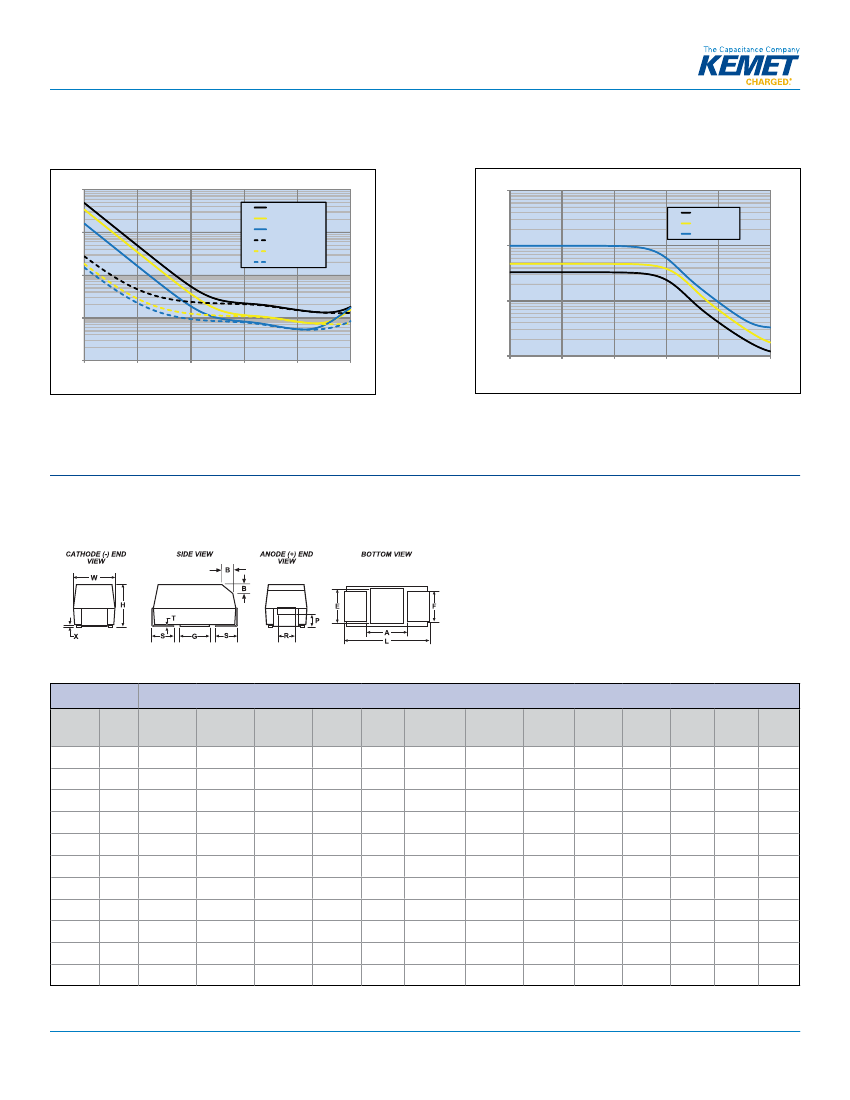

Electrical Characteristics
ESR vs. Frequency
100
T491C336M025AT_IMP
T491D476M025AT_IMP
Capacitance vs. Frequency
1,000
T491C336M025AT
T491D476M025AT
T491X107M025AT
Impedance, ESR (Ohms)
10
T491X107M025AT_IMP
T491D476M025AT_ESR
T491X107M025AT_ESR
1
Capacitance (µF)
T491C336M025AT_ESR
100
10
0.1
0.01
1
100
1,000
10,000
Frequency (Hz)
100,000
1,000,000
10,000,000
100
1,000
10,000
Frequency (Hz)
100,000
1,000,000
10,000,000
Dimensions – Millimeters (Inches)
Metric will govern
Termination
cutout at
KEMET’s
option,
either end
Case Size
KEMET
A
B
C
D
X
E
R
S
T
U
V
EIA
3216–18
3528–21
6032–28
7343–31
7343–43
7260-38
2012–12
3216–12
3528–12
6032–15
7343–20
Component
L*
3.2 ± 0.2
(.126 ± .008)
3.5 ± 02
(.138 ± .008)
6.0 ± 0.3
(.236 ± .03)
7.3 ± 0.3
(.287 ± .012)
7.3 ± 0.3
(.287 ± .012)
7.3 ± 0.3
(.287 ± .012)
2.0 ± 0.2
(.079 ± .008)
3.2 ± 0.2
(.126 ± .008)
3.5 ± 0.2
(.138 ± .008)
6.0 ± 0.3
(.236 ± .012)
7.3 ± 0.3
(287 ± .012)
W*
1.6 ± 0.2
(.063 ± .008)
2.8 ± 0.2
(.110 ± .008)
3.2 ± 0.3
(.126 ± .012)
4.3 ± 0.3
(.169 ± .012)
4.3 ± 0.3
(.169 ± .012)
6.0± 0.3
(.236 ± .012)
1.3 ± 0.2
(.051 ± .008)
1.6 ± 0.2
(.063 ± .008)
2.8 ± 0.2
(.110 ± .008)
3.2 ± 0.2
(.110 ± .008)
4.3 ± 0.3
(.169 ± .012)
H*
1.6 ± 0.2
(.063 ± .008)
1.9 ± 0.2
(.075 ± .008)
2.5 ± 0.3
(.098 ± .012)
2.8 ± 0.3
(.110 ± .012)
4.0 ± 0.3
(.157 ± .012)
3.6 ± 0.2
(.142 ± .008)
1.2 (.047)
1.2 (.047)
1.2 (.047)
1.5 (.059)
2.0 (.079)
F* ±0.1 S* ±0.3 B* ±0.15
±(.004) ±(.012) (Ref) ±.006
1.2 (.047)
2.2 (.087)
2.2 (.087)
2.4 (.094)
2.4 (.094)
4.1 (.161)
0.9 (.035)
1.2 (.047)
2.2 (.087)
2.2 (.087)
2.4 (.094)
0.8 (.031)
0.8 (.031)
1.3 (.051)
1.3 (.051)
1.3 (.051)
1.3 (.051)
0.5 (.020)
0.8 (.031)
0.8 (.031)
1.3 (.051)
1.3 (.051)
0.4 (.016)
0.4 (.016)
0.5 (.020)
0.5 (.020)
0.5 (.020)
0.5 (.020)
n/a
n/a
n/a
n/a
n/a
X (Ref)
0.10 ± 0.10
(.004 ± .004)
0.10 ± 0.10
(.004 ± .004)
0.10 ± 0.10
(.004 ± .004)
0.10 ± 0.10
(.004 ± .004)
0.10 ± 0.10
(.004 ± .004)
0.10 ± 0.10
(.004 ± .004)
0.05 (.002)
0.05 (.002)
0.05 (.002)
0.05 (.002)
0.05 (.002)
P (Ref)
0.4 (.016)
0.5 (.020)
0.9 (.035)
0.9 (.035)
1.7 (.067)
0.9 (.035)
n/a
n/a
n/a
n/a
n/a
R (Ref)
0.4 (.016)
1.0 (.039)
1.0 (.039)
1.0 (.039)
1.0 (.039)
1.0 (.039)
n/a
n/a
n/a
n/a
n/a
T (Ref)
A (Min) G (Ref) E (Ref)
1.1 (.043) 1.3 (.051)
1.8 (.071) 2.2 (.087)
0.13 (.005) 1.4 (.055)
0.13 (.005) 2.1 (.083)
0.13 (.005) 3.1 ( (.122) 2.8 (.110) 2.4 (.094)
0.13 (.005)
0.13 (.005)
3.8 (.150)
3.8 (.150)
3.5 (.138) 3.5 (.138)
3.5 (.138) 3.5 (.138)
0.13 (.005) 0.13 (.005) 3.5 (.138) 3.5 (.138)
0.13 (.005) 0.8 (.031) 0.5 (.020) 0.8 (.031)
0.13 (.005) 1.4 (.055)
0.13 (.005) 2.1 (.083)
0.13 (.005)
0.13 (.005)
3.1 (.122)
3.8 (.150)
1.1 (.043) 1.3 (.051)
1.8 (.071) 2.2 (.087)
2.8 (.110) 2.4 (.094)
3.5 (.138) 3.5 (.138)
Notes: (Ref) – Dimensions provided for reference only. No dimensions are provided for B, P or R because low profile cases do not have a bevel or a notch.
* MIL–C–55365/8 specified dimensions
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
T2050_T491_AUTO • 9/19/2012
4
Tantalum Surface Mount Capacitors – Automotive
T491 Industrial Grade MnO
2
Series
Table 1 – Ratings & Part Number Reference
Rated Rated Case Code/
Voltage Cap
Case Size
VDC
2.5
2.5
3
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
VDC
µF
100
220
33
3.3
4.7
6.8
6.8
10
10
10
10
15
15
15
15
22
22
22
22
22
33
33
33
33
33
47
47
47
47
47
68
68
68
68
68
100
100
100
100
100
100
150
150
150
150
150
220
220
220
220
µF
KEMET/EIA
T/3528-12
D/7343-31
A/3216-18
A/3216-18
A/3216-18
A/3216-18
S/3216-12
B/3528-21
A/3216-18
S/3216-12
R/2012-12
B/3528-21
A/3216-18
T/3528-12
S/3216-12
C/6032-28
B/3528-21
A/3216-18
T/3528-12
S/3216-12
C/6032-28
U/6032-15
B/3528-21
A/3216-18
T/3528-12
C/6032-28
U/6032-15
B/3528-21
A/3216-18
T/3528-12
D/7343-31
C/6032-28
U/6032-15
B/3528-21
A/3216-18
D/7343-31
C/6032-28
U/6032-15
B/3528-21
A/3216-18
T/3528-12
D/7343-31
U/6032-15
V/7343-20
C/6032-28
B/3528-21
V/7343-20
B/3528-21
C/6032-28
D/7343-31
KEMET/EIA
KEMET Part
Number
(See below for
part options)
T491T107(1)2R5A(2)
T491D227(1)2R5A(2)
T491A336(1)003A(2)
T491A335(1)004A(2)
T491A475(1)004A(2)
T491A685(1)004A(2)
T491S685(1)004A(2)
T491B106(1)004A(2)
T491A106(1)004A(2)
T491S106(1)004A(2)
T491R106(1)004A(2)
T491B156(1)004A(2)
T491A156(1)004A(2)
T491T156(1)004A(2)
T491S156(1)004A(2)
T491C226(1)004A(2)
T491B226(1)004A(2)
T491A226(1)004A(2)
T491T226(1)004A(2)
T491S226(1)004A(2)
T491C336(1)004A(2)
T491U336(1)004A(2)
T491B336(1)004A(2)
T491A336(1)004A(2)
T491T336(1)004A(2)
T491C476(1)004A(2)
T491U476(1)004A(2)
T491B476(1)004A(2)
T491A476(M)004A(2)
T491T476(M)004A(2)
T491D686(1)004A(2)
T491C686(1)004A(2)
T491U686(1)004A(2)
T491B686(1)004A(2)
T491A686(1)004A(2)
T491D107(1)004A(2)
T491C107(1)004A(2)
T491U107(1)004A(2)
T491B107(M)004A(2)
T491A107(M)004A(2)
T491T107(M)004A(2)
T491D157(1)004A(2)
T491U157(1)004AT
T491V157(1)004A(2)
T491C157(1)004A(2)
T491B157(M)004A(2)
T491V227(1)004A(2)
T491B227(M)004A(2)
T491C227(1)004AT
T491D227(1)004AT
(See below for
part options)
DC
Leakage
µAmps +20ºC
max/5 min
2.5
5.5
1.0
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.6
0.6
0.6
0.6
0.9
0.9
0.9
0.9
0.9
1.3
1.3
1.3
1.3
1.3
1.9
1.9
1.9
1.9
1.9
2.7
2.7
2.7
2.7
2.7
4.0
4.0
4.0
4.0
4.0
4.0
6.0
6.0
6.0
6.0
6.0
8.8
8.8
8.8
8.8
µAmps +20ºC
max/5min
DF
% @ +20ºC
120 Hz max
24.0
8.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
8.0
6.0
6.0
6.0
10.0
6.0
6.0
6.0
6.0
10.0
6.0
6.0
6.0
6.0
8.0
6.0
6.0
6.0
12.0
12.0
6.0
6.0
6.0
6.0
30.0
8.0
8.0
10.0
8.0
30.0
30.0
8.0
8.0
8.0
8.0
12.0
8.0
18.0
15.0
8.0
% @ +20ºC
120 Hz max
ESR
Ω @ 20ºC
100 kHz max
3.9
0.3
4.0
8.0
8.0
6.0
15.0
3.5
6.0
15.0
10.0
3.5
4.0
5.0
15.0
1.8
3.5
4.0
5.0
10.0
1.8
1.8
3.5
4.0
5.0
1.8
1.8
3.0
2.5
6.0
0.8
1.6
1.8
3.5
4.0
0.8
1.2
1.8
0.9
4.0
5.0
0.8
1.3
0.7
1.2
2.0
0.7
0.5
1.2
0.8
Ω @ 20ºC
100 kHz max
Maximum Allowable
Ripple Current
(mArms)
(mArms)
(mArms)
100 kHz 25ºC 100 kHz +85ºC 100 kHz +125ºC
134
121
54
707
636
283
137
123
55
Moisture
Sensitivity
Reflow Temp
≤ 260ºC
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Reflow Temp
≤ 260ºC
97
87
39
97
87
39
112
101
45
63
57
25
156
140
62
45
112
101
63
57
25
50
45
20
156
140
62
137
123
55
118
106
47
63
57
25
247
222
99
156
140
62
137
123
55
118
106
47
77
69
31
247
222
99
224
202
90
156
140
62
137
123
55
118
106
47
247
222
99
224
202
90
168
151
67
173
156
69
108
97
43
433
390
173
262
236
105
224
202
90
156
140
62
137
123
55
433
390
173
303
273
121
224
202
90
307
276
123
137
123
55
118
106
47
433
390
173
263
237
105
423
381
169
303
273
121
206
185
82
423
381
169
412
371
165
303
273
121
433
390
173
(mArms)
(mArms)
(mArms)
100 kHz 25ºC 100 kHz +85ºC 100 kHz +125ºC
Rated
Voltage
Rated
Cap
Case Code/
Case Size
KEMET Part
Number
DC
Leakage
DF
ESR
Maximum Allowable
Ripple Current
Moisture
Sensitivity
1) To complete KEMET part number, insert M for ± 20% or K for ± 10%. Designates Capacitance tolerance.
(2) To complete KEMET part number, insert T = 100% Matte Tin (Sn) Plated, G = Gold Plated, H = Standard Solder coated (SnPb 5% Pb minimum). Designates
Termination Finish.
Refer to Ordering Information for additional detail.
Higher voltage ratings and tighter tolerance product including ESR may be substituted within the same size at KEMET's option. Voltage substitution will be marked
with the higher voltage rating. Substitutions can include better than series.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
T2050_T491_AUTO • 9/19/2012
5
Roll Over for
Order Info.
京公网安备 11010802033920号
EEWORLD
