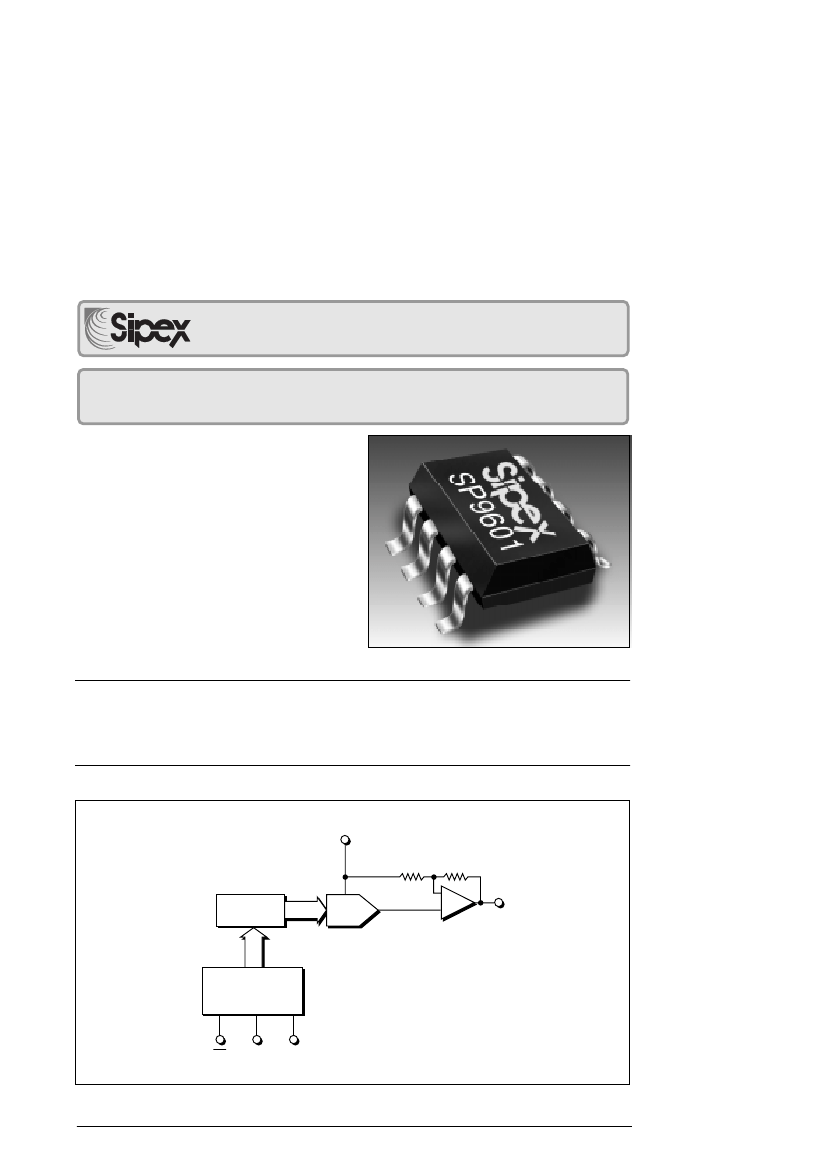

SP9601

12–Bit, Low Power Voltage Output D/A Converter

Low Power — 2mW

Voltage Output, 4.5V range

Midscale Preset, Zero Volts Out

250KHz Multiplying Bandwidth

(4-Quadrant)

Standard 3-Wire Serial Interface

8–pin (0.15") SOIC and Plastic DIP

Packages

±5V

supply operation

DESCRIPTION…

The

SP9601

is a very low power 12-Bit Digital-to-Analog Converter. It features

±4.5V

output

swings when using

±5

volt supplies. The converter uses a standard 3–wire serial interface

compatible with SPI

™

, QSPI

™

and Microwire

™

. The output settling-time is specified at 30µs. The

SP9601

is available in 8–pin 0.15" SOIC and DIP packages, specified over commercial and

industrial temperature ranges.

Ref In

DAC

LATCH

DAC

–

OUT

SHIFT

SDI

SCK

SP9601DS/02

SP9601 12-Bit, Low-Power Voltage Output

SP9601JS Related Products

	SP9601JS	SP9601KS	SP9601BS	SP9601KN	SP9601AS	SP9601JN	SP9601	SP9601BN	SP9601AN
Description	12-Bit, Low Power Voltage Output D/A Converter	12-Bit, Low Power Voltage Output D/A Converter	12-Bit, Low Power Voltage Output D/A Converter	12-Bit, Low Power Voltage Output D/A Converter	12-Bit, Low Power Voltage Output D/A Converter	12-Bit, Low Power Voltage Output D/A Converter	12-Bit, Low Power Voltage Output D/A Converter	12-Bit, Low Power Voltage Output D/A Converter	12-Bit, Low Power Voltage Output D/A Converter
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	-	incompatible	incompatible
package instruction	0.150 INCH, PLASTIC, SOIC-8	0.150 INCH, PLASTIC, SOIC-8	0.150 INCH, PLASTIC, SOIC-8	0.300 INCH, PLASTIC, DIP-8	0.150 INCH, PLASTIC, SOIC-8	0.300 INCH, PLASTIC, DIP-8	-	0.300 INCH, PLASTIC, DIP-8	0.300 INCH, PLASTIC, DIP-8
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow	unknow	-	unknow	unknow
Maximum analog output voltage	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	-	4.5 V	4.5 V
Minimum analog output voltage	-4.5 V	-4.5 V	-4.5 V	-4.5 V	-4.5 V	-4.5 V	-	-4.5 V	-4.5 V
Converter type	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	-	D/A CONVERTER	D/A CONVERTER
Enter bit code	OFFSET BINARY	OFFSET BINARY	OFFSET BINARY	OFFSET BINARY	OFFSET BINARY	OFFSET BINARY	-	OFFSET BINARY	OFFSET BINARY
Input format	SERIAL	SERIAL	SERIAL	SERIAL	SERIAL	SERIAL	-	SERIAL	SERIAL
JESD-30 code	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8	R-PDIP-T8	R-PDSO-G8	R-PDIP-T8	-	R-PDIP-T8	R-PDIP-T8
length	4.9 mm	4.9 mm	4.9 mm	9.5885 mm	4.9 mm	9.5885 mm	-	9.5885 mm	9.5885 mm
Maximum linear error (EL)	0.0244%	0.0122%	0.0122%	0.0122%	0.0244%	0.0244%	-	0.0122%	0.0244%
Nominal negative supply voltage	-5 V	-5 V	-5 V	-5 V	-5 V	-5 V	-	-5 V	-5 V
Number of digits	12	12	12	12	12	12	-	12	12
Number of functions	1	1	1	1	1	1	-	1	1
Number of terminals	8	8	8	8	8	8	-	8	8
Maximum operating temperature	70 °C	70 °C	85 °C	70 °C	85 °C	70 °C	-	85 °C	85 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP	SOP	DIP	SOP	DIP	-	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	IN-LINE	SMALL OUTLINE	IN-LINE	-	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified
Maximum seat height	1.75 mm	1.75 mm	1.75 mm	5.334 mm	1.75 mm	5.334 mm	-	5.334 mm	5.334 mm
Nominal settling time (tstl)	20 µs	20 µs	20 µs	20 µs	20 µs	20 µs	-	20 µs	20 µs
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	-	5 V	5 V
surface mount	YES	YES	YES	NO	YES	NO	-	NO	NO
Temperature level	COMMERCIAL	COMMERCIAL	INDUSTRIAL	COMMERCIAL	INDUSTRIAL	COMMERCIAL	-	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	GULL WING	GULL WING	THROUGH-HOLE	GULL WING	THROUGH-HOLE	-	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	2.54 mm	1.27 mm	2.54 mm	-	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	-	DUAL	DUAL
width	3.9 mm	3.9 mm	3.9 mm	7.62 mm	3.9 mm	7.62 mm	-	7.62 mm	7.62 mm
Base Number Matches	-	-	1	1	1	-	-	1	1
