unbuffered voltage output DACs. These DACs operate from
a single 2.7V to 5.5V supply and are guaranteed mono-
tonic over temperature. The LTC2641A-16/LTC2642A-16
provide 16-bit performance (±1LSB INL and ±1LSB DNL)
over temperature. Unbuffered DAC outputs result in low
supply current of 120µA and a low offset error of ±1LSB.
Both the LTC2641 and LTC2642 feature a reference input
range of 2V to V
DD
. V
OUT
swings from 0V to V
REF
. For
bipolar operation, the LTC2642 includes matched scaling
resistors for use with an external precision op amp (such
as the LT1678), generating a ±V
REF
output swing at R
FB
.
The LTC2641/LTC2642 use a simple SPI/MICROWIRE
compatible 3-wire serial interface which can be operated
at clock rates up to 50MHz and can interface directly
with optocouplers for applications requiring isolation. A
power-on reset circuit clears the LTC2641’s DAC output
to zero scale and the LTC2642’s DAC output to midscale
when power is initially applied. A logic low on the
CLR
pin
asynchronously clears the DAC to zero scale (LTC2641)
or midscale (LTC2642). These DACs are all specified over
the commercial and industrial ranges.
L,
LT, LTC, LTM, Linear Technology and the Linear logo are registered trademarks and
SoftSpan is a trademark of Linear Technology Corporation. All other trademarks are the
property of their respective owners.
n
n
n
n
n
Tiny 3mm
×
3mm 8-Pin DFN Package
Maximum 16-Bit INL Error: ±1LSB over Temperature
Low 120µA Supply Current
Guaranteed Monotonic over Temperature
Low 0.5nV•sec Glitch Impulse
2.7V to 5.5V Single Supply Operation
Fast 1µs Settling Time to 16 Bits
Unbuffered Voltage Output Directly Drives 60k Loads
50MHz SPI/QSPI/MICROWIRE Compatible
Serial Interface
Power-On Reset Clears DAC Output to Zero Scale
(LTC2641) or Midscale (LTC2642)
Schmitt-Trigger Inputs for Direct Optocoupler
Interface
Asynchronous
CLR
Pin
8-Lead MSOP and 3mm
×
3mm DFN Packages
(LTC2641)
10-Lead MSOP and 3mm
×
3mm DFN Packages
(LTC2642)
APPLICATIONS
n
n
n
n
High Resolution Offset and Gain Adjustment
Process Control and Industrial Automation
Automatic Test Equipment
Data Acquisition Systems

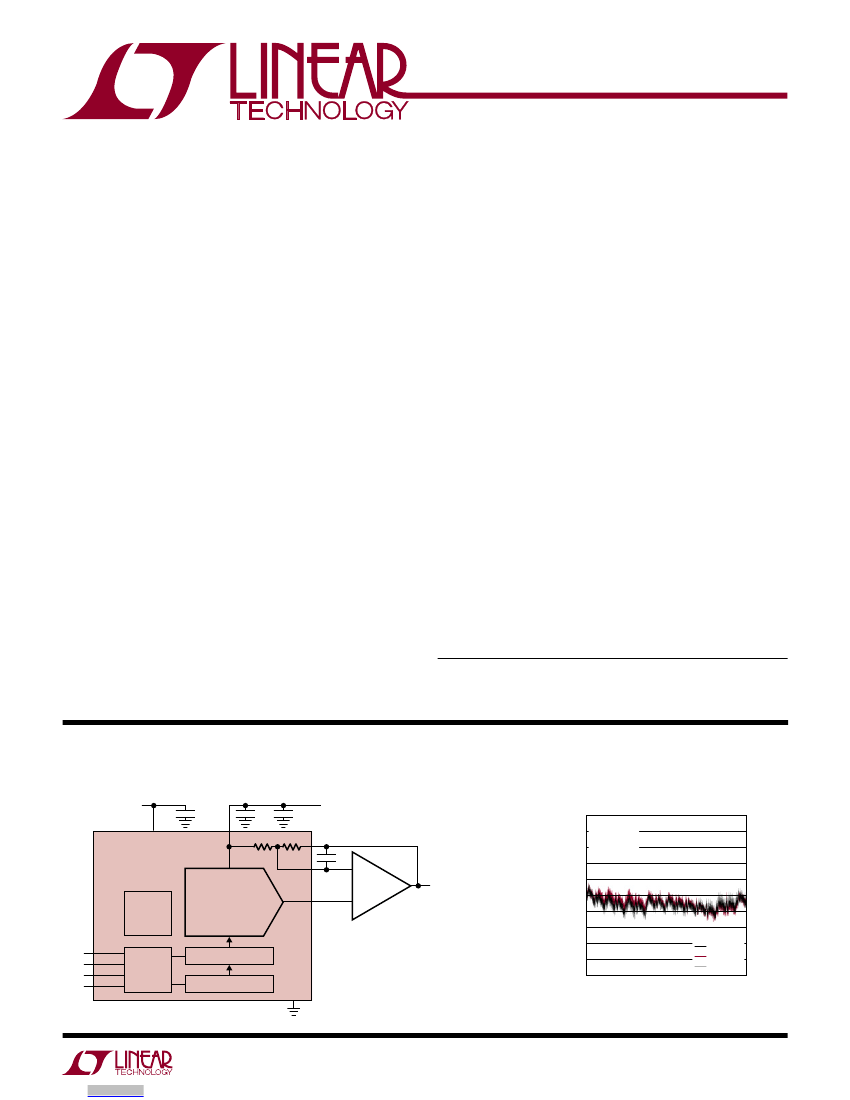

TYPICAL APPLICATION
Bipolar 16-Bit DAC
2.7V TO 5.5V
0.1µF
V
DD
REF
1µF
0.1µF
R
FB
V
REF
2V TO V
DD
LTC2642-16 Integral Nonlinearity
1.0
0.8
0.6
V
DD
= 5V
V
REF
= 2.5V
±2.5V RANGE
LTC2642
POWER-ON
RESET
CS
SCLK
DIN
CLR
16-BIT DAC
CONTROL
LOGIC
16-BIT DATA LATCH
16-BIT SHIFT REGISTER
GND
26412 TA01a
For more information
www.linear.com/LTC2641
+
V
OUT
1/2 LT1678
INL (LSB)
–
INV
5pF
0.4
BIPOLAR V
OUT
–V
REF
TO V
REF
0.2
0
–0.2
–0.4
–0.6
–0.8
–1.0
0
16384
32768
CODE
INL 25°C
INL 90°C
INL –45°C
49152
65535
26412 TA01b
26412fd
1
LTC2641/LTC2642
ABSOLUTE MAXIMUM RATINGS
(Note 1)
V
DD
to GND .................................................. –0.3V to 6V
CS,
SCLK, DIN,
CLR
to GND .........................–0.3V to (V
DD
+ 0.3V) or 6V
REF, V
OUT
, INV to GND ........–0.3V to (V
DD
+ 0.3V) or 6V
R
FB
to INV ....................................................... –6V to 6V
R
FB
to GND ..................................................... –6V to 6V
GND to GND (S8 Package)
OBSOLETE
.... –0.3V to 0.3V
Operating Temperature Range
LTC2641C/LTC2642C ............................... 0°C to 70°C
LTC2641I/LTC2642I .............................–40°C to 85°C
Maximum Junction Temperature (Note 2) ............ 125°C
Storage Temperature Range .................. –65°C to 150°C
Lead Temperature (Soldering, 10 sec)................... 300°C
PIN CONFIGURATION
LTC2641
TOP VIEW
REF 1
CS
2
SCLK 3
DIN 4
9
8
7
6
5
GND
V
DD
V
OUT
CLR
REF
CS
SCLK
DIN
1
2
3
4
TOP VIEW
8
7
6
5
GND
V
DD
V
OUT
CLR
V
OUT
1
GND 2
REF 3
CS
4
LTC2641
LTC2641
TOP VIEW
8
7
6
5
V
DD
GND
DIN
SCLK
DD PACKAGE
8-LEAD (3mm
×
3mm) PLASTIC DFN
T
JMAX
= 125°C (NOTE 2),
θ
JA
= 43°C/W
EXPOSED PAD (PIN 9) IS GND, MUST BE SOLDERED TO PCB
MS8 PACKAGE
8-LEAD PLASTIC MSOP
T
JMAX
= 125°C (NOTE 2),
θ
JA
= 120°C/W
S8 PACKAGE
8-LEAD PLASTIC SO
OBSOLETE PACKAGE
LTC2642
T
JMAX
= 125°C,
θ
JA
= 110°C/W
LTC2642
TOP VIEW
REF
CS
SCLK
DIN
CLR
1
2
3
4
5
11
10 GND
9 V
DD
8 R
FB
7 INV
6 V
OUT
TOP VIEW
REF
CS
SCLK
DIN
CLR
1
2
3
4
5
10
9
8
7
6
GND
V
DD
R
FB
INV
V
OUT
DD PACKAGE
10-LEAD (3mm
×
3mm) PLASTIC DFN
T
JMAX
= 125°C (NOTE 2),
θ
JA
= 43°C/W
EXPOSED PAD (PIN 11) IS GND, MUST BE SOLDERED TO PCB
MS PACKAGE
10-LEAD PLASTIC MSOP
T
JMAX
= 125°C (NOTE 2),
θ
JA
= 120°C/W
26412fd
2
For more information
www.linear.com/LTC2641
LTC2641/LTC2642
ORDER INFORMATION
LEAD FREE FINISH
LTC2641ACDD-16#PBF
LTC2641CDD-16#PBF
LTC2641CDD-14#PBF
LTC2641CDD-12#PBF
LTC2641AIDD-16#PBF
LTC2641IDD-16#PBF
LTC2641IDD-14#PBF
LTC2641IDD-12#PBF
LTC2641ACMS8-16#PBF
LTC2641CMS8-16#PBF
LTC2641CMS8-14#PBF
LTC2641CMS8-12#PBF
LTC2641AIMS8-16#PBF
LTC2641IMS8-16#PBF
LTC2641IMS8-14#PBF
LTC2641IMS8-12#PBF
LTC2642ACDD-16#PBF
LTC2642CDD-16#PBF
LTC2642CDD-14#PBF
LTC2642CDD-12#PBF
LTC2642AIDD-16#PBF
LTC2642IDD-16#PBF
LTC2642IDD-14#PBF
LTC2642IDD-12#PBF
LTC2642ACMS-16#PBF
LTC2642CMS-16#PBF
LTC2642CMS-14#PBF
LTC2642CMS-12#PBF
LTC2642AIMS-16#PBF
LTC2642IMS-16#PBF
LTC2642IMS-14#PBF
LTC2642IMS-12#PBF
LTC2641CS8-16#PBF
LTC2641IS8-16#PBF
TAPE AND REEL
LTC2641ACDD-16#TRPBF
LTC2641CDD-16#TRPBF
LTC2641CDD-14#TRPBF
LTC2641CDD-12#TRPBF
LTC2641AIDD-16#TRPBF
LTC2641IDD-16#TRPBF
LTC2641IDD-14#TRPBF
LTC2641IDD-12#TRPBF
LTC2641CMS8-16#TRPBF
LTC2641CMS8-14#TRPBF
LTC2641CMS8-12#TRPBF
LTC2641AIMS8-16#TRPBF
LTC2641IMS8-16#TRPBF
LTC2641IMS8-14#TRPBF
LTC2641IMS8-12#TRPBF
LTC2642ACDD-16#TRPBF
LTC2642CDD-16#TRPBF
LTC2642CDD-14#TRPBF
LTC2642CDD-12#TRPBF
LTC2642AIDD-16#TRPBF
LTC2642IDD-16#TRPBF
LTC2642IDD-14#TRPBF
LTC2642IDD-12#TRPBF
LTC2642ACMS-16#TRPBF
LTC2642CMS-16#TRPBF
LTC2642CMS-14#TRPBF
LTC2642CMS-12#TRPBF
LTC2642AIMS-16#TRPBF
LTC2642IMS-16#TRPBF
LTC2642IMS-14#TRPBF
LTC2642IMS-12#TRPBF
LTC2641CS8-16#TRPBF
LTC2641IS8-16#TRPBF
PART MARKING*
LCZP
LCZP
LCZN
LCZM
LCZP
LCZP
LCZN
LCZM
LTCZS
LTCZR
LTCZQ
LTCZS
LTCZS
LTCZR
LTCZQ
LCZW
LCZW
LCZV
LCZT
LCZW
LCZW
LCZV
LCZT
LTCZZ
LTCZZ
LTCZY
LTCZX
LTCZZ
LTCZZ
LTCZY
LTCZX
OBSOLETE
264116
264116
8-Lead Plastic SO
8-Lead Plastic SO
0°C to 70°C
–40°C to 85°C
PACKAGE DESCRIPTION
8-Lead (3mm
×
3mm) Plastic DFN
8-Lead (3mm
×
3mm) Plastic DFN
8-Lead (3mm
×
3mm) Plastic DFN
8-Lead (3mm
×
3mm) Plastic DFN
8-Lead (3mm
×
3mm) Plastic DFN
8-Lead (3mm
×
3mm) Plastic DFN
8-Lead (3mm
×
3mm) Plastic DFN
8-Lead (3mm
×
3mm) Plastic DFN
8-Lead Plastic MSOP
8-Lead Plastic MSOP
8-Lead Plastic MSOP
8-Lead Plastic MSOP
8-Lead Plastic MSOP
8-Lead Plastic MSOP
8-Lead Plastic MSOP
8-Lead Plastic MSOP
10-Lead (3mm
×
3mm) Plastic DFN
10-Lead (3mm
×
3mm) Plastic DFN
10-Lead (3mm
×
3mm) Plastic DFN
10-Lead (3mm
×
3mm) Plastic DFN
10-Lead (3mm
×
3mm) Plastic DFN
10-Lead (3mm
×
3mm) Plastic DFN
10-Lead (3mm
×
3mm) Plastic DFN
10-Lead (3mm
×
3mm) Plastic DFN
10-Lead Plastic MSOP
10-Lead Plastic MSOP
10-Lead Plastic MSOP
10-Lead Plastic MSOP
10-Lead Plastic MSOP
10-Lead Plastic MSOP
10-Lead Plastic MSOP
10-Lead Plastic MSOP
TEMPERATURE RANGE
0°C to 70°C
0°C to 70°C
0°C to 70°C
0°C to 70°C
–40°C to 85°C
–40°C to 85°C
–40°C to 85°C
–40°C to 85°C
0°C to 70°C
0°C to 70°C
0°C to 70°C
0°C to 70°C
–40°C to 85°C
–40°C to 85°C
–40°C to 85°C
–40°C to 85°C
0°C to 70°C
0°C to 70°C
0°C to 70°C
0°C to 70°C
–40°C to 85°C
–40°C to 85°C
–40°C to 85°C
–40°C to 85°C
0°C to 70°C
0°C to 70°C
0°C to 70°C
0°C to 70°C
–40°C to 85°C
–40°C to 85°C
–40°C to 85°C
–40°C to 85°C
LTC2641ACMS8-16#TRPBF LTCZS
Consult LTC Marketing for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container.
Consult LTC Marketing for information on non-standard lead based finish parts.
For more information on lead free part marking, go to:
http://www.linear.com/leadfree/
For more information on tape and reel specifications, go to:
http://www.linear.com/tapeandreel/
26412fd
For more information
www.linear.com/LTC2641
3
LTC2641/LTC2642
ELECTRICAL CHARACTERISTICS
The
l
denotes the specifications which apply over the full operating
temperature range, otherwise specifications are at T
A
= 25°C. V
DD
= 3V or 5V, V
REF
= 2.5V, C
L
= 10pF, GND = 0, R
L
= ∞ unless
otherwise specified.
LTC2641-12
LTC2642-12
SYMBOL PARAMETER
Static Performance
N
DNL
INL
ZSE
ZS
TC
GE
GE
TC
R
OUT
Resolution
Monotonicity
Differential Nonlinearity
Integral Nonlinearity
Zero Code Offset Error
Zero Code Tempco
Gain Error
Gain Error Tempco
DAC Output Resistance
Bipolar Resistor Matching
BZE
BZS
TC
PSR
Bipolar Zero Offset Error
Bipolar Zero Tempco
Power Supply Rejection
(Note 4)
(LTC2642) R
FB
/R
INV
Ratio Error (Note 7)
l
(LTC2642)
(LTC2642)
ΔV
DD
= ±10%
l
l
l
l
l
LTC2641-14
LTC2642-14
LTC2641-16
LTC2642-16
MAX
LTC2641A-16
LTC2642A-16
MIN TYP
16
16
MAX
UNITS
Bits
Bits
±0.5
±0.5
±0.05
±1
±1
2
±2
±0.1
6.2
1
±5
LSB
LSB
LSB
ppm/°C
LSB
ppm/°C
kΩ
±0.015
±2
±0.1
±5
±1
%
LSB
ppm/°C
LSB
CONDITIONS
MIN TYP MAX MIN TYP MAX MIN TYP
12
12
±0.5
±0.5
1
±0.05
±0.5
±0.1
6.2
1
±0.1
±0.5
±0.1
±0.5
±2
±0.5
±0.1
±0.5
±2
±0.05
±1
±0.1
6.2
1
±0.03
±4
±2
±0.1
±4
14
14
±0.5
±0.5
±1
±1
2
±0.05
±2
±0.1
6.2
1
16
16
±0.5
±0.5
(Note 3)
(Note 3)
Code = 0
l
l
l
±1
±2
2
±5
±0.015
±5
±1
The
l
denotes the specifications which apply over the full operating temperature range, otherwise specifications are at T
A
= 25°C.
V
DD
= 3V or 5V, V
REF
= 2.5V, C
L
= 10pF, GND = 0, R
L
= ∞ unless otherwise specified.
SYMBOL
Reference Input
V
REF
R
REF
Reference Input Range
Reference Input Resistance (Note 5)
Unipolar Mode (LTC2641)
Bipolar Mode (LTC2642)
Measured from 10% to 90%
To ±0.5LSB of FS
Major Carry Transition
Code = 0000hex; NCS = V
DD
;
SCLK, DIN 0V to V
DD
Levels
l
l
l
PARAMETER
CONDITIONS
MIN
2.0
11
8.5
TYP
MAX
V
DD
UNITS
V
kΩ
kΩ
V/µs
µs
nV•s
nV•s
nV/√Hz
MHz
mV
P-P
dB
pF
pF
V
V
26412fd
14.8
11.4
15
1
0.5
0.2
10
Dynamic Performance—V
OUT
SR
Voltage Output Slew Rate
Output Settling Time
DAC Glitch Impulse
Digital Feedthrough
Output Voltage Noise Density
Dynamic Performance—Reference Input
BW
SNR
C
IN(REF)
Digital Inputs
V
IH
Digital Input High Voltage
V
CC
= 3.6V to 5.5V
V
CC
= 2.7V to 3.6V
l
l
Reference –3dB Bandwidth
Reference Feedthrough
Signal-to-Noise Ratio
Reference Input Capacitance
Code = FFFFhex
Code = 0000hex, V
REF
= 1V
P-P
at 100kHz
Code = 0000hex
Code = FFFFhex
2.4
2.0
1.3
1
92
75
120
4
For more information
www.linear.com/LTC2641
LTC2641/LTC2642
ELECTRICAL CHARACTERISTICS
SYMBOL
V
IL
I
IN
C
IN
V
H
Power Supply
V
DD
I
DD
P
D
Supply Voltage
Supply Current, V
DD
Power Dissipation
Digital Inputs = 0V or V
DD
Digital Inputs = 0V or V
DD
, V
DD
= 5V
Digital Inputs = 0V or V
DD
, V
DD
= 3V
l
l
The
l
denotes the specifications which apply over the full operating
temperature range, otherwise specifications are at T
A
= 25°C. V
DD
= 3V or 5V, V
REF
= 2.5V, C
L
= 10pF, GND = 0, R
L
= ∞ unless
otherwise specified.
PARAMETER
Digital Input Low Voltage
Digital Input Current
Digital Input Capacitance
Hysteresis Voltage
2.7
120
0.60
0.36
CONDITIONS
V
CC
= 4.5V to 5.5V
V
CC
= 2.7V to 4.5V
V
IN
= GND to V
DD
(Note 6)
l
l
l
l
MIN
TYP
MAX
0.8
0.6
±1
UNITS
V
V
µA
pF
V
3
0.15
10
5.5
200
V
µA
mW
mW
TIMING CHARACTERISTICS
SYMBOL
t
1
t
2
t
3
t
4
t
5
t
6
t
7
t
8
t
9
f
SCLK
PARAMETER
DIN Valid to SCLK Setup Time
DIN Valid to SCLK Hold Time
SCLK Pulse Width High
SCLK Pulse Width Low
CS
Pulse High Width
LSB SCLK High to
CS
High
CS
Low to SCLK High
CS
High to SCLK Positive Edge
CLR
Pulse Width Low
SCLK Frequency
The
l
denotes the specifications which apply over the full operating temperature
range, otherwise specifications are at T
A
= 25°C. V
DD
= 3V or 5V, V
REF
= 2.5V, C
L
= 10pF, GND = 0, R
L
= ∞ unless otherwise specified.
CONDITIONS
l
l
l
l
l
l
l
l
l
MIN
10
0
9
9
10
8
8
8
15
TYP
MAX
UNITS
ns
ns
ns
ns
ns
ns
ns
ns
ns
50% Duty Cycle
l
50
30
MHz
µs
V
DD
High to
CS
Low (Power-Up Delay)
Note 1:
Stresses beyond those listed under Absolute Maximum Ratings
may cause permanent damage to the device. Exposure to any Absolute
Maximum Rating condition for extended periods may affect device
reliability and lifetime.
Note 2:
Continuous operation above the specified maximum operating
junction temperature may impair device reliability.
Note 3:
LTC2641-16/LTC2642-16 ±1LSB = ±0.0015% = ±15.3ppm of full
scale. LTC2641-14/LTC2642-14 ±1LSB = ±0.006% = ±61ppm of full scale.
LTC2641-12/LTC2642-12 ±1LSB = ±0.024% = ±244ppm of full scale.
Note 4:
R
OUT
tolerance is typically ±20%.
Note 5:
Reference input resistance is code dependent. Minimum is at
871Chex (34,588) in unipolar mode and at 671Chex (26, 396) in bipolar
mode.
Note 6:
Guaranteed by design and not production tested.
Note 7:
Guaranteed by gain error and offset error testing, not production
I would like to ask, regarding the msp430f169 chip, do TA0.2 and TA1.1 refer to channel 2 of TA0 and channel 1 of TA1 respectively? If the IO port where TA0.2 is located is used to simulate the receiv...
[font=新宋体][size=3]For a speaker that is wound with a coil inside, the current flowing through the coil usually changes, causing the coil to stretch and deform, thereby driving the membrane to produce ...
I am a newbie, just learning 28335. Now I want to use the GPIO port to input a PWM signal generated by myself, and then detect its duty cycle by myself. The main program is as follows. [b]The oscillos...
I have been working on PWM output issues for the past two weeks, mainly to familiarize myself with and port ARM's CMSIS library. I encountered many problems during the whole process, and I would like ...
传媒学子onsemi and Avnet IoT Innovation Design Competition
Microcontroller MCU
京公网安备 11010802033920号
EEWORLD
