LTC3454
1A Synchronous Buck-Boost
High Current LED Driver
FEATURES
n
n
n
n
n
n
n
n
n
n
DESCRIPTION
The LTC
®
3454 is a synchronous buck-boost DC/DC
converter optimized for driving a single high power LED
at currents up to 1A from a single cell Li-Ion battery in-
put. The regulator operates in either synchronous buck,
synchronous boost, or buck-boost mode depending on
input voltage and LED forward voltage. P
LED
/P
IN
efficiency
greater than 90% can be achieved over the entire usable
range of a Li-Ion battery (2.7V to 4.2V).
LED current is programmable to one of four levels, includ-
ing shutdown, with dual external resistors and dual enable
inputs. In shutdown no supply current is drawn.
A high constant operating frequency of 1MHz allows the
use of small external components. The LTC3454 is offered
in a low profile (0.75mm) thermally enhanced 10-lead
(3mm
×
3mm) DFN package.
L,
LT, LTC and LTM are registered trademarks of Linear Technology Corporation.
All other trademarks are the property of their respective owners.
High Efficiency: >90% Typical in Torch Mode,
>80% in Flash Mode
Wide V
IN
Range: 2.7V to 5.5V
Up to 1A Continuous Output Current
3.5% LED Current Programming Accuracy
Internal Soft-Start
Open/Shorted LED Protection
Constant Frequency 1MHz Operation
Zero Shutdown Current
Overtemperature Protection
Small Thermally Enhanced 10-Lead (3mm
×
3mm)
DFN Package
APPLICATIONS
n
n
n
n
n
Cell Phone Camera Flash
Cell Phone Torch Lighting
Digital Cameras
PDAs
Misc Li-Ion LED Drivers
TYPICAL APPLICATION
High Efficiency Torch/Flash LED Driver
V
IN
2.7V TO 4.2V
1-CELL Li-Ion
L1
5μH
10μF
V
IN
A
SW1
SW2
D
V
OUT
10μF
I
LED
100
95
LED
LED
EN2 EN1 I
LED
0
0
0 (SHUTDOWN)
0
1
150mA
EN1 (TORCH) 1
0
850mA
1
1
1A
EN2 (FLASH)
I
SET1
I
SET2
LTC3454
LED: LUMILEDS LXL-PWF1
L1: SUMIDA CDRH6D28-5RONC
GND (EXPOSED PAD)
R
ISET2
3.65k
1%
3454 TA01a
LED Power Efficiency vs V
IN
I
LED
= 150mA
90
EFFICIENCY (%)
85
80
75
70
R
ISET1
20.5k
1%
65 T
A
= 25°C
EFFICIENCY = (V
OUT
– V
LED
)I
LED
/V
IN
I
IN
60
2.7 3.1 3.5 3.9 4.3 4.7 5.1
V
IN
(V)
I
LED
= 1A
B
C
V
C
0.1μF
1MHz
BUCK-BOOST
5.5
3454 TA01b
3454fa
1
LTC3454
ABSOLUTE MAXIMUM RATINGS
(Note 1)
PIN CONFIGURATION
TOP VIEW
EN1
EN2
I
SET1
I
SET2
LED
1
2
3
4
5
11
10 SW1
9 V
IN
8 V
C
7 V
OUT
6 SW2
V
IN
, SW1, SW2, V
OUT
Voltage ...................... –0.3V to 6V
V
C
, EN1, EN2, I
SET1
, I
SET2
Voltage.............................–0.3V to (V
IN
+ 0.3V) or 6V
LED Peak Current ...................................................1.25A
Storage Temperature Range...................–65°C to 125°C
Operating Temperature Range (Note 2)....–40°C to 85°C
Junction Temperature (Note 3) ............................. 125°C
DD PACKAGE
10-LEAD (3mm 3mm) PLASTIC DFN
T
JMAX
= 125°C,
θ
JA
= 40°C/W
EXPOSED PAD (PIN 11) IS GND, MUST BE SOLDERED TO PCB
ORDER INFORMATION
LEAD FREE FINISH
LTC3454EDD#PBF
TAPE AND REEL
LTC3454EDD#TRPBF
PART MARKING
LBQX
PACKAGE DESCRIPTION
10-Lead (3mm
×
3mm) Plastic DFN
TEMPERATURE RANGE
–40°C to 85°C
Consult LTC Marketing for parts specified with wider operating temperature ranges.
Consult LTC Marketing for information on non-standard lead based finish parts.
For more information on lead free part marking, go to:
http://www.linear.com/leadfree/
For more information on tape and reel specifications, go to:
http://www.linear.com/tapeandreel/
The
l
denotes the specifications which apply over the full operating
temperature range, otherwise specifications are at T
A
= 25°C. V
IN
= 3.6V, R
ISET
= 20.5k unless otherwise noted. (Note 2)
PARAMETER
Input Supply Voltage (V
IN
)
Input DC Supply Current
Normal Operation
Shutdown
UVLO
Undervoltage Lockout Threshold
V
EN1
, V
EN2
DC Threshold for Normal Operation (V
IH
)
V
EN1
, V
EN2
DC Threshold for Shutdown (V
IL
)
V
EN1
, V
EN2
Input Current
I
SET1
and I
SET2
Servo Voltage
LED Output Current to Programming Current Ratio
LED Pin Voltage
Regulated Maximum V
OUT
PMOS Switch R
ON
NMOS Switch R
ON
Forward Current Limit
Reverse Current Limit
PMOS Switch Leakage
NMOS Switch Leakage
3.08k ≤ R
ISET1
||R
ISET2
≤ 20.5k
I
LED
/(I
ISET1
+ I
ISET2
), I
LED
= 500mA (Note 5)
I
LED
= 1A
LED Pin Open, Programmed I
LED
= 1A
Switches A and D (V
OUT
= 3.6V)
Switches B and C
Switch A
Switch D (V
OUT
= 3.6V)
Switches A, D
Switches B, C
–1
–1
2.5
l
ELECTRICAL CHARACTERISTICS
CONDITIONS
l
MIN
2.7
l
TYP
MAX
5.5
UNITS
V
μA
μA
μA
V
V
V
V
μA
mV
mV
mA/mA
mA/mA
mV
V
mΩ
mΩ
A
mA
(Typicals at V
IN
= 3.6V, R
ISET1
= R
ISET2
= 20.5k)
2.7V ≤ V
IN
≤ 5.5V (Note 4)
2.7V ≤ V
IN
≤ 5.5V, V
EN1
= V
EN2
= 0V
V
IN
< UVLO Threshold, V
EN1
= V
EN2
= V
IN
V
IN
Rising
V
IN
Falling
825
0
5
l
1200
1
10
2.3
1.2
1
1.75
l
l
l
l
l
2.05
1.90
0.68
0.66
800
800
3850
3850
105
5.15
170
130
3.4
275
0.2
–1
780
788
3725
3775
4.95
812
812
3975
3925
5.35
1
1
μA
μA
3454fa
2
LTC3454
The
l
denotes the specifications which apply over the full operating
temperature range, otherwise specifications are at T
A
= 25°C. V
IN
= 3.6V, R
ISET
= 20.5k unless otherwise noted. (Note 2)
PARAMETER
Oscillator Frequency
Soft-Start Time
Note 1:
Stresses beyond those listed under Absolute Maximum Ratings
may cause permanent damage to the device. Exposure to any Absolute
Maximum Rating condition for extended periods may affect device
reliability and lifetime.
Note 2:
The LTC3454 is guaranteed to meet specifications from 0°C to
70°C. Specifications over the –40°C to 85°C operating temperature range
are assured by design, characterization and correlation with statistical
process controls.
CONDITIONS
MIN
0.9
TYP
1.0
200
Note 3:
T
J
is calculated from the ambient temperature T
A
and power
dissipation PD according to the following formula:
T
J
= T
A
+ (PD •
θ
JA
°C/W).
Note 4:
Dynamic supply current is higher due to the gate charge being
delivered at the switching frequency.
Note 5:
This parameter is tested using a feedback loop which servos V
C
to 1.8V.
MAX
1.15
UNITS
MHz
μs
ELECTRICAL CHARACTERISTICS

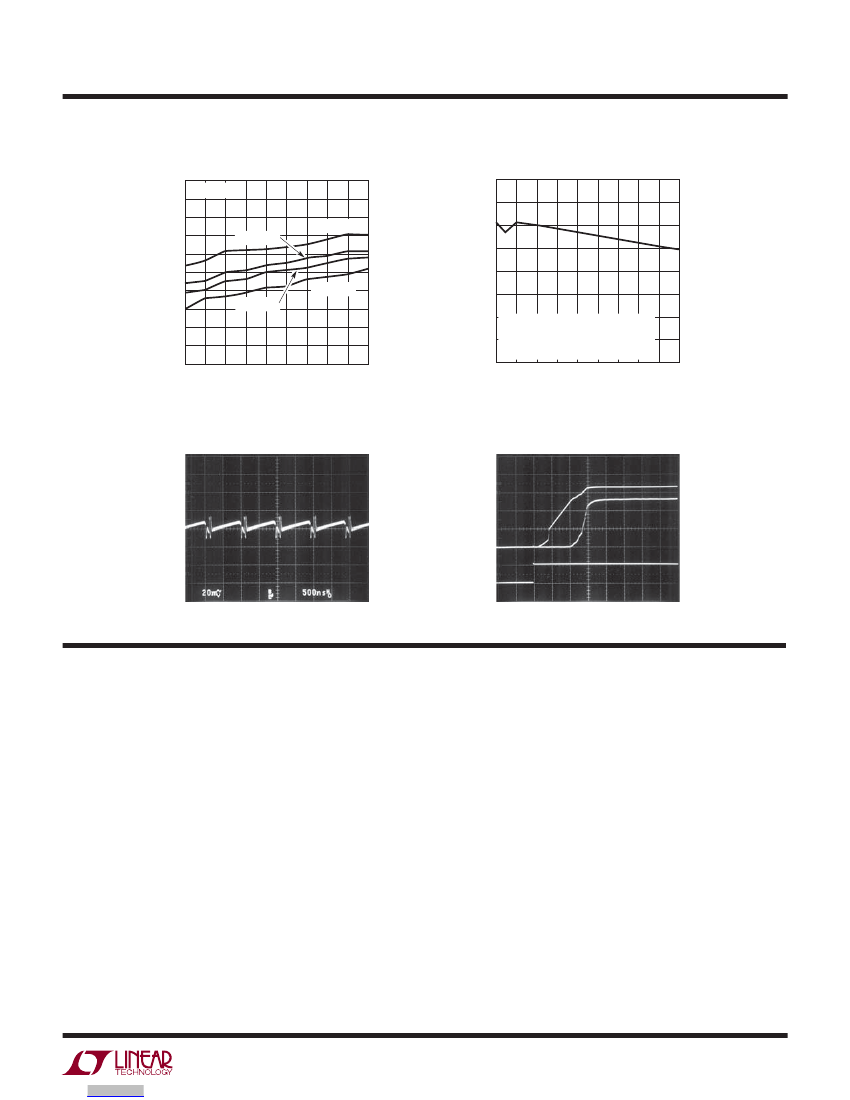

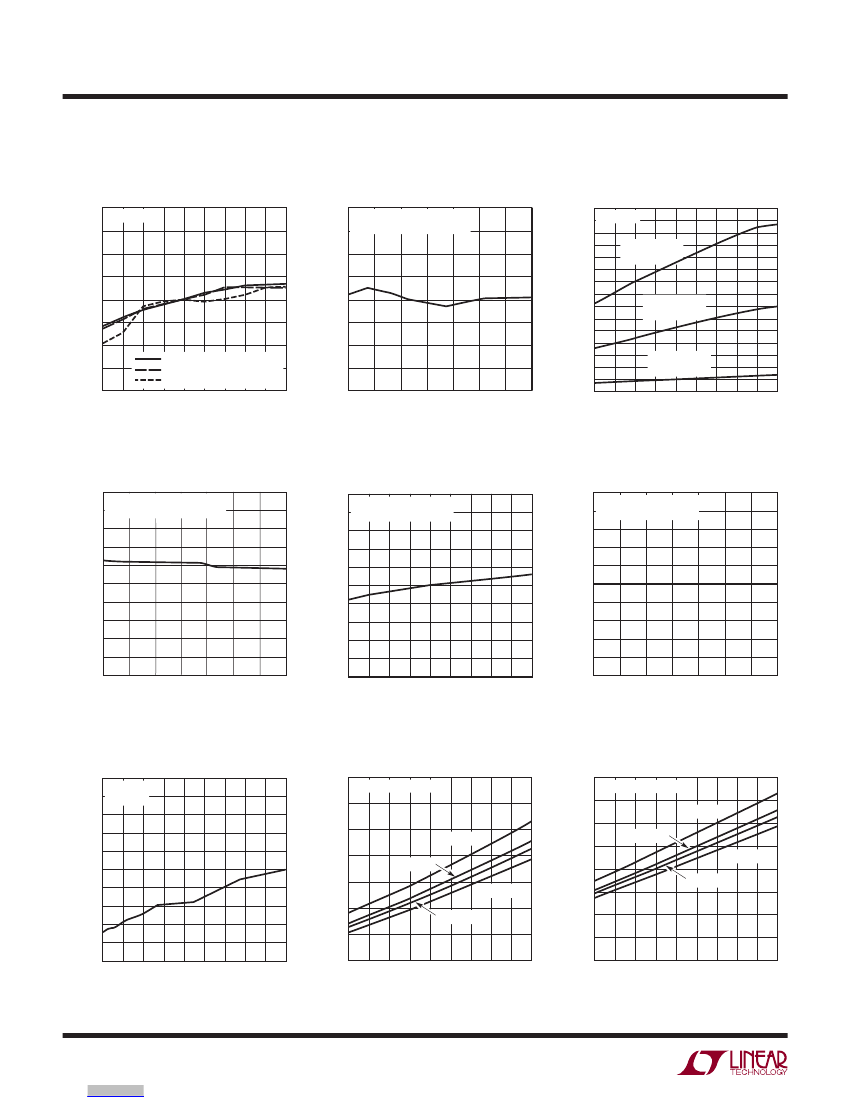

TYPICAL PERFORMANCE CHARACTERISTICS
Undervoltage Lockout Threshold
vs Temperature
2.4
2.3
ENABLE THRESHOLDS (mV)
2.2
UVLO THRESHOLD (V)
2.1
2.0
1.9
1.8
1.7
1.6
1.5
1.4
–55 –35 –15
5 25 45 65 85 105 125
TEMPERATURE (°C)
3454 G01
Enable Thresholds
vs Temperature
1200
1100
1000
900
800
700
600
500
400
300
200
–55 –35 –15
5 25 45 65 85 105 125
TEMPERATURE (°C)
3454 G02
Enable Thresholds vs V
IN
1200
1100
ENABLE THRESHOLDS (mV)
1000
900
800
700
600
500
400
300
200
2.7
3.1
3.5
3.9 4.3
V
IN
(V)
4.7
5.1
5.5
V
IH
V
IL
T
A
= 25°C
V
IN
= 3.6V
V
IN
RISING
V
IH
V
IL
V
IN
FALLING
3454 G03
I
SET1,2
Servo Voltage
vs Temperature
812
808
804
800
796
792
788
–55 –35 –15
V
IN
= 3.6V
R
ISET1,2
= 15k
812
808
804
800
796
792
I
SET1,2
Servo Voltage vs V
IN
T
A
= 25°C
R
ISET1
= R
ISET2
= 15k
812
808
804
800
796
792
788
3.1
3.5
3.9 4.3
V
IN
(V)
4.7
5.1
5.5
I
SET1,2
Servo Voltage vs R
ISET
V
IN
= 3.6V
T
A
= 25°C
V
ISET1,2
(mV)
V
ISET1,2
(mV)
5 25 45 65 85 105 125
TEMPERATURE (°C)
3454 G04
788
2.7
V
ISET1,2
(mV)
3
7
11
19
15
R
ISET
(kΩ)
23
27
31
3454 G06
3454 G05
3454fa
3
LTC3454
TYPICAL PERFORMANCE CHARACTERISTICS
