LTC3621EDCB#TRMPBF

Description
Conv DC-DC 2.7V to 17V Synchronous Step Down Single-Out 0.6V to 17V 1A Automotive 6-Pin DFN EP T/R
File Size265KB,18 Pages
ManufacturerADI
Websitehttps://www.analog.com
Download Datasheet Download user manual Parametric View All

LTC3621EDCB#TRMPBF Overview

Conv DC-DC 2.7V to 17V Synchronous Step Down Single-Out 0.6V to 17V 1A Automotive 6-Pin DFN EP T/R

LTC3621EDCB#TRMPBF Parametric

Parameter NameAttribute value
EU restricts the use of certain hazardous substancesCompliant
ECCN (US)EAR99
Part StatusActive
HTS8542.39.00.01
TypeSynchronous Step Down
Output TypeAdjustable
Switching Frequency (kHz)1160
Switching RegulatorYes
Number of Outputs1
Output Voltage (V)0.6 to 17
Maximum Output Current (A)1
Minimum Input Voltage (V)2.7
Maximum Input Voltage (V)17
Operating Supply Voltage (V)2.7 to 17
Typical Switch Current (A)1.8(Max)
Typical Quiescent Current (uA)1500
Line Regulation0.015%/V
Load Regulation0.1%(Typ)
Efficiency (%)95
Minimum Operating Temperature (°C)-40
Maximum Operating Temperature (°C)125
Supplier Temperature GradeExtended
PackagingTape and Reel
Pin Count6
Standard Package NameDFN
Supplier PackageDFN EP
MountingSurface Mount
Package Height0.75(Max)
Package Length2
Package Width3
PCB changed6
Lead ShapeNo Lead
FeaTures
n
n
n
n
n
n
n
n
n
LTC3621/LTC3621-2
17V, 1A Synchronous
Step-Down Regulator with
3.5µA Quiescent Current
DescripTion
The
LTC
®
3621/LTC3621-2
is a high efficiency 17V, 1A
synchronous monolithic step-down regulator. The switch-
ing frequency is fixed to 1MHz or 2.25MHz with a ±40%
synchronizing range. The regulator features ultralow quies-
cent current and high efficiencies over a wide V
OUT
range.
The step-down regulator operates from an input voltage
range of 2.7V to 17V and provides an adjustable output
range from 0.6V to V
IN
while delivering up to 1A of output
current. A user-selectable mode input is provided to allow
the user to trade off ripple noise for light load efficiency;
Burst Mode operation provides the highest efficiency at
light loads, while pulse-skipping mode provides the lowest
voltage ripple. The MODE pin can also be used to allow the
user to sync the switching frequency to an external clock.
LTC3621 Options
PART NAME
LTC3621
LTC3621-3.3
LTC3621-5
LTC3621-2
LTC3621-23.3
LTC3621-25
FREQUENCY
1.00MHz
1.00MHz
1.00MHz
2.25MHz
2.25MHz
2.25MHz
V
OUT
Adjustable
3.3V
5V
Adjustable
3.3V
5V
n
n
n
n
n
Wide V
IN
Range: 2.7V to 17V
Wide V
OUT
Range: 0.6V to V
IN
95% Max Efficiency
Low I
Q
< 3.5µA, Zero-Current Shutdown
Constant Frequency (1MHz/2.25MHz)
Full Dropout Operation with Low I
Q
1A Rated Output Current
±1% Output Voltage Accuracy
Current Mode Operation for Excellent Line and Load
Transient Response
Synchronizable to External Clock
Pulse-Skipping, Forced Continuous, Burst Mode
®
Operation
Internal Compensation and Soft-Start
Overtemperature Protection
Compact 6-Lead DFN (2mm
×
3mm) Package or
Thermally-Enhanced MS8E Package with Power
Good Output and Independent SGND Pin
applicaTions
n
n
n
n
Portable-Handheld Scanners
Industrial and Embedded Computing
Automotive Applications
Emergency Radio
L,
LT, LTC, LTM, Burst Mode, Linear Technology, the Linear logo and LTSpice are registered
trademarks and Hot Swap and LTpowerCAD are trademarks of Linear Technology Corporation.
All other trademarks are the property of their respective owners. Protected by U.S. Patents,
including 5481178, 6580258, 6498466, 6611131, 6177787, 5705919, 5847554.
Typical applicaTion

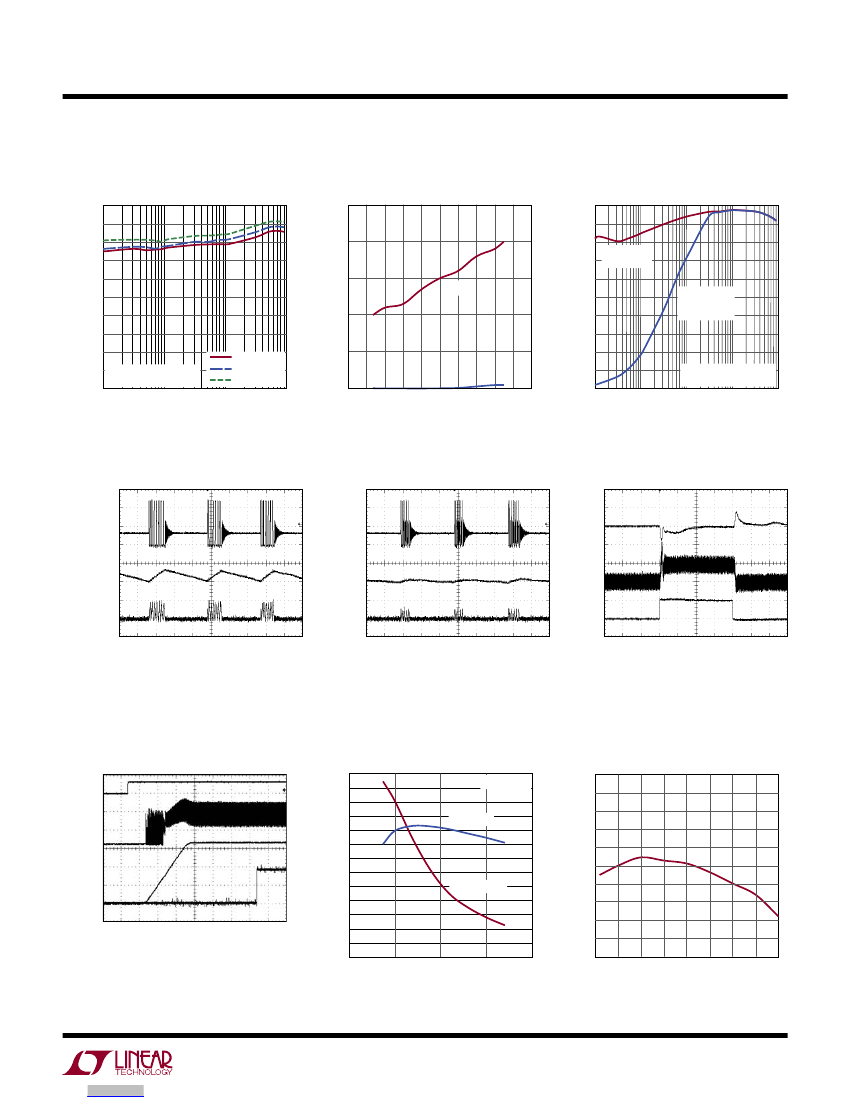

Efficiency and Power Loss vs Load at 1MHz
2.5V V
OUT
with 400mA Burst Clamp, f
SW
= 1MHz
V
IN
2.7V TO 17V
4.7µH
V
IN
10µF
LTC3621
RUN
FB
MODE/SYNC
INTV
CC
GND
SW
604k
191k
1µF
22pF
V
OUT
2.5V
1A
EFFICIENCY (%)
22µF
3621 TA01a
100
90
80
70
60
50
40
30
20
10
0
0
V
IN
= 12V
EFFICIENCY
0.6
0.5
POWER LOSS (W)
0.4
0.3
0.2
V
OUT
= 5V
0.1
V
OUT
= 3.3V
V
OUT
= 2.5V
0
1
0.8
3621 TA01b
POWER LOSS
0.2
0.4
0.6
LOAD CURRENT (A)
3621fc
For more information
www.linear.com/LTC3621
1
