PI5C3384QE

Description
Bus Switch 2-Element CMOS 10-IN 24-Pin QSOP Tube
Categorylogic    logic
File Size391KB，6 Pages
ManufacturerDiodes Incorporated
Environmental Compliance
Download Datasheet Parametric Compare View All

PI5C3384QE Online Shopping

Suppliers Part Number Price MOQ In stock
PI5C3384QE - - View Buy Now

PI5C3384QE Overview

Bus Switch 2-Element CMOS 10-IN 24-Pin QSOP Tube

PI5C3384QE Parametric

Parameter NameAttribute value
EU restricts the use of certain hazardous substancesCompliant
ECCN (US)EAR99
Part StatusActive
HTS8542.39.00.01
Logic FunctionBus Switch
Configuration5 x 1:1
Number of Elements per Chip2
Number of Inputs per Chip10
Number of Outputs per Chip10
Absolute Propagation Delay Time (ns)6.5
Process TechnologyCMOS
Maximum Propagation Delay Time @ Maximum CL (ns)0.25(Typ)@5V
Maximum On Resistance (Ohm)10(Typ)
Maximum High Level Output Current (mA)-120
Maximum Low Level Output Current (mA)120
Minimum Operating Supply Voltage (V)4.75
Typical Operating Supply Voltage (V)5
Maximum Operating Supply Voltage (V)5.25
Maximum Quiescent Current (uA)3
Typical Quiescent Current (uA)0.1
Propagation Delay Test Condition (pF)50
Maximum Power Dissipation (mW)500
Minimum Operating Temperature (°C)-40
Maximum Operating Temperature (°C)85
PackagingTube
Supplier PackageQSOP
Pin Count24
Standard Package NameSOP
MountingSurface Mount
Package Height1.65(Max)
Package Length8.66
Package Width3.91
PCB changed24

PI5C3384QE Preview

PI5C3384
PI5C3384C
10-Bit, 2-Port Bus Switch
Features:
•
•
•
•
Near-Zero propagation delay
5Ω switches connect inputs to outputs
Direct bus connection when switches are ON
Ultra-low quiescent power (0.2μA typical)
– Ideally suited for notebook applications
• Packaging (Pb-free & Green Available):
– 24-pin 150-mil wide plastic QSOP (Q)
– 24-pin 300-mil wide plastic SOIC (S)
– 24-pin 173-mil wide plastic TSSOP (L)
Description:
Pericom Semiconductor’s PI5C3384 and PI5C3384C are 10-bit,
2-port bus switches designed with a low On-Resistance allowing
inputs to be connected directly to outputs. The bus switch creates
no additional propagational delay or additional ground bounce
noise. The switches are turned ON by the Bus Enable (BEx) input
signals. Two bus enable signals are provided, one for each of the
upper and lower
fi
ve bits of the two 10-bit buses.
Block Diagram
A
0
B
0
Pin Configuration
A
4
B
4
A
5
B
5
A
9
B
9
BE
A
B
0
A
0
A
1
B
1
B
2
A
2
A
3
B
3
B
4
A
4
GND
1
2
3
4
5
6
7
8
9
10
11
12
24
23
22
21
20
19
18
17
16
15
14
13
V
CC
B
9
A
9
A
8
B
8
B
7
A
7
A
6
B
6
B
5
A
5
BE
B
BE
A
BE
B
Truth Table
(1)
Function
Disconnect
Connect
Connect
Connect
Note:
1. H
X
L
Hi-Z
=
=
=
=
Pin Description
BE
A
H
L
H
L
BE
B
H
H
L
L
B
0
-B
4
Hi-Z
A
0
-A
4
Hi-Z
A
0
-A
4
B
5
-B
9
Hi-Z
Hi-Z
A
5-
A
9
A
5
-A
9
Pin Name
BE
A
, BE
B
A
0
-A
9
B
0
-A
9
GND
V
CC
Description
Bus Enable Inputs (Active LOW)
Bus A
Bus B
Ground
Power
High Voltage Level
Don’t Care
Low Voltage Level
High Impedance
1
PS7029F
05/02/07
07-0124
PI5C3384/3384C
10-Bit, 2-Port Bus switch
Maximum Ratings
(Above which the useful life may be impaired. For user guidelines, not tested.)
Storage Temperature .................................................................. –65°C to +150°C
Ambient Temperature with Power Applied ................................. –40°C to +85°C
Supply Voltage to Ground Potential (Inputs & V
CC
Only) ........... –0.5V to +7.0V
Supply Voltage to Ground Potential (Outputs & D/O Only) ........ –0.5V to +7.0V
DC Input Voltage .......................................................................... –0.5V to +7.0V
DC Output Current.....................................................................................120 mA
Power Dissipation ..........................................................................................0.5W
Note:
Stresses greater than those listed under MAXIMUM
RATINGS may cause permanent damage to the device.
This is a stress rating only and functional operation
of the device at these or any other conditions above
those indicated in the operational sections of this
specification is not implied. Exposure to absolute
maximum rating conditions for extended periods
may affect reliability.
DC Electrical Characteristics
(Over the Operating Range, T
A
= –40°C to +85°C, V
CC
= 5V ±5%)
Parameters
V
IH
V
IL
I
IH
I
IL
I
OZ
V
IK
I
OS
V
H
Description
Input HIGH Voltage
Input LOW Voltage
Input HIGH Current
Input LOW Current
High-Impedance Output
Current
Clamp Diode Voltage
Short Circuit Current
(3)
Input Hysteresis at Control
Pins
V
CC
= Min.
V
IN
= 0V
I
ON
= 48 mA
V
CC
= Min.
V
IN
= 2.4V
I
ON
= 15mA
Test Conditions
(1)
Guaranteed Logic HIGH Level
Guaranteed Logic LOW Level
V
CC
= Max., V
IN
= V
CC
V
CC
= Max., V
IN
= GND
0
≤
A, B
≤
V
CC
V
CC
= Min.
I
IN
= –18 mA
PI5C3384
PI5C3384C
100
150
5
7
Ω
10
15
Min.
2.0
–0.5
–1
–1
–1
–0.7
0.8
1
1
1
–1.2
–1.8
V
mA
mV
μA
Typ.
(2)
Max.
Units
V
A (B) = 0V, B (A) = V
CC
R
ON
Switch On-Resistance
(4)
Notes:
1. For Max. or Min. conditions, use appropriate value specified under Electrical Characteristics for the applicable device type.
2. Typical values are at V
CC
= 5.0V, T
A
= 25°C ambient and maximum loading.
3. Not more than one output should be shorted at one time. Duration of the test should not exceed one second.
4. Measured by the voltage drop between A and B pin at indicated current through the switch. On-Resistance is determined by the lower of the
voltages on the two (A,B) pins.
07-0124
2
PS7029F
05/02/07
PI5C3384/3384C
10-Bit, 2-Port Bus switch
Capacitance
(T
A
= 25ºC, f = 1 MHz)
Parameters
(1)
C
IN
C
OFF
C
ON
Description
Input Capacitance
A/B Capacitance, Switch Off
A/B Capacitance, Switch On
V
IN
= 0V
Test Conditions
Typ.
Max.
6
6
8
pF
Units
Notes:
1. This parameter is determined by device characterization but is not production tested.
Power Supply Characteristics
Parameters
I
CC
ΔI
CC
Description
Quiescent Power
Supply Current
Supply Current per
Input @ TTL HIGH
Supply Current per
Input per MHz
(4)
Test Conditions
(1)
V
CC
= Max.,
V
IN
= GND or V
CC
V
CC
= Max.,
V
IN
= 3.4V
(3)
V
CC
= Max.,
A and B Pins Open
BE1 or BE2 = GND
Control Input Toggling
50% Duty Cycle
PI5C3384
PI5C3384C
Min.
Typ.
(2)
0.1
60
Max.
3.0
100
2.5
Units
μA
mA
I
CCD
0.25
mA/
MHz
Notes:
1. For Max. or Min. conditions, use appropriate value specified under Electrical Characteristics for the applicable device.
2. Typical values are at V
CC
= 5.0V, +25°C ambient.
3. Per TTL driven input (V
IN
= 3.4V, control inputs only); A and B pins do not contribute to I
CC
.
4. This current applies to the control inputs only and represent the current required to switch internal capacitance at the specified frequency. The A
and B inputs generate no significant AC or DC currents as they transition. This parameter is not tested, but is guaranteed by design.
Switching Characteristics over Operating Range
Parameters
t
PLH
t
PHL
t
PZH
t
PZL
t
PHZ
t
PLZ
Description
Propagation Delay
(2,3)
Ax to Bx, Bx to Ax
Bus Enable Time
BE
X
to Ax or Bx
Bus Disable Time
BEx to Ax or Bx
C
L
= 50pF
R
L
= 500Ω
1.5
1.5
Conditions
(1)
PI5C3384/3384C
Min.
Typ.
0.25
6.5
5.5
ns
Max.
Unit
Notes:
1. See test circuit and waveforms.
2. This parameter is guaranteed but not tested on Propagation Delays.
3. The bus switch contributes no propagational delay other than the RC delay of the On-Resistance of the switch and the load capacitance. The
time constant for the switch alone is of the order of 0.25ns for 50pF load. Since this time constant is much smaller than the rise/fall times of
typical driving signals, it adds very little propagational delay to the system. Propagational delay of the bus switch when used in a system is
determined by the driving circuit on the driving side of the switch and its interaction with the load on the driven side.
07-0124
3
PS7029F
05/02/07
PI5C3384/3384C
10-Bit, 2-Port Bus switch
Test Circuit
7V
V
CC
Open
500Ω
V
IN
Pulse
Generator
R
T
D.U.T.
50pF
C
L
500Ω
V
OUT
Switch Position
Test
Disable LOW
Enable LOW
t
PD
Switch
Closed
Closed
Open
Definitions:
C
L
= Load capacitance (includes jig and
probe capacitance)
R
T
= Termination resistance (should be
equal to Z
OUT
of the pulse generator)
Enable and Disable Timing Diagram
Enable
Control
Input
t
PZL
3V
Output
Normally
Low
t
PZH
Output
Normally
High
Switch
GND
1.5V
0V
Switch
1.5V
0.3V
Propagation Delay Diagram
3V
Same Phase
Input Transisiton
t
PLH
Output
V
OL
t
PLH
t
PHL
3V
Opposite Phase
Input Transisiton
1.5V
0V
V
OH
0V
3V
1.5V
t
PHL
V
OH
1.5V
V
OL
1.5V
0V
Disable
1.5V
0V
t
PLZ
3V
1.5V
1.5V
t
PZH
0.3V
1. Input Control Enable = Low; Input Control Disable = High
2. Pulse Generator for all pulses:
Rate
<1.0
MHz; ZOUT <50Ω; tF, tR
<2.5ns
07-0124
4
PS7029F
05/02/07
PI5C3384/3384C
10-Bit, 2-Port Bus switch

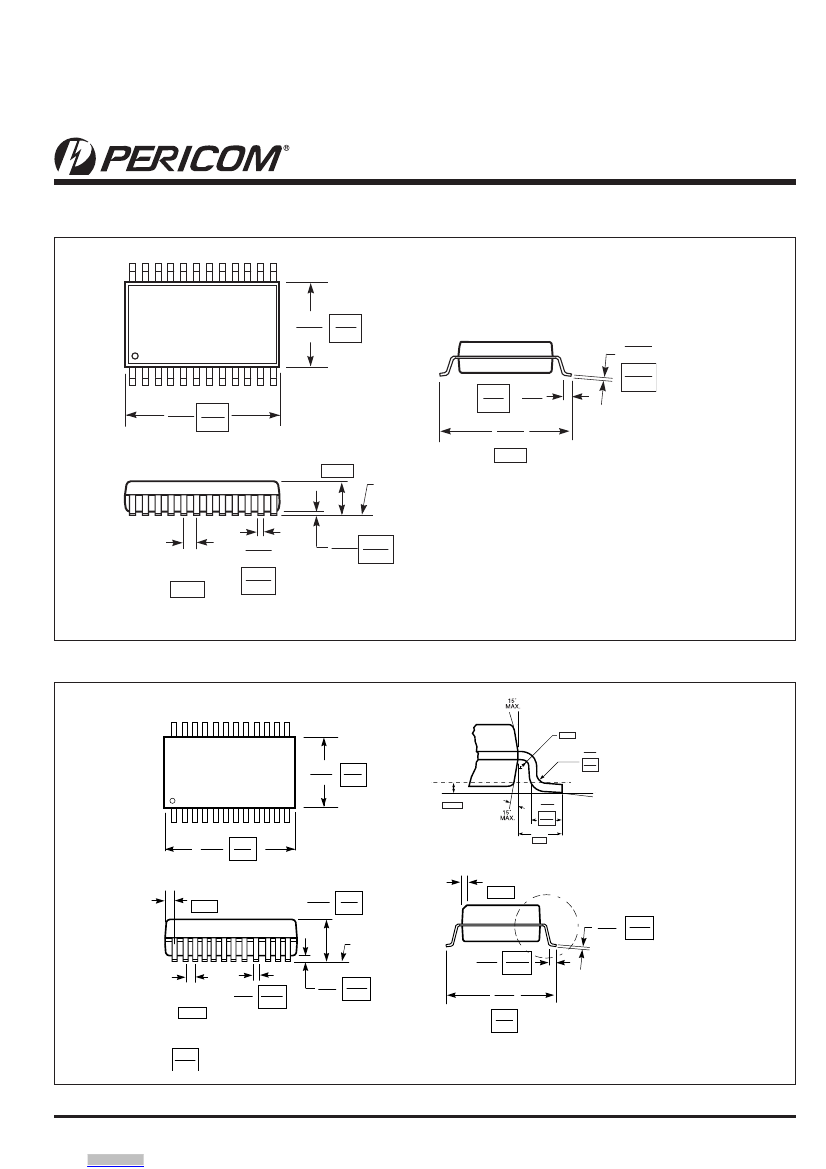

Packaging Mechanical: 24-pin TSSOP (L)
24
.169
.177
4.3
4.5
.0075
.0098
0.19
0.25
1
.303
.311
7.7
7.9
.047
Max
1.20
0.45
0.75
.252
BSC
6.4
SEATING
PLANE
.018
.030
.0255
BSC
0.65
.007
.012
0.19
0.30
.002 0.05
.006 0.15
Packaging Mechanical: 24-pin QSOP (Q)
24
.008
0.20
MIN.
.008
.013
0.20
0.33
Guage Plane
.150
.157
3.81
3.99
.010
0.254
1
.337
.344
8.56
8.74
Detail A
.016
.035
0.41
0.89
.041
1.04
REF
0˚-6˚
.033
0.84
.053
.069
1.35
1.75
.015 x 45˚
0.38
Detail A
.007
.010
SEATING
PLANE
.004 0.101
.010 0.254
.016
.050
0.406
1.27
.228
.244
5.79
6.20
0.178
0.254
.025
typical
0.635
.008 0.203
.012 0.305
X.XX DENOTES DIMENSIONS
X.XX IN MILLIMETERS
07-0124
5
PS7029F
05/02/07
More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

PI5C3384QE Related Products

PI5C3384QE PI5C3384QEX
Description Bus Switch 2-Element CMOS 10-IN 24-Pin QSOP Tube Bus Switch 2-Element CMOS 10-IN 24-Pin QSOP T/R
EU restricts the use of certain hazardous substances Compliant Compliant
ECCN (US) EAR99 EAR99
Part Status Active Unconfirmed
HTS 8542.39.00.01 8542.39.00.01
Logic Function Bus Switch Bus Switch
Configuration 5 x 1:1 5 x 1:1
Number of Elements per Chip 2 2
Number of Inputs per Chip 10 10
Number of Outputs per Chip 10 10
Absolute Propagation Delay Time (ns) 6.5 6.5
Process Technology CMOS CMOS
Maximum Propagation Delay Time @ Maximum CL (ns) 0.25(Typ)@5V 0.25(Typ)@5V
Maximum On Resistance (Ohm) 10(Typ) 10(Typ)
Maximum High Level Output Current (mA) -120 -120
Maximum Low Level Output Current (mA) 120 120
Minimum Operating Supply Voltage (V) 4.75 4.75
Typical Operating Supply Voltage (V) 5 5
Maximum Operating Supply Voltage (V) 5.25 5.25
Maximum Quiescent Current (uA) 3 3
Typical Quiescent Current (uA) 0.1 0.1
Propagation Delay Test Condition (pF) 50 50
Maximum Power Dissipation (mW) 500 500
Minimum Operating Temperature (°C) -40 -40
Maximum Operating Temperature (°C) 85 85
Packaging Tube Tape and Reel
Supplier Package QSOP QSOP
Pin Count 24 24
Standard Package Name SOP SOP
Mounting Surface Mount Surface Mount
Package Height 1.65(Max) 1.65(Max)
Package Length 8.66 8.66
Package Width 3.91 3.91
PCB changed 24 24

Recommended Resources

Interpretation of diode surge current test circuit

Remote transmitter circuit diagram

The power factor meter (380V, 5A) is connected through the current transformer

Current expansion circuit diagram of MAX619

Digital processing circuit for the output signal of the weighing sensor

uPC2002H application circuit

Quartus II Problems and Solutions When Installing a Virtual Machine or a Machine with Multiple Network Protocols
Q16:11:37 Error: Current license file does not support the EP3C10E144C8 device Hello, how do you solve this problem? A: Recreate a simple project and try it once. Q: Warning: FLEXlm software error: In...
eeleader FPGA/CPLD
Stepper Motor Control
This is a circuit diagram of a stepper motor controlled by a single chip microcomputer. I have two questions. First, the software prompts that the wires connected to p1.0 and p1.3 are not logical. Sec...
飞翔的秋 51mcu
Are eMMC 4.0 and 5.0 compatible?
My main chip only supports mmc4.0 protocol, but the eMMC chip itself is 5.0. Can it be read in this way?...
pkuzhx Integrated technical exchanges
Chinese version of BB-Black: not only a development board, but also a powerful Linux computer!
[font=微软雅黑][size=4][b]BB-Black is not just a development board, but also a powerful Linux computer: [/b][/size][/font][font=微软雅黑][size=3] BeagleBone Black is a new generation product launched by the o...
EEWORLD社区 DSP and ARM Processors
Win7 64-bit BBB board CDC Serial driver error
I just bought BBB today. After installing the BONE_D64.exe driver, the Linux Development Community (usbser) Ports installation failed command appears. Please help me, otherwise I have to reinstall the...
wjjontheway DSP and ARM Processors
The application cannot be started because the application's side-by-side configuration is incorrect
Someone used visual studio to build a project, including an exe file. My computer is 64-bit, Win8, and when I opened the exe file, it showed "The application cannot be started because the parallel con...
ienglgge Programming Basics
Shortcut:   A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 AA AB AC AD AE AF AG AH AI AJ AK AL AM AN AO AP AQ AR AS AT AU AV AW AX AY AZ B0 B1 B2 B3 B4 B5 B6 B7 B8 B9 BA BB BC BD BE BF BG BH BI BJ BK BL BM BN BO BP BQ BR BS BT BU BV BW BX BY BZ C0 C1 C2 C3 C4 C5 C6 C7 C8 C9 CA CB CC CD CE CF CG CH CI CJ CK CL CM CN CO CP CQ CR CS CT CU CV CW CX CY CZ D0 D1 D2 D3 D4 D5 D6 D7 D8 D9 DA DB DC DD DE DF DG DH DI DJ DK DL DM DN DO DP DQ DR DS DT DU DV DW DX DZ

Popular Components

  1. CMPT3646
  2. VBFZ-1690
  3. 54122-413-29-0950
  4. JT06RT-22-35SA(306)
  5. GZF3V6CCC
  6. CL-60AB
  7. D55342H07B22A1PWS
  8. FX-104-CFC-D237
  9. AME8500BEETCA42
  10. SA51CA_B0_00001
  11. BZM5256T/R13
  12. CC1H104ZA1PD3F5O30MF

Popular Articles

  1. Detailed explanation of 2440init.s of s3c2440_Supplement
  2. Configure arm-linux virtual machine development environment
  3. 51 MCU-code files and tests
  4. Autonomous driving development in the Metaverse
  5. Programmable Amplifier Based on 51 Single Chip Microcomputer
  6. Tektronix MDO3054 digital oscilloscope principle about serial protocol triggering and analysis
  7. ​Simple Steps to Calculate Sample Clock Jitter for Isolated Precision High-Speed ​​DAQ
  8. The impact of power battery degradation on electric vehicles
  9. Design of experimental circuit design for coding, decoding and display of automatic control system with 89C51 microcontroller as the core device
  10. Uses of canteen vegetable pesticide residue detector

Technical ResourceMore

  1. Relationship between application conditions and life of electrolytic capacitors
  2. Bus error and fault handling
  3. Super MCU microcontroller debugging tool HID debugging
  4. Resistance attenuation calculation Att2001.rar
  5. Robot control 58 pages 0.7M.ppt
  6. Design of digital voltmeter based on 89c51 single chip microcomputer
  7. \"Principle and Design of Switching Power Supply\" - Wang Shuiping - 2008 - Renyou Publishing House
  8. Discussion on the physical meaning and detection method of network transformer insertion loss, return loss and cross interference
  9. GD32190R-EVAL Development Board-IWDG
  10. Data on intelligent milking and integrated information management system for farms

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

About Us Customer Service Contact Information Datasheet Sitemap LatestNews
Index Files: 2379  27  1024  1093  51  48  1  21  22  2
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
