NEW!
Features/Benefits
•
Broad range of products
•
Extra long life cycles available
•
Variety of operating forces and heights
•
Thru-hole and SMT options
•
Custom design available
Typical Applications
•
Consumer electronics
•
Computer peripherals
•
Household appliances
•
Audio & visual equipment
•
Automotive
RS Series
Tact Switches
B
Tactile Switches

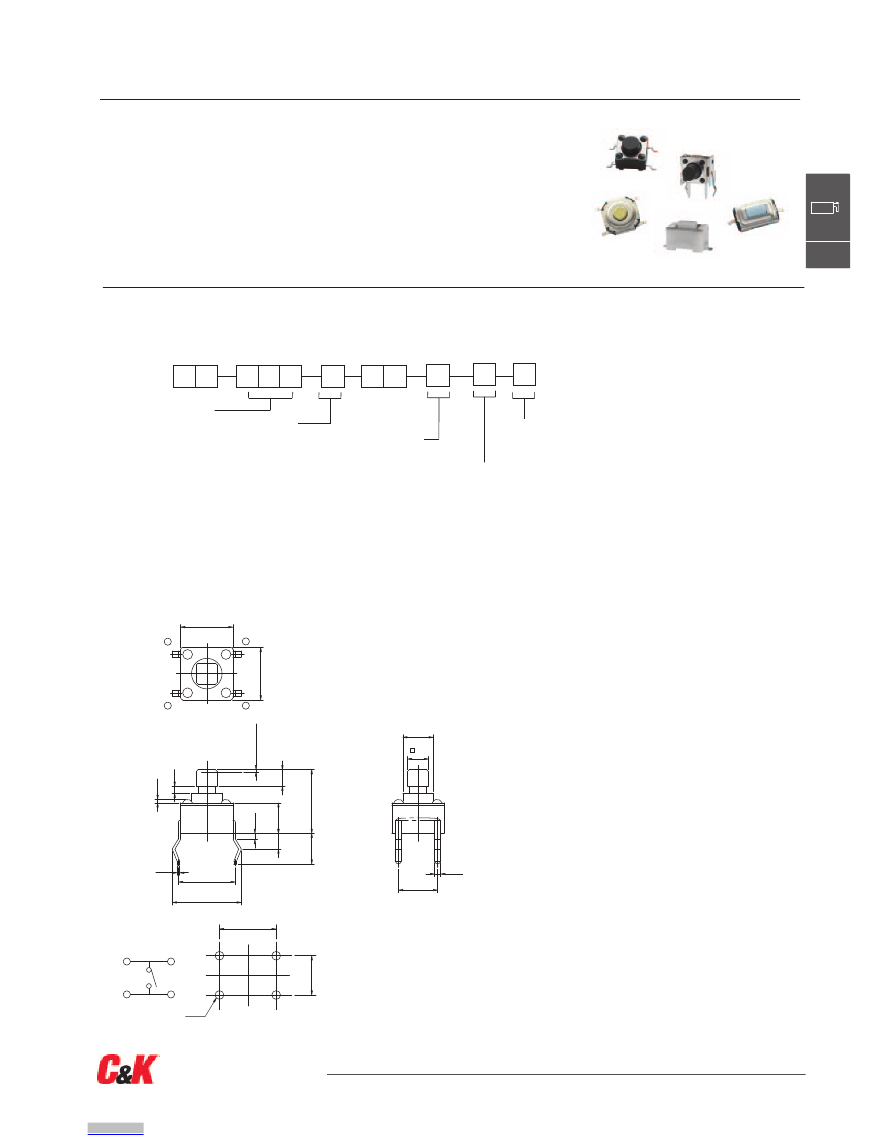

How To Order
Our easy build-a-switch concept allows you to mix and match options to create the switch you need. To order, select
desired option from each category and place it in the appropriate box.
R
S
0
5
Auxiliary Code
SMA8.8
8.8mm SMT
SMA10
10mm SMT
RT
Tape & reel packaging
Operating Force/Actuator Color/Operating Life
H
100±30 White 100,000
0
130±30 Grey
100,000
1
160±30 Black 100,000
3
250±50 Ivory
50,000
4
300±50 Black 50,000
5
500±100 Grey
50,000
Series
014
022
044
Actuator
Code
B
Square shape
R
Cylinder shape
Actuator Length
A
4.3 mm
B
5 mm
C
7 mm
D
9.5 mm
E
8 mm
F
7.3 mm
G
13.5 mm
H
12.5 mm

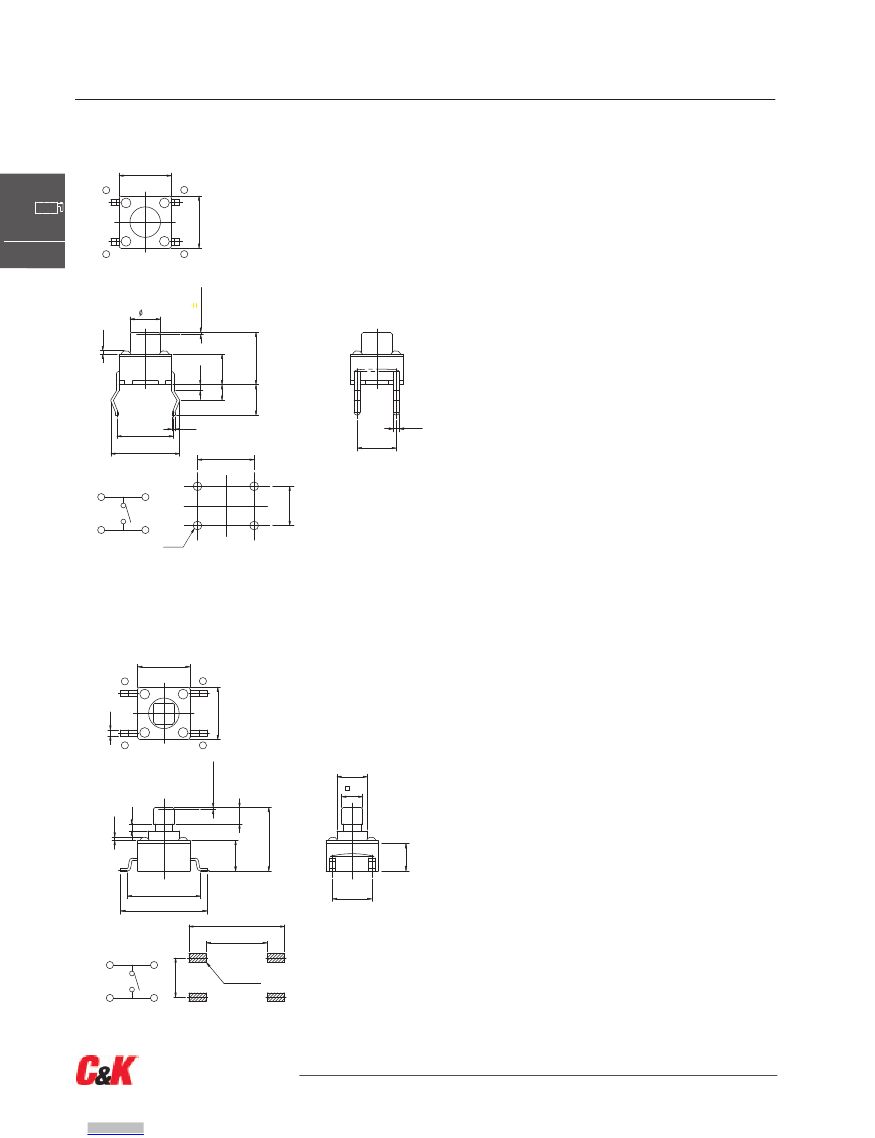

RS-014B05
a
Square Shape Actuator
6
h
Specifications
CONTACT RATING: 50mA @ 12 VDC
INITIAL CONTACT RESISTANCE: 100 m ohms max.
6
INSULATION RESISTANCE: 100 M ohms min.
b
d
0.25 ± 0.10
TRAVEL
ø 3.5
2.4
Select Actuator Length
1.9
DIELECTRIC STRENGTH: 250 V AC (50-60 Hz) between open
terminals and between the frame and terminal.
RELEASING FORCE: 20gf min. (0.196N min.)
TRAVEL: 0.25 ± 0.10 mm
OPERATING TEMPERATURE: -20˚C to 70˚C
0.4
0.8
Materials
KNOB: PA
COVER: SPCC
HOUSING: PA
0.7
4.5
0.7
1.8
0.3
3.5
3.5
6.5
7.9
6.5±0.3
SPRING PLATE: Silver clad
TERMINAL: Silver plated
1P - 1T
a
h
d
4- ø 1
PIERCING PLAN
4.5±0.1
NOTE:
Specifications and materials listed above are for switches with standard options.
For information on specific and custom switches, please contact Customer Service.
b
SCHEMATIC
Dimensions are shown: mm
Specifications and dimensions subject to change
B–97
www.ck-components.com
RS Series
Tact Switches
RS-014R05
6
a
h
Cylinder Shape Actuator
NEW!
Specifications
CONTACT RATING: 50mA @ 12 VDC
INITIAL CONTACT RESISTANCE: 100 m ohms max.
6
INSULATION RESISTANCE: 100 M ohms min.
DIELECTRIC STRENGTH: 250 V AC (50-60 Hz) between open
terminals and between the frame and terminal.
RELEASING FORCE: 20gf min. (0.196N min.)
B
Tactile Switches
b
d
0.10
TRAVEL
TRAVEL: 0.25 ± 0.10 mm
OPERATING TEMPERATURE: -20˚C to 70˚C
Select Actuator Length
0.25
3.5
0.4
Materials
KNOB: PA
COVER: SPCC
HOUSING: PA
SPRING PLATE: Silver clad
0.7
0.7
1.8
3.5
6.5
7.9
0.3
6.5±0.3
4.5
3.5
TERMINAL: Silver plated
1P - 1T
4.5±0.1
a
h
d
SCHEMATIC
4- ø1
PIERCING PLAN
NOTE:
Specifications and materials listed above are for switches with standard options.
For information on specific and custom switches, please contact Customer Service.
b
RS-014B05 SMA
Square Shape Actuator SMT
6
a
h
Specifications
CONTACT RATING: 50mA @ 12 VDC
INITIAL CONTACT RESISTANCE: 100 m ohms max.
INSULATION RESISTANCE: 100 M ohms min.
DIELECTRIC STRENGTH: 250 V AC (50-60 Hz) between open
terminals and between the frame and terminal.
ø 3.5
2.4
Select Actuator Length
1.9
6
0.7
b
d
0.25 ± 0.10
TRAVEL
RELEASING FORCE: 20gf min. (0.2N min.)
TRAVEL: 0.25 ± 0.10 mm
OPERATING TEMPERATURE: -20˚C to 70˚C
0.4
0.8
Materials
KNOB: PA
3.2
3.5
COVER: SPTE
HOUSING: PA
SPRING PLATE: Silver clad
TERMINAL: Silver plated
8.4
10
11
7
1P - 1T
a
h
4.5
LAND 4-2X1
d
SCHEMATIC
PIERCING PLAN
4.5
b
NOTE:
Specifications and materials listed above are for switches with standard options.
For information on specific and custom switches, please contact Customer Service.
Dimensions are shown: mm
Specifications and dimensions subject to change
B–98
www.ck-components.com
NEW!

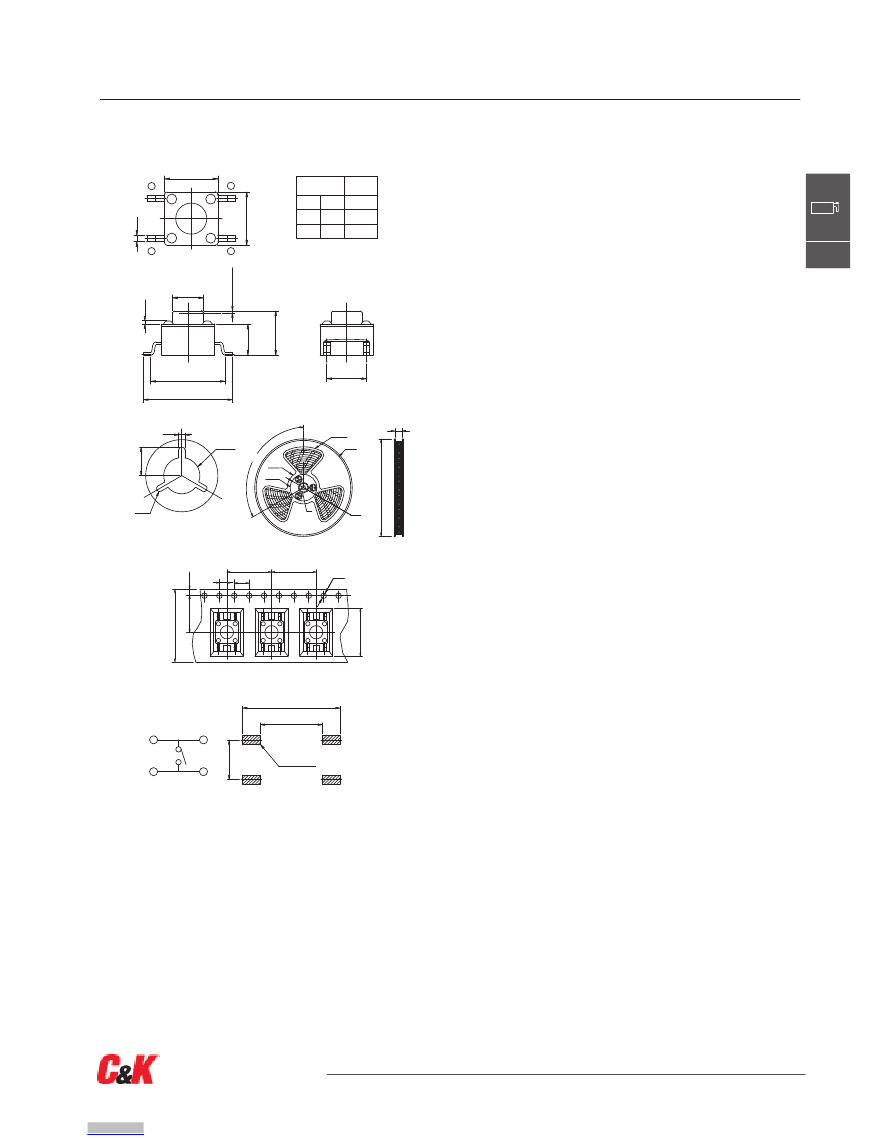

RS-014R05 SMA RT
Cylinder Shape Acuator SMT
RS Series
Tact Switches
6
a
h
L
(mm)
4.3
A
B
C
5
7
6
PACKAGE
(pcs)
1250
1000
700
Specifications
CONTACT RATING: 50mA @ 12 VDC
INITIAL CONTACT RESISTANCE: 100 m ohms max.
INSULATION RESISTANCE: 100 M ohms min.
DIELECTRIC STRENGTH: 250 V AC (50-60 Hz) between open
terminals and between the frame and terminal.
OPERATING LIFE: 100,000 cycles with load
OPERATING FORCE: 160 ± 30 gf
RELEASING FORCE: 20gf min. (0.196N min.)
0.7
b
d
0.25±0.10
TRAVEL
B
Tactile Switches
ø 3.5
0.4
L +0.15
-0.10
TRAVEL: 0.25 ± 0.10 mm
OPERATING TEMPERATURE: -20˚C to 70˚C
4.5
3.5
8.4
10
Materials
KNOB: PA
COVER: SPTE
24
2.30
ø 13.60
10.75
120˚
ø 110
ø 90
P
P DETAIL 0.3:1
ø 262
ø 320
HOUSING: PA
SPRING PLATE: Silver clad
TERMINAL: Silver plated
R1.00
ø 100
0.03:1
NOTE:
Specifications and materials listed above are for switches with standard options.
For information on specific and custom switches, please contact Customer Service.
12
1.75
2
4
12
ø 1.5
24
11.5
PACKAGE : _____ SWITCHES PER REEL
11
7
1P - 1T
a
b
h
4.5
LAND 4-2X1
d
SCHEMATIC
PIERCING PLAN
10.8
ø 330
Dimensions are shown: mm
Specifications and dimensions subject to change
B–99
www.ck-components.com
RS Series
Tact Switches

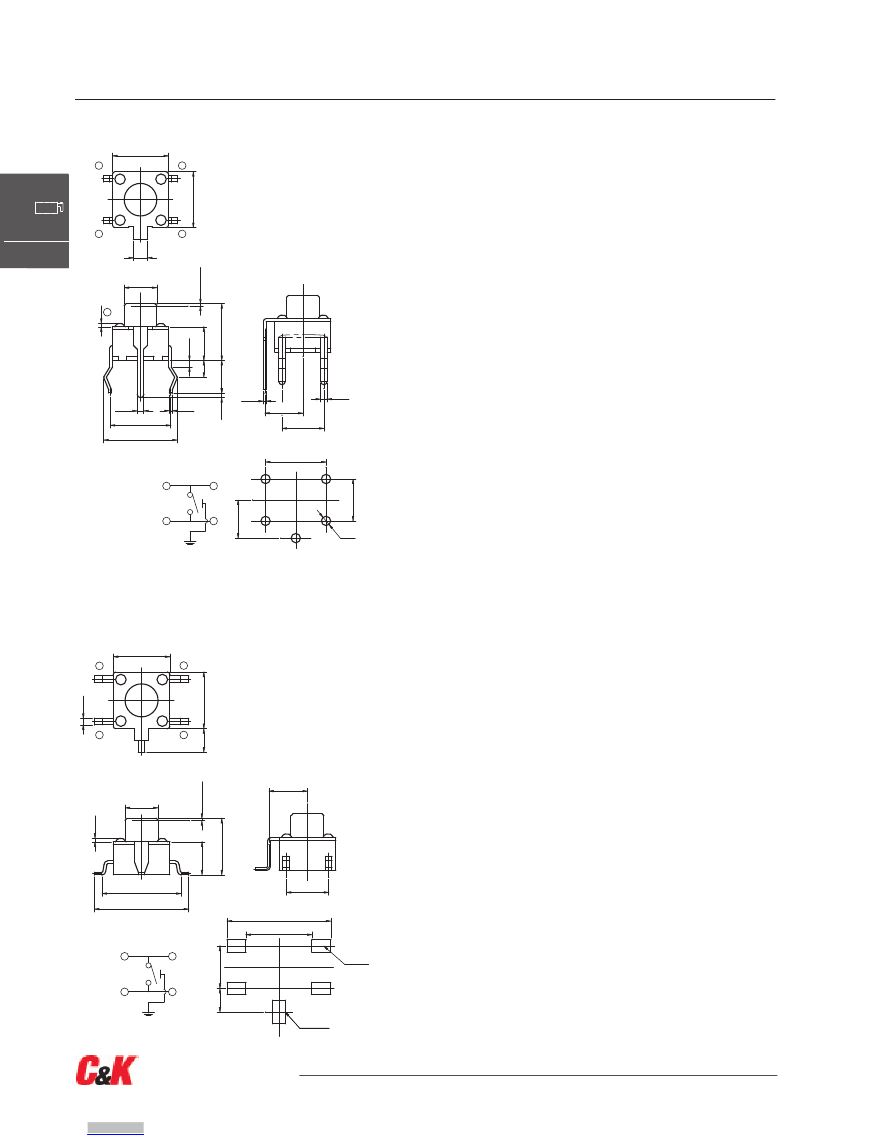

RS-044R05
6
a
h
Cylinder Shape Actuator THT
NEW!
Specifications
CONTACT RATING: 50mA @ 12 VDC
INITIAL CONTACT RESISTANCE: 100 m ohms max.
INSULATION RESISTANCE: 100 M ohms min.
DIELECTRIC STRENGTH: 250 V AC (50-60 Hz) between open
terminals and between the frame and terminal.
RELEASING FORCE: 20gf min. (0.2N min.)
b
d
1.5
ø 3.5
L
0.7
3.6
0.25±0.1
TRAVEL
B
Tactile Switches
0.4
6
TRAVEL: 0.25 ± 0.10 mm
OPERATING TEMPERATURE: -20˚C to 70˚C
Select Actuator Length
Materials
KNOB: PBT
COVER: SPTE
HOUSING: PBT
0.3
0.7
4.1
4.5
1.8
3.5
SPRING PLATE: Silver clad
TERMINAL: Silver plated
0.7
6.5
7.9
0.3
0.5
6.5±0.3
1P - 1T
a
4.5±0.1
h
NOTE:
Specifications and materials listed above are for switches with standard options.
For information on specific and custom switches, please contact Customer Service.
b
d
4.1
5- ø 1
SCHEMATIC
PIERCING PLAN
RS-044R05 SMA
6
a
h
Cylinder Shape Actuator SMT
Specifications
CONTACT RATING: 50mA @ 12 VDC
INITIAL CONTACT RESISTANCE: 100 m ohms max.
INSULATION RESISTANCE: 100 M ohms min.
DIELECTRIC STRENGTH: 250 V AC (50-60 Hz) between open
terminals and between the frame and terminal.
2.5
6
0.7
b
d
RELEASING FORCE: 20gf min. (0.2N min.)
TRAVEL: 0.25 ± 0.10 mm
4.1
ø 3.5
0.4
0.25±0.1
TRAVEL
OPERATING TEMPERATURE: -20˚C to 70˚C
Select Actuator Length
Materials
KNOB: PA
COVER: SPTE
HOUSING: PA
4.5
11
7
3.5
8.4
10
SPRING PLATE: Silver clad
TERMINAL: Silver plated
1P - 1T
a
h
4.5
2-1.3x2
LAND
NOTE:
Specifications and materials listed above are for switches with standard options.
For information on specific and custom switches, please contact Customer Service.
2.5
b
d
SCHEMATIC
2-2.5x1.3
LAND
PIERCING PLAN
Dimensions are shown: mm
Specifications and dimensions subject to change
B–100
www.ck-components.com
NEW!
RS-022R05
Specifications
6.5
a
0.25±0.1
RS Series
Tact Switches
CONTACT RATING: 50mA @ 12 VDC
TRAVEL
INITIAL CONTACT RESISTANCE: 100 m ohms max.
INSULATION RESISTANCE: 100 M ohms min.
DIELECTRIC STRENGTH: 250 V AC (50-60 Hz) between open
terminals and between the frame and terminal.
RELEASING FORCE: 20gf min. (0.196N min.)
ø1
a
0.4
7.5 a
a
0.3 Max.
B
Tactile Switches
TRAVEL: 0.25 ± 0.10 mm
OPERATING TEMPERATURE: -20˚C to 80˚C
7.1
6.2
ø 3.5
Materials
1.8
a
2.8
4
KNOB: PA
COVER: SPTE
HOUSING: PA
SPRING PLATE: Silver clad
TERMINAL: Silver plated
3.5
0.5
0.7
0.2
4.5
7
8.5 a
0.4 a
0.3
2.5
2.5
1
Select Actuator Length
7
2- ø 1.3
1P - 1T
2.5
NOTE:
Specifications and materials listed above are for switches with standard options.
For information on specific and custom switches, please contact Customer Service.
2- ø 0.9
SCHEMATIC
4.5
PIERCING PLAN
Dimensions are shown: mm
Specifications and dimensions subject to change
B–101
www.ck-components.com
