ADTSMW64TVB Overview

Special Switch, SPST, Vertical, 0.05A, 12VDC, 0 PCB Hole Cnt, Solder Terminal, Surface Mount-straight

ADTSMW64TVB Parametric

Parameter Name	Attribute value
Maker	APEM
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator angle
Actuator length	0.065 inch
Actuator type	PUSHBUTTON
body width	6.1976 mm
Body color	BLACK
body height	2.8448 mm
Body length or diameter	6.2992 mm
center contact material	PHOSPHOR BRONZE
Center contact plating	SILVER
Maximum contact current (DC)	0.05 A
Contact (DC) maximum rated R load	0.05A@12VDC
Contact resistance	0.1 mΩ
Maximum contact voltage (DC)	12 V
Dielectric withstand voltage	250VAC V
Electrical life	500000 Cycle(s)
End contact material	PHOSPHOR BRONZE
End contact plating	SILVER
Shell material	STAINLESS STEEL
Insulation resistance	100000000 Ω
Manufacturer's serial number	ADTS
Installation features	SURFACE MOUNT-STRAIGHT
Maximum operating temperature	70 °C
Minimum operating temperature	-25 °C
PCB hole count
surface mount	NO
Switch action	VERTICAL
switch function	SPST
Terminal material	BRASS
Termination type	SOLDER

Preview

Download Datasheet

View All

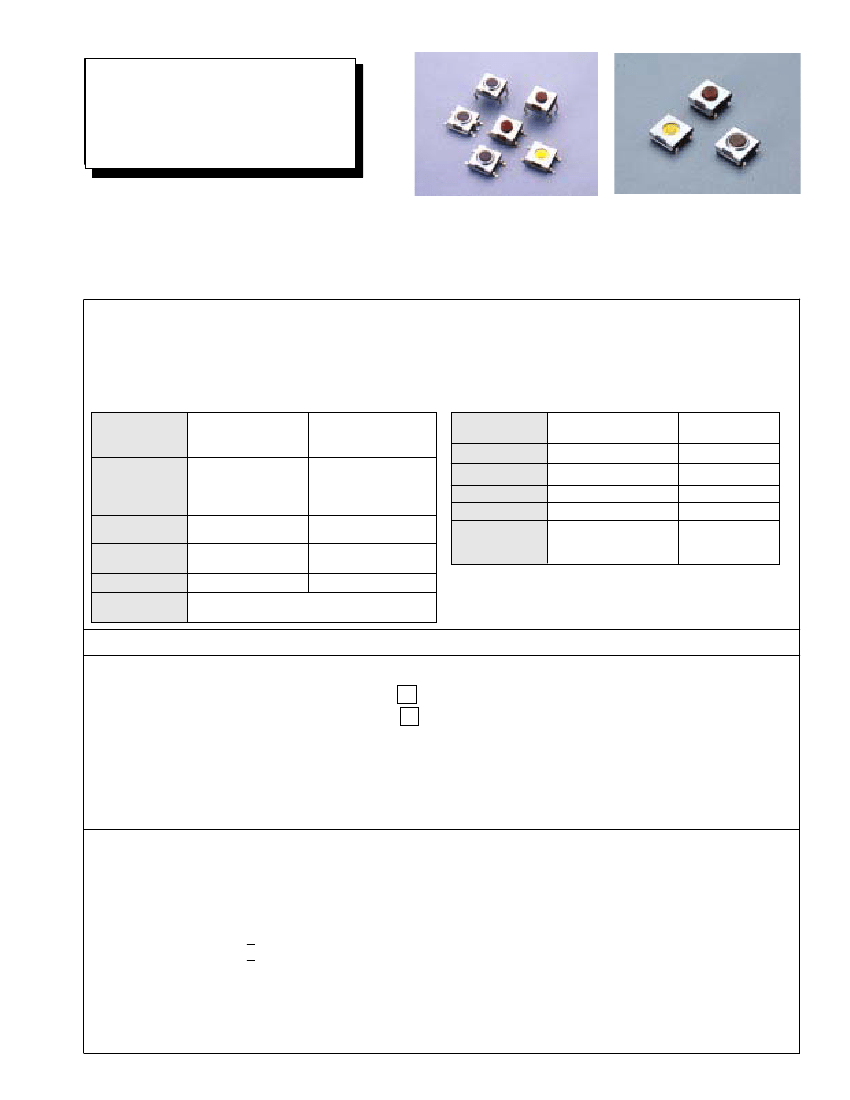

WASHABLE TACT SWITCH

FEATURES

SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE.

Sharp click feel with a positive tactile feedback.

Ultraminiature structure suitable for high density mounting. Economic but high reliability.

Insert molded contacts with special treatment prevents flux build-up during soldering and permits auto-dipping.

Allows submersed washing after soldering.

MATERIALS

COVER:

Stainless Steel.

TERMINALS: Brass with silver plating.

BASE:

UL94V-0 Nylon, High Temperature Thermoplastic.

Color:Black

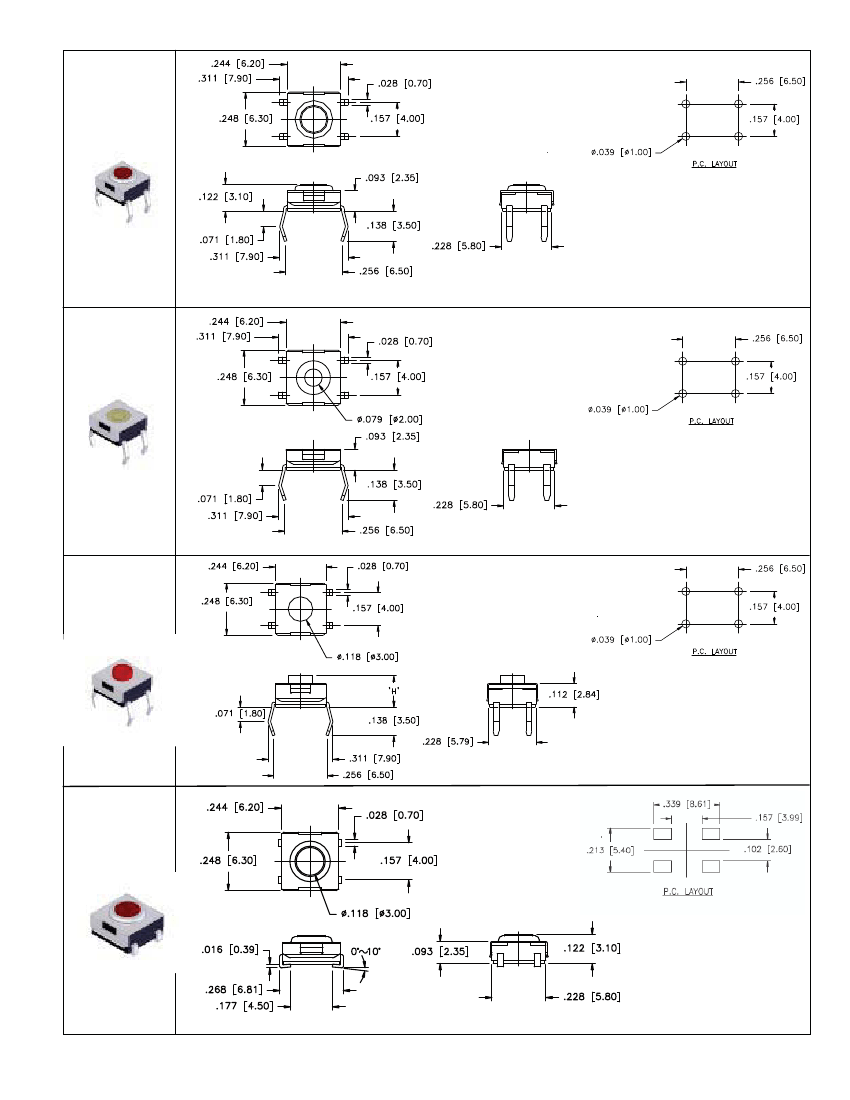

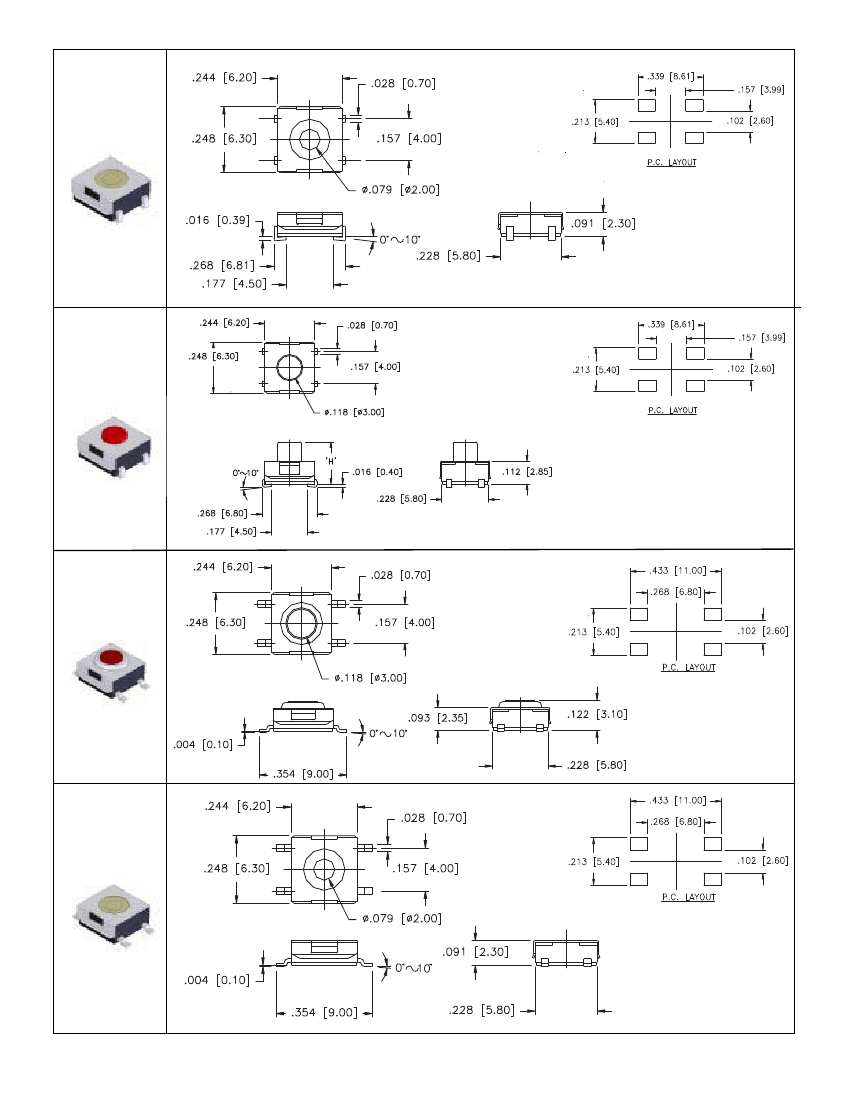

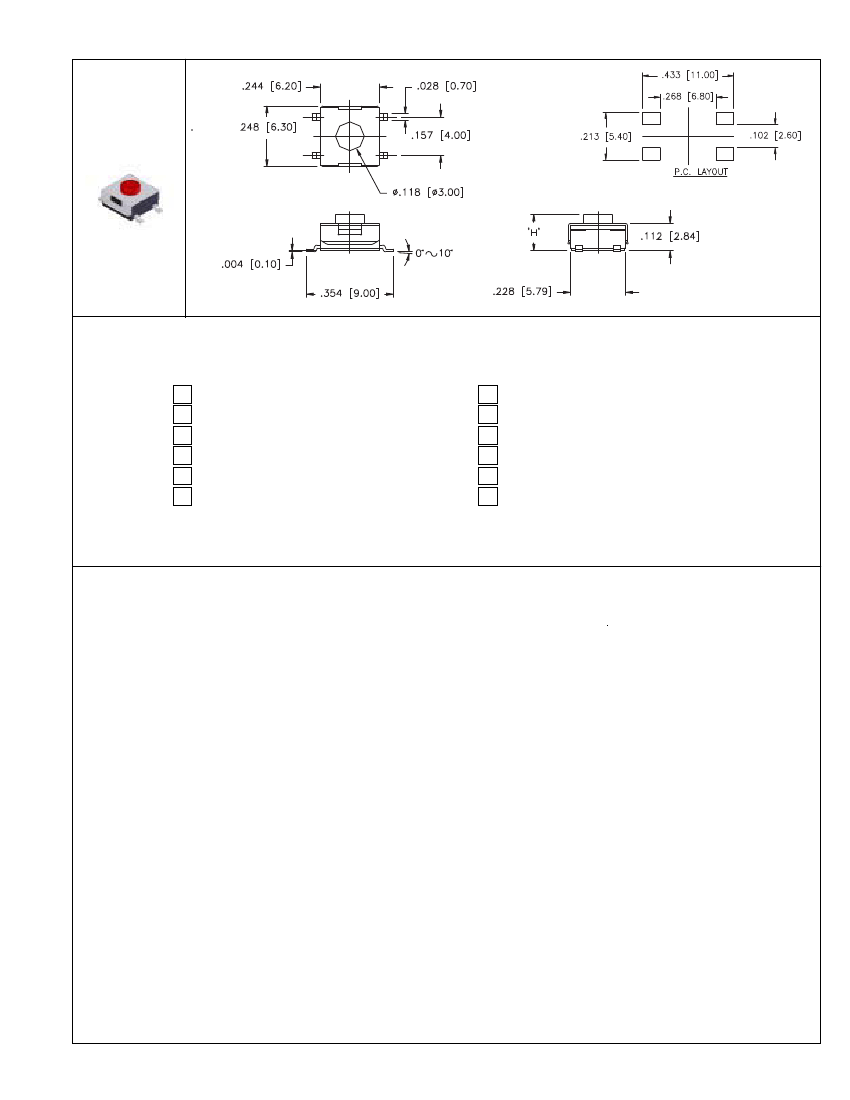

ADTSHW66N

ADTSMW66N

ADTSJW66N

ADTSHW68S

ADTSMW68S

ADTSJW68S

ITEM NO.

STEM

ADTS(H)MW69,65N (R)T ADTS(H)MW67N(R)T

ADTSJW69,65N (R)T

ADTSJW67N(R)T

Silicone Rubber

None

Nylon

ITEM NO.

STEM

High-Temp.

None

Thermoplastic

Nylon UL 94V-0

Color: Brown(N), 160gf

TEFLON (Standard)

ADHESIVE TAPE TEFLON

KAPTON (V-option)

Brass with

METAL STEM

Nickel plating

FILLER

CONTACT

None

Phosphor bronze with silver cladding (Standard)

Stainless steel (V-option)

ADHESIVE TAPE None

METAL STEM

FILLER

CONTACT

None

Phosphor bronze with

silver cladding(Standard) Stainless Steel

Stainless steel(V-option)

GENERAL SPECIFICATIONS

ELECTRICAL

Electrical life:

500,000 cycles for ADTS

100,000 cycles for ADTS

W 69, 67N(R)T, 65N(R)T, 64N(R)

W 66N,68S

Rating:

Contact resistance:

Insulation resistance:

Dielectric Strength:

Contact Arrangement:

MECHANICAL

Stop Strength:

Stroke:

50 mA,12 VDC.

100 m

illiohms

max.

100 megohms min. 500 VDC.

250 VAC /1 minute.

1 pole 1 throw.

3kgf max, continuous vertical static load.

+ 0.2 mm

66N, 68S

0.25 - 0.1 mm

0.6 + 0.2 mm, 69, 67T

0.45 + 0.2 mm, 69, 67, 65N(R), 65T, 64, J=64N(R)

-25ºC to +70ºC

Operation Temperature Range:

Storage Temperature: -30ºC to +80ºC

Shock Resistance: 50G per method 213B, MIL - STD - 202F

Vibration Resistance: Passes method 201A, MIL - STD - 202F

APEM

, 63 NECK ROAD, HAVERHILL, MA USA 01835-0788 TOLL FREE: (877) 246-7890 FAX: (978) 372-3534 E-mail: info@apem.com
