SP7800AKN datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> converter> SP7800AKN

SP7800AKN: Description12-Bit 3ms Sampling A/D Converter; CategoryAnalog mixed-signal IC converter; File Size132KB，13 Pages; ManufacturerSIPEX; Websitehttp://www.sipex.com/

Download Datasheet Parametric Compare View All

SP7800AKN Overview

12-Bit 3ms Sampling A/D Converter

SP7800AKN Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	SIPEX
package instruction	0.300 INCH, PLASTIC, DIP-24
Reach Compliance Code	unknow
Maximum analog input voltage	10 V
Minimum analog input voltage	-10 V
Maximum conversion time	2.7 µs
Converter type	ADC, SUCCESSIVE APPROXIMATION
JESD-30 code	R-PDIP-T24
length	30.92 mm
Maximum linear error (EL)	0.0122%
Number of analog input channels	2
Number of digits	12
Number of functions	1
Number of terminals	24
Maximum operating temperature	70 °C
Minimum operating temperature
Output bit code	BINARY, OFFSET BINARY
Output format	PARALLEL, WORD
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP24,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Certification status	Not Qualified
Sampling rate	0.3 MHz
Sample and hold/Track and hold	SAMPLE
Maximum seat height	5.334 mm
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm

Preview

Download Datasheet

View All

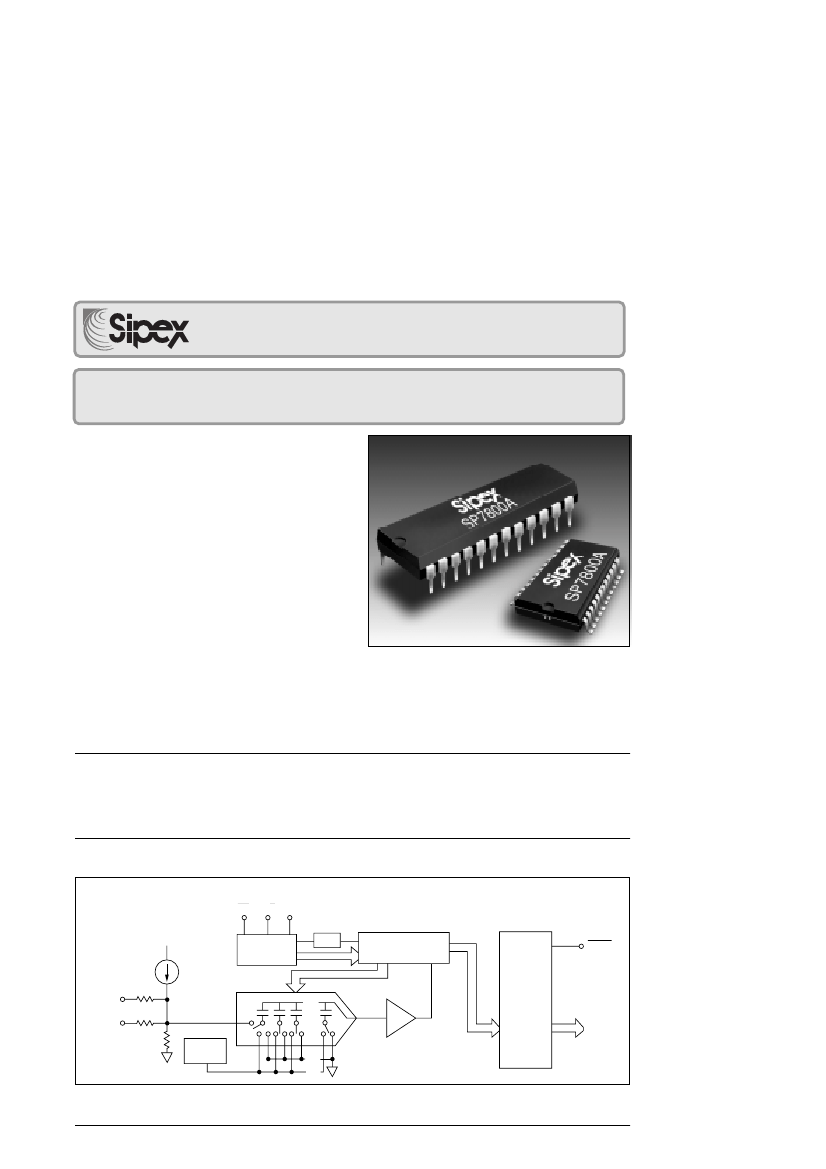

SP7800A

12-Bit 3µs Sampling A/D Converter

333k Samples Per Second

Standard

±10V

and

±5V

Input

No Missing Codes Over Temperature

AC Performance Over Temperature

71.5dB Signal–to–Noise Ratio at Nyquist

85dB Spurious–free Dynamic Range at

49KHz

–81dB Total Harmonic Distortion at

49KHz

Internal Sample/Hold, Reference,

Clock, and 3-State Outputs

Power Dissipation: 90mW

24–Pin Narrow DIP and 24–Lead SOIC

Enhanced Single (+5V) Supply Version of

ADS7800

DESCRIPTION…

The

SP7800A

is a complete 12-bit sampling A/D converter using state–of–the–art CMOS structures.

It contains a complete 12–bit successive approximation A/D converter with internal sample/hold,

reference, clock, digital interface for microprocessor control, and three–state output drivers. AC and

DC performance are completely specified. Two grades based on linearity and dynamic performance

are available to provide the optimum price/performance fit in a wide range of applications.

R/C HBE

Control

Logic

IBIP

±10V

±5V

Internal

Ref

Clock

SAR

Output

Latches

And

Three

State

Drivers

Comparator

BUSY

CDAC

.....

Three

State

Parallel

Output

Data

Bus

SP7800ADS/02

SP7800A 12-Bit 3µs Sampling A/D Converter

SP7800AKN Related Products

	SP7800AKN	SP7800	SP7800AJN	SP7800AKS	SP7800AJS	SP7800A
Description	12-Bit 3ms Sampling A/D Converter	12-Bit 3ms Sampling A/D Converter	12-Bit 3ms Sampling A/D Converter	12-Bit 3ms Sampling A/D Converter	12-Bit 3ms Sampling A/D Converter	12-Bit 3ms Sampling A/D Converter
Is it Rohs certified?	incompatible	-	incompatible	incompatible	incompatible	-
package instruction	0.300 INCH, PLASTIC, DIP-24	-	0.300 INCH, PLASTIC, DIP-24	0.300 INCH, PLASTIC, SOIC-24	0.300 INCH, PLASTIC, SOIC-24	-
Reach Compliance Code	unknow	-	unknow	unknow	unknow	-
Maximum analog input voltage	10 V	-	10 V	10 V	10 V	-
Minimum analog input voltage	-10 V	-	-10 V	-10 V	-10 V	-
Maximum conversion time	2.7 µs	-	2.7 µs	2.7 µs	2.7 µs	-
Converter type	ADC, SUCCESSIVE APPROXIMATION	-	ADC, SUCCESSIVE APPROXIMATION	ADC, SUCCESSIVE APPROXIMATION	ADC, SUCCESSIVE APPROXIMATION	-
JESD-30 code	R-PDIP-T24	-	R-PDIP-T24	R-PDSO-G24	R-PDSO-G24	-
length	30.92 mm	-	30.92 mm	15.4 mm	15.4 mm	-
Maximum linear error (EL)	0.0122%	-	0.0244%	0.0122%	0.0244%	-
Number of analog input channels	2	-	2	2	2	-
Number of digits	12	-	12	12	12	-
Number of functions	1	-	1	1	1	-
Number of terminals	24	-	24	24	24	-
Maximum operating temperature	70 °C	-	70 °C	70 °C	70 °C	-
Output bit code	BINARY, OFFSET BINARY	-	BINARY, OFFSET BINARY	BINARY, OFFSET BINARY	BINARY, OFFSET BINARY	-
Output format	PARALLEL, WORD	-	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	-
Package body material	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	-
encapsulated code	DIP	-	DIP	SOP	SOP	-
Encapsulate equivalent code	DIP24,.3	-	DIP24,.3	SOP24,.4	SOP24,.4	-
Package shape	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	-
Package form	IN-LINE	-	IN-LINE	SMALL OUTLINE	SMALL OUTLINE	-
power supply	5 V	-	5 V	5 V	5 V	-
Certification status	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified	-
Sampling rate	0.3 MHz	-	0.3 MHz	0.3 MHz	0.3 MHz	-
Sample and hold/Track and hold	SAMPLE	-	SAMPLE	SAMPLE	SAMPLE	-
Maximum seat height	5.334 mm	-	5.334 mm	2.65 mm	2.65 mm	-
Nominal supply voltage	5 V	-	5 V	5 V	5 V	-
surface mount	NO	-	NO	YES	YES	-
technology	CMOS	-	CMOS	CMOS	CMOS	-
Temperature level	COMMERCIAL	-	COMMERCIAL	COMMERCIAL	COMMERCIAL	-
Terminal form	THROUGH-HOLE	-	THROUGH-HOLE	GULL WING	GULL WING	-
Terminal pitch	2.54 mm	-	2.54 mm	1.27 mm	1.27 mm	-
Terminal location	DUAL	-	DUAL	DUAL	DUAL	-
width	7.62 mm	-	7.62 mm	7.5 mm	7.5 mm	-
