1280-09P-018 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 1280-09P-018

1280-09P-018: DescriptionD Type Connector, 9 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, #4-40, Plug; CategoryThe connector The connector; File Size323KB，1 Pages; ManufacturerTekcon Electronics Corp

Download Datasheet Parametric View All

1280-09P-018 Overview

D Type Connector, 9 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, #4-40, Plug

1280-09P-018 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Tekcon Electronics Corp
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.494 inch
subject depth	0.492 inch
body length	1.214 inch
Body/casing type	PLUG
Contact to complete cooperation	AU
Contact completed and terminated	Tin/Lead (Sn/Pb)
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	STAGGERED
Contact resistance	20 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1400VAC V
Insulation resistance	5000000000 Ω
insulator material	GLASS FILLED THERMOPLASTIC
JESD-609 code	e0
Manufacturer's serial number	1280
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation option 1	#4-40
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Plating thickness	FLASH inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Terminal length	0.125 inch
Terminal pitch	2.7686 mm
Termination type	SOLDER
Total number of contacts	9

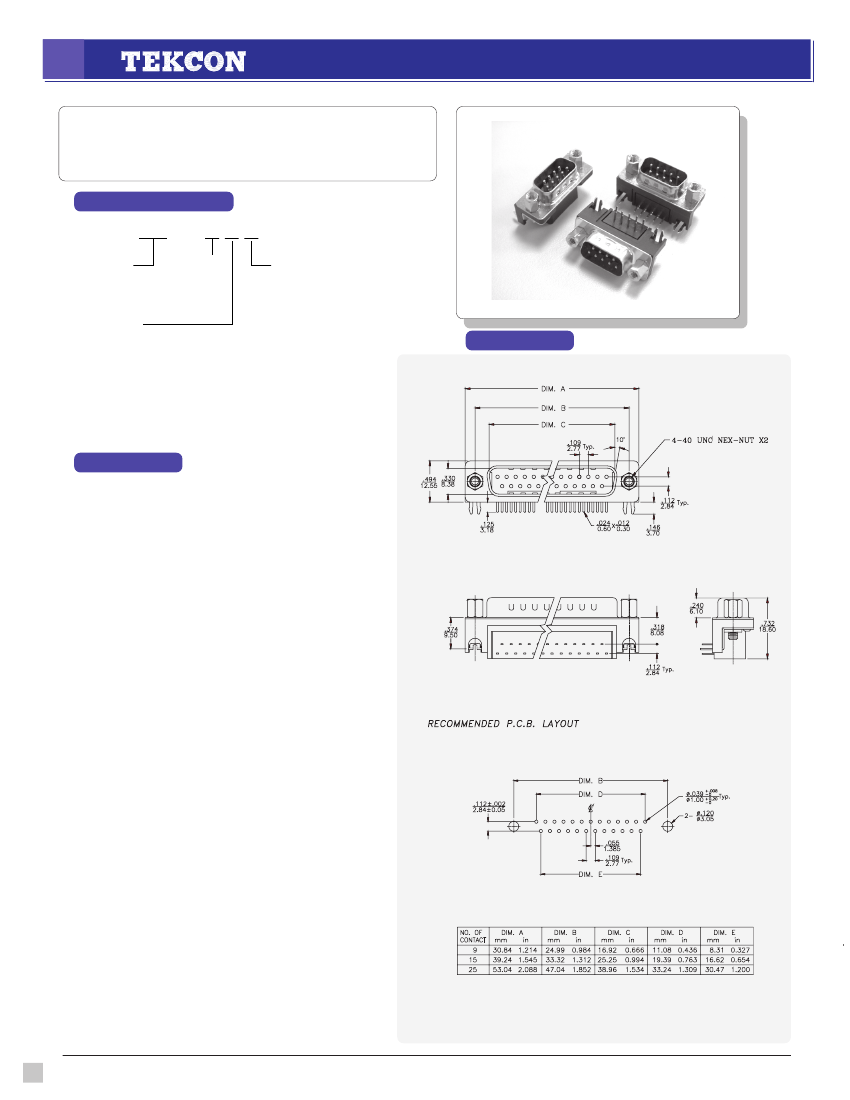

1280-09P-018 Preview

http://www.tekcon.com

http://www.tekcon.com.tw

1280 Series

D-Sub Miniature Connector, Economy Type

0.318 Footprint, Right Angle, Plug

Ordering Information

1280

XX P

X X X

NO. of Contact

09 - 9 positions

25 - 25 positions

Contact Plating

0 - Gold Flash/Tin

1 - 10

µ"

Gold/Tin

3 - 30

µ"

Gold/Tin

5 - 15

µ"

Gold/Tin

Grounding Clip &

Shell Plating

4 - Type 4/ Nickel Plated

6 - Type 6/ Nickel Plated

8 - Type 4/ Tin Plated

9 - Type 2/ Tin Plated

see Grounding Clip Table

(P.14-1, Appendix A)

Hex-Nut

Type 0,1,6

see Hex-Nut Table

(P.14-4, Appendix D.)

Dimension

Specification

Materials:

Insulator:

Glass Fiber Reinforced Thermoplastic, UL94V-0.

Shell:

Steel with Nickel Plating (Tin on Request).

Contact:

Copper Alloy.

Plating:

Gold on Contact Area and

Tin/ Lead on Solder Tail.

Grounding Clip:

Copper Alloy with Tin/Lead Plating.

Hex-Nut:

Brass with Tin Plating.

Electrical:

Insulation Resistance:

5000 MΩ Minimum.

Dielectric Withstanding Voltage:

1000 VAC R.M.S.

Voltage Rating:

600V.

Current Rating:

3 AMP.

Contact Resistance:

20 mΩ Maximum.

Enviromental

Temperature: -558C to +1258C

All Dimensions are shown in in/mm.

The above ordering data is for our standard

products.

For Non-Standard products, please contact

TEKCON Electronics Corporation.

TEKCON Electronics Corporation

4-15

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
