7/16 DIN Male to 7/16 DIN Male Low PIM Cable 36 Inch
Length Using 1/2 inch Flexible Coax, RoHS
TECHNICAL DATA SHEET
1/2” Flexible Coax Low PIM Assembly
High Performance Factory Assembled Corrugated Coaxial Cable Jumpers
•
Soldering Technology and connector design provides a very durable assembly with superior PIM and VSWR
performance.
•
Carefully selected assemblies provide the highest quality available on the market today.
•
100% electrical tested for PIM and VSWR ensuring optimum installed performance.
• Available in 1/2” Flexible and 1/2” Superflexible cables in any length, offering the best cable solution for the required
performance and application.
•
Injection molded boot for added strain relief and weather sealing ensuring long term durability.
• PE39802 1/2” Flexible cable assemblies are available in standard lengths of 36, 48, 72, 96, 120, 144, 168, 192, and
240 inches. Custom lengths available on request.
PE39802-36
Configuration
Connector 1
Connector 2
Cable Type
7/16 DIN Male
7/16 DIN Male
1/2” Flexible
Electrical Specifications
Frequency Range, GHz
Impedance, Ohms
Maximum VSWR
Velocity of Propagation, %
RF Shielding, dB
Peak Power, KWatts
Passive Intermodulation, dBc
Typical Performance by Frequency
Frequency 1
Frequency, MHz
VSWR
Insertion Loss
Frequency 2
Frequency, GHz
VSWR
Insertion Loss
Frequency 3
Frequency, GHz
VSWR
Insertion Loss
DC to 2.7
50
1.11:1
88
120
40
-160
900
1.07:1
0.02 dB/ft + 0.1 dB [ 0.07 dB/m + 0.1 dB ]
1.8
1.09:1
0.03 dB/ft + 0.1 [ 0.1 dB/m + 0.1 dB ]
2.2
1.09:1
0.034 dB/ft + 0.1 dB [ 0.11 dB/m + 0.1 dB ]
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
7/16 DIN Male to 7/16 DIN Male Low PIM Cable 36 Inch Length Using 1/2 inch Flexible Coax,
RoHS PE39802-36
PE39802-36 REV A
1
7/16 DIN Male to 7/16 DIN Male Low PIM Cable 36 Inch
Length Using 1/2 inch Flexible Coax, RoHS
TECHNICAL DATA SHEET
Frequency 4
Frequency, GHz
VSWR
Insertion Loss
PE39802-36
2.7
1.11:1
0.04 dB/ft + 0.1 dB [ 0.13 dB/m + 0.1 dB ]
Mechanical Specifications
Cable Assembly
Cable Type
Temperature
Temperature Operating Range, deg C
Size
Length, in [mm]
Diameter, in [mm]
.
1/2” Flexible
-40 to +80
36 [914.4]
0.629 [15.98]
0.155 [70.31]
Black
2.75 [69.85]
4.72 [119.89]
Weight, lbs [g]
Cable Color
One Time Minimum Bend Radius, in [mm]
Repeated Minimum Bend Radius, in [mm]
Cable
Center Conductor Type
Cable Inner Conductor
No of Shields
Dielectric Type
Jacket Material
Jacket Diameter, in [mm]
Solid
Copper Clad Aluminum
1
PE (F)
PE
0.629 [15.98]
7/16 DIN Male
Straight
Brass, Silver
Brass, Silver
Brass, Tri-Metal
32
18.417 [24.97]
Brass, Silver
PTFE
7/16 DIN Male
Straight
Brass, Silver
Brass, Silver
Connector 1
Type
Configuration
Inner Conductor Material and Plating
Outer Conductor Material and Plating
Coupling Nut Material and Plating
Hex Size, mm
Torque, ft-lbs [Nm]
Body Material and Plating
Dielectric Type
Connector 2
Type
Configuration
Inner Conductor Material and Plating
Outer Conductor Material and Plating
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
7/16 DIN Male to 7/16 DIN Male Low PIM Cable 36 Inch Length Using 1/2 inch Flexible Coax,
RoHS PE39802-36
PE39802-36 REV A
2
7/16 DIN Male to 7/16 DIN Male Low PIM Cable 36 Inch
Length Using 1/2 inch Flexible Coax, RoHS
TECHNICAL DATA SHEET
Coupling Nut Material and Plating
Hex Size, mm
Torque, ft-lbs [Nm]
Body Material and Plating
Dielectric Type
Brass, Tri-Metal
32
18.417 [24.97]
Brass, Silver
PTFE
PE39802-36
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Plotted and Other Data
Notes:
Values at 25 °C, sea level
7/16 DIN Male to 7/16 DIN Male Low PIM Cable 36 Inch Length Using 1/2 inch Flexible Coax, RoHS from Pasternack
Enterprises has same day shipment for domestic and International orders. Our RF, microwave and fiber optic products
maintain a 99% availability and are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
7/16 DIN Male to 7/16 DIN Male Low PIM Cable 36 Inch Length Using 1/2 inch Flexible Coax,
RoHS PE39802-36
URL: http://www.pasternack.com/7-16-male-7-16-male-1-2-flexible-cable-pe39802-36-p.aspx
PE39802-36 REV A
3
7/16 DIN Male to 7/16 DIN Male Low PIM Cable 36 Inch
Length Using 1/2 inch Flexible Coax, RoHS
PE39802-36

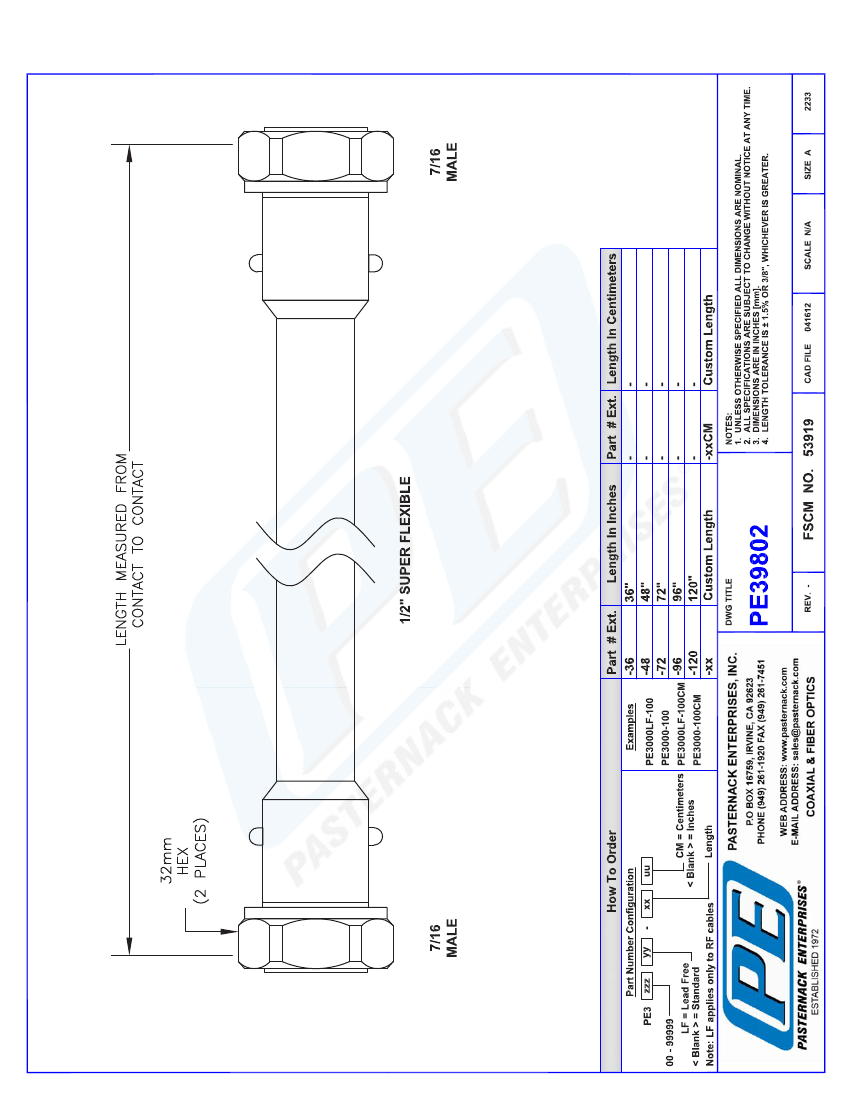

CAD Drawing
© 2013 Pasternack Enterprises All Rights Reserved
PE39802-36 REV A
4
