SMB Plug Connector Crimp/Solder
Attachment For RG178, RG196
TECHNICAL DATA SHEET
SMB Plug Connector Crimp/Solder Attachment For RG178, RG196
Configuration
Connector
Connector Specification
Connector Interface Type
Cable Attachment Method (Shield/Contact)
Body Style
SMB Plug
MIL-STD-348A
RG178,RG196
Crimp/Solder
Straight
PE4080
Electrical Specifications
Frequency Range, GHz
Impedance, Ohms
Maximum Operating Voltage, Volts
Dielectric Withstanding Voltage, Vrms
Frequency 1
Frequency, GHz
VSWR
DC to 4
50
250
750
DC to 3
1.3:1
Mechanical Specifications
Temperature
Operating Range, deg C
Size
Length, in [mm]
Width/Dia., in [mm]
.
-65 to +165
0.86 [21.84]
0.25 [6]
0.006 [2.72]
SMB Plug
Beryllium Copper, Gold
30µ in. minimum
Brass, Nickel
100µ in. minimum
Teflon
Weight, lbs [g]
Connector
Type
Contact Material and Plating
Contact Plating Specification
Body Material and Plating
Body Plating Specification
Dielectric Type
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes

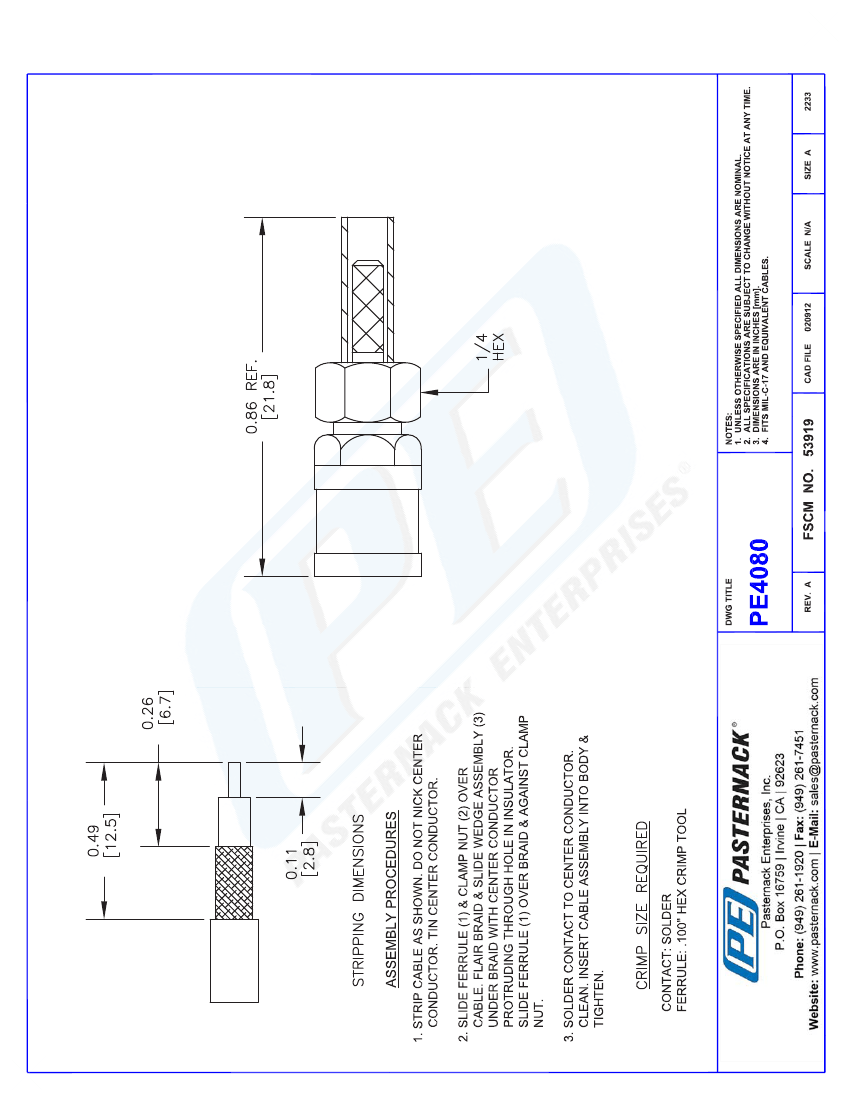

Plotted and Other Data
Notes:
Values at 25 °C, sea level
URL:
http://www.pasternack.com/smb-plug-standard-rg178-rg196-connector-pe4080-p.aspx
SMB Plug Connector Crimp/Solder Attachment For RG178, RG196 from Pasternack Enterprises has same day shipment for
domestic and International orders. We maintain 99% availability of the industry’s broadest selection of RF, microwave and
fiber optic products.
PE4080 REV
1
