SMB Jack Bulkhead Connector Crimp/Solder
Attachment For RG174, RG316, RG188
TECHNICAL DATA SHEET
SMB Jack Bulkhead Connector Crimp/Solder Attachment For RG174, RG316, RG188
Configuration
Connector
Connector Specification
Connector Interface Type
Cable Attachment Method (Shield/Contact)
Body Style
Mount Method
SMB Jack
MIL-STD-348A
RG174,RG316,RG188
Crimp/Solder
Straight
Bulkhead
PE4097
Electrical Specifications
Frequency Range, GHz
Impedance, Ohms
Maximum Operating Voltage, Volts
Dielectric Withstanding Voltage, Vrms
DC to 4
50
335
1,000
Mechanical Specifications
Temperature
Operating Range, deg C
Size
Length, in [mm]
Width/Dia., in [mm]
Weight, lbs [g]
Connector
Type
Contact Material and Plating
Contact Plating Specification
Body Material and Plating
Body Plating Specification
Dielectric Type
-65 to +165
0.867 [22.02]
0.25 [6]
0.005 [2.27]
SMB Jack
Brass, Gold
30µ in. minimum
Brass, Nickel
100µ in. minimum
Teflon
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Plotted and Other Data
Notes:
Values at 25 °C, sea level
URL:
http://www.pasternack.com/smb-jack-standard-rg174-rg316-rg188-connector-pe4097-p.aspx
SMB Jack Bulkhead Connector Crimp/Solder Attachment For RG174, RG316, RG188 from Pasternack Enterprises has same
day shipment for domestic and International orders. We maintain 99% availability of the industry’s broadest selection of RF,
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:

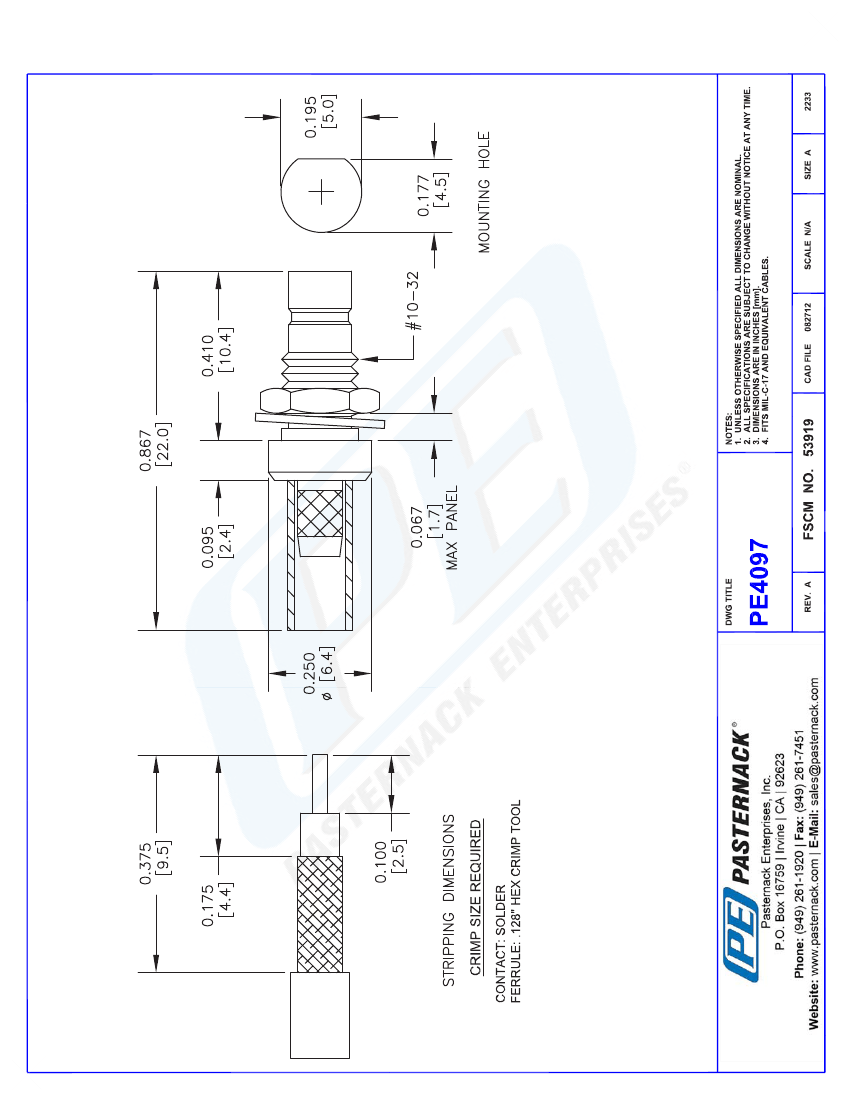

SMB Jack Bulkhead Connector Crimp/Solder Attachment For RG174, RG316, RG188 PE4097
PE4097 REV
1
