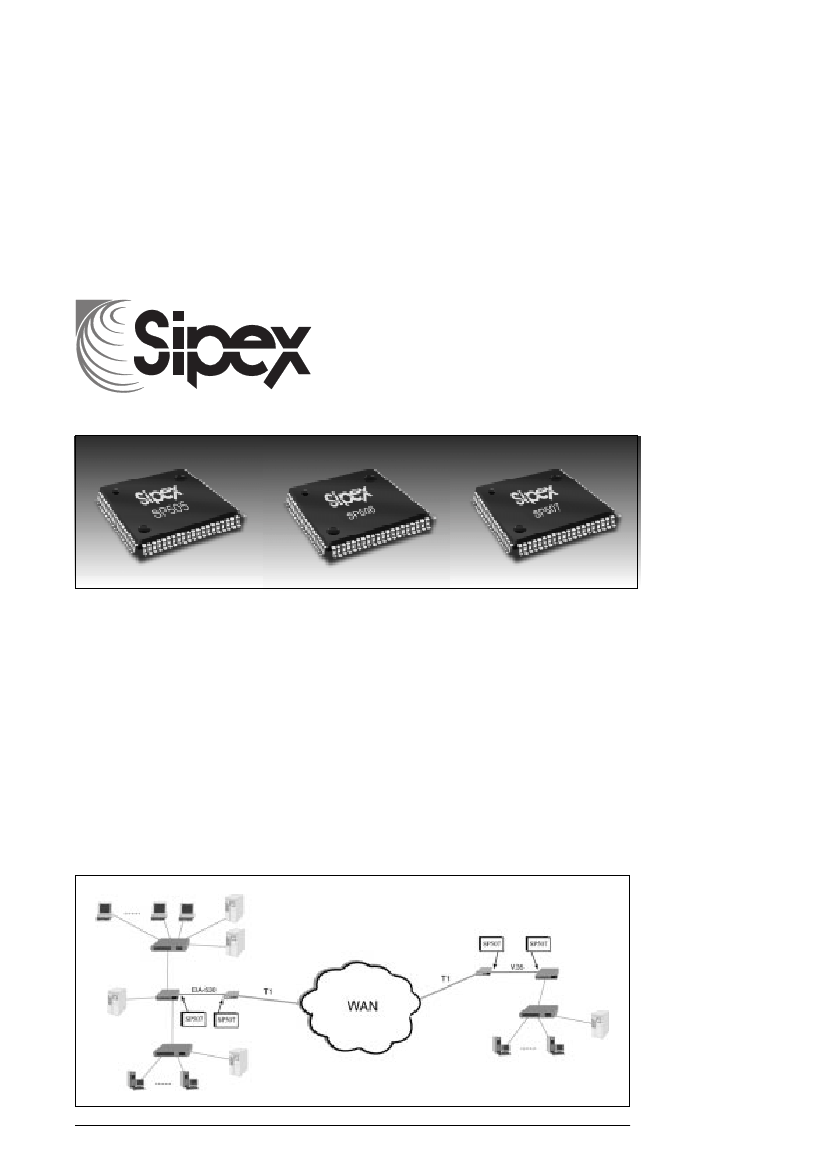

Designing with the

SP505, SP506, & SP507

Multi-Protocol

Serial Transceivers

The

SP50x

family of multi-protocol transceivers are

designed for applications using serial ports in

networking equipment such as routers, DSU/CSUs,

multiplexors, access devices, and other networking

equipment. This application note discusses and

illustrates various configuration options, and other

helpful hints about designing with the

SP505

and the

newer

SP506

and

SP507

products.

These one-chip serial port transceiver products

supports seven popular serial interface standards for

Wide Area Network (WAN) connectivity. With a

built-in DC-DC charge pump converter, the

SP505,

SP506

and

SP507

operate on +5V only. The seven

drivers and seven receivers can be configured via

software for RS-232, X.21, EIA-530, EIA-530A,

RS-449, V.35, and V.36 interface modes at any time.

Unlike other discrete solutions or other multi-chip

transceivers, the

SP505, SP506

and

SP507

require

no additional external circuitry for compliant

operation other than the charge pump capacitors.

All necessary resistor termination networks are

integrated within the

SP505, SP506

and

SP507,

and

are switchable when in EIA-530, EIA-530A, RS-449,

V.35, V.36, and X.21 modes.

The

SP505, SP506

and

SP507

provide individual

driver disable for easy DTE/DCE configurations.

The

SP507

offers four receiver enable lines for even

easier DTE/DCE programmability. The newer

SP506

is pin compatible with the

SP505

except with

improved AC performance. Refer to the

SP505, SP506

and

SP507

datasheets for electrical parameter and

configuration details.
