SP487EEP

Description
Enhanced Quad RS-485/RS-422 Line Drivers
CategoryAnalog mixed-signal IC    Drivers and interfaces
File Size115KB，11 Pages
ManufacturerSIPEX
Websitehttp://www.sipex.com/
Download Datasheet Parametric Compare View All

SP487EEP Overview

Enhanced Quad RS-485/RS-422 Line Drivers

SP487EEP Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerSIPEX
package instructionDIP, DIP16,.3
Reach Compliance Codeunknow
Differential outputYES
Number of drives4
High level input current maximum value0.000002 A
Input propertiesSTANDARD
Interface integrated circuit typeLINE DRIVER
Interface standardsEIA-422; EIA-485
JESD-30 codeR-PDIP-T16
JESD-609 codee0
length20.066 mm
Number of functions4
Number of terminals16
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Minimum output swing1.5 V
Output characteristics3-STATE
Package body materialPLASTIC/EPOXY
encapsulated codeDIP
Encapsulate equivalent codeDIP16,.3
Package shapeRECTANGULAR
Package formIN-LINE
Peak Reflow Temperature (Celsius)NOT APPLICABLE
power supply5 V
Certification statusNot Qualified
Maximum receive delay
Maximum seat height5.334 mm
Maximum supply voltage5.25 V
Minimum supply voltage4.75 V
Nominal supply voltage5 V
surface mountNO
technologyCMOS
Temperature levelINDUSTRIAL
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formTHROUGH-HOLE
Terminal pitch2.54 mm
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT APPLICABLE
maximum transmission delay60 ns
width7.62 mm

Preview

Download Datasheet
®

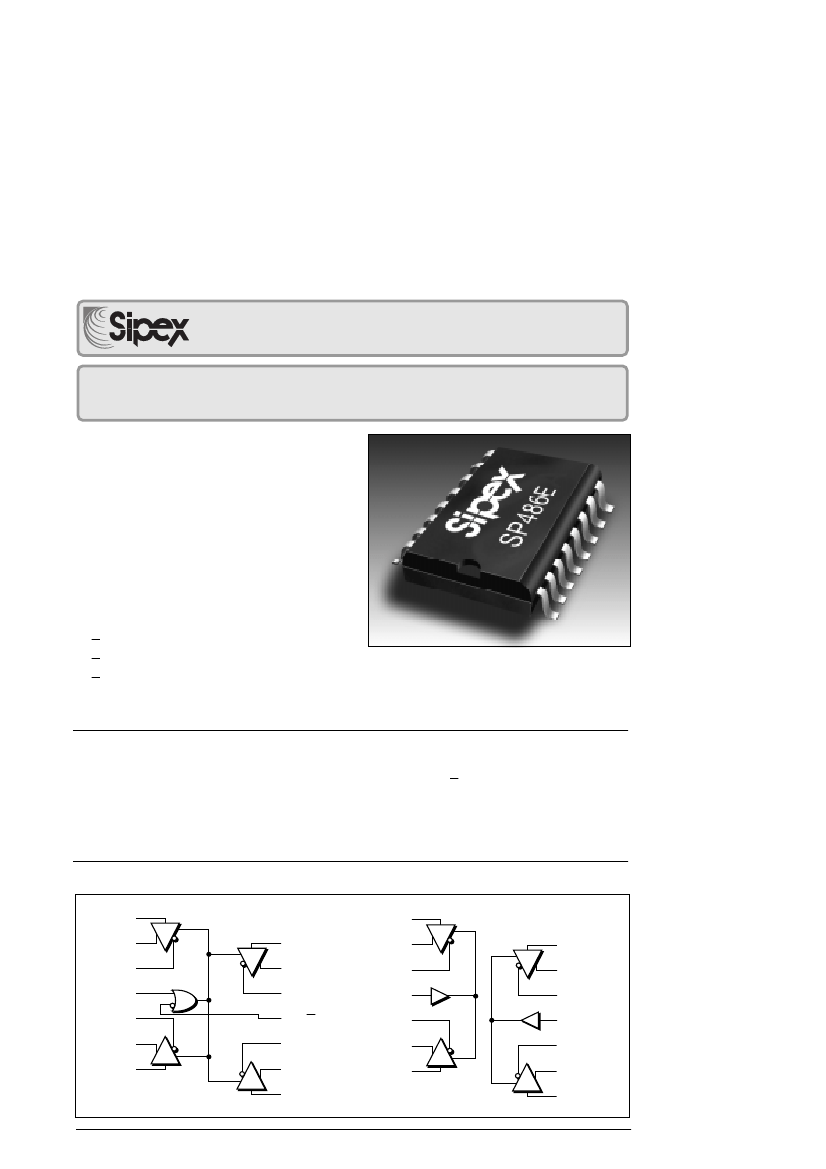

SP486E and SP487E
Enhanced Quad RS-485/RS-422 Line Drivers
s
s
s
s
s
s
s
s
RS-485 or RS-422 Applications
Quad Differential Line Drivers
Driver Output Disable
–7V to +12V Common Mode Output
Range
100µA Supply Current
Single +5V Supply Operation
Superior Drop-in Replacement for
SN75172, SN75174, LTC486, and
LTC487
Improved ESD Specifications:
+15kV Human Body Model
+15kV IEC1000-4-2 Air Discharge
+8kV IEC1000-4-2 Contact Discharge
DESCRIPTION…
The
SP486E
and
SP487E
are low-power quad differential line drivers that meet the
specifications of RS-485 and RS-422 serial protocols with enhanced ESD performance. The
ESD tolerance has been improved on these devices to over +15kV for both Human Body
Model and IEC1000-4-2 Air Discharge Method. These devices are superior drop-in replace-
ments to
Sipex's SP486
and
SP487
devices as well as popular industry standards. As with
the original versions, the
SP486E
features a common driver enable control and the
SP487E
provides independent driver enable controls for each pair of drivers. Both feature wide
common-mode input ranges. Both are available in 16-pin plastic DIP and SOIC packages.
DI
1
DO
1
A
DO
1
B
EN
DO
2
B
DO
2
A
DI
2
GND
1
SP486E
1
16
15
V
CC
DI
4
DO
4
A
DO
4
B
EN
DO
3
B
DO
3
A
DI
3
DI
1
DO
1
A
DO
1
B
EN
1
/EN
2
DO
2
B
DO
2
A
DI
2
GND
1
SP487E
1
16
15
V
CC
DI
4
DO
4
A
DO
4
B
EN
3
/EN
4
DO
3
B
DO
3
A
DI
3
2
2
4
3
4
5
6
14
13
12
11
3
4
5
6
4
14
13
12
11
2
7
10
2
7
10
3
8
9
3
8
9
SP486E/487EDS/06
SP486E/487E Enhanced Quad RS-485/RS-422 Line Drivers
© Copyright 2000 Sipex Corporation
1

SP487EEP Related Products

SP487EEP 0782131022_17 SP487ECT SP487ECP SP487E SP486EET SP486EEP SP486ECT SP486ECP SP486E
Description Enhanced Quad RS-485/RS-422 Line Drivers Impact 4 Pair Right Angle Power Header, Press-Fit, Blade A1 & A2, B1 B2 Length Enhanced Quad RS-485/RS-422 Line Drivers Enhanced Quad RS-485/RS-422 Line Drivers Enhanced Quad RS-485/RS-422 Line Drivers Enhanced Quad RS-485/RS-422 Line Drivers Enhanced Quad RS-485/RS-422 Line Drivers Enhanced Quad RS-485/RS-422 Line Drivers Enhanced Quad RS-485/RS-422 Line Drivers Enhanced Quad RS-485/RS-422 Line Drivers
Is it Rohs certified? incompatible - incompatible incompatible - incompatible incompatible incompatible incompatible -
Maker SIPEX - SIPEX SIPEX - SIPEX SIPEX SIPEX SIPEX -
package instruction DIP, DIP16,.3 - SOP, SOP16,.4 DIP, DIP16,.3 - SOP, SOP16,.4 DIP, DIP16,.3 SOP, SOP16,.4 DIP, DIP16,.3 -
Reach Compliance Code unknow - unknow unknow - unknow unknow unknow unknow -
Differential output YES - YES YES - YES YES YES YES -
Number of drives 4 - 4 4 - 4 4 4 4 -
High level input current maximum value 0.000002 A - 0.000002 A 0.000002 A - 0.000002 A 0.000002 A 0.000002 A 0.000002 A -
Input properties STANDARD - STANDARD STANDARD - STANDARD STANDARD STANDARD STANDARD -
Interface integrated circuit type LINE DRIVER - LINE DRIVER LINE DRIVER - LINE DRIVER LINE DRIVER LINE DRIVER LINE DRIVER -
Interface standards EIA-422; EIA-485 - EIA-422; EIA-485 EIA-422; EIA-485 - EIA-422; EIA-485 EIA-422; EIA-485 EIA-422; EIA-485 EIA-422; EIA-485 -
JESD-30 code R-PDIP-T16 - R-PDSO-G16 R-PDIP-T16 - R-PDSO-G16 R-PDIP-T16 R-PDSO-G16 R-PDIP-T16 -
JESD-609 code e0 - e0 e0 - e0 e0 e0 e0 -
length 20.066 mm - 10.295 mm 20.066 mm - 10.295 mm 20.066 mm 10.295 mm 20.066 mm -
Number of functions 4 - 4 4 - 4 4 4 4 -
Number of terminals 16 - 16 16 - 16 16 16 16 -
Maximum operating temperature 85 °C - 70 °C 70 °C - 85 °C 85 °C 70 °C 70 °C -
Minimum output swing 1.5 V - 1.5 V 1.5 V - 1.5 V 1.5 V 1.5 V 1.5 V -
Output characteristics 3-STATE - 3-STATE 3-STATE - 3-STATE 3-STATE 3-STATE 3-STATE -
Package body material PLASTIC/EPOXY - PLASTIC/EPOXY PLASTIC/EPOXY - PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY -
encapsulated code DIP - SOP DIP - SOP DIP SOP DIP -
Encapsulate equivalent code DIP16,.3 - SOP16,.4 DIP16,.3 - SOP16,.4 DIP16,.3 SOP16,.4 DIP16,.3 -
Package shape RECTANGULAR - RECTANGULAR RECTANGULAR - RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR -
Package form IN-LINE - SMALL OUTLINE IN-LINE - SMALL OUTLINE IN-LINE SMALL OUTLINE IN-LINE -
Peak Reflow Temperature (Celsius) NOT APPLICABLE - 225 NOT APPLICABLE - 225 NOT APPLICABLE 225 NOT APPLICABLE -
power supply 5 V - 5 V 5 V - 5 V 5 V 5 V 5 V -
Certification status Not Qualified - Not Qualified Not Qualified - Not Qualified Not Qualified Not Qualified Not Qualified -
Maximum seat height 5.334 mm - 2.649 mm 5.334 mm - 2.649 mm 5.334 mm 2.649 mm 5.334 mm -
Maximum supply voltage 5.25 V - 5.25 V 5.25 V - 5.25 V 5.25 V 5.25 V 5.25 V -
Minimum supply voltage 4.75 V - 4.75 V 4.75 V - 4.75 V 4.75 V 4.75 V 4.75 V -
Nominal supply voltage 5 V - 5 V 5 V - 5 V 5 V 5 V 5 V -
surface mount NO - YES NO - YES NO YES NO -
technology CMOS - CMOS CMOS - CMOS CMOS CMOS CMOS -
Temperature level INDUSTRIAL - COMMERCIAL COMMERCIAL - INDUSTRIAL INDUSTRIAL COMMERCIAL COMMERCIAL -
Terminal surface Tin/Lead (Sn/Pb) - Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) - Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) -
Terminal form THROUGH-HOLE - GULL WING THROUGH-HOLE - GULL WING THROUGH-HOLE GULL WING THROUGH-HOLE -
Terminal pitch 2.54 mm - 1.27 mm 2.54 mm - 1.27 mm 2.54 mm 1.27 mm 2.54 mm -
Terminal location DUAL - DUAL DUAL - DUAL DUAL DUAL DUAL -
Maximum time at peak reflow temperature NOT APPLICABLE - 30 NOT APPLICABLE - 30 NOT APPLICABLE 30 NOT APPLICABLE -
maximum transmission delay 60 ns - 60 ns 60 ns - 60 ns 60 ns 60 ns 60 ns -
width 7.62 mm - 7.5 mm 7.62 mm - 7.5 mm 7.62 mm 7.5 mm 7.62 mm -
