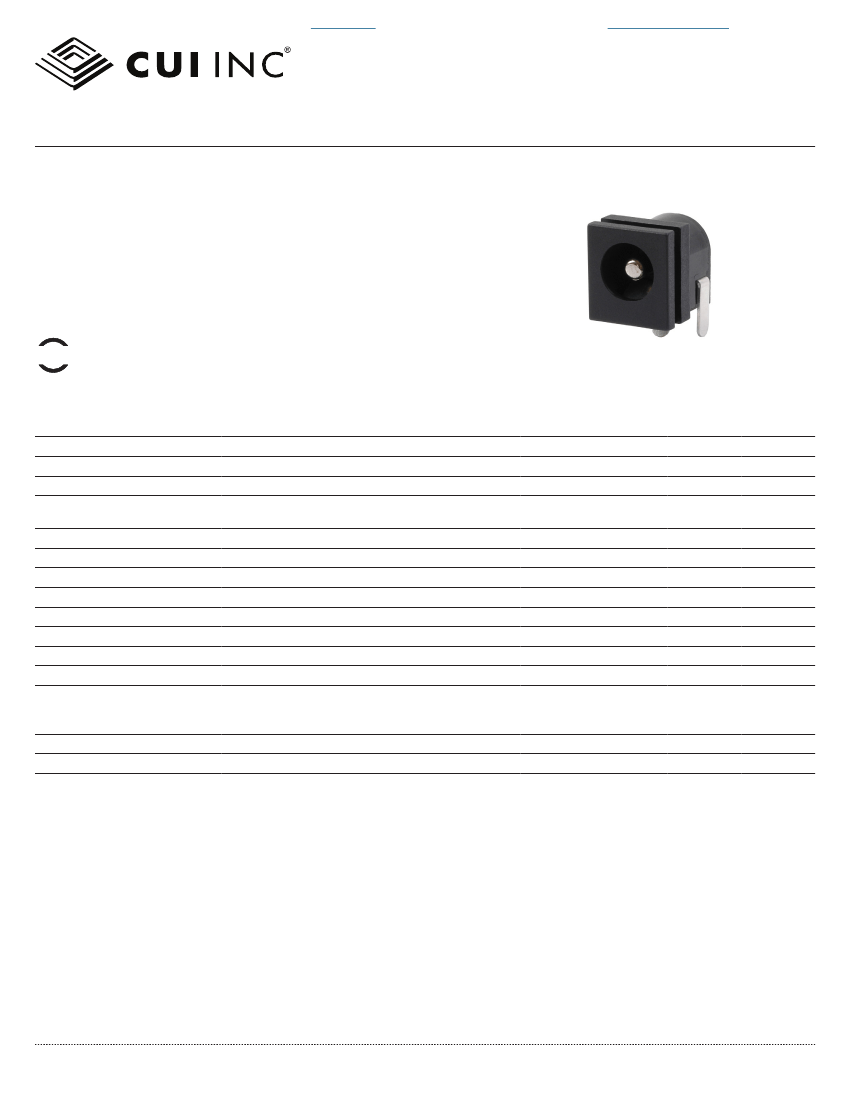

1. When measured at a current of less than 100 mA/1 kHz
SOLDERABILITY
parameter
wave soldering
conditions/description
dipped in solder pot for 5 ±0.5 seconds
min
255
typ
260
max
265
units
°C
cui.com
For more information, please visit the
product page
|
For information on related products, view
External Power Supplies
CUI Inc
│
MODEL:
PJ-048H
│
DESCRIPTION:
DC POWER JACK
date
03/25/2016│
page
2 of 3

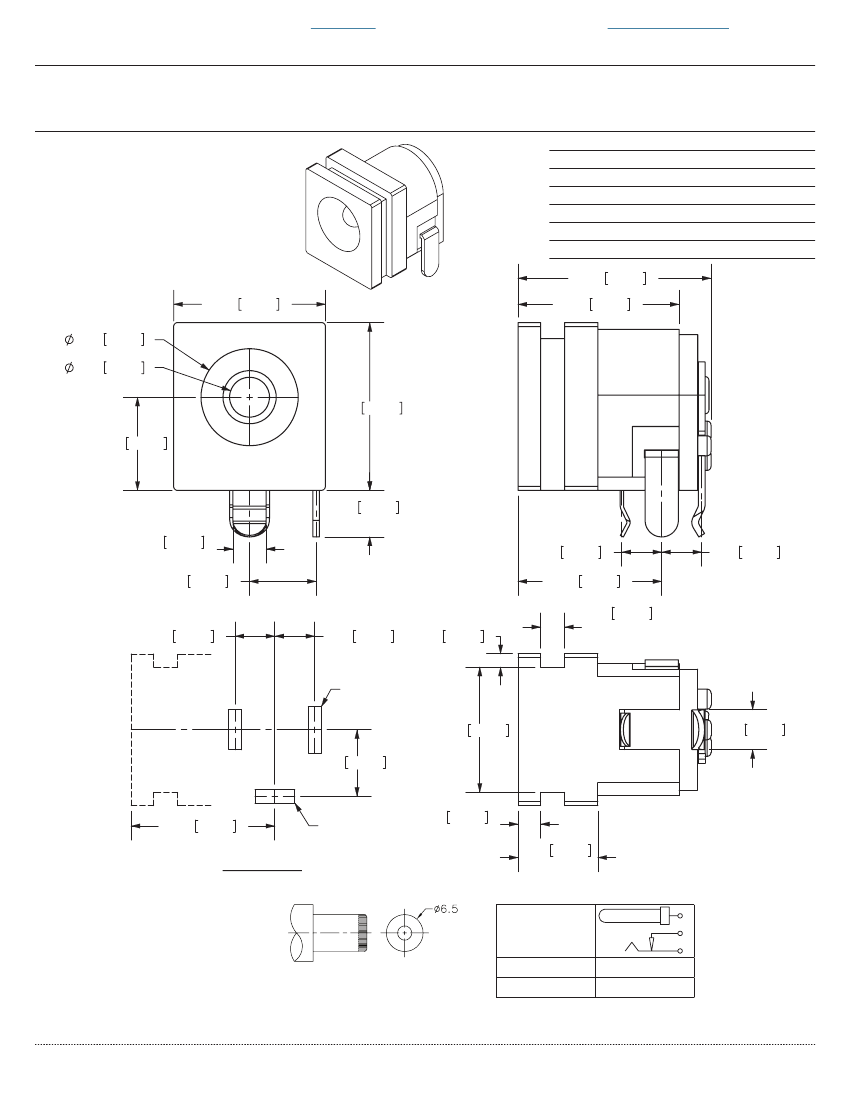

MECHANICAL DRAWING
units: mm[inches]
tolerance:
X.X ±0.2mm
X.XX ±0.1mm
X.XXX ±0.05mm
MATERIAL
center pin
terminal 1
terminal 2
terminal 3
plastic
copper
brass
copper alloy
brass
PBT
PLATING
nickel plated
silver plated
silver plated
silver plated
14.5 0.571
11.4 0.449
7.30 0.287
3.00 0.118
12.6 0.496
7.0 0.276
12.1 0.476
3.5 0.138
(3 PLCS)
2.50 0.098
(2 PLCS)
5.0 0.197
3.0 0.118
2
3
1
3.0 0.118
10.8 0.425
1.8 0.071
+0.10
-0.00
3.0 0.118
3.0 0.118
1.00 0.039
1.00X3.50
2
1
5.0 0.197
3
10.8 0.425
PCB LAYOUT
TOP VIEW
1.00X3.00
(2 PLCS)
1.70 0.067
(2 PLCS)
6.00 0.236
(2 PLCS)
9.4 0.370
3.00 0.118
SCHEMATIC
MATING PLUG
Jack Insertion Depth: 9.1 mm
Model
Center Pin
PJ-048H
Ø3.0 mm
1
3
2
Note:
1. All specifications measured at 10~35°C, humidity at 45~85%, under standard atmospheric pressure, unless otherwise noted.
cui.com
For more information, please visit the
product page
|
For information on related products, view
External Power Supplies
CUI Inc
│
MODEL:
PJ-048H
│
DESCRIPTION:
DC POWER JACK
date
03/25/2016│
page
3 of 3
REVISION HISTORY
rev.
1.0
1.01
1.02
description
initial release
applied new spec template
increased voltage rating
date
07/30/2007
09/12/2013
03/25/2016
The revision history provided is for informational purposes only and is believed to be accurate.
