PL56-28-130B datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> PL56-28-130B

PL56-28-130B: DescriptionPOWER TRANSFORMER; CategoryPower/power management; File Size580KB，2 Pages; ManufacturerETC2

Download Datasheet Parametric View All

PL56-28-130B Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PL56-28-130B	-	-	View	Buy Now

PL56-28-130B Overview

POWER TRANSFORMER

PL56-28-130B Parametric

Parameter Name	Attribute value
state	CONSULT MFR
Manufacturer Series	PL10
Transformer type	STANDARD

Preview

Download Datasheet

View All

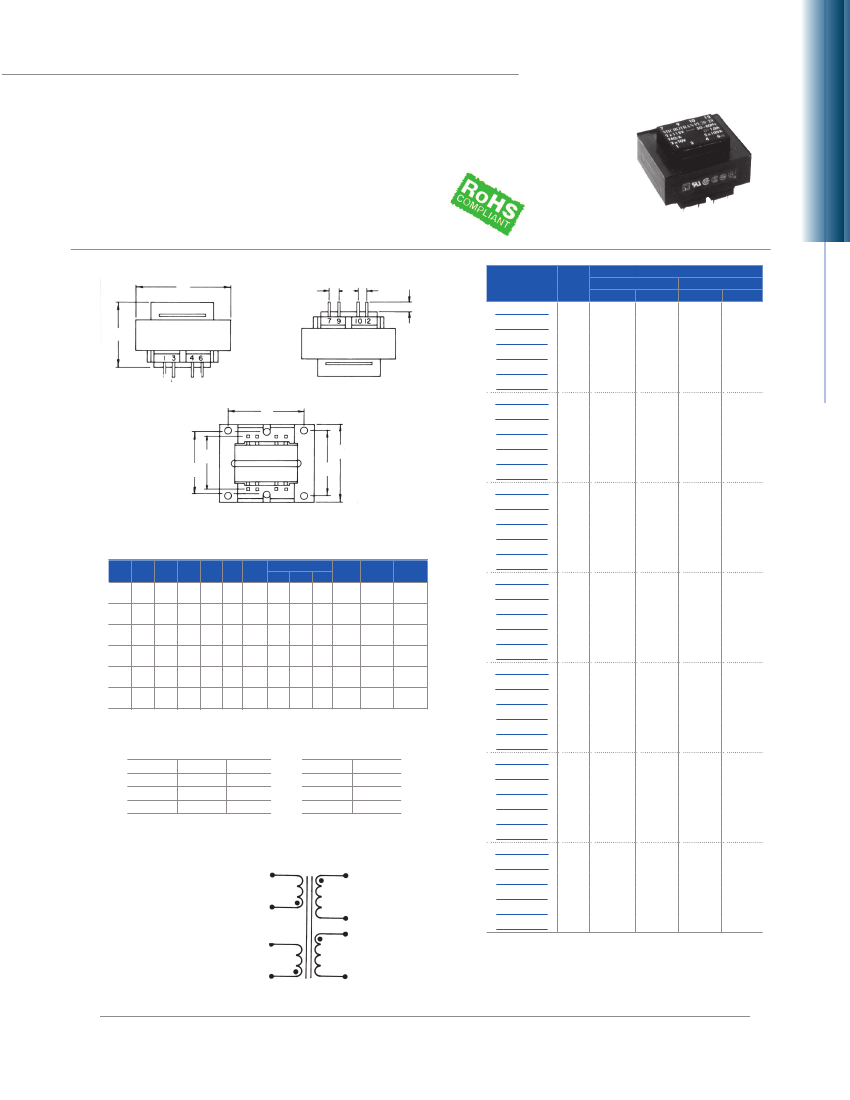

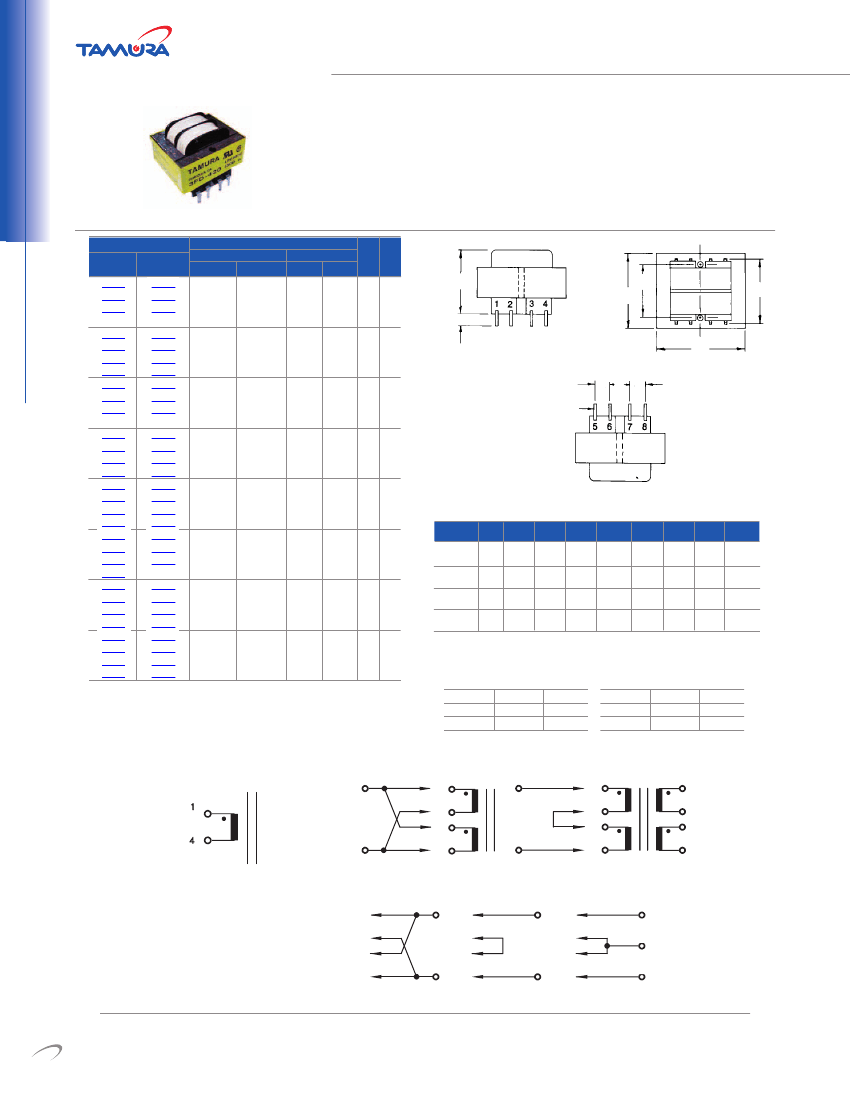

International Laminated Power Transformers

• 115V/230V Dual Primary

• Class B (130°C) File No. E92957

• 3500Vrms HiPot (Pri:Sec)

• UL94V-0 Flammability

• UL506 File No. E79781

• Non-Inherently Limited

•

• Power 2.5VA to 56VA

• TUV File No. 20650818 (EN61558-1,-2 -6)

• UL1411 File NO. E138028 (Construction Only)

www.tamuracorp.com

RoHS Compliant

Linear Power Transformers

PART

NUMBER

.187 MIN

(4.75)

B A

Dimensions Inches (mm)

(SIZE)

2.5

5.0

10.0

20.0

30.0

56.0

1.625

(41.3)

1.625

(41.3)

1.875

(47.6)

2.250

(57.2)

2.625

(66.7)

3.000

(76.2)

1.43

(36.3)

1.43

(36.3)

1.563

(39.7)

1.875

(47.6)

2.188

(55.6)

2.50

(63.5)

1.125

(28.6)

1.375

(34.9)

1.42

(36.1)

1.625

(41.3)

1.563

(39.7)

1.845

(46.9)

.200

(5.1)

.200

(5.1)

.200

(5.1)

.400

(10.2)

.550

(14.0)

.600

(15.2)

.250

(6.4)

.400

(10.2)

.400

(10.2)

.400

(10.2)

.275

(7.0)

.300

(7.6)

1.000

(25.4)

1.000

(25.4)

1.140

(29.0)

1.460

(37.1)

1.680

(42.7)

1.900

(48.3)

1.063 —

— 2X#4

(27.0)

(2X M3)

1.063 —

— 2X#4

(27.0)

(2X M3)

1.250 —

— 2X#4

(31.8)

(2X M3)

1.500 —

— 2X#4

(38.1)

(2X M3)

— 2.19 1.75 4X#4

(55.6) (44.5) (4X M3)

— 2.50 2.00 4X#6

(63.5) (50.8) (4X M5)

MTG.

MOUNTING

SCREWS

SQUARE

LBS

(KG.)

.025

(.635)

.025

(.635)

.036

(.914)

.036

(.914)

.045

(1.14)

.045

(1.14)

.25

(.11)

.37

(.17)

.53

(.24)

.90

(.41)

1.15

(.52)

1.70

(.77)

Packaging:

Size

2.5

5.0

10.0

Tube

Box

Size

20.0

30.0

56.0

Box

Schematics

115/230V

50/60 Hz

PL2.5-10-130B

PL5.0-10-130B

PL10-10-130B

PL20-10-130B

PL30-10-130B

PL56-10-130B

PL2.5-12-130B

PL5.0-12-130B

PL10-12-130B

PL20-12-130B

PL30-12-130B

PL56-12-130B

PL2.5-16-130B

PL5.0-16-130B

PL10-16-130B

PL20-16-130B

PL30-16-130B

PL56-16-130B

PL2.5-20-130B

PL5.0-20-130B

PL10-20-130B

PL20-20-130B

PL30-20-130B

PL56-20-130B

PL2.5-24-130B

PL5.0-24-130B

PL10-24-130B

PL20-24-130B

PL30-24-130B

PL56-24-130B

PL2.5-28-130B

PL5.0-28-130B

PL10-28-130B

PL20-28-130B

PL30-28-130B

PL56-28-130B

PL2.5-36-130B

PL5.0-36-130B

PL10-36-130B

PL20-36-130B

PL30-36-130B

PL56-36-130B

SECONDARY RMS RATING

PARALLEL CONNECTED SERIES CONNECTED

(SIZE)

VOLTS

AMPS

VOLTS

AMPS

2.5

5.0

0.50

10.0 CT

0.25

5.0

1.00

10.0 CT

0.50

10.0

5.0

2.00

10.0 CT

1.00

20.0

5.0

4.00

10.0 CT

2.00

30.0

5.0

6.00

10.0 CT

3.00

56.0

5.0

11.20

10.0 CT

5.60

2.5

6.3

0.40

12.6 CT

0.20

5.0

6.3

0.80

12.6 CT

0.40

10.0

6.3

1.60

12.6 CT

0.80

20.0

6.3

3.20

12.6 CT

1.60

30.0

6.3

4.80

12.6 CT

2.40

56.0

6.3

8.80

12.6 CT

4.40

2.5

8.0

0.30

16.0 CT

0.15

5.0

8.0

0.62

16.0 CT

0.31

10.0

8.0

1.25

16.0 CT

0.62

20.0

8.0

2.50

16.0 CT

1.25

30.0

8.0

3.80

16.0 CT

1.90

56.0

8.0

7.00

16.0 CT

3.50

2.5

10.0

0.24

20.0 CT

0.12

5.0

10.0

0.50

20.0 CT

0.25

10.0

1.00

20.0 CT

0.50

20.0

10.0

2.00

20.0 CT

1.00

30.0

10.0

3.00

20.0 CT

1.50

56.0

10.0

5.60

20.0 CT

2.80

2.5

12.0

0.20

24.0 CT

0.10

5.0

12.0

0.42

24.0 CT

0.21

10.0

12.0

0.84

24.0 CT

0.42

20.0

12.0

1.66

24.0 CT

0.83

30.0

12.0

2.50

24.0 CT

1.25

56.0

12.0

4.66

24.0 CT

2.33

2.5

14.0

0.18

28.0 CT

0.09

5.0

14.0

0.36

28.0 CT

0.18

10.0

14.0

0.72

28.0 CT

0.36

20.0

14.0

1.44

28.0 CT

0.72

30.0

14.0

2.12

28.0 CT

1.06

56.0

14.0

4.00

28.0 CT

2.00

2.5

18.0

0.14

36.0 CT

0.07

5.0

18.0

0.28

36.0 CT

0.14

10.0

18.0

0.56

36.0 CT

0.28

20.0

18.0

1.12

36.0 CT

0.56

30.0

18.0

1.64

36.0 CT

0.82

56.0

18.0

3.12

36.0 CT

1.56
