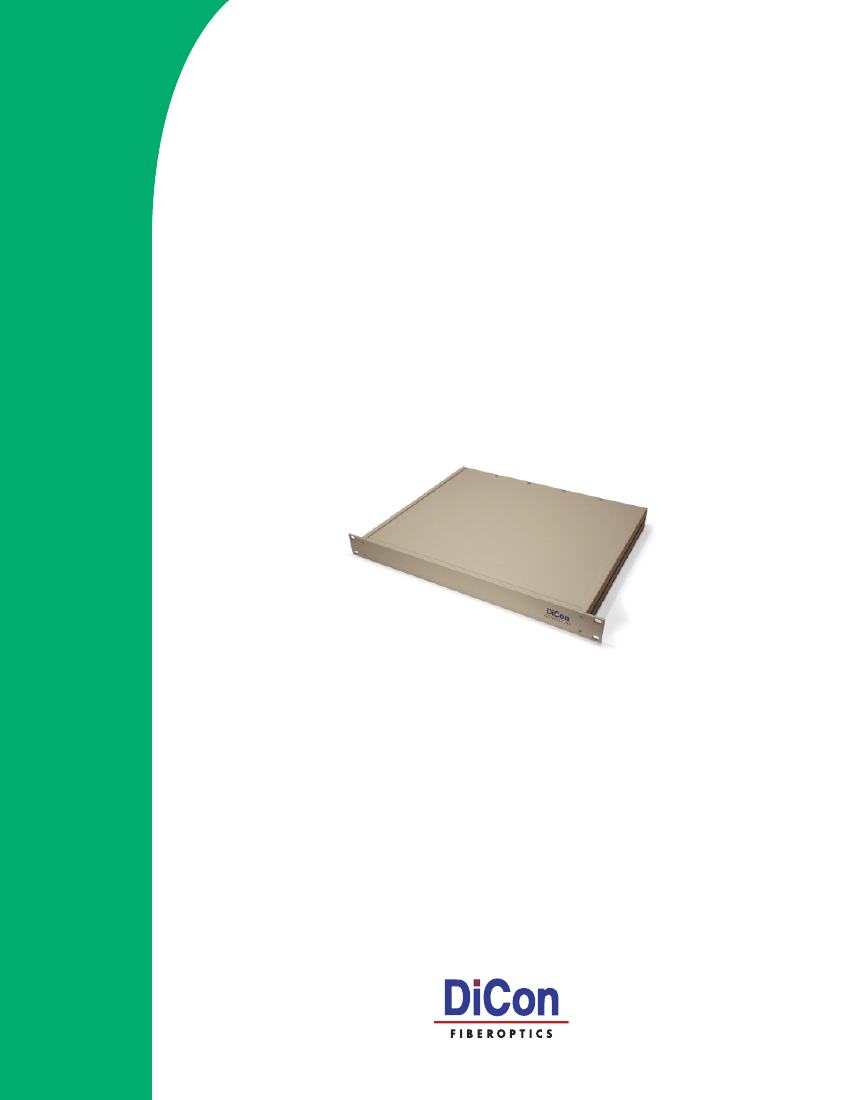

MEMS MULTI-MODE 1X64 OPTICAL SWITCH
DiCon’s Multi-Mode MEMS 1xN Optical Switch provides channel
selection between a single input fiber and N output fibers. The 1xN
module allows multiple MEMS multi-mode switch components to
be configured to provide a compact switch with up to 64 chan-
nels. At the core of each switch component is DiCon’s proprietary
MEMS chip; an electrostatically driven mirror implemented using
single-crystalline silicon and a stiction-free design. The mirror is
capable of rotating on two axes, allowing the input light to be re-
directed back to any desired output in a 2D plane. The switch is
bi-directional and can be used as a Nx1 selector swtich.
FEATURES
Proven MEMS Durability and Reliability
Compact Form Factor
Fast Switching Time
APPLICATIONS
Secure Communications
Bio-medical Instrumentation
Fiber Sensing
Video Distribution
Specifications subject to change. Copyright © 2009 DiCon Fiberoptics, Inc. All rights reserved.
OPTICAL SPECIFICATIONS
1
PARAMETER
Insertion Loss
2,3,4
Crosstalk
5
ORDERING INFORMATION
MSR
Product Code
MSR
MEMS Switch
50 µm
62.5 µm
Back Reflection
Switching Time
TDL
Repeatability
6
Durability
Optical Power
Operating Temp
Storage Temp
Fiber Type
RATING
2.4 dB max.
-25 dB max.
-20 dB max.
-20 dB max.
40 ms max.
0.4 dB max.
0.04 dB max.
10
9
cycles min.
500 mW max.
-5 to 70
o
C
-40 to 85
o
C
Multi-mode
B
Switch Configuration
1xN
1xN, Specify N≤64
Housing Type
1U
2U
1U Rackmount
2U Rackmount
Control Interface
I2C
RS2
I
2
C
RS232
Wavelength Range
8
8/13
850 nm only
850 & 1290 - 1330 nm
Other wavelengths available upon special request
1. Specifications are without connectors.
2. IL is measured at specified wavelength, 23
o
C.
3. IL is for standard transparent model.
4. IL is for single-band. Dual-band adds 0.9 dB.
5. Power off isolation is same as crosstalk.
6. Repeatability is defined after 100 cycles.
Fiber Type
50
62
50µm core
62.5µm core
Connector Type
FC/SPC FC/SPC
FC/APC FC/APC
MTP
MTP
Also Available: SC, SC/UPC, SC/APC, ST, ST/UPC, LC
Port Type
CONNECTOR & CHASSIS OPTIONS
CONNECTOR QUANTITY
FRONT
REAR
48
34
64
54
1. Based on FC connectors.
1
B
Bulkhead Adaptors
Port Location
F
R
Front Panel
Rear Panel
CHASSIS SIZE
1U
2U
ELECTRICAL SPECIFICATIONS
PARAMETER
Latching Type
Control Type
Vcc Voltage
Connector Type
RATING
non-latching
I
2
C, RS232
100 - 240 VAC
9 pin D-Sub Female
MECHANICAL DIMENSIONS
(Units: mm)
1U 19” RACKMOUNT CHASSIS
DiCon Fiberoptics, Inc. 1689 Regatta Blvd. Richmond, CA 94804 Tel. (510) 620-5000 Fax. (510) 620-4100 www.diconfiberoptics.com
0158A
MEMS MULTI-MODE 1X64 OPTICAL SWITCH
SPECIFICATIONS / ORDERING INFORMATION
MEMS MULTI-MODE 1X64 OPTICAL SWITCH
