302A11329X datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 302A11329X

Preview

302A11329X: DescriptionD Type Connector, 78 Contact(s), Female, Solder Lug Terminal, Hole .112-.124, Receptacle; CategoryThe connector The connector; File Size82KB，1 Pages; ManufacturerCONEC; Websitehttp://www.conec.com; Environmental Compliance

Download Datasheet Parametric View All

302A11329X Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	302A11329X	-	-	View	Buy Now

302A11329X Overview

D Type Connector, 78 Contact(s), Female, Solder Lug Terminal, Hole .112-.124, Receptacle

302A11329X Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	CONEC
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.509 inch
subject depth	0.278 inch
body length	2.65 inch
Body/casing type	RECEPTACLE
Contactor design	PREASSEM CONN
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	STAGGERED
Contact resistance	10 mΩ
Contact style	RND PIN-SKT
maximum insertion force	2.502 N
Insulation resistance	5000000000 Ω
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	302
Installation option 1	HOLE .112-.124
Installation option 2	LOCKING
Installation type	PANEL
Number of rows loaded	3
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Rated current (signal)	3 A
Guideline	UL, CSA
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Termination type	SOLDER LUG
Total number of contacts	78
Maximum wire diameter	22 AWG
Minimum wire diameter	22 AWG

Preview

Download Datasheet

View All

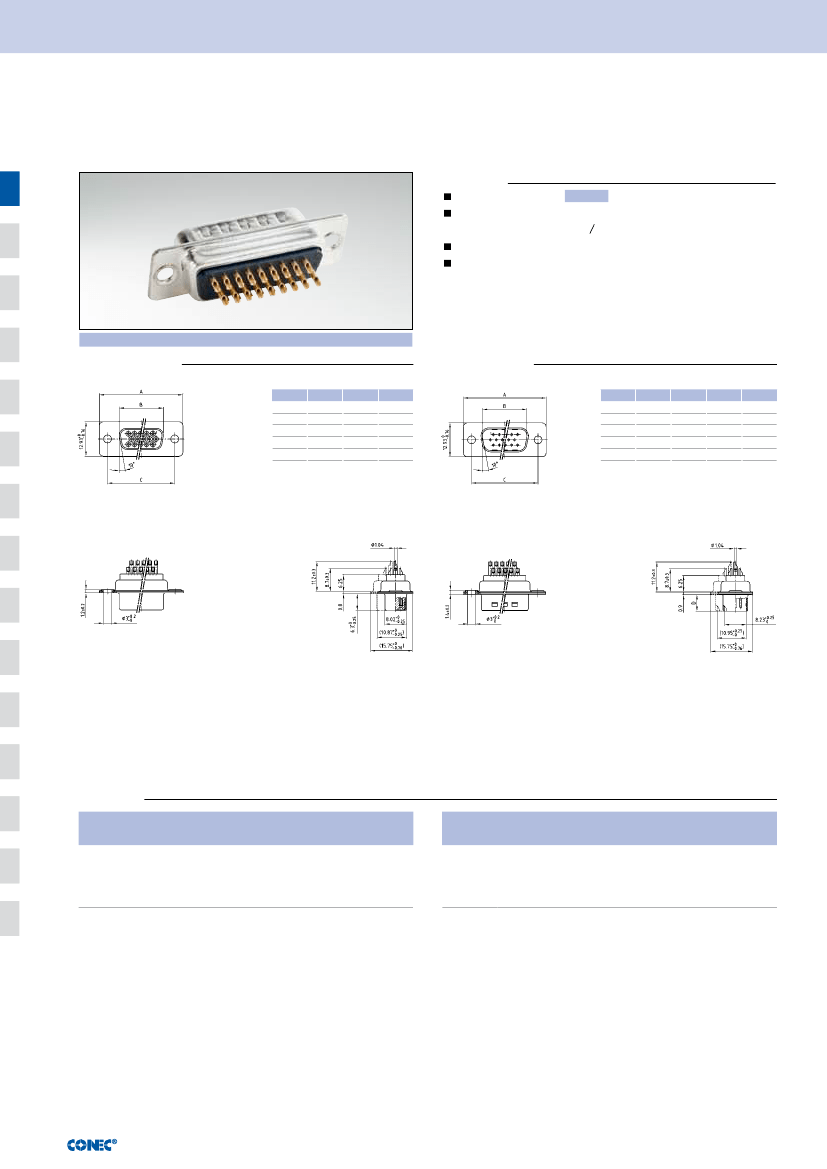

D -S U B Co n n ec to rs

D-SUB High Density

Solder cup – Stamped contacts – For wire size AWG 22

Description

Suitable for wire size AWG 22

Mounting style:

with through-hole Ø .118" 3 mm

Quality class 3 (other quality classes on request)

Shell: Steel tin plated

RoHS compliant – CSA listed, File No.: LR 115000-1 – UL listed, File No.: E202784

Socket connector

No. of pos.

15

26

44

62

78

Plug connector

A

-0.76

31.19

39.52

53.42

69.70

67.31

B

-0.25

16.46

24.79

38.50

54.96

52.55

C

25.00

33.30

47.04

63.50

61.10

+ 0.12

+ 0.15

- 0.10

± 0.13

+ 0.14

- 0.11

No. of pos.

15

26

44

62

78

A

-0.76

31.19

39.52

53.42

69.70

67.31

B

+0.25

16.79

25.12

38.84

55.30

52.68

C

25.00

33.30

47.04

63.50

61.10

+ 0.12

+ 0.15

- 0.10

± 0.13

+ 0.14

- 0.11

D

-0.3

6.12

5.99

Mounting style: Through-hole

78 pos. = Dim. in (_ _)

Order data

Socket connector

No. of pos.

15

26

44

62

78

Plug connector

Part Number

302 A 10129

302 A 10139

302 A 10149

302 A 10159

302 A 11329

X

Mounting style

Through-hole

No. of pos.

15

26

44

62

78

Mounting style

Through-hole

Part Number

301 A 10129

301 A 10139

301 A 10149

301 A 10159

301 A 11019

X

1| 58
