RPV280Y3 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> RPV280Y3

Preview

RPV280Y3: DescriptionSingle Color LED, Yellow, 5mm, 2 PIN; CategoryLED optoelectronic/LED photoelectric; File Size331KB，1 Pages; ManufacturerLEDtronics; Websitehttp://ledtronics.com.my

Download Datasheet Parametric View All

RPV280Y3 Overview

Single Color LED, Yellow, 5mm, 2 PIN

RPV280Y3 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	LEDtronics
package instruction	2 PIN
Reach Compliance Code	unknown
color	YELLOW
Configuration	SINGLE
Maximum forward current	0.01 A
JESD-609 code	e0
Nominal luminous intensity	3 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Optoelectronic device types	SINGLE COLOR LED
total height	10.67 mm
method of packing	BULK
peak wavelength	585 nm
shape	RECTANGULAR
size	5 mm
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Terminal pitch	2.54 mm

Preview

Download Datasheet

View All

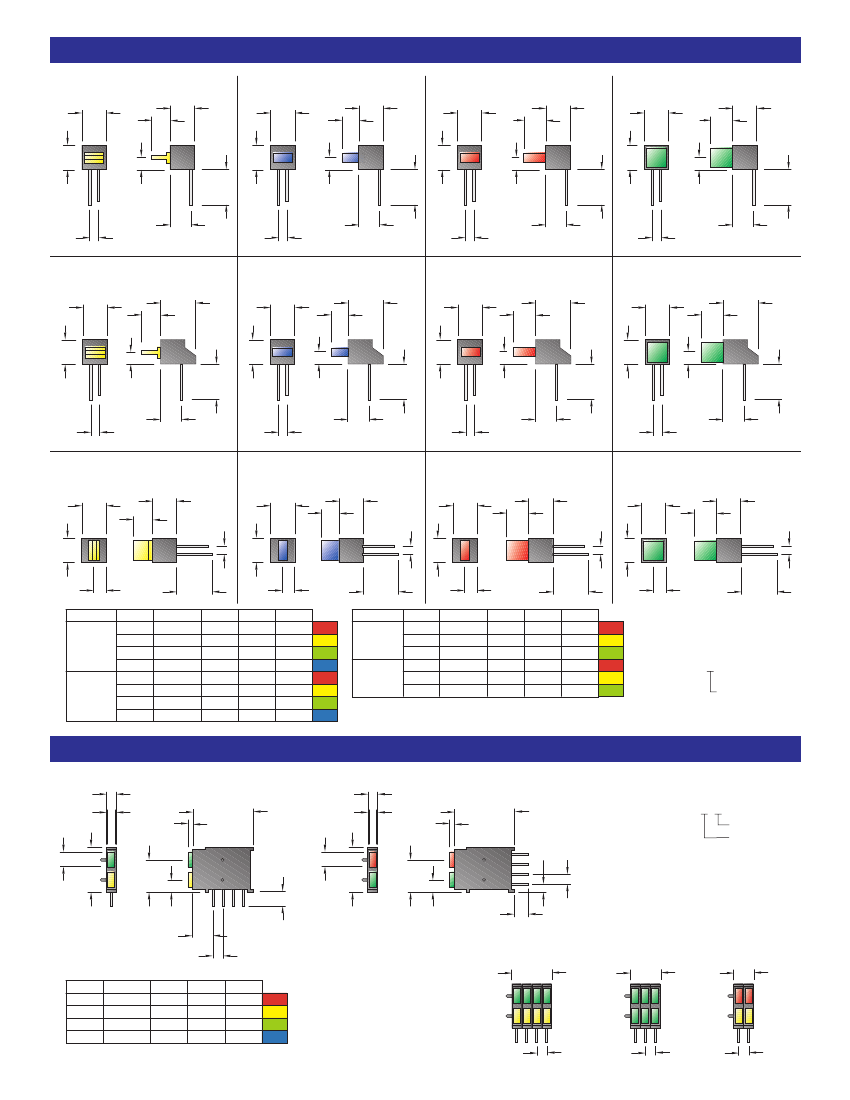

SINGLE LEVEL RECTANGULAR LEDs

RP240

.248

[6.3]

LED SIZE 1mm x 5mm

.248

[6.3]

.190

[4.8]

.248

[6.3]

RP280

LED SIZE 2mm x 5mm

.248

[6.3]

.170

[4.3]

.248

[6.3]

RP210

LED SIZE 2.5mm x 5mm

.248

[6.3]

.220

[5.6]

.248

[6.3]

SP200

LED SIZE 5mm x 5mm

.248

[6.3]

.220

[5.6]

.248

[6.3]

.125

[3.2]

.500 MIN

[12.7]

.248

[6.3]

.125

[3.2]

.500 MIN

[12.7]

.248

[6.3]

.125

[3.2]

.500 MIN

[12.7]

.248

[6.3]

.125

[3.2]

.500 MIN

[12.7]

+

.100

[2.6]

.200

[5.1]

.100

[2.6]

+

.200

[5.1]

.100

[2.6]

+

.200

[5.1]

.100

[2.6]

+

.200

[5.1]

RPT240

.248

[6.3]

LED SIZE 1mm x 5mm

.355

[9.0]

.190

[4.8]

.248

[6.3]

RPT280

LED SIZE 2mm x 5mm

.355

[9.0]

.170

[4.3]

.248

[6.3]

RPT210

LED SIZE 2.5mm x 5mm

.355

[9.0]

.220

[5.6]

.248

[6.3]

SPT200

LED SIZE 5mm x 5mm

.355

[9.0]

.220

[5.6]

.248

[6.3]

.125

[3.2]

.500 MIN

[12.7]

.248

[6.3]

.125

[3.2]

.500 MIN

[12.7]

.248

[6.3]

.125

[3.2]

.500 MIN

[12.7]

.248

[6.3]

.125

[3.2]

.500 MIN

[12.7]

+

.100

[2.6]

.200

[5.1]

.100

[2.6]

+

.200

[5.1]

.100

[2.6]

+

.200

[5.1]

.100

[2.6]

+

.200

[5.1]

RPV240

LED SIZE 1mm x 5mm

.248

[6.3]

.248

[6.3]

.190

[4.8]

.248

[6.3]

.248

[6.3]

RPV280

LED SIZE 2mm x 5mm

.248

[6.3]

.170

[4.3]

.248

[6.3]

.100

[2.6]

.248

[6.3]

.100

[2.6]

.500 MIN

[12.7]

Iv mcd

2.0/4.0

1.5/3.0

0.5/0.8

1.5/3.8

1.5/3.0

0.4/0.6

SERIES

RP210

RPT210

RPV210

SP200

SPT200

SPV200

.248

[6.3]

RPV210

LED SIZE 2.5mm x 5mm

.248

[6.3]

.220

[5.6]

.248

[6.3]

.248

[6.3]

SPV200

LED SIZE 5mm x 5mm

.248

[6.3]

.220

[5.6]

+

.500 MIN

[12.7]

CODE

R

Y

G

B

R

Y

G

B

COLOR

RED

YELLOW

GREEN

BLUE

RED

YELLOW

GREEN

BLUE

mA

10/30

30/50

10/30

30/50

+

.100

[2.6]

.500 MIN

[12.7]

mA

10/30

Vf

2.0/2.8

2.1/2.8

2.0/2.8

2.1/2.8

Iv mcd

1.0/2.0

2.5/4.5

0.3/1.0

0.4/1.5

0.4/1.3

.125

[3.2]

.500 MIN

[12.7]

+

.100

[2.6]

.125

[3.2]

SERIES

RP240

RPT240

RPV240

.125

[3.2]

Vf

2.0/2.8

2.1/2.8

3.2/3.7

2.0/2.8

2.1/2.8

3.2/3.7

.125

[3.2]

COLOR

RED

YELLOW

GREEN

RED

YELLOW

GREEN

CODE

R

Y

G

R

Y

G

SAMPLE PART NUMBER:

RP280X3

LED COLOR

RP280

RPT280

RPV280

- ALL "Vf" READINGS ARE TYP/MAX

- ALL "mcd" READINGS ARE MIN/TYP

BILEVEL RECTANGULAR LEDs

21RP070

.098

[2.5]

.070

[1.8]

.325

[8.3]

LED 1

.153

[3.9]

.440

[11.2]

LED 2

.125

[3.2]

.153

[3.9]

.045

[1.2]

.605

[15.4]

.098

[2.5]

.070

[1.8]

.325

[8.3]

LED 1

LED 2

.440

[11.2]

.125

[3.2]

.140

[3.6]

.045

[1.2]

.605

[15.4]

21RPV070

SAMPLE PART NUMBER:

21RPV070T3-X/X

LED 2 COLOR

LED 1 COLOR

.075

[1.9]

+

LED 2

+

.100 TYP

[2.6]

+

.140

[3.6]

.205

[5.2]

.100 TYP

[2.6]

LED 2

CODE

R

Y

G

B

COLOR

RED

YELLOW

GREEN

BLUE

â

Arrays

24RP070

23RP070

.392

[10.0]

.294

[7.5]

22RP070

.196

[5.0]

mA

10/30

30/35

Vf

2.0/2.8

2.1/2.8

3.2/3.7

Iv mcd

1.2/3.0

1.0/2.3

1.2/3.0

0.6/1.1

SPECIALS

- ALL "Vf" READINGS ARE TYP/MAX

- ALL "mcd" READINGS ARE MIN/TYP

- LC = LOW CURRENT 2mA LEDs

- X = DENOTES BLANK LED SPACE

- CONSULT FACTORY ON PART NUMBERS FOR

ARRAYS WITH NONCONSECUTIVE COLORS

LEDTRONICS, INC.

23105 Kashiwa Court, Torrance, CA 90505

Phone: (800) 579-4875 or (310) 534-1505 Fax: (310) 534-1424

.098 TYP

[2.5]

.098 TYP

[2.5]

.098 TYP

[2.5]

8

E-mail: webmaster@ledtronics.com

Website: http://www.ledtronics.com
